Chauvet Professional MAVERICKFORCEXSPOT Maverick Force X Spot

Chauvet Professional MAVERICKFORCEXSPOT Maverick Force X Spot

A compact and lightweight LED moving spot that delivers a powerful 17,325-lumen output, a versatile 18:1 zoom, and a comprehensive feature set including CMY color mixing, dual gobo wheels, a five-facet prism, and frost. Designed as a workhorse for a wide range of short and long throw applications, this fixture is ideal for touring, theatre, corporate events, and broadcast.

• Features a powerful 520W cool white LED engine with a 6462 K color temperature.
• Delivers an expansive 3.5° to 57.7° zoom range for flexible beam shaping.
• Offers a variable CMY system and a color wheel with CRI and CTB filters.
• Includes an iris for precise beam control alongside dual gobo wheels and a prism.
• Supports versatile control via DMX, RDM, sACN, Art-Net, and onboard CRMX.
• Ensures flicker-free on-camera operation with 16-bit dimming and high-speed PWM.

This powerful yet lightweight fixture combines the latest technical advancements of the Maverick series to achieve 17,325 lumens of output in a design that maintains a flat field of focus from its narrow 3.5° beam to its wide 57.7° beam. Color calibration and gobo selection are comparable to other Force fixtures, and its design includes a variable CMY color mixing system, renowned for its true reds, a color wheel with CRI and CTB filters, static and rotating gobo wheels, a five-facet prism, iris, and frost. With excellent dimming performance, a wide 18:1 zoom, and a comprehensive array of features, the Maverick Force X Spot is a compact LED moving head, ideal for a wide range of short- and long-throw applications. Control via DMX, RDM, sACN, Art-Net, or CRMX.

• Compact LED Spot Fixture: A fully-featured, lightweight 520W LED yoke spot fixture with a comprehensive set of professional tools.
• Variable CMY Color Mixing: Create a vast spectrum of colors with the smooth, variable CMY color mixing system.
• Dual Gobo Wheels: Includes one rotating and one static gobo wheel for a wide range of pattern and aerial effects.
• 16-Bit Dimming: Provides exceptionally smooth control of fades and intensity changes.
• High-Speed PWM: A 65,000 Hz PWM rate ensures flicker-free operation on camera while maintaining excellent dimming.
• Flexible Control Options: Supports DMX, WDMX, sACN, and Art-Net protocols for versatile integration into any control system.
• RDM Enabled: Allows for remote addressing, configuration, and troubleshooting directly from your controller.
• Wide Zoom Range: Offers an expansive 3.5° to 57.7° zoom range for creating variable beam sizes.
• Advanced Beam Control: Shape and modify the beam using the built-in iris, 5-facet prism, and frost filter.
• True-1 Power Input: Features a secure, True-1 compatible power input connection for reliable power.
• Easy Setup Presets: Simplify shop preparation with three menu presets and the ability to sync settings across multiple fixtures.
• USB Software Updates: A convenient USB slot allows for quick and easy software uploads to keep the fixture current.
• Battery Powered Display: Access the menu without main power via a display that auto-rotates for easy viewing in any orientation.
• Failsafe Ethernet Connectivity: Ensures data pass-through continues on the network line even if the fixture loses power.
• NFC Fixture Setup: Utilize Near Field Communication for fast and easy fixture configuration directly from a compatible device.

Optical

• Light Source: 1 LED (CW) 520 W, (4.2 A), 6462 K, 50,000
• Color Temperature (at full): 6462 K
• Front lens diameters: 145 mm
• CRI: 72.2
• CQS: 69.6
• TLCI: 50
• CRI with CRI filter: 90
• CQS with CRI filter: 89.8
• TLCI with CRI filter: 78
• CTB color temperature: 7946K
• Beam Angle: 3.5° to 51.3°
• Field Angle: 3.7° to 56.3°
• Cutoff Angle: 3.9° to 57.7°
• Zoom Range: 3.5° to 57.7°
• Lumens – Output: 17,325
• Selectables PWM: 600Hz, 1500Hz, 2000Hz 65000Hz

Dynamic Effects

• Pan and Tilt: 540°/270°
• Pan and Tilt ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colors: Colors: 7 (Red, Orange, Magenta, CTO 4300K, CTO 3200K, CRI and CTB filters) + white, split colors, continuous scroll at variable speeds
• Colors: CMY wheels
• Color Macros: # macros
• Gobos (1): 7 + open (1 metal + 6 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Gobos (2): 9+ open (9 metal) continuous scroll at variable speeds
• Gobo Size: Gobo Wheel 1 (rotating): 24 mm (outside), 14 mm (image), 1.1 mm (max. thickness)
• Dimmer: Electronic
• Shutter/Strobo: Electronic
• Zoom: Motorized
• Focus: Motorized
• Frost: Motorized
• Iris: Motorized
• Prism: 5-facet, motorized, rotating
• Strobe Rate: 0 to 25 Hz
• Move-in-Black: yes
• Dim Curves: 5

Construction/Physical

• Dimensions: 14.21 x 9.40 x 25.43 in (361 x 239 x 646 mm)
• Weight: 44.2 lbs (20 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast, High-impact flame-retardant polymer, Steel

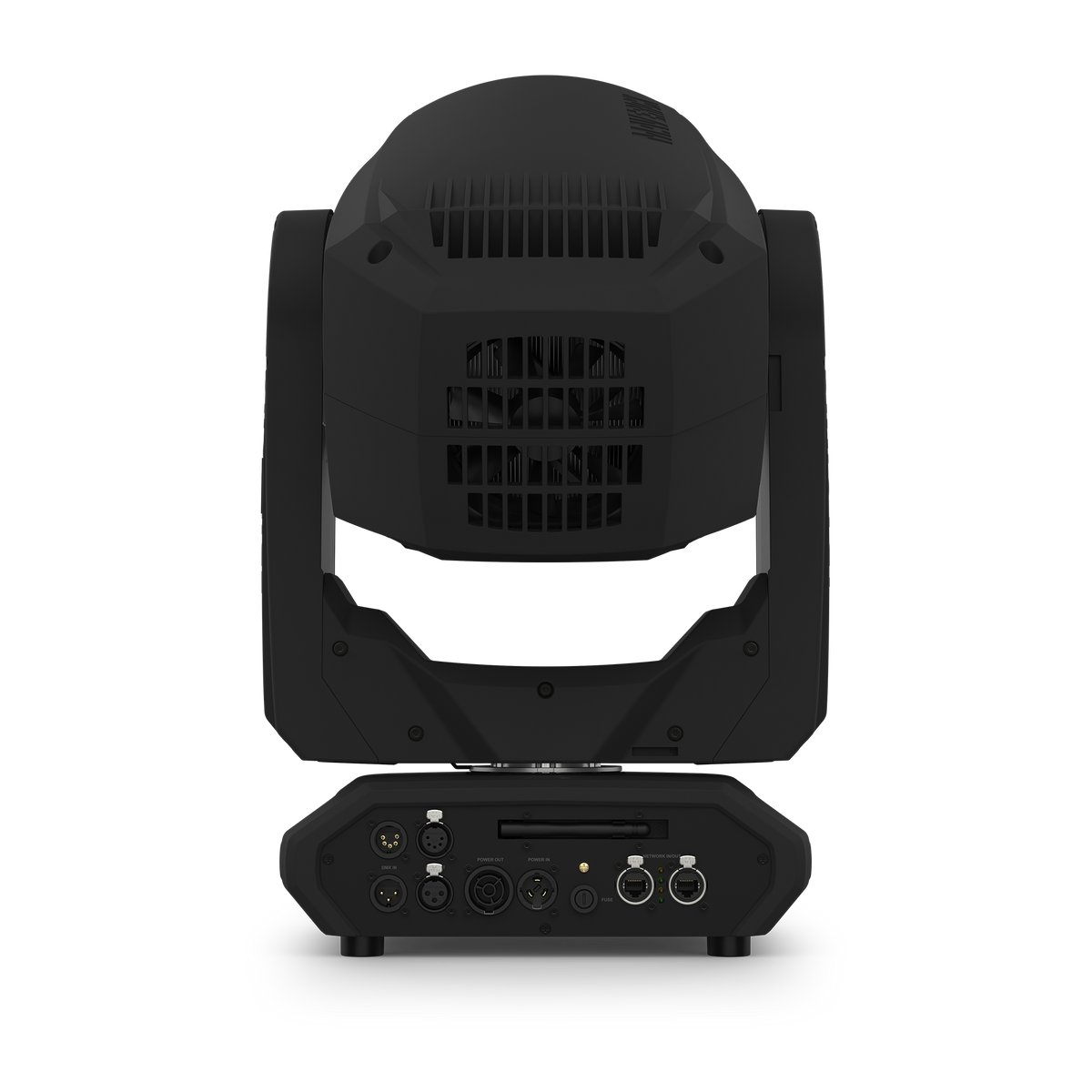

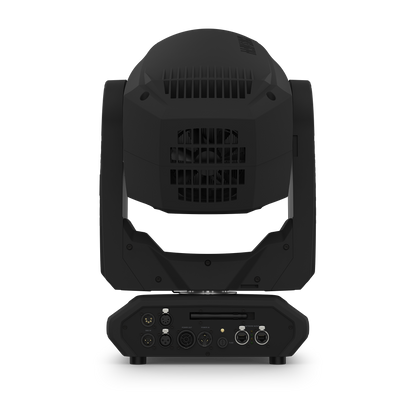

Connections

• Power Connection: Edison plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin IP65 XLR, Seetronic etherCON
• Cable Length (signal): 5 ft (1.5 m)

Control

• DMX Channels: 22 or 29
• Art-Net Channels: 22 or 29
• Modoes/Personalities: 2 personalities (22, 29)

Electrical

• Input Voltage: 100 a 240 VAC, 50/60 Hz
• Power Linking: 2 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
• Power and Current: 554 W, 4.64 A @ 120 V, 60 Hz
• Power and Current: 541 W, 2.68 A @ 208 V, 60 Hz
• Power and Current: 542 W, 2.44 A @ 230 V, 50 Hz

Battery

• Battery type: Lithium Ion (display screen backup)
• Rechargable: Yes
• Battery Charge Time: 5 hours
• Battery Life: 1 hour
• Battery Power: 3.7 V, 500 mAh

Certifications/Qualifications

• Certifications: CE, MET, FCC, UKCA
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F ( -20 °C a 45 °C )
