Chauvet Professional GROUNDSTACKKIT Ground Stack Kit, works with REM Rental and F-series video panels

Chauvet Professional GROUNDSTACKKIT Ground Stack Kit, works with REM Rental and F-series video panels

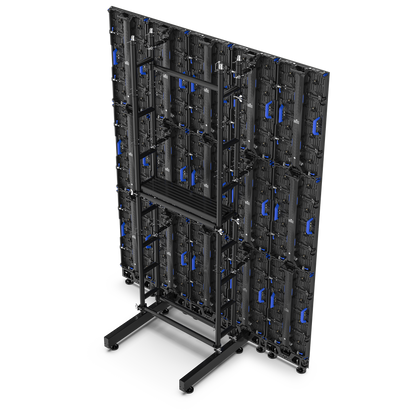

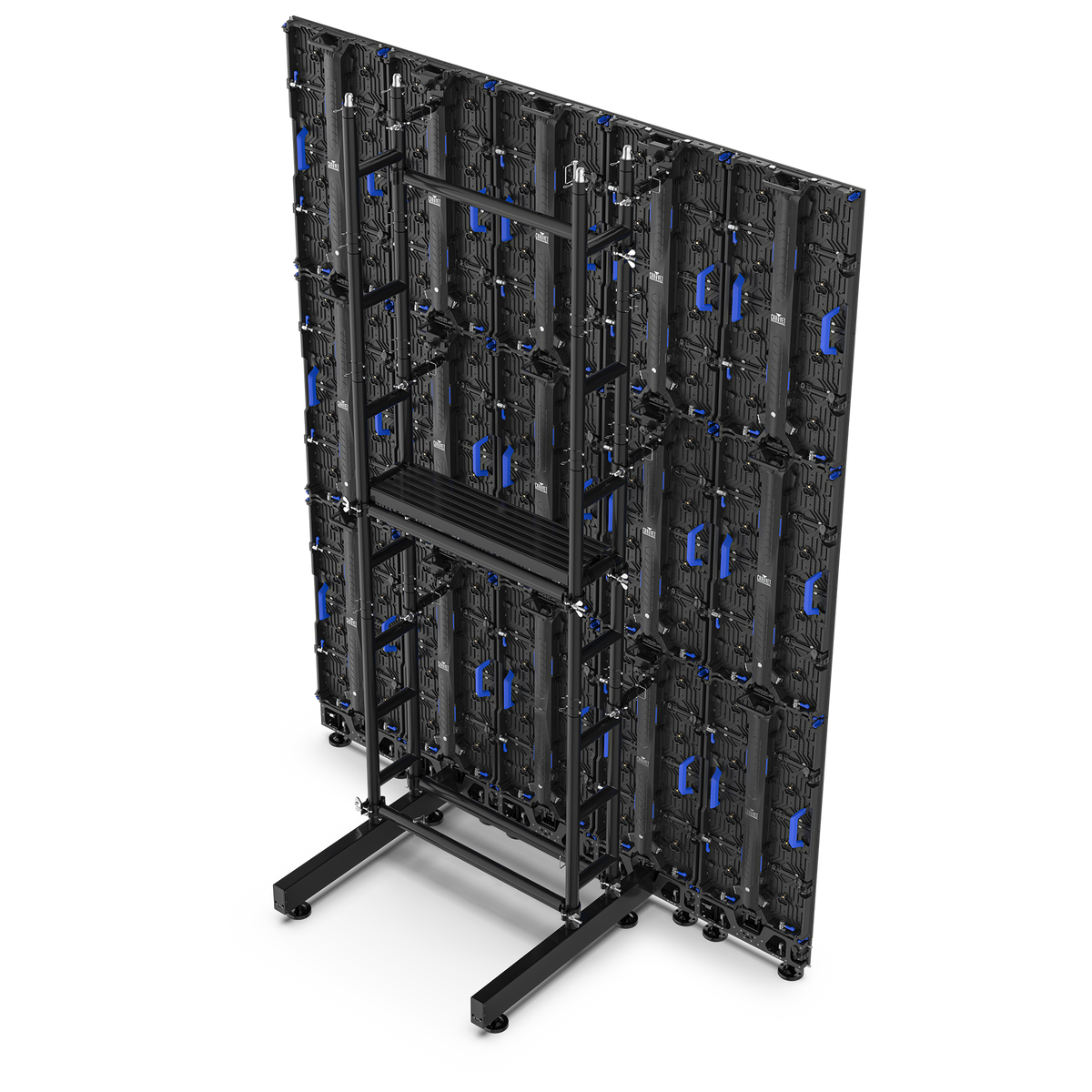

A complete and scalable ground support solution for stacking a wide range of video panels to create flat, convex, and concave video walls. Perfectly suited for touring productions, festivals, and corporate events requiring a versatile and quickly deployable ground-supported video wall.

• Designed for CHAUVET Professional REM, F2, F3, F4, and F5 series video panels.
• Accommodates flat, convex (2.5°/5°), and concave (5°/10°) video wall configurations.
• Supports video walls from 1.5m to 2m wide and up to 3m high per kit.
• Features a scalable design to combine multiple kits for constructing wider walls.
• Includes an integrated, climbable platform to simplify the assembly of taller walls.
• Ships in a durable road case for convenient transport, setup, and teardown.

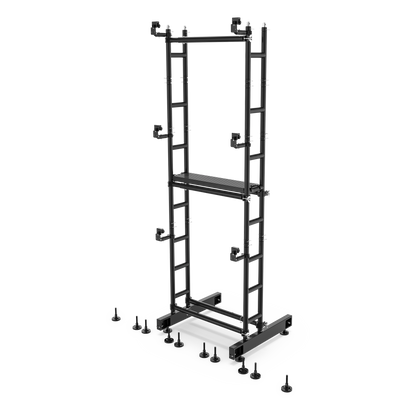

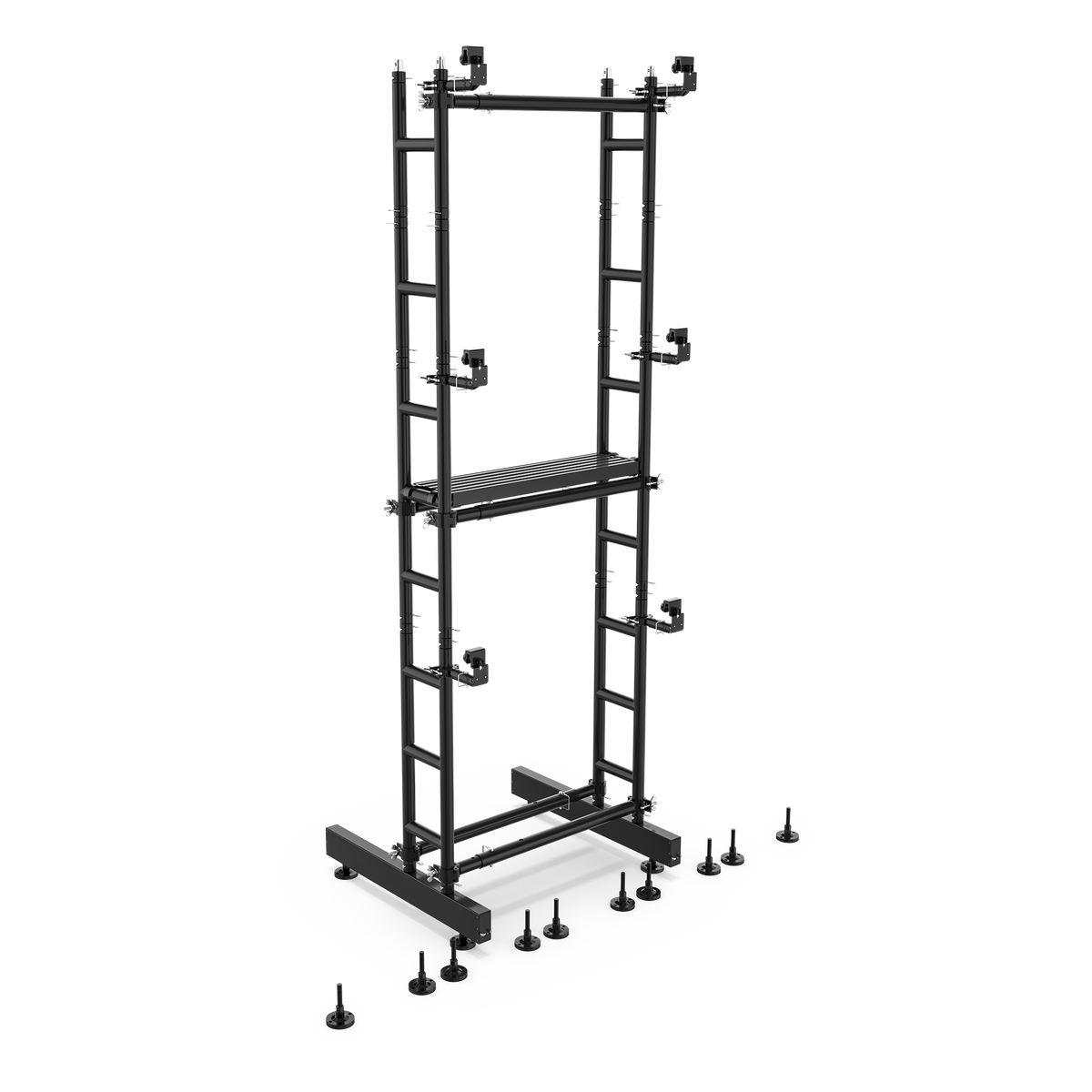

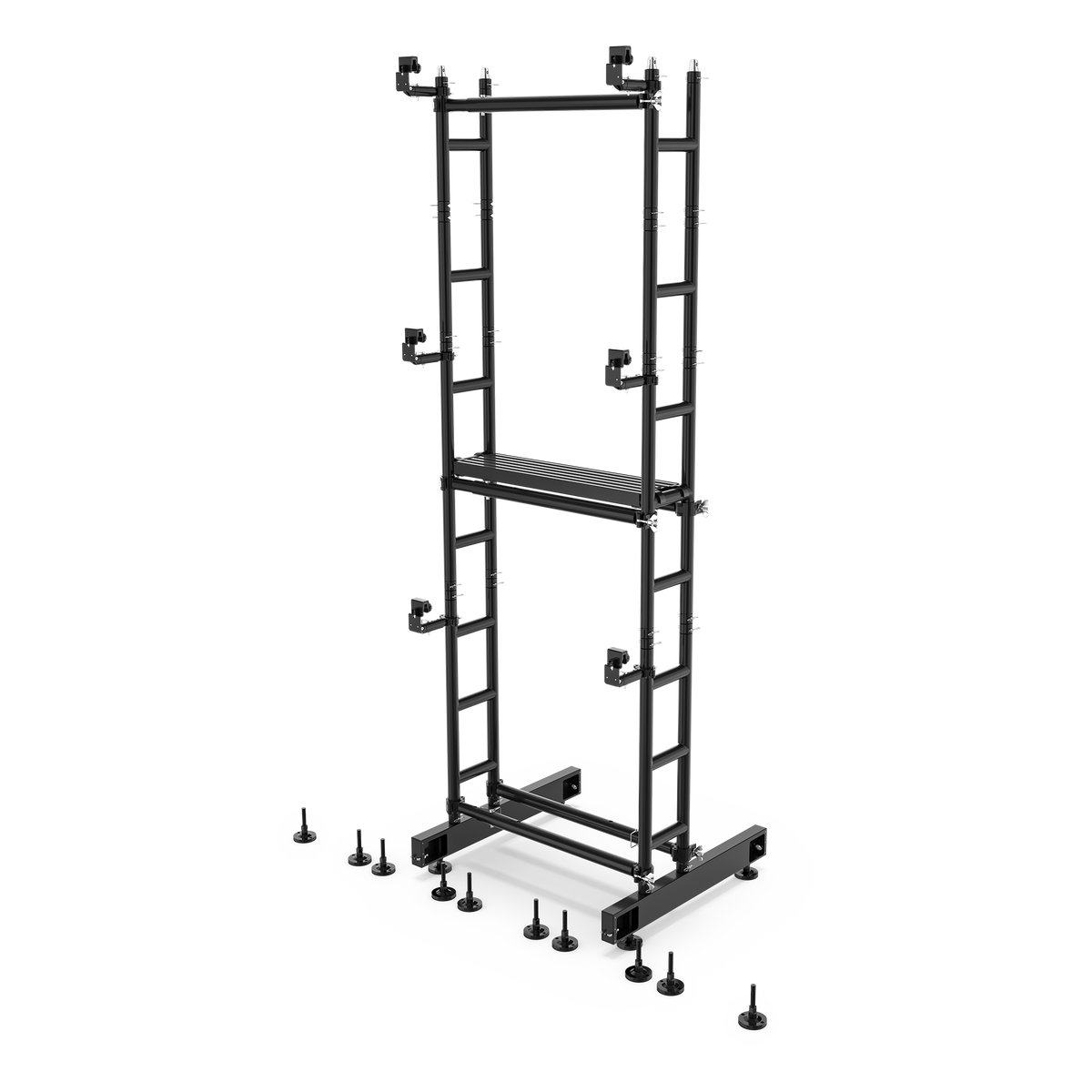

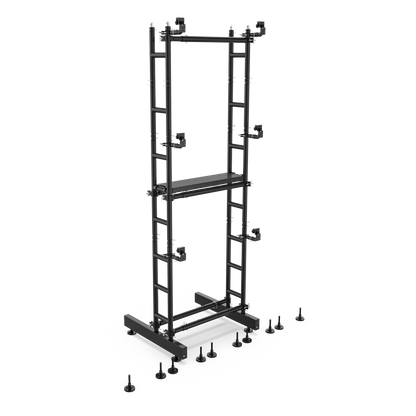

Our Ground Stack Kit provides a complete ground support solution for stacking REM1, REM3IP, F2, F3/F3X, F4IP/F4XIP, and F5IP video panels, and supports flat, convex and concave video walls, including 2.5° and 5° convex curves, 5° and 10° concave curves. This climbable system includes a platform for use when rigging taller walls. Suitable for walls between 4.92 ft (1.5 m) and 6.56 ft (2 m) wide and as high as 9.85 ft (3 m) tall. Scalable design allows combining multiple Ground Stack Kits to create wider walls. Ground Stack Kit ships in a road case that makes loading in and out easy. Note: Dual Function Rig Bars (not included) are required for operation.

• Complete Ground Support Solution: Provides a full system for safely stacking video walls directly on the floor.
• Flexible Wall Dimensions: Supports video walls from 1.5 to 2 meters wide and up to 3 meters high with a single kit.
• Expandable System: Combine multiple kits to construct video walls that are wider than the standard configuration.
• Curved and Flat Wall Support: Accommodates both flat video walls and concave arrangements with 5 and 10-degree curves.
• Broad Panel Compatibility: Designed to work with a wide range of Chauvet Professional F-series and REM video panels.
• Tour Ready Road Case: The entire system ships in a durable road case for convenient transport, setup, and teardown.
• Rig Bar Requirement: Requires dual-function rig bars compatible with F-series and REM video panels, which are not included.
• Integrated Rigging Platform: Features a climbable platform to assist with the safe and easy assembly of taller walls.

Construction/Physical

• Dimensions (packed in case): 50.4 x 21.1 x 39.3 in (128 x 53.5 x 99.9 cm)
• Exterior Color: Black
• Housing Material: Aluminum extrusion and Steel
• Maximum vertical stack supported: 3 m tall
• Maximum width supported: 2.0 m wide
• Maximum person weight supported: 250 lb (113.4 kg)

Certifications/Qualifications

• Certifications: CE
• IP Rating: IP65 (temporary outdoor use)
• Wind Rating: consult structural engineer for proper ballast weight and reinforcement
• Temperature (Ambient): -4 °F to 140 °F (-20 °C to 60 °C)
