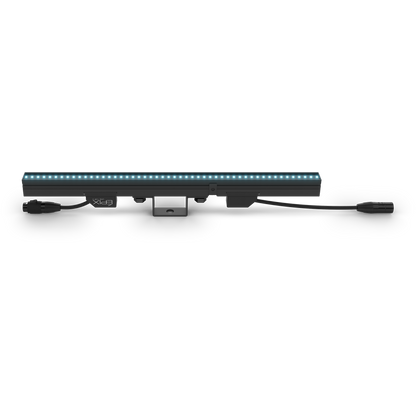

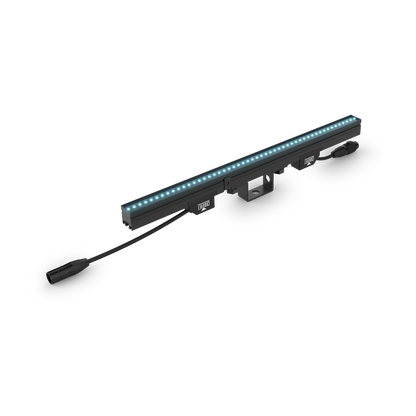

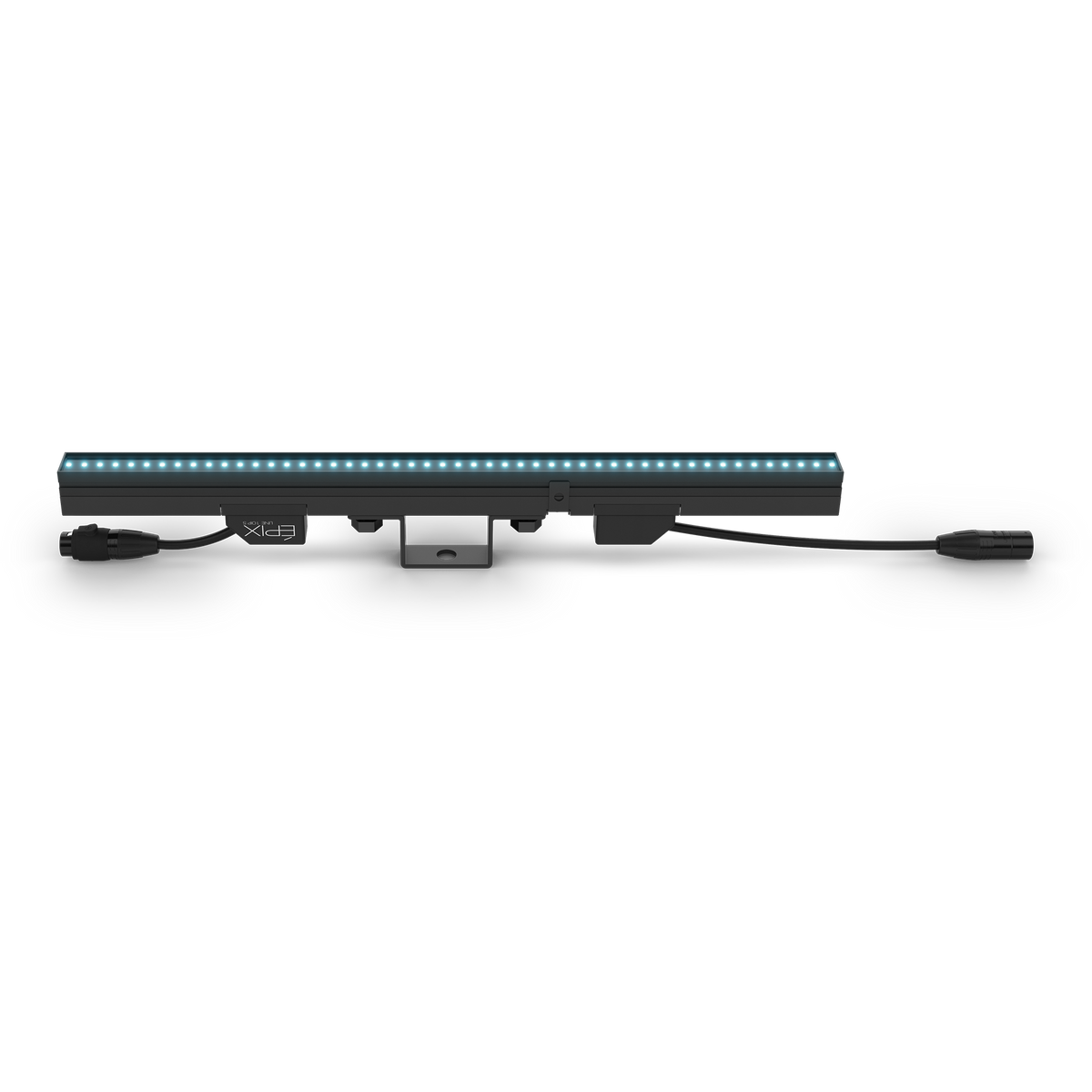

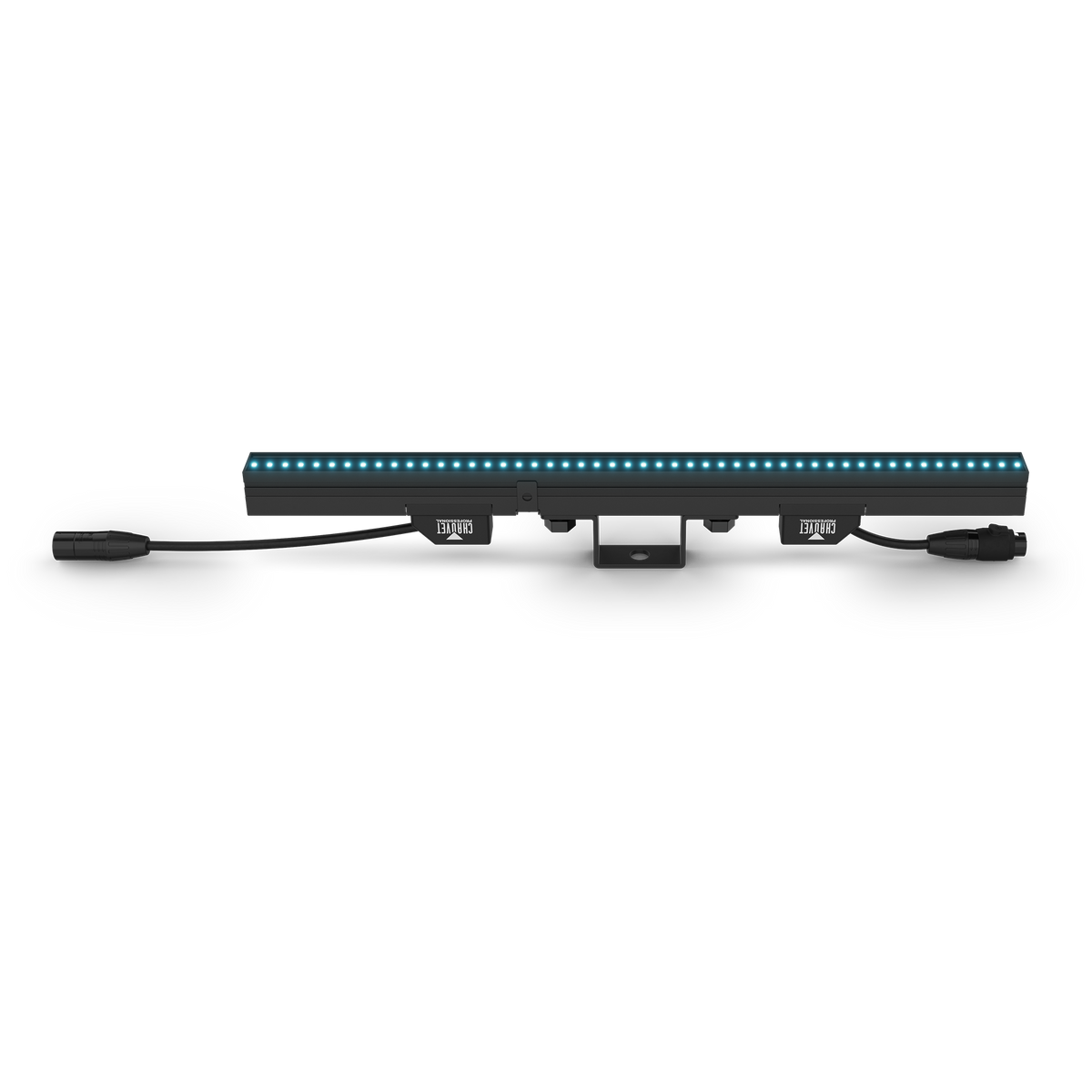

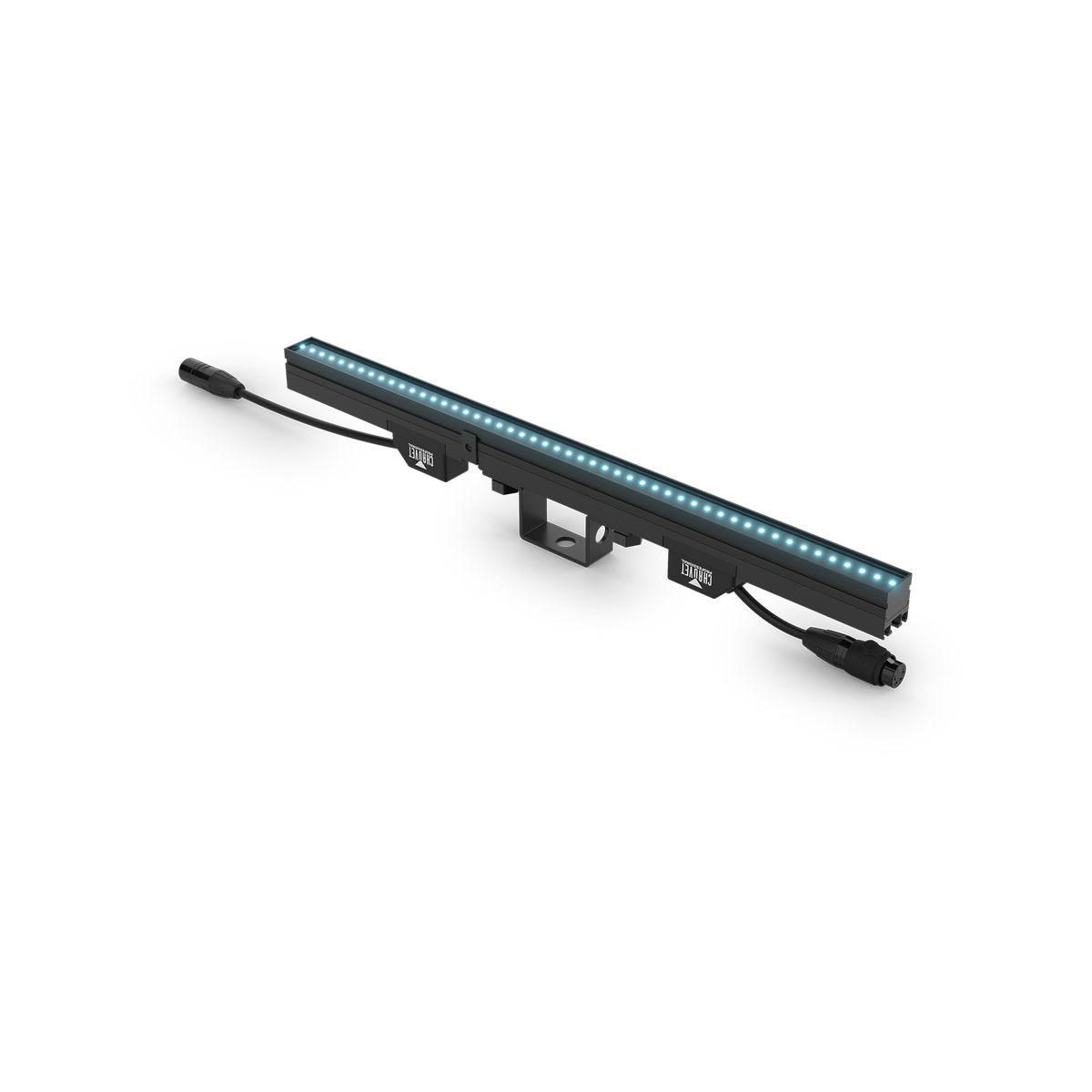

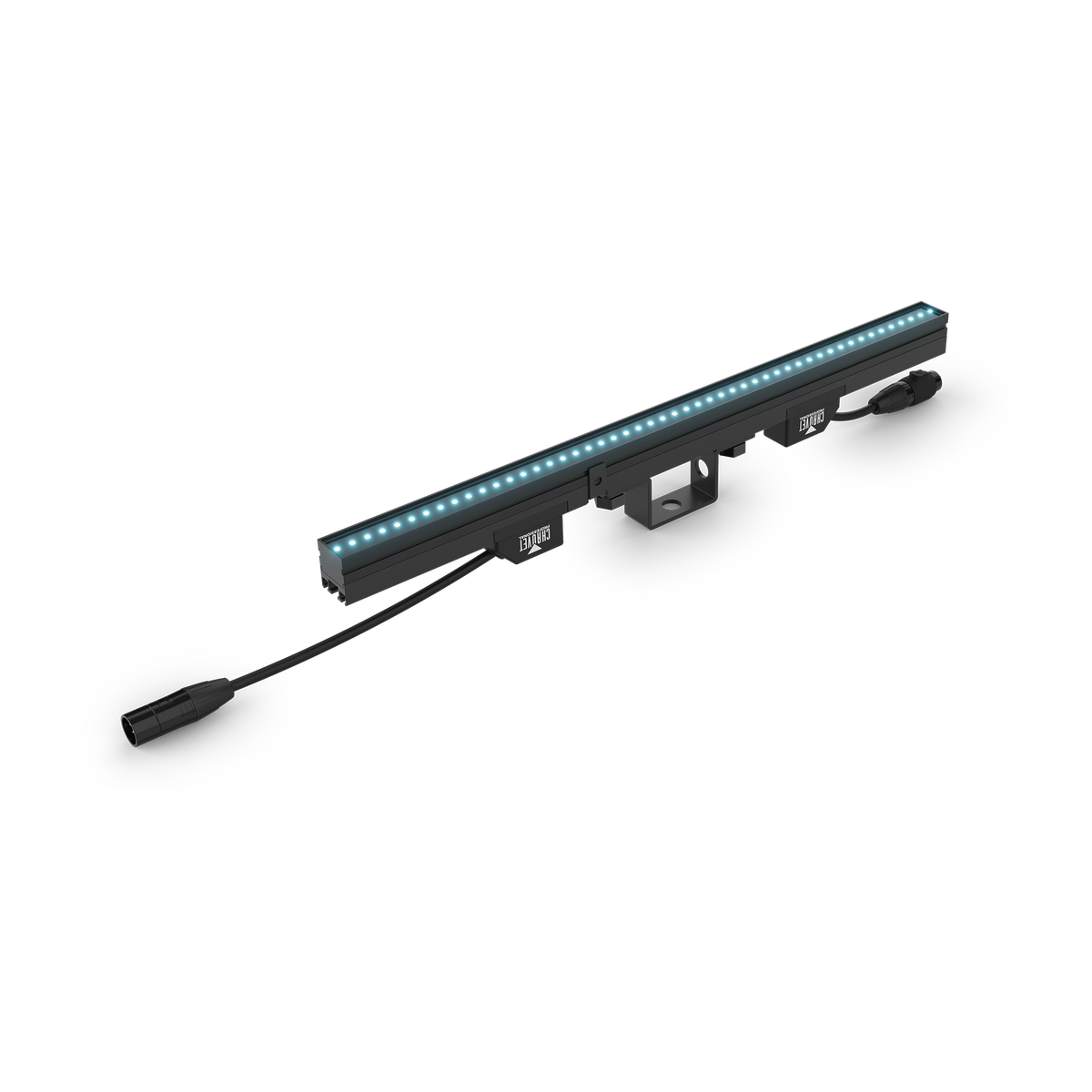

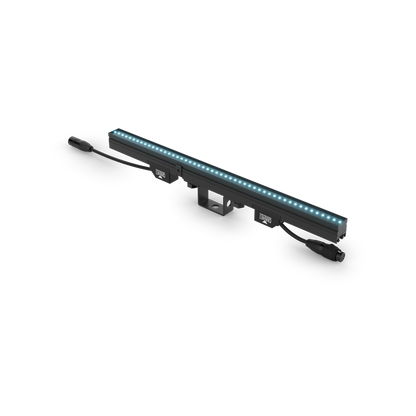

Chauvet Professional EPIXL10IPS Epix Line 10 IP S

Chauvet Professional EPIXL10IPS Epix Line 10 IP S

This compact, half-meter IP65 linear fixture delivers vivid, wide-gamut RGB color and includes three optical filters for varied viewing angles and looks.

• Outdoor-Rated Pixel Strip – Linear LED strip with 10 mm pixel pitch delivers vivid, wide-gamut RGB color for dynamic architectural and entertainment applications.
• Flexible Connectivity & Optics – Standard 4-pin XLR connectors and three included optical filters support multiple use cases, including wide viewing angles.
• Compact & Serviceable Design – Slim form factor simplifies integration into tight spaces, while full repairability ensures long-term reliability and lower service costs.
• Streamlined Setup – Native compatibility with the ÉPIX Mapping System and MVR support makes configuration fast and intuitive.

ÉPIX Line 10 IP S delivers vivid wide-gamut RGB color and a variety of looks and viewing angles with three included optical filters. Powered by the ÉPIX D4 IP Drive, this compact 0.5-meter outdoor-rated linear pixel strip offers native compatibility with the ÉPIX Mapping System, industry-standard MVR file support, and automatic fixture detection, enabling fast streamlined video mapping and scalable configuration in the most demanding touring, rental, and permanent integration applications.

• Outdoor-Rated Pixel Strip: The IP65-rated housing and 10 mm pixel pitch deliver vivid, wide-gamut RGB color for dynamic architectural and entertainment applications.
• Flexible Optics and Connectivity: Three included optical filters and standard 4-pin XLR connectors provide versatile looks and support a wide range of installation requirements.
• Compact and Serviceable Design: A slim form factor simplifies integration into tight spaces, while full repairability ensures long-term reliability and lower total cost of ownership.
• Streamlined Setup and Control: Native compatibility with the ÉPIX Mapping System and MVR support makes system configuration and video mapping fast and intuitive.

Optical

• Light Source: 50 SMD 2727LEDs (tri-color RGB), 50,000 hours life expectancy
• Beam Angle: 114.6°
• Field Angle: 161.9°
• Viewing Angle: 170°
• Lumens: 581.2
• Pixel Pitch: 10 mm
• Display Refresh Rate: 4900 Hz

Dynamic Effects

• Strobe Rate: 0 to 30 Hz

Construction/Physical

• Dimensions (no filter): 19.685 x 1.161 x 2.862 in (500 x 29.5 x 72.7 mm)
• Dimensions (square filter installed): 19.685 x 1.228 x 2.862 in (500 x 31.20 x 72.7 mm)
• Dimensions (round filter installed): 19.685 x 1.969 x 2.862 in (500 x 50 x 72.7 mm)
• Weight: 1.644 lb (0.746 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy, Aluminum die-cast, High-impact flame-retardant polymer, Stainless Steel
• IP Rating: [IP65]

Connections

• Power Supply (remote driver): ÉPIX D4 IP
• Physical Linking (Standard Mode): 20 inline ÉPIX Line 10 IP S
• Physical Linking (Hi Power Mode): 13 inline ÉPIX Line 10 IP S
• Data Connectors: 4-pin IP65 XLR
• Minimum required device linking cable size: 4 conductor (2 x 14 AWG, 2 x 16 AWG)
• Total max. cable length (shielded cables) between ÉPIX D4 IP and last ÉPIX Line: 210 ft (64 m)
• Max. cable length (shielded cables) between ÉPIX D4 IP and first ÉPIX Line: 65 ft (20 m)
• Max. cable length (shielded cables) between each ÉPIX Line: 60 ft (18 m)
• Total max. cable length (unshielded cables) between ÉPIX D4 IP and last ÉPIX Line: 300 ft (91 m)
• Max. cable length (unshielded cables) between ÉPIX D4 IP and first ÉPIX Line: 150 ft (45 m)
• Max. cable length (unshielded cables) between each ÉPIX Line: 100 ft (30 m)

Control

• Control Protocol: [Art-Net, sACN, Art-RDM, KLSTR, ÉPIX Mapping System]
• DMX Channels: 2, 18, Groups of 5/10/25/50, or 150
• Video Refresh Rate: 60 Hz

Electrical

• Input Voltage: 48VDC
• Power and Current (STD): 11 W, .223 A @ 48 VDC
• Power and Current (Hi-PWR): 16 W, .328 A @ 48 VDC

Certifications/Qualifications

• Compliance: [CE, MET, FCC, ETL, UKCA, etc.]
• Operating Temperature: -4 °F to 122 °F (-20 °C to 50 °C)
