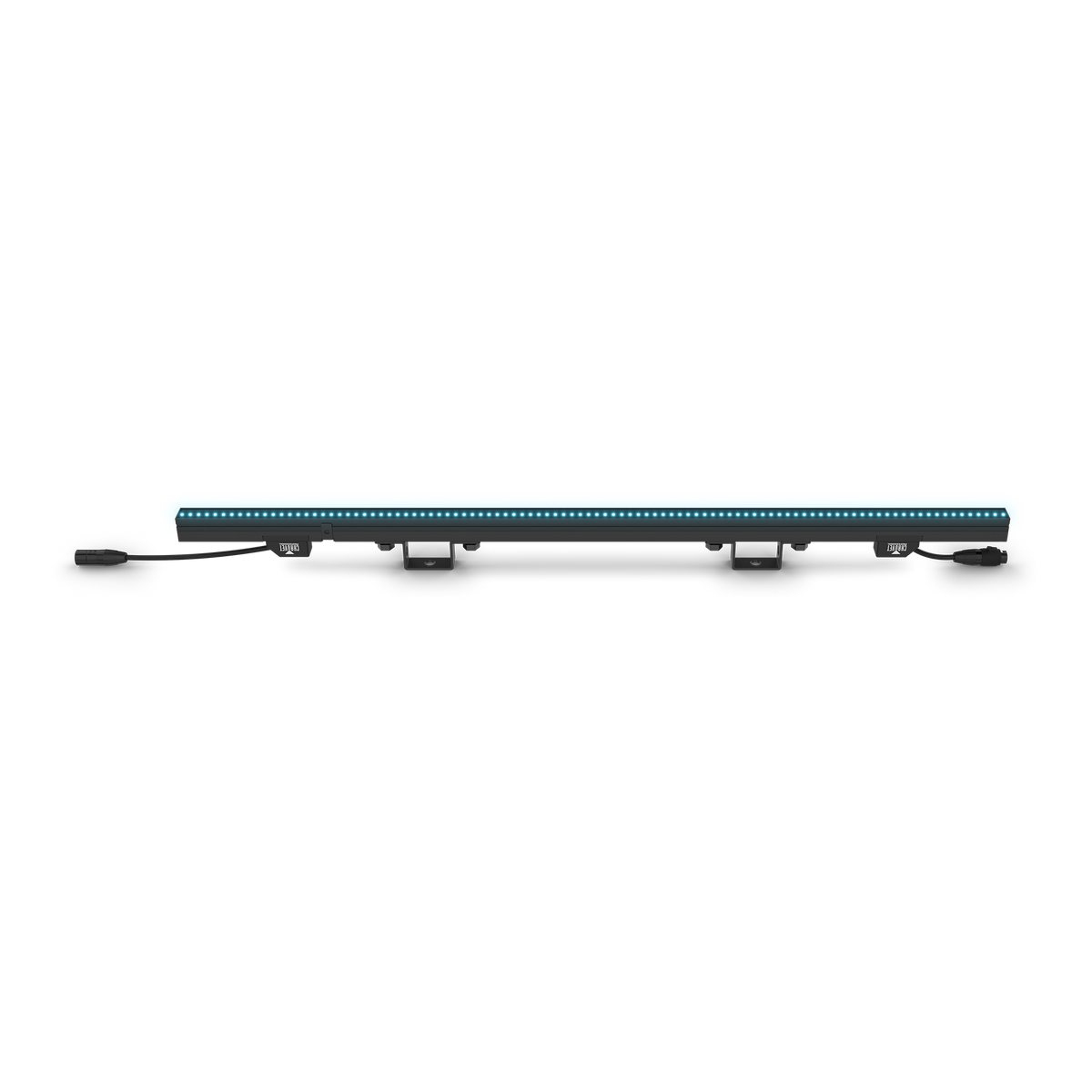

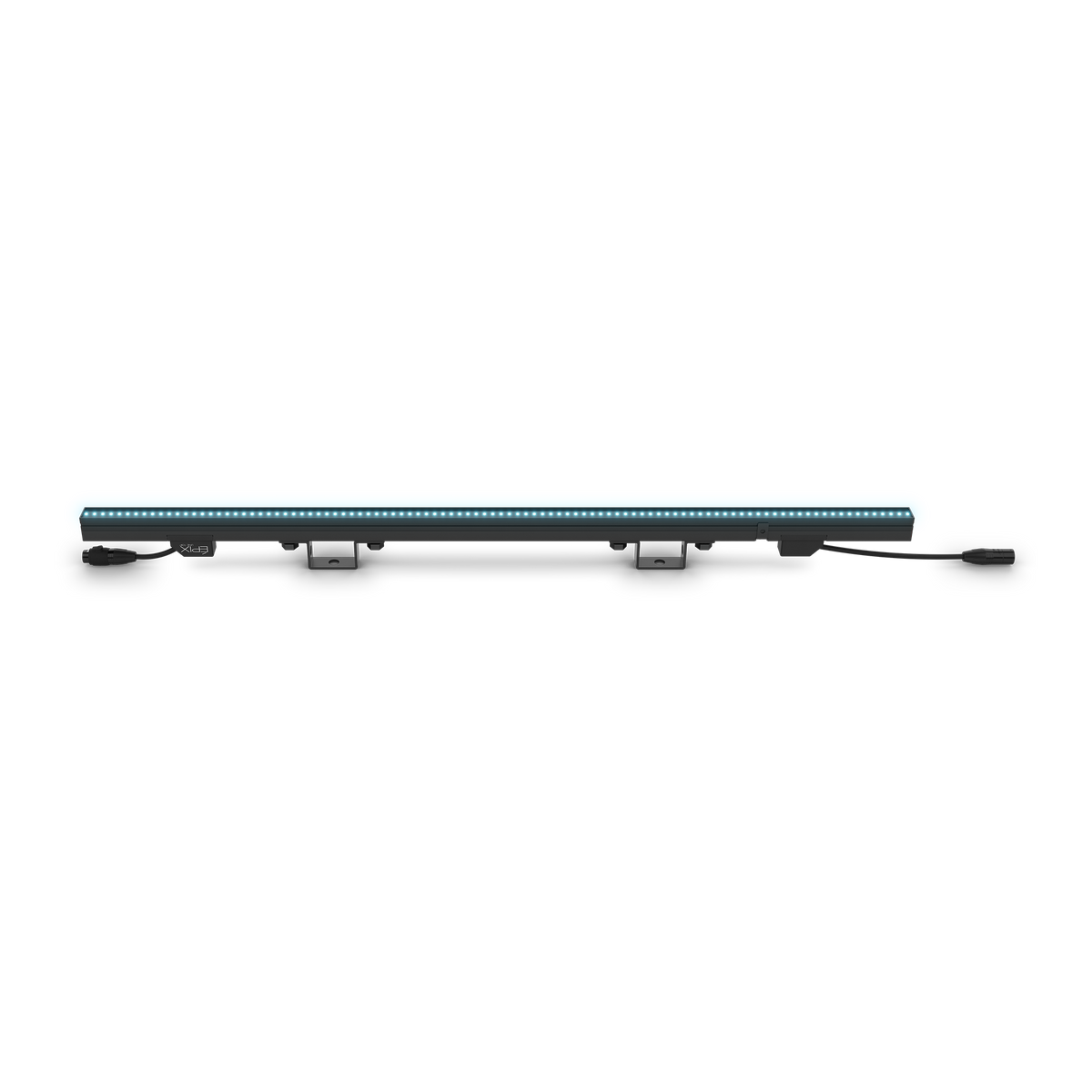

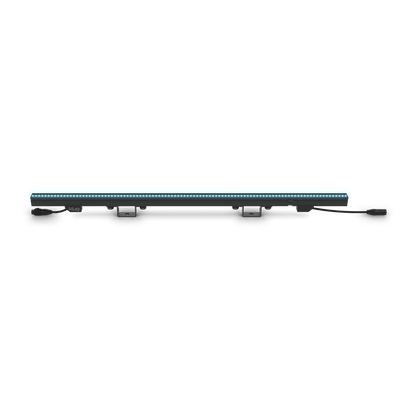

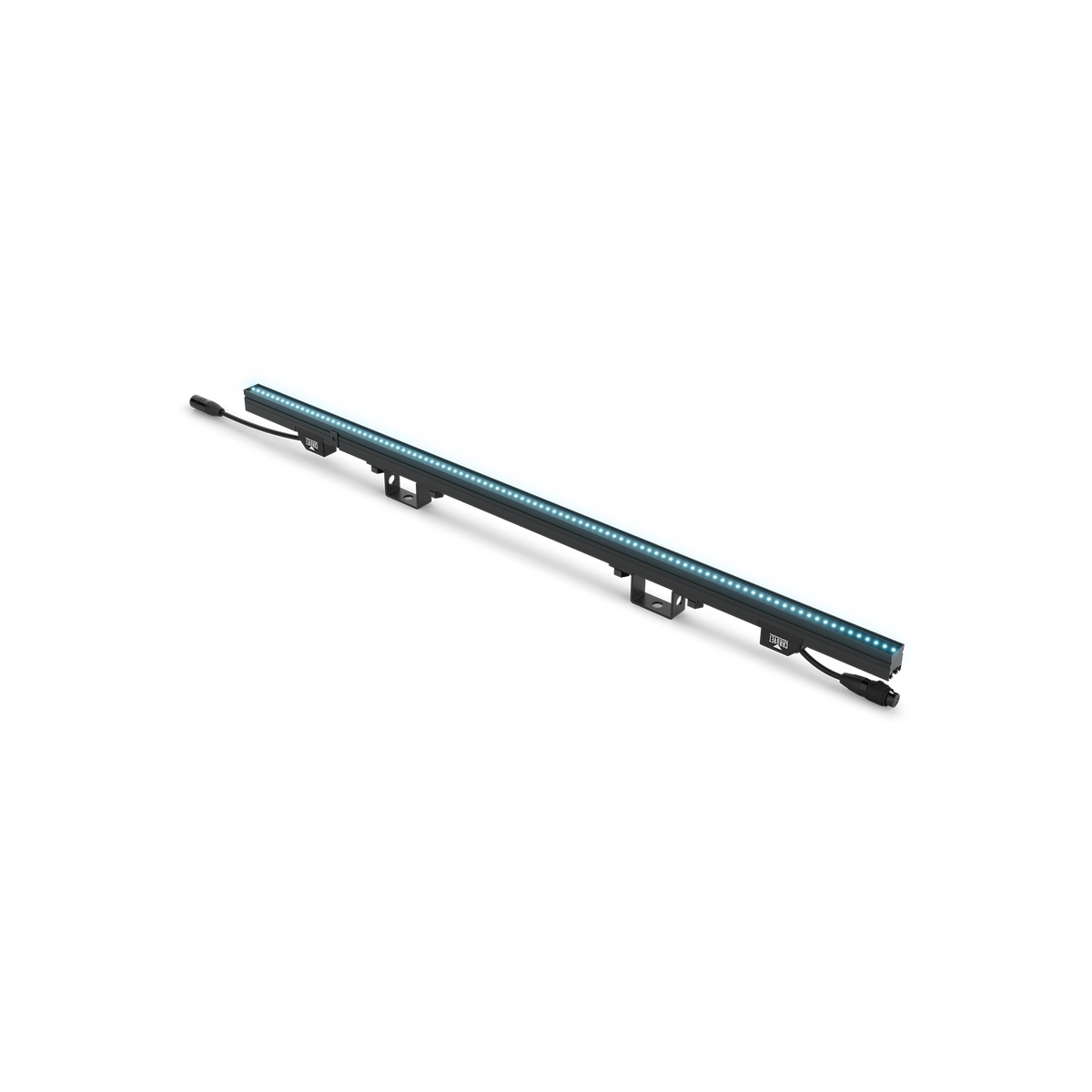

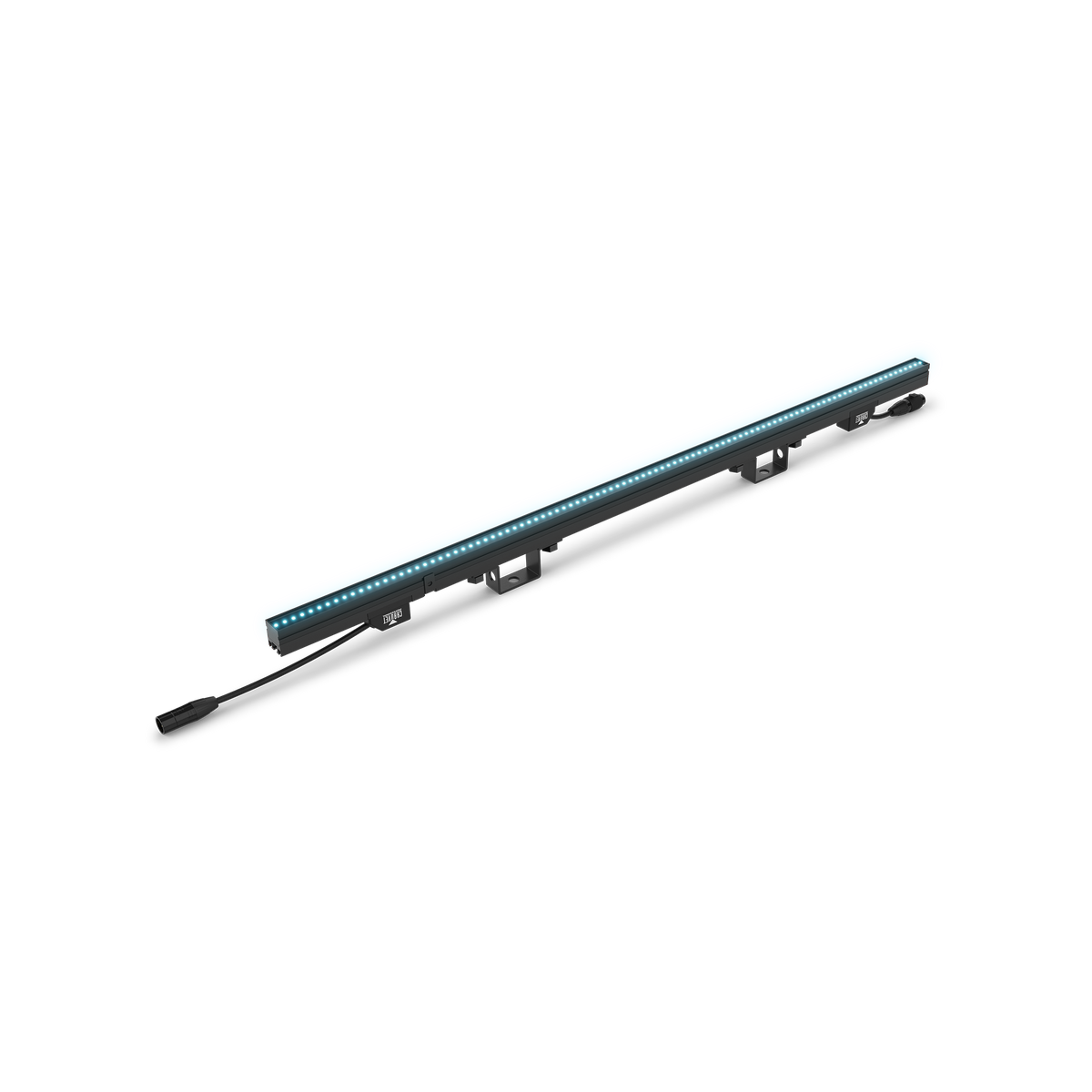

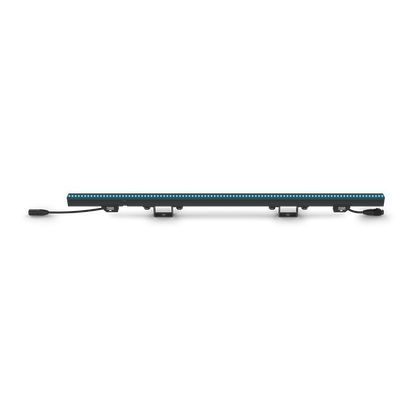

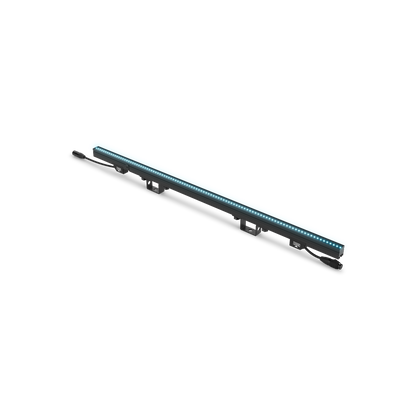

Chauvet Professional EPIXL10IP Epix Line 10 IP

Chauvet Professional EPIXL10IP Epix Line 10 IP

A one-meter, IP65-rated linear pixel strip that delivers wide-gamut RGB color and offers multiple viewing angles with three included optical filters.

• Outdoor-Rated Pixel Strip – Linear LED strip with 10 mm pixel pitch delivers vivid, wide-gamut RGB color for dynamic architectural and entertainment applications.
• Flexible Connectivity & Optics – Standard 4-pin XLR connectors and three included optical filters support multiple use cases, including wide viewing angles.
• Compact & Serviceable Design – Slim form factor simplifies integration into tight spaces, while full repairability ensures long-term reliability and lower service costs.
• Streamlined Setup – Native compatibility with the ÉPIX Mapping System and MVR support makes configuration fast and intuitive.

ÉPIX Line 10 IP delivers vivid wide-gamut RGB color and a variety of looks and viewing angles with three included optical filters. Powered by the ÉPIX D4 IP Drive, this sleek 1-meter outdoor-rated linear pixel strip offers native compatibility with the ÉPIX Mapping System, industry-standard MVR file support, and automatic fixture detection, enabling fast streamlined video mapping and scalable configuration in the most demanding touring, rental, and permanent integration applications.

• Dynamic Outdoor-Rated Visuals: The IP65-rated linear design delivers vivid, wide-gamut RGB color perfect for dynamic architectural facades and large-scale entertainment productions.
• Versatile Optical Control: Shape your output for any application using the three included optical filters that provide multiple looks and wide viewing angles.
• Compact And Serviceable Design: A slim form factor simplifies integration into tight spaces while full repairability ensures long-term reliability and lower total cost of ownership.
• Streamlined System Configuration: Native compatibility with the ÉPIX Mapping System and MVR support enables fast, intuitive video mapping and scalable system deployment.

Optical

• Light Source: 100 SMD 2727LEDs (tri-color RGB), 50,000 hours life expectancy
• Beam Angle (open optics): 115.2°
• Field Angle (open optics): 163°
• Viewing Angle (open optics): 171.6°
• Pixel Pitch: 10 mm
• Display Refresh Rate: 4,900 Hz

Dynamic Effects

• Strobe Rate: 0 to 30 Hz

Construction/Physical

• Dimensions (no filter): 39.37 x 1.161 x 2.862 in (1,000 x 29.5 x 72.7 mm)
• Dimensions (square filter installed): 39.37 x 1.228 x 2.862 in (1,000 x 31.20 x 72.7 mm)
• Dimensions (round filter installed): 39.37 x 1.969 x 2.862 in (1,000 x 50 x 72.7 mm)
• Weight: 2.89 lb (1.3 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy, Aluminum die-cast, High-impact flame-retardant polymer, Stainless Steel
• IP Rating: [IP65]

Connections

• Power Supply (remote driver): ÉPIX D4 IP
• Physical Linking (Standard Mode): 10 inline ÉPIX Line 10 IP
• Physical Linking (Hi Power Mode): 6 inline ÉPIX Line 10 IP
• Data Connectors: 4-pin IP65 XLR
• Minimum required device linking cable size: 4 conductor (2 x 14 AWG, 2 x 16 AWG)
• Total max. cable length (shielded cables) between ÉPIX D4 IP and last ÉPIX Line: 210 ft (64 m)
• Max. cable length (shielded cables) between ÉPIX D4 IP and first ÉPIX Line: 65 ft (20 m)
• Max. cable length (shielded cables) between each ÉPIX Line: 60 ft (18 m)
• Total max. cable length (unshielded cables) between ÉPIX D4 IP and last ÉPIX Line: 300 ft (91 m)
• Max. cable length (unshielded cables) between ÉPIX D4 IP and first ÉPIX Line: 150 ft (45 m)
• Max. cable length (unshielded cables) between each ÉPIX Line: 100 ft (30 m)

Control

• Control Protocol: [Art-Net, sACN, Art-RDM, KLSTR, ÉPIX Mapping System]
• DMX Channels: 2, 18, Groups of 5/10/255/50, or 300
• Video Refresh Rate: 60 Hz

Electrical

• Input Voltage: 48VDC
• Power and Current (Standard): 21 W, .44 A @ 48 VDC
• Power and Current (Hi Power): 32 W, .671 A @ 48 VDC

Certifications/Qualifications

• Compliance: [CE, MET, FCC, ETL, UKCA]
• Operating Temperature: -4 °F to 122 °F (-20 °C to 50 °C)
