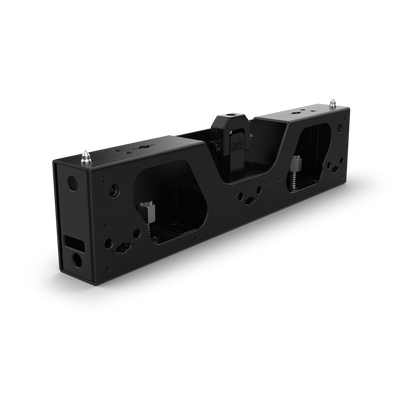

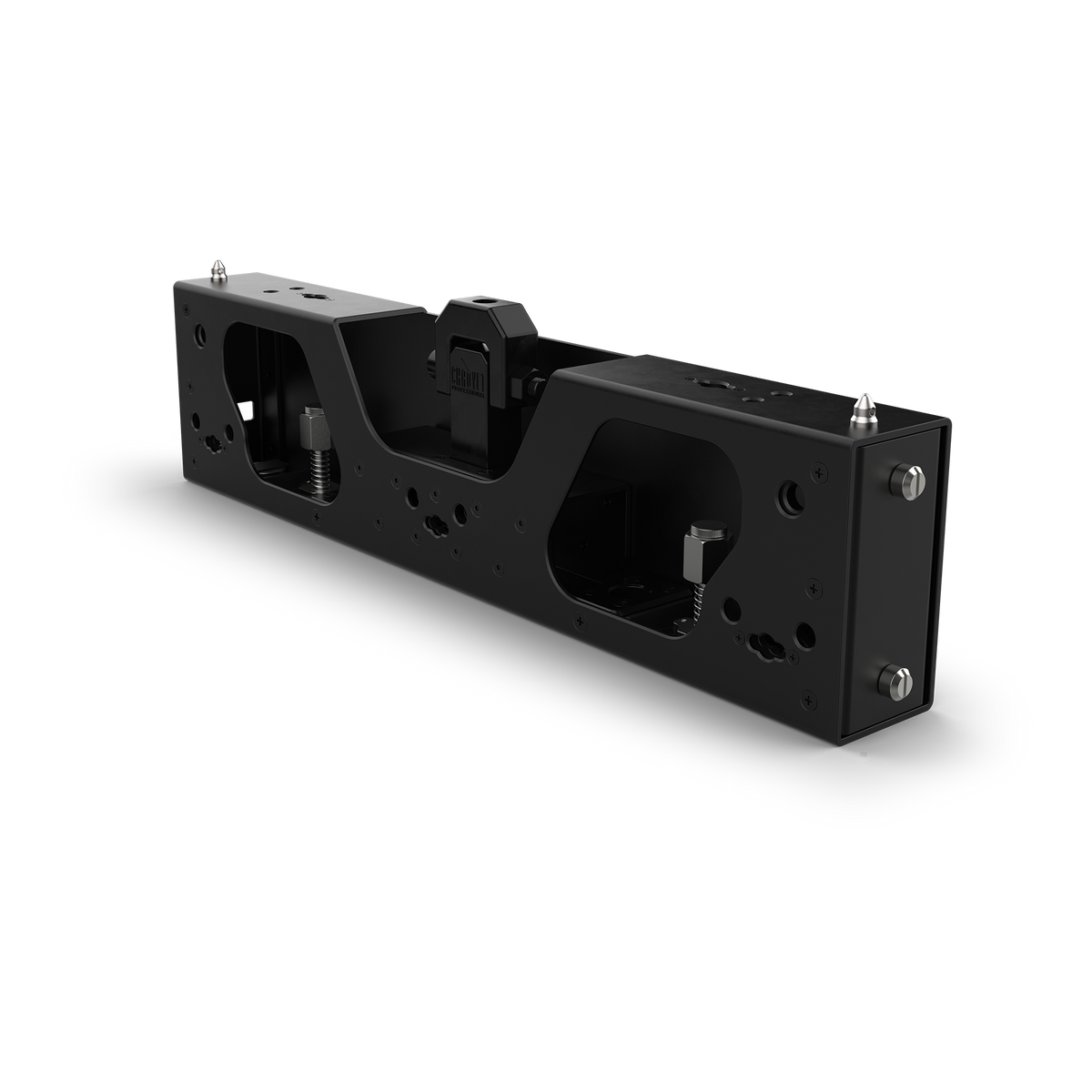

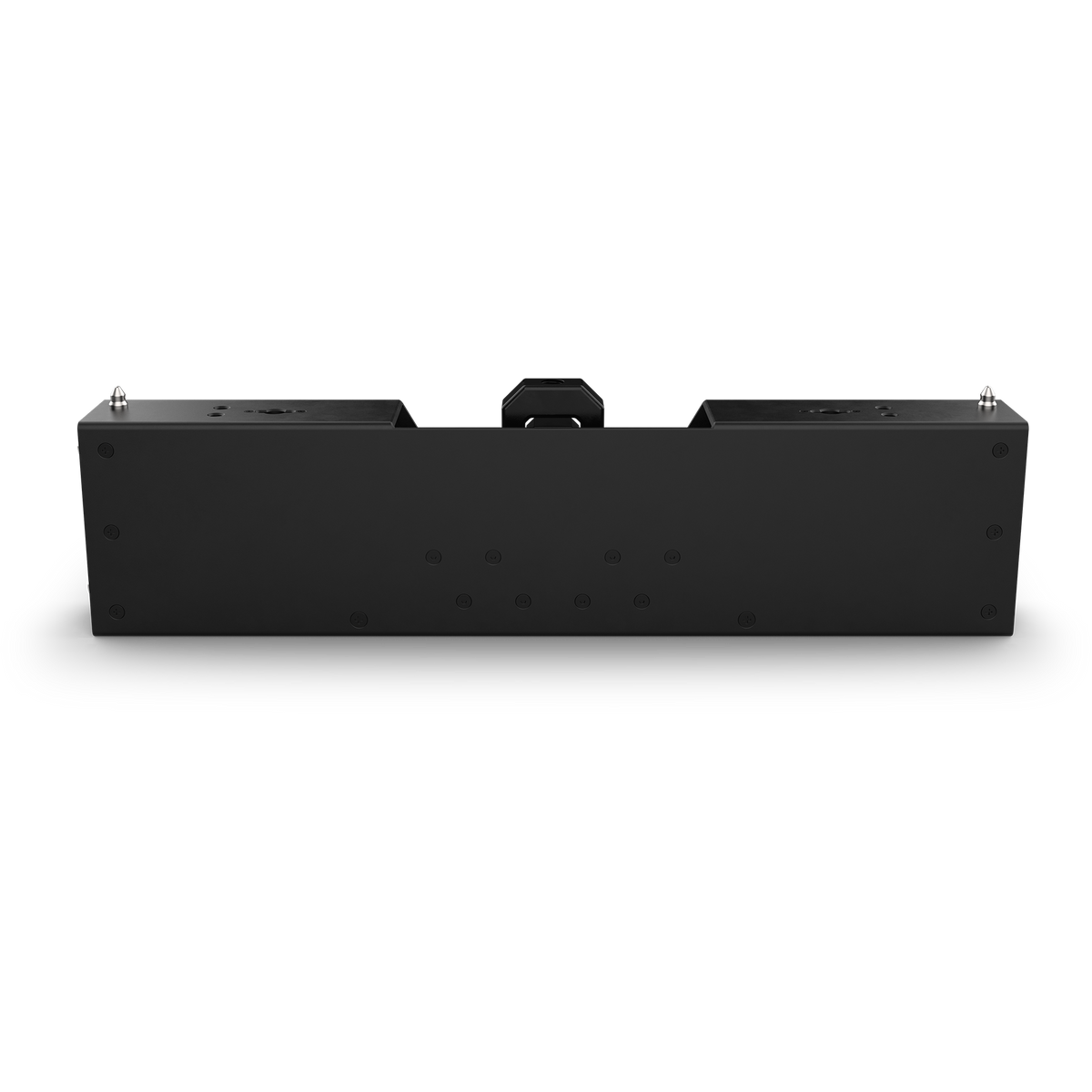

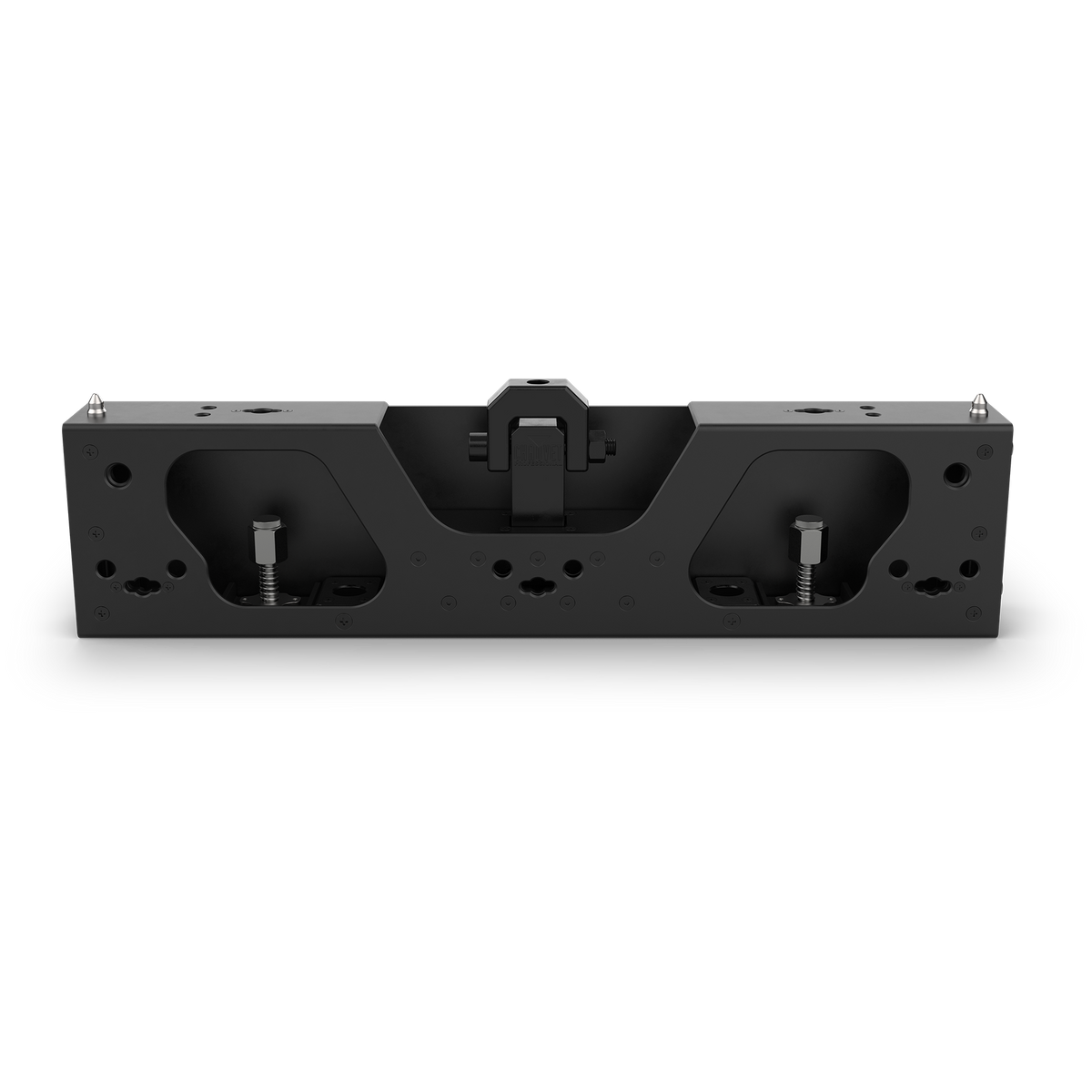

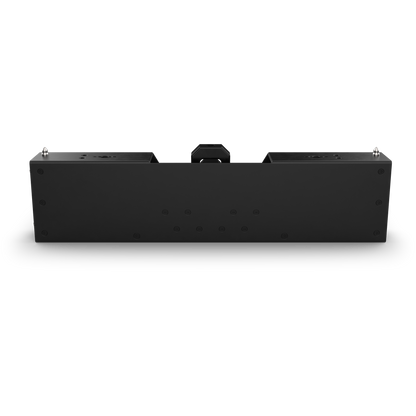

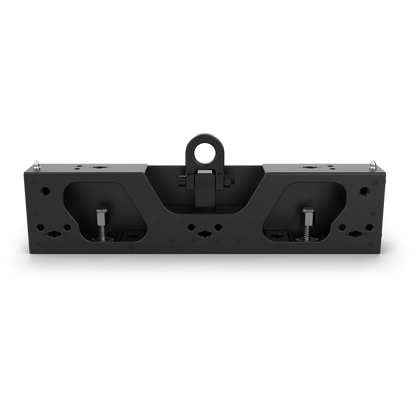

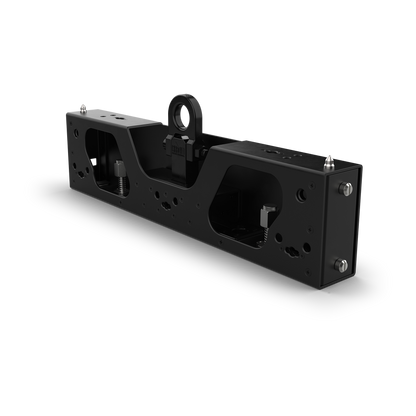

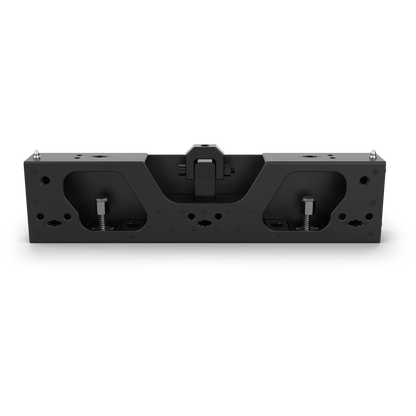

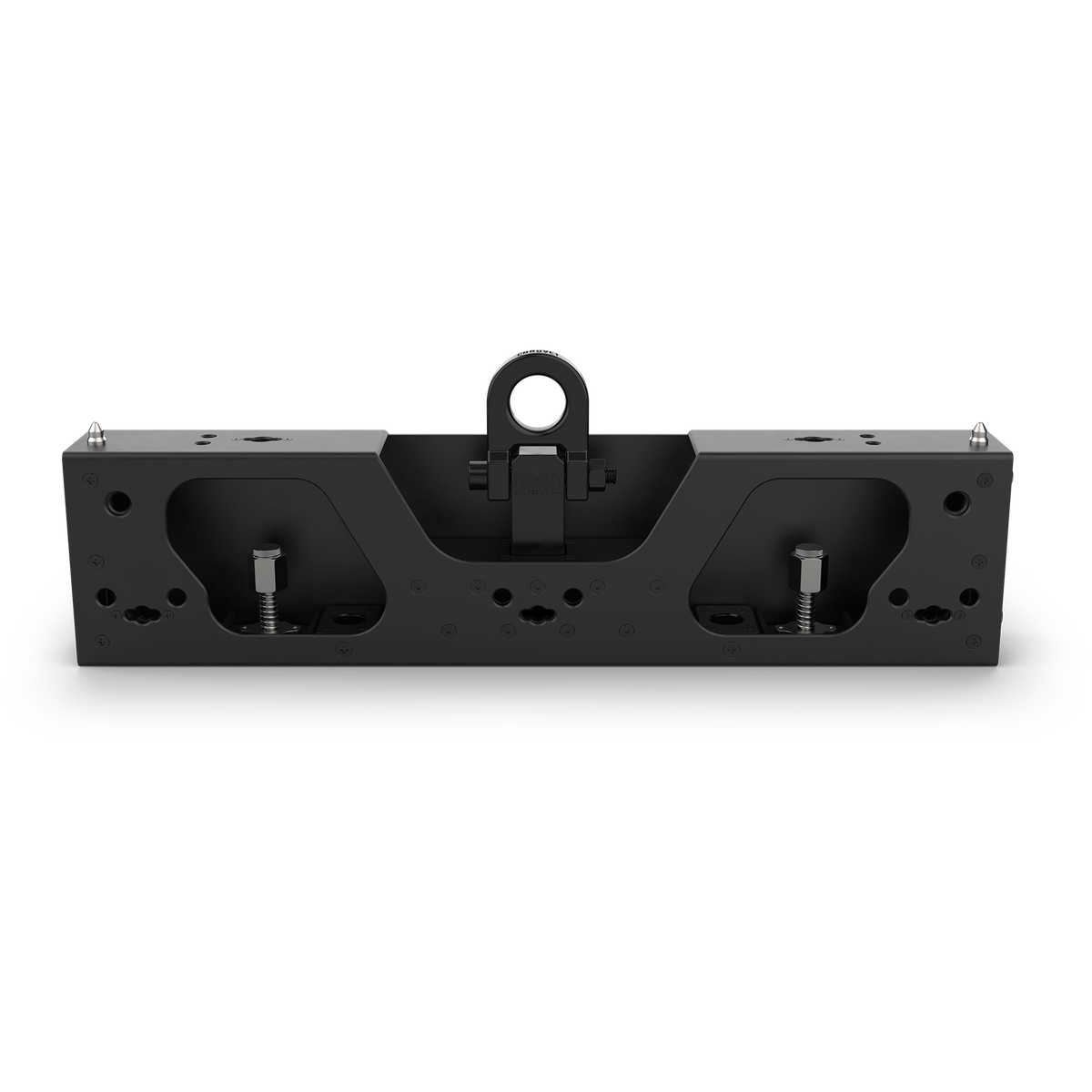

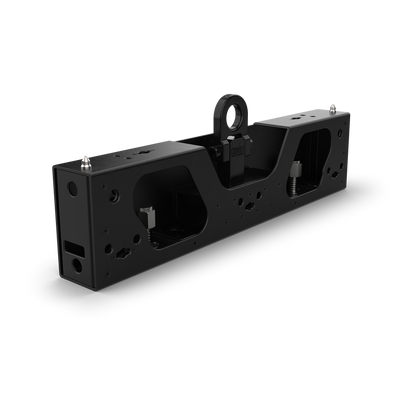

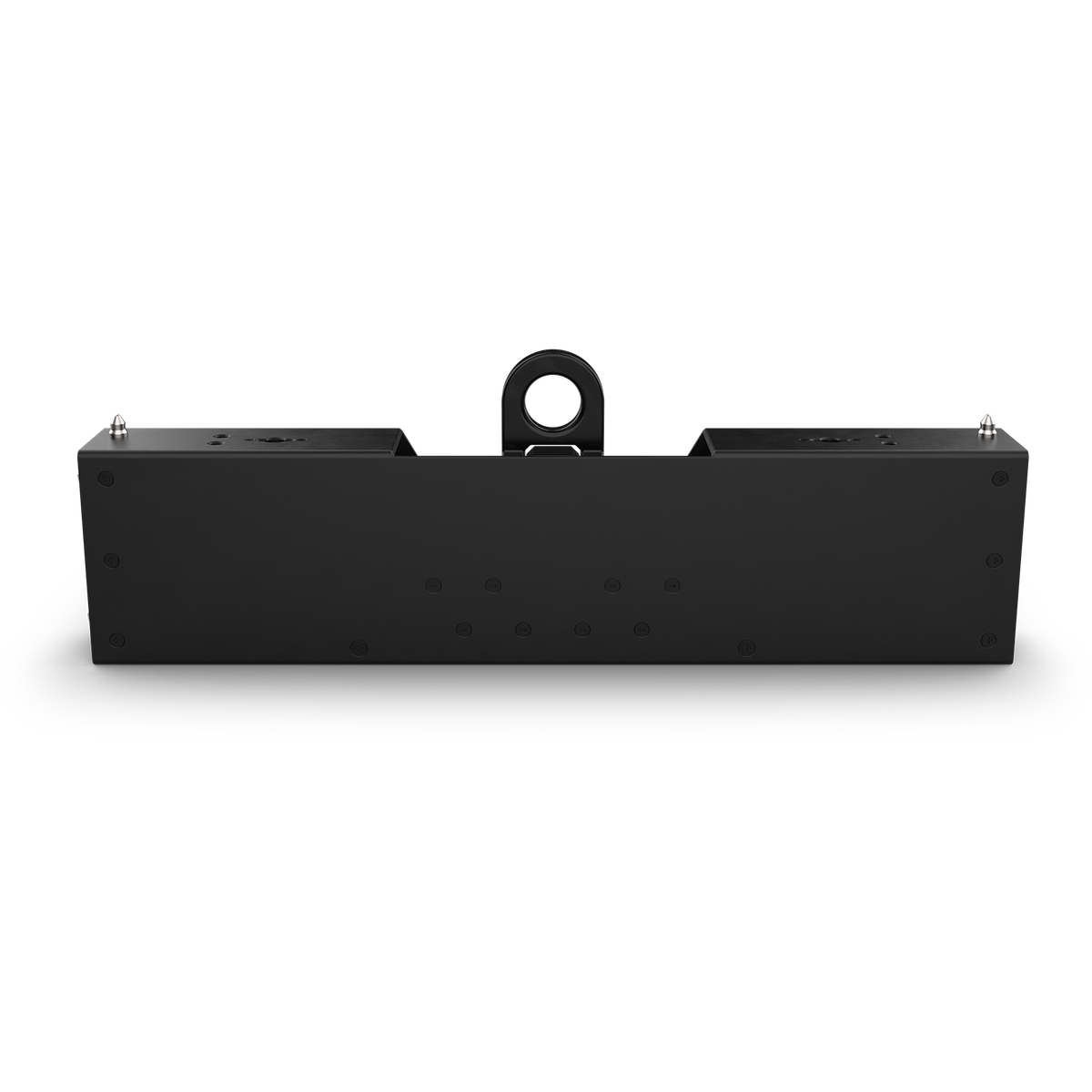

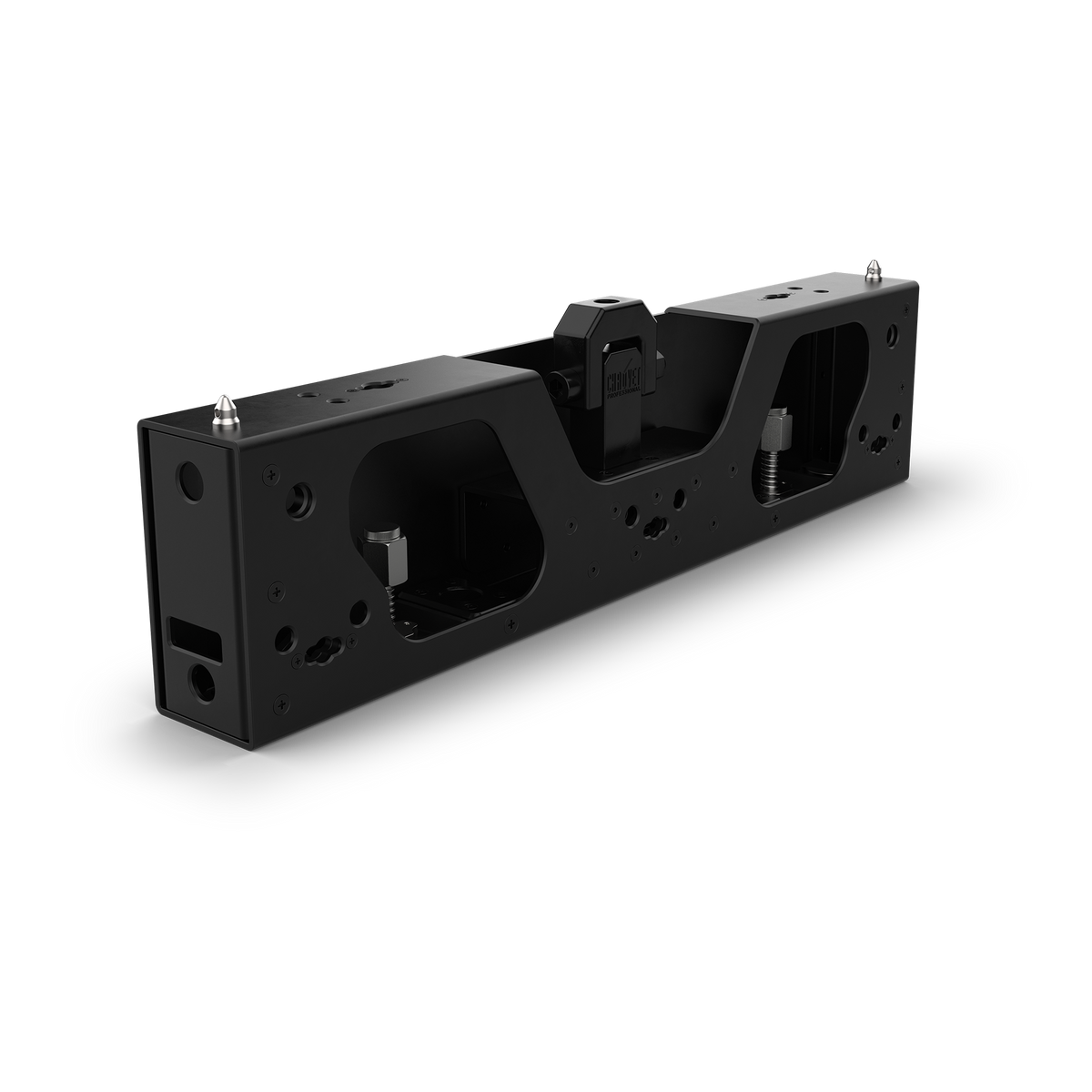

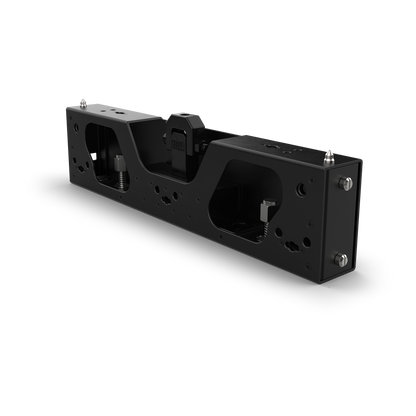

Chauvet Professional DRBF50CMIP IP Rated Dual F-Series Rig Bar (50cm)

Chauvet Professional DRBF50CMIP IP Rated Dual F-Series Rig Bar (50cm)

A dual-function, IP65-rated rigging bar designed for both overhead hanging and ground stacking of video wall panels. Perfect for building flown or ground-supported video walls in temporary event production or permanent installation applications where weather resistance is required.

• Features a rugged, IP65-rated design for reliable outdoor and touring applications.
• Enables both vertical and horizontal orientation of panels for maximum design flexibility.
• Designed for seamless integration with F2, F3X, F5IP, and F4XIP video panels.

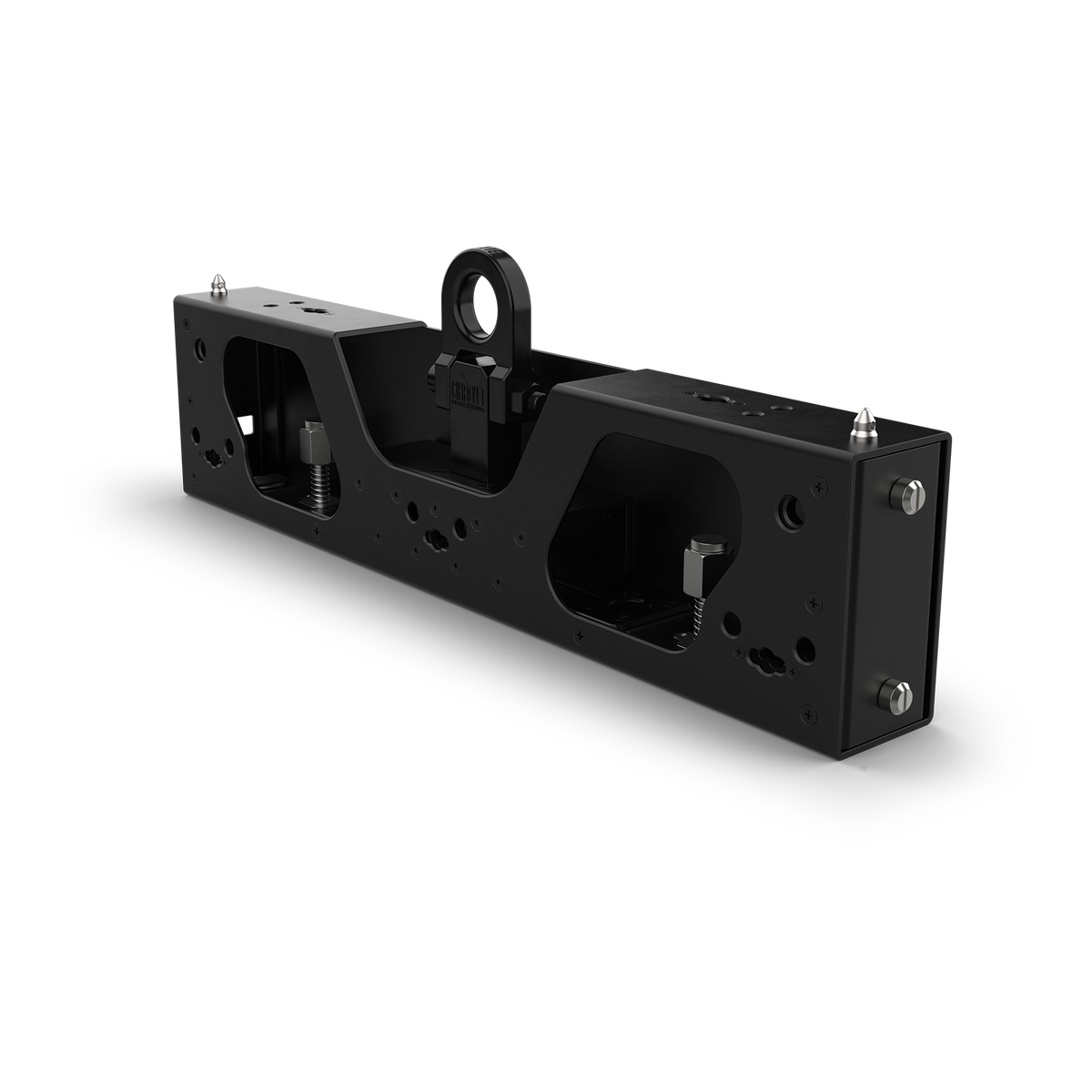

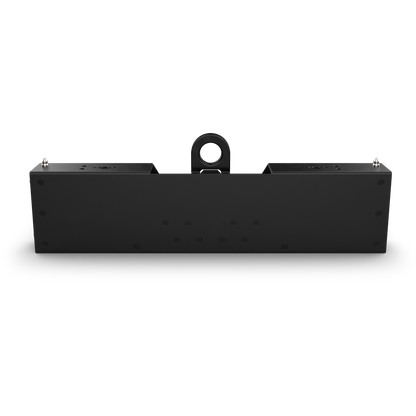

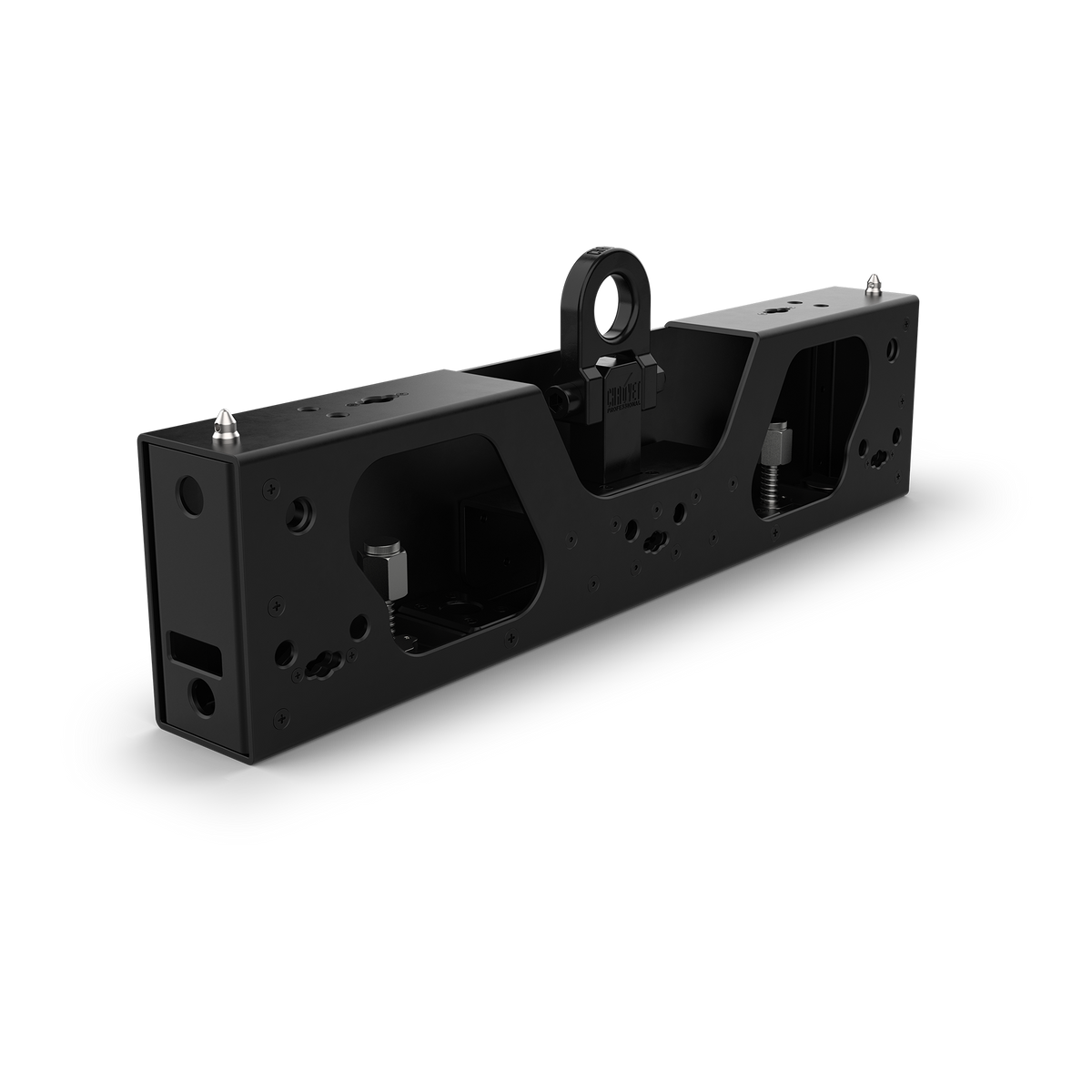

• Features an integrated hoist ring for standard 1/2-inch and 5/8-inch shackles.
• Includes a DRB-CTC bracket for direct M12 bolt connection to truss.
• Converts for ground stacking applications with the optional GROUNDSUPPORT2KIT.

DRB-F50CMIP and DRB-F100CMIP are newly designed IP65-rated rig bars that perform dual functions. They may be used to hang the video wall overhead, and also for ground stacking purposes, by adding in the GROUNDSUPPORT2KIT.

• Dual Function Rigging: Hang F-series video panels in either a vertical or horizontal orientation.
• Versatile Mounting Options: Supports both overhead hanging and ground stacking applications for maximum flexibility.
• F-Series Compatibility: Works with CHAUVET F2, F3X, F5IP, and F4XIP video panels.
• Standard Hardware Support: An equipped hoist ring supports standard 1/2-inch and 5/8-inch shackles for overhead hanging.
• Included Clamp Bracket: Comes with a DRB-CTC attachment bracket for direct connection to truss clamps using M12 bolts.

Construction/Physical

• Dimensions: 19.6 x 2.3 x 4.3 in (499 x 60 × 120 mm)
• Weight: 8.8 lb (3.99 kg)
• Exterior Color: Black
• Housing Material: Aluminum extrusion, stainless steel

Clamp

• Load Capacity (Hanging): 970 lb (440 kg)
• Load Capacity (Stacking): 2,204.6 lb (1,000 kg)
• Recommended Shackle Sizes: 1/2?, 5/8?

Certifications/Qualifications

• Certifications: ROHS
• IP Rating: IP65, temporary outdoor/wet use
