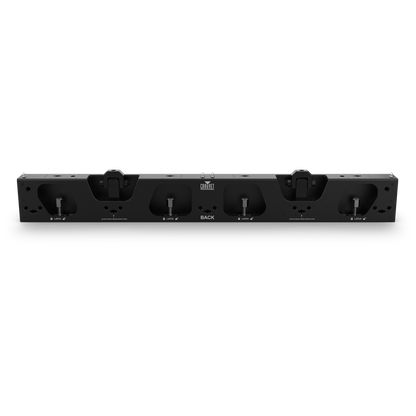

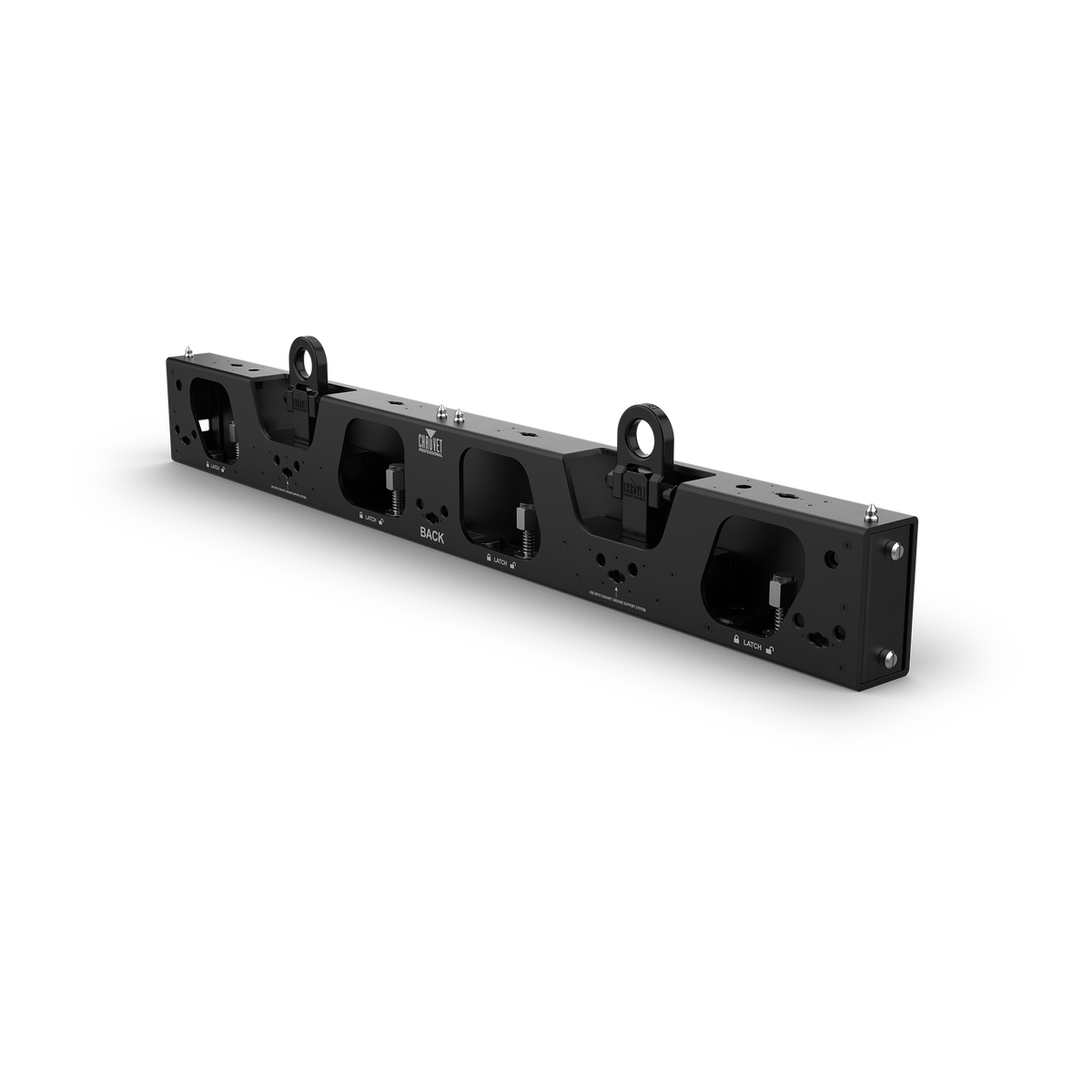

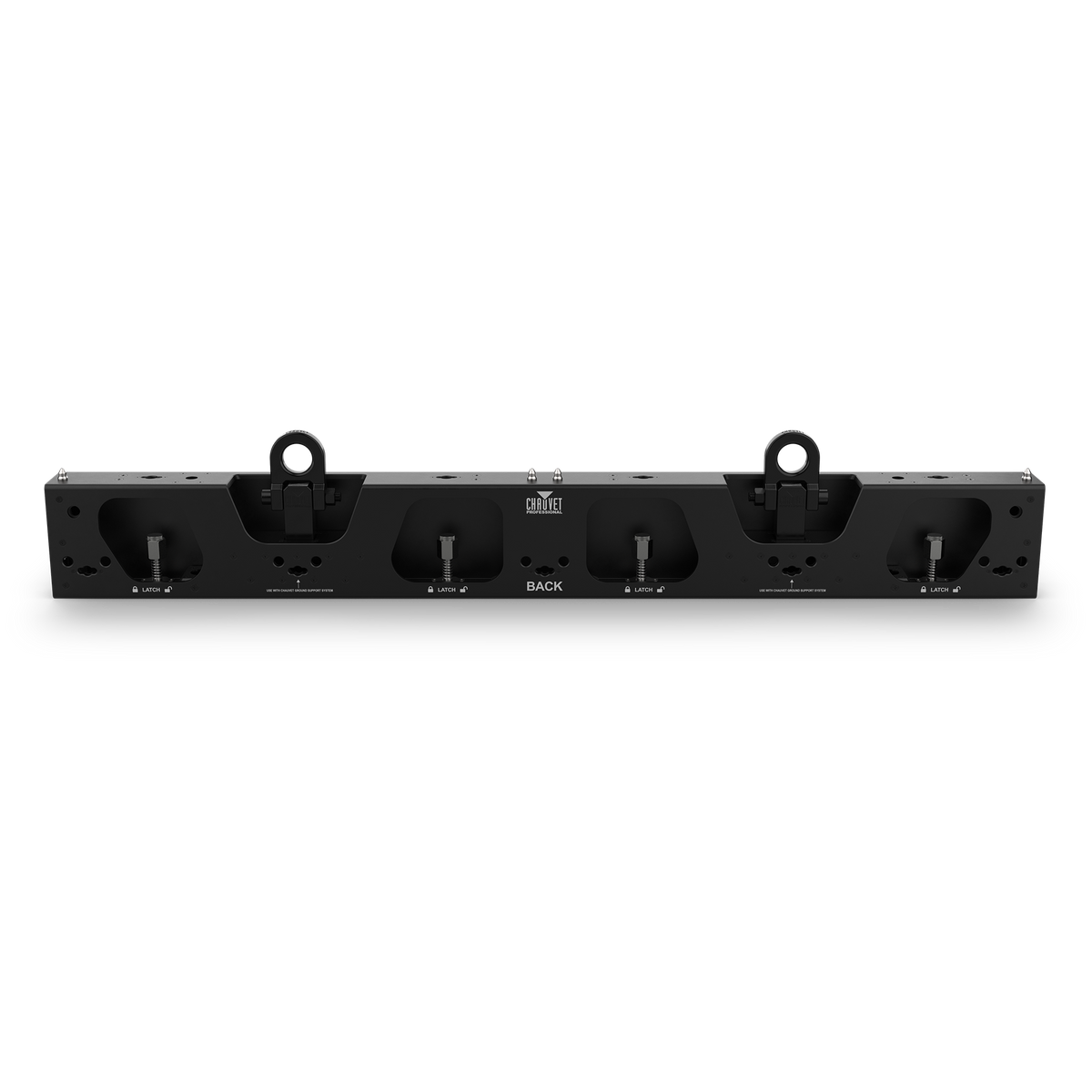

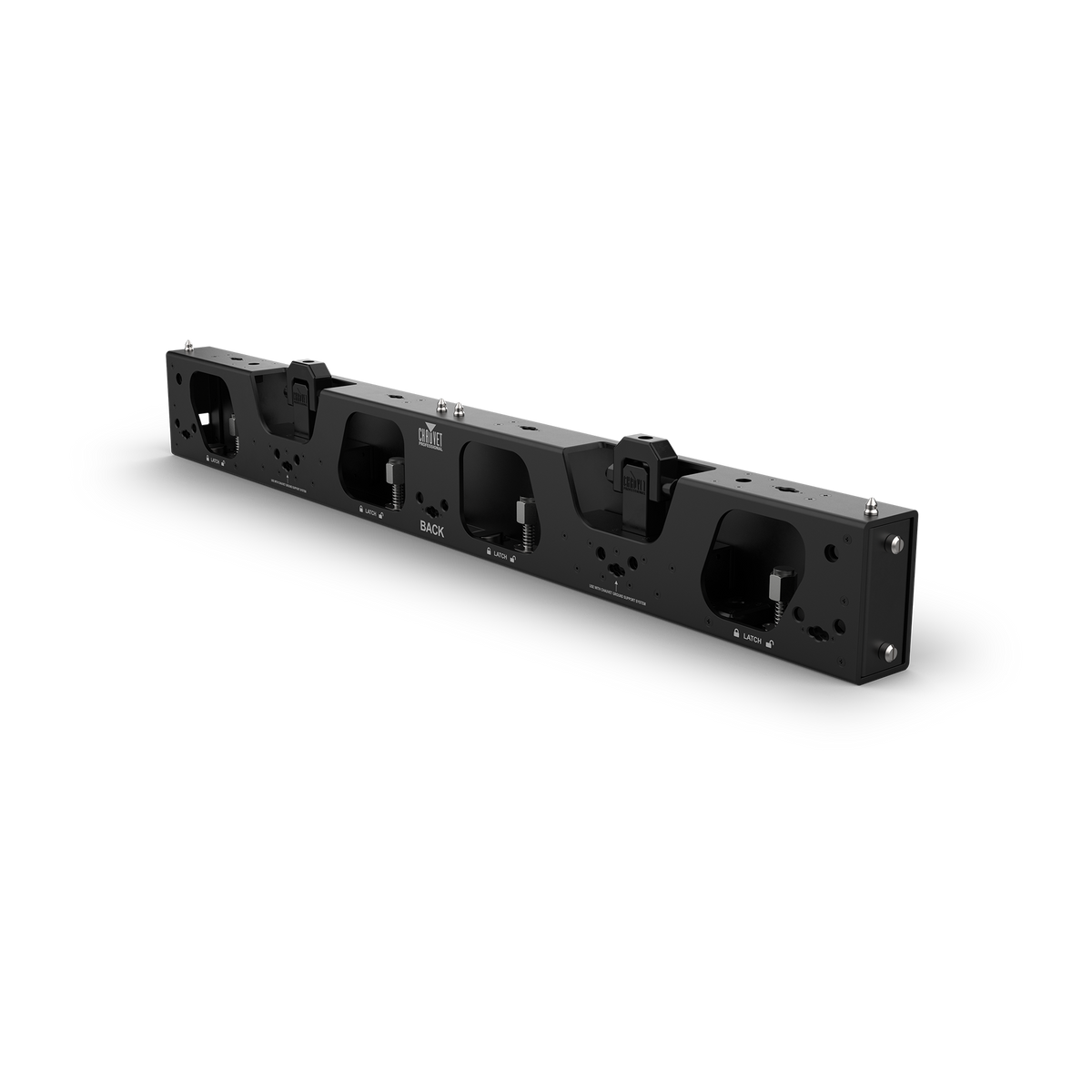

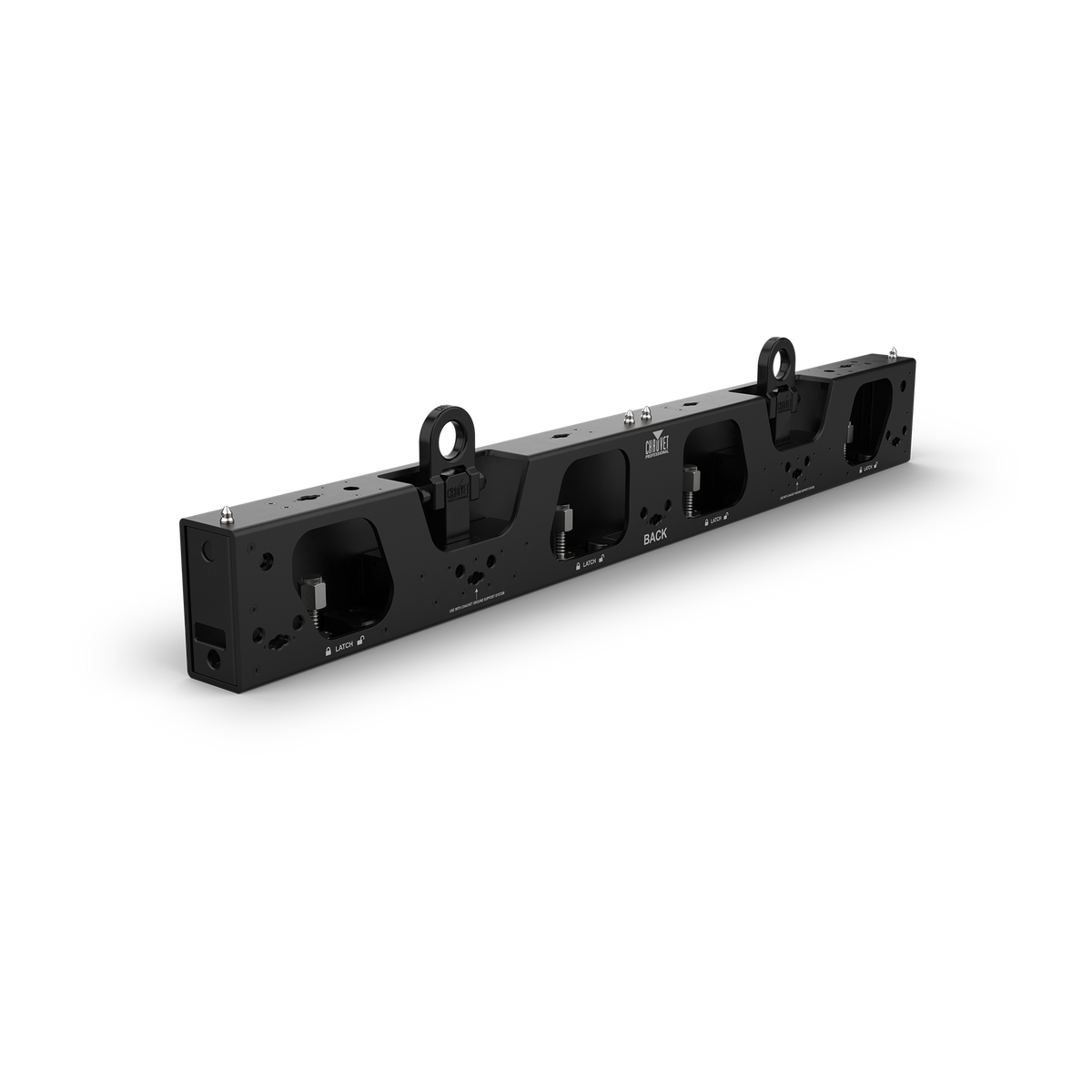

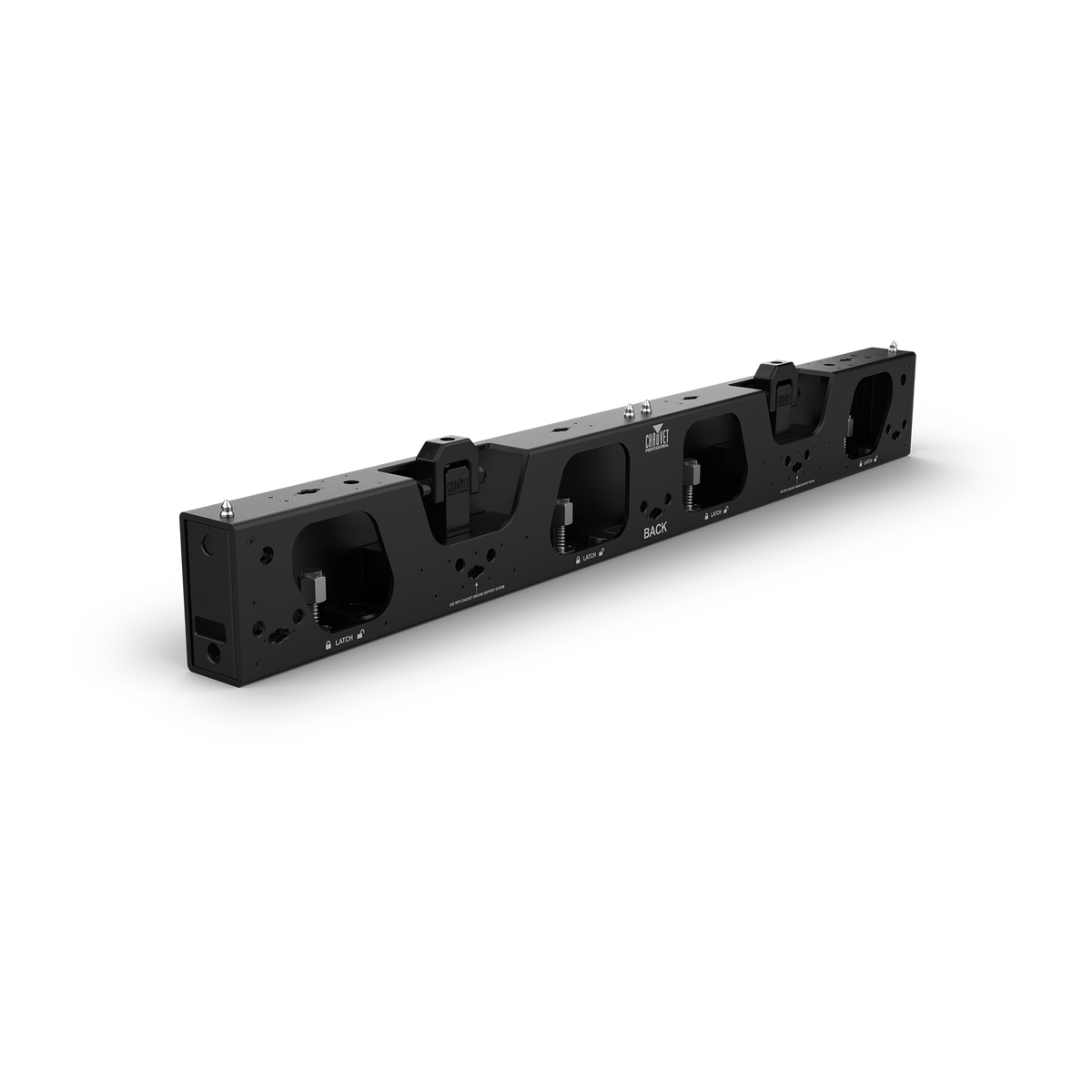

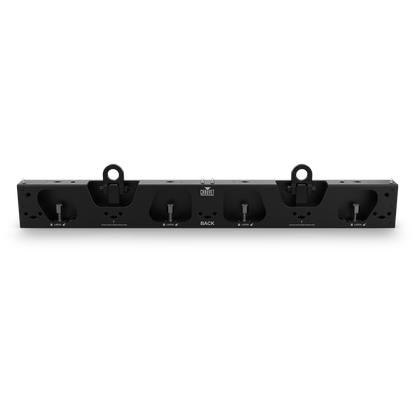

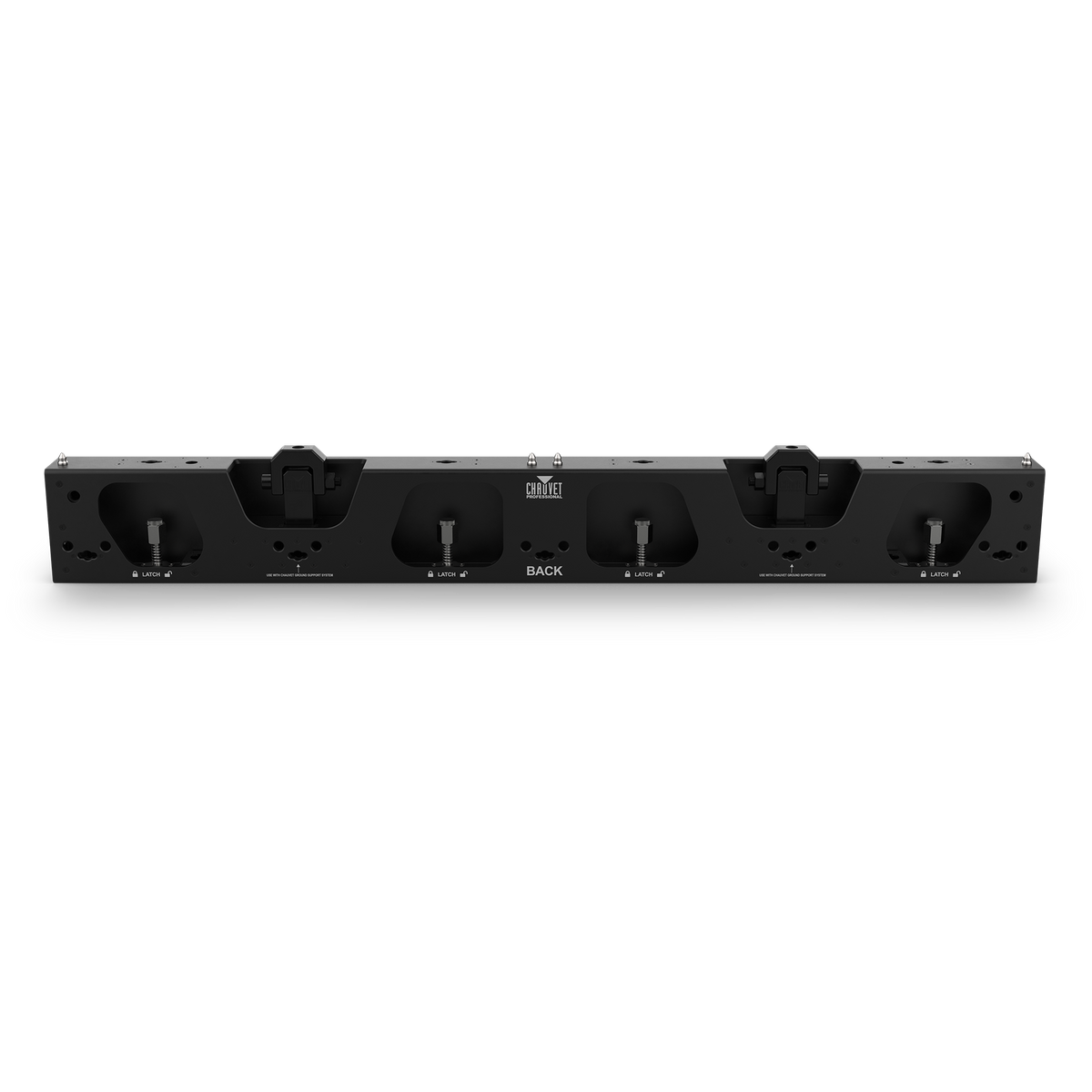

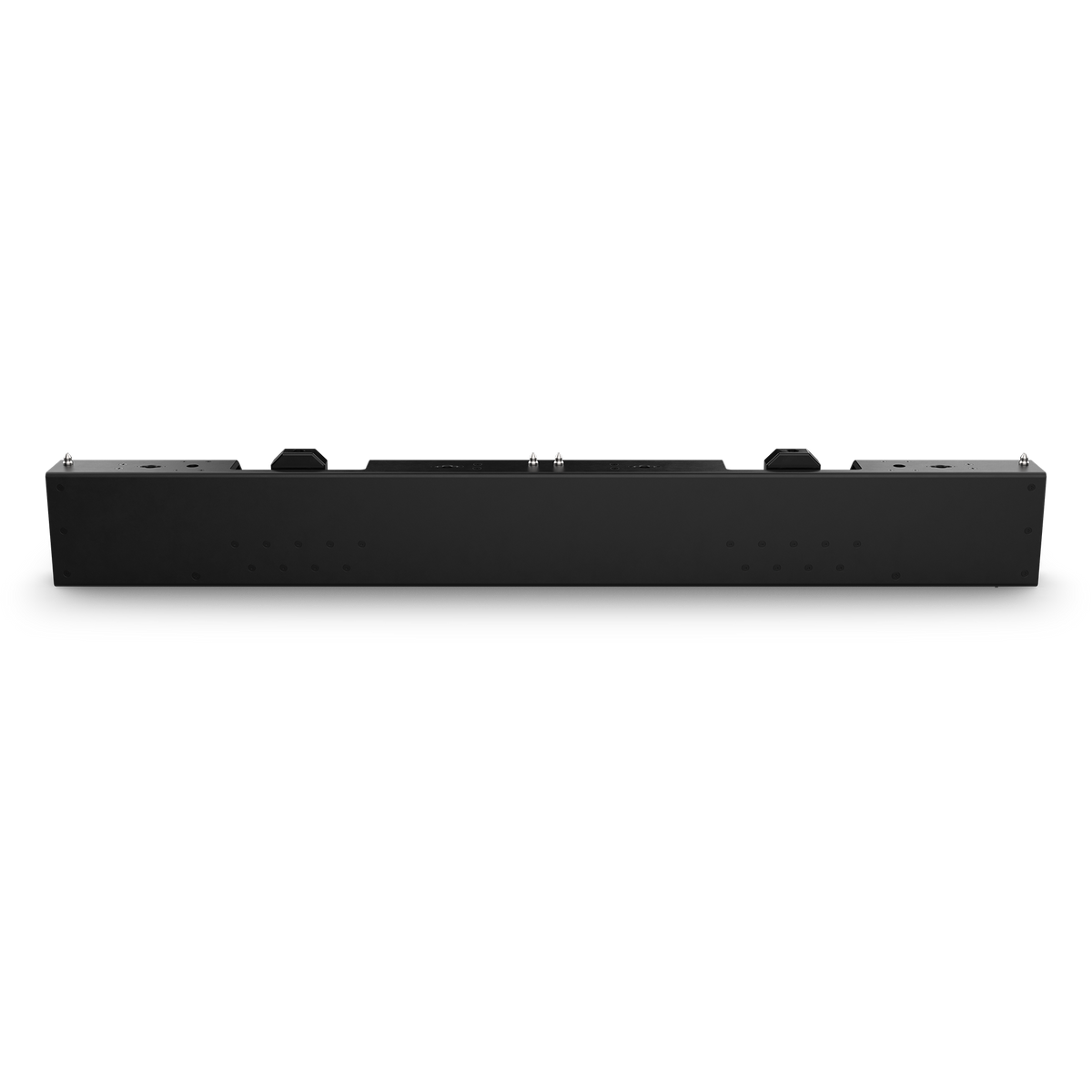

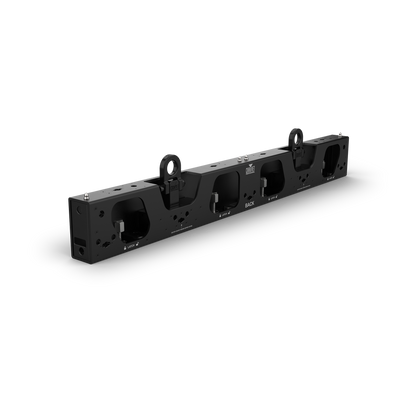

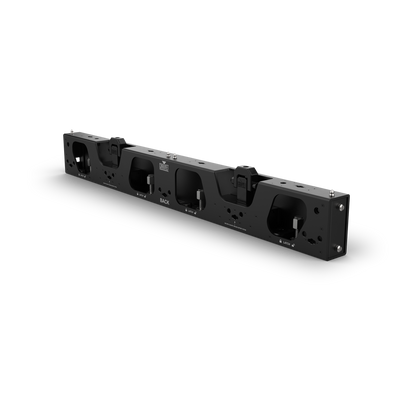

Chauvet Professional DRBF100CMIP IP Rated Dual F-Series Rig Bar (100cm)

Chauvet Professional DRBF100CMIP IP Rated Dual F-Series Rig Bar (100cm)

The DRB-F100CMIP and DRB-F50CMIP are IP65-rated rig bars that perform the dual function of hanging a video wall overhead or adapting it for ground stacking. Ideal for professional productions needing a flexible, all-weather solution for deploying video walls in either flown or ground-supported setups.

• Provides flexible mounting options for hanging panels either vertically or horizontally.
• Designed for seamless integration with F2, F3X, F5IP, and F4XIP video panels.
• Features a rugged, IP65-rated construction for reliable all-weather use.
• Equipped with a hoist ring that accommodates standard 1/2-inch and 5/8-inch shackles.
• Includes a clamp attachment bracket for direct connection to truss with M12 bolts.
• Adapts for ground stacking applications with the addition of the GROUNDSUPPORT2KIT.

DRB-F100CMIP and DRB-F50CMIP are newly designed IP65-rated rig bars that perform dual functions. They may be used to hang the video wall overhead, and also for ground stacking purposes, by adding in the GROUNDSUPPORT2KIT.

• Dual Function Rig Bar: Hang F-series video panels either vertically or horizontally to fit your specific design needs.
• Overhead and Ground Support: Provides ultimate flexibility by working for both overhead hanging and ground stacking applications.
• F-Series Panel Compatibility: Seamlessly integrates with CHAUVET F2, F3X, F5IP, and F4XIP video panels.
• Standard Rigging Hardware Support: An equipped hoist ring accommodates standard 1/2-inch and 5/8-inch shackles for secure overhead hanging.
• Included Clamp Attachment Bracket: Allows for a direct connection to truss clamps like the TRUSST CTC-50HC using M12 bolts.

Construction/Physical

• Dimensions: 39.35 x 2.36 x 4.72 in (999.6 x 60 x 120 mm)
• Weight: 15.4 lb (7.0 kg)
• Exterior Color: Black
• Housing Material: Aluminum extrusion, stainless steel

Clamp

• Load Capacity: (hanging): 1,665 lb (755 kg)
• Load Capacity: (stacking): 2,735 lb (1,240kg)
• Recommended Shackle Sizes: 1/2?, 5/8?

Certifications/Qualifications

• Certifications: ROHS
• IP Rating: IP65, temporary outdoor/wet use
