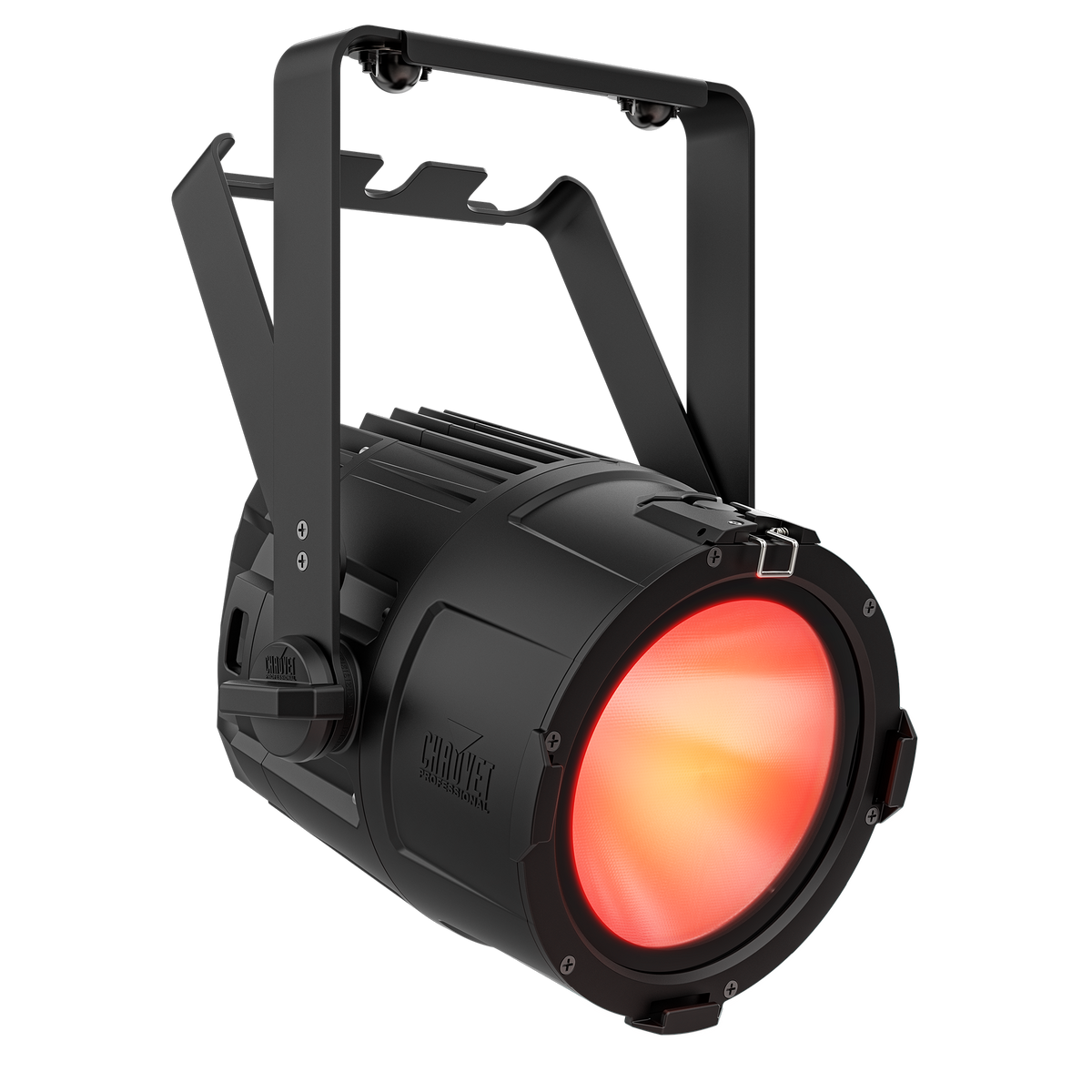

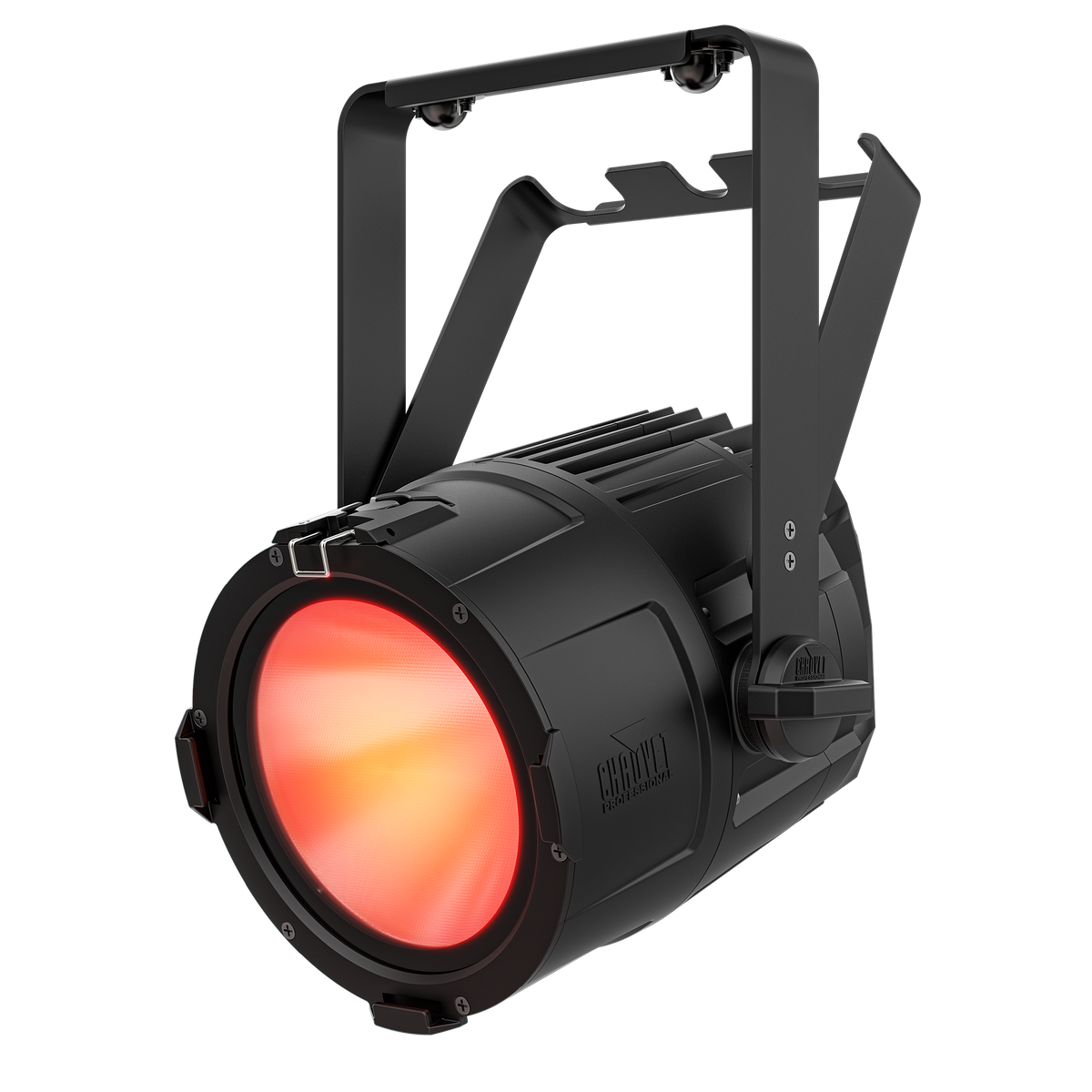

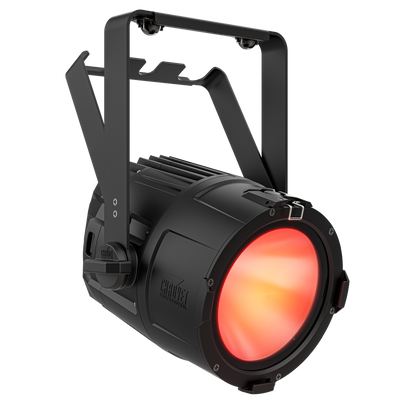

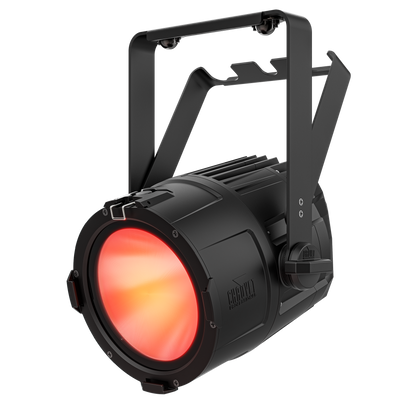

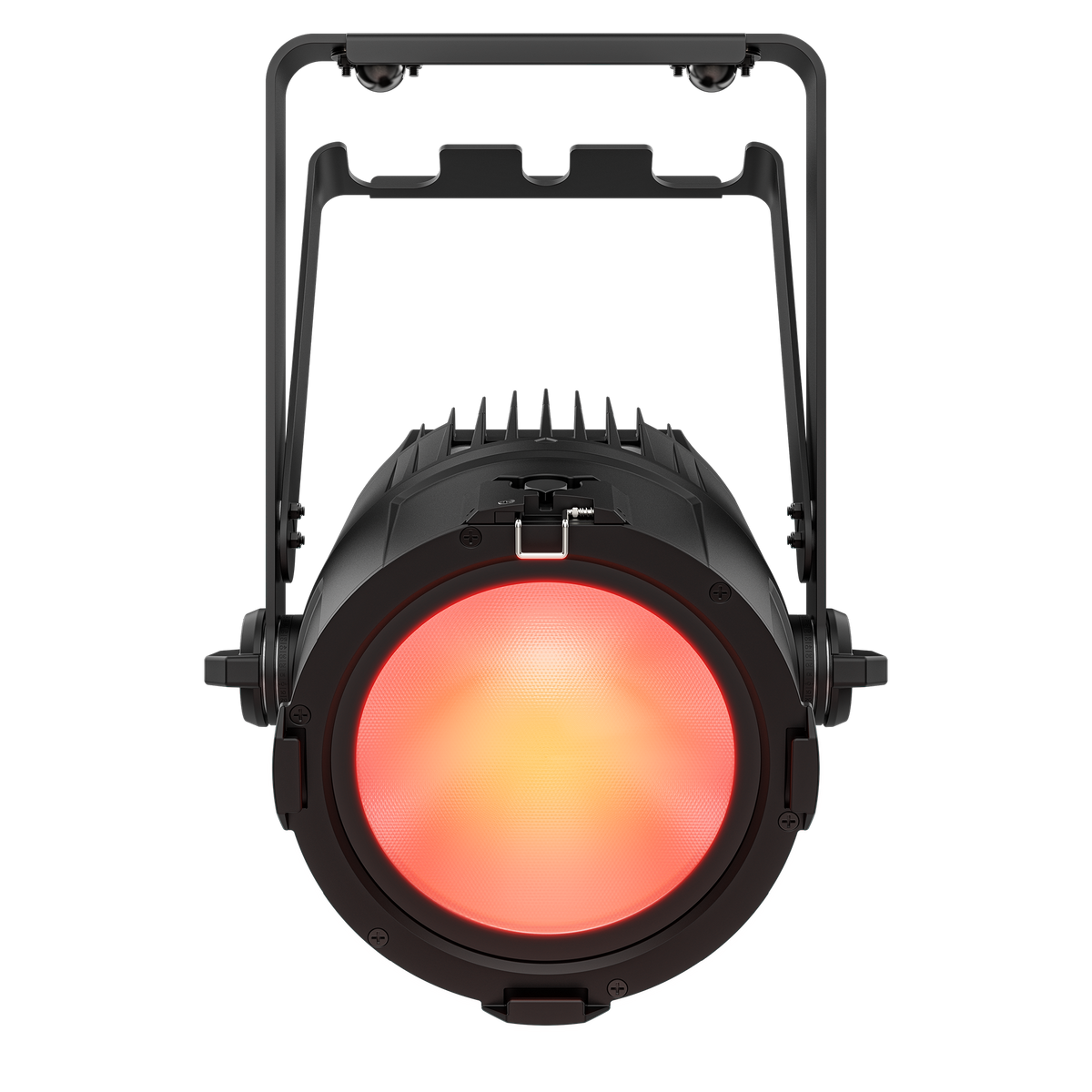

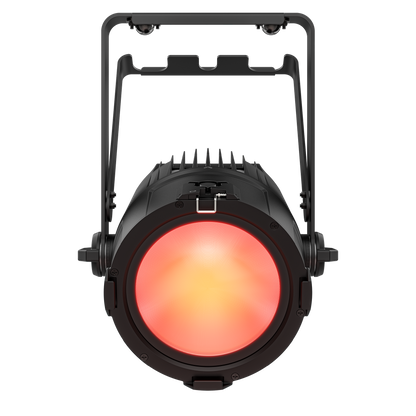

Chauvet Professional COLORADOSOLOPODE COLORado Solo Pod E

Chauvet Professional COLORADOSOLOPODE COLORado Solo Pod E

This high-performance, IP65-rated RGBL LED wash features integrated electronic frost, enabling instant shifts from a narrow spot to a fully homogenized, wide wash.

• High-performance RGBL LED wash with variable electronic frost for touring, rental, and production -indoors or out
• High-power with smooth and even color mixing
• Variable electronic frost for beam/edge softness control
• All environment operation with IP-rated power and DMX connections
• Easy mounting using traditional clamps, quick connecting omega bracket, or split yoke floor stand

COLORado Solo Pod E is a versatile IP65-rated touring, rental, and production workhorse featuring integrated electronic Smart Frost that enables instant shifts from a narrow spot to wide washes and color block effects. Advanced optics and a high-power RGBL LED light engine are engineered to deliver fully homogenized output in both modes. 16-bit dimming and selectable PWM frequencies ensure flawless live and on-camera performance. Outdoor-rated power and data connectors allow for easy connections without proprietary cabling. Rigging and setups are fast and easy with its included omega bracket with ¼ turn adaptors and 7.5” accessory compatibility.

• Instant Beam Shaping: Integrated electronic frost instantly shifts the beam from a tight spot to a wide wash for dynamic, on-the-fly adjustments without mechanical parts.
• Superior Color Performance: A high-power RGBL LED engine delivers fully homogenized output with smooth, even color mixing and a wide range of vibrant, high-quality hues.
• All-Weather Reliability: Built for any environment, its IP65-rated housing and connections ensure dependable performance for touring, rental, and production, both indoors and out.
• Flexible Rigging Options: Mount fixtures quickly and securely using the included omega bracket, traditional clamps, or an optional split yoke for fast setups in any orientation.
• Flawless On-Camera Operation: Achieve perfect on-camera results with 16-bit dimming and selectable PWM frequencies that eliminate flicker for broadcast, IMAG, and streaming applications.

Optical

• Light Source: 12 LEDs (quad-color RGBL) 180W, (1.3A), 50,000 hours life expectancy.
• Color Temperature (range): 2800 to 8000 K
• Color Temperature (at full): 11,550 K
• CRI @ 3200 K: 83.8
• Beam Angle: 17.1°
• Beam Angle (E-Frost): 54.7°
• Field Angle: 30.9°
• Field Angle (E-Frost): 128.9°
• Lumens: 8160
• Lumens (E-Frost): 7030 Illuminance: 2673 lux @ 5 m
• Illuminance: 2673 lux @ 5 m
• Illuminance (E-Frost): 220 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

Dynamic Effects

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Frost: Electronic
• Strobe Rate: 0 to 25Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Dim Curves: 4
• Built-in Automated Programs: Yes

Construction/Physical

• Dimensions: 11.14 x 8.18 x 15.96 in (283 x 208 x 405.5 mm)
• Weight: 15.8 lb (7.2 kg)
• Exterior Color: Black
• Housing Material: Aluminum

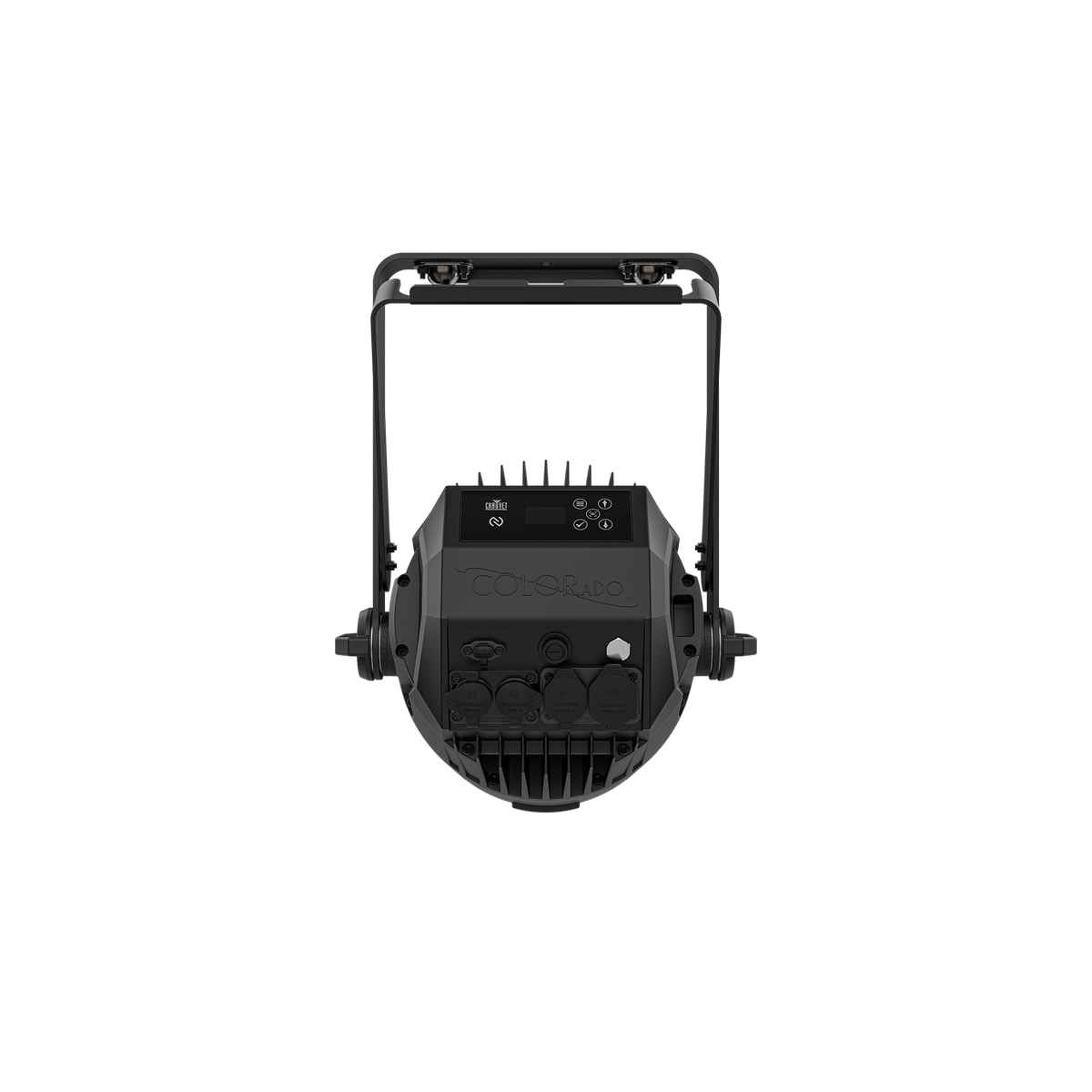

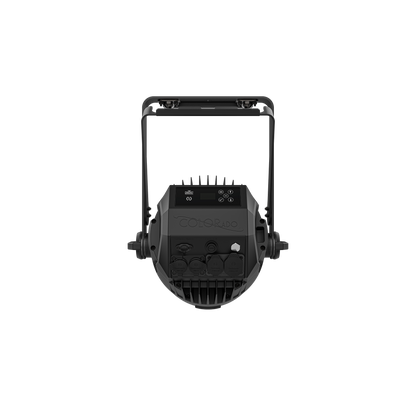

Connections

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP65 XLR,
• Cable Length (power): 5 ft (1.5 m)
• Software Connection: USB

Control

• Control Protocol: DMX, RDM
• DMX Channels: 1ch, 5ch1, 5ch2, 7ch, 11ch, 12ch, 13ch, 16ch or HSV
• Modes/Personalities: 9 personalities (1ch, 5ch1, 5ch2, 7ch, 11ch, 12ch, 13ch, 16ch, HSV)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 7 units @ 120 V; 12 units @ 208 V; 13 units @ 230 V
• Power and Current: 190 W, 1.59 A @ 120 V, 60 Hz
• Power and Current: 187 W, 0.93 A @ 208 V, 60 Hz
• Power and Current: 189 W, 0.86 A @ 230 V, 50 Hz

Certifications/Qualifications

• Certifications: CE, MET, FCC,
• IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
