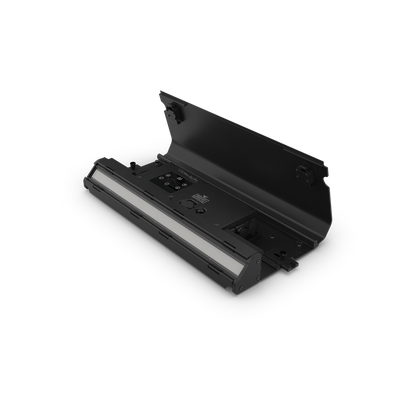

Chauvet Professional COLORADOSOLOEDGE1 COLORado Solo Edge 1

Chauvet Professional COLORADOSOLOEDGE1 COLORado Solo Edge 1

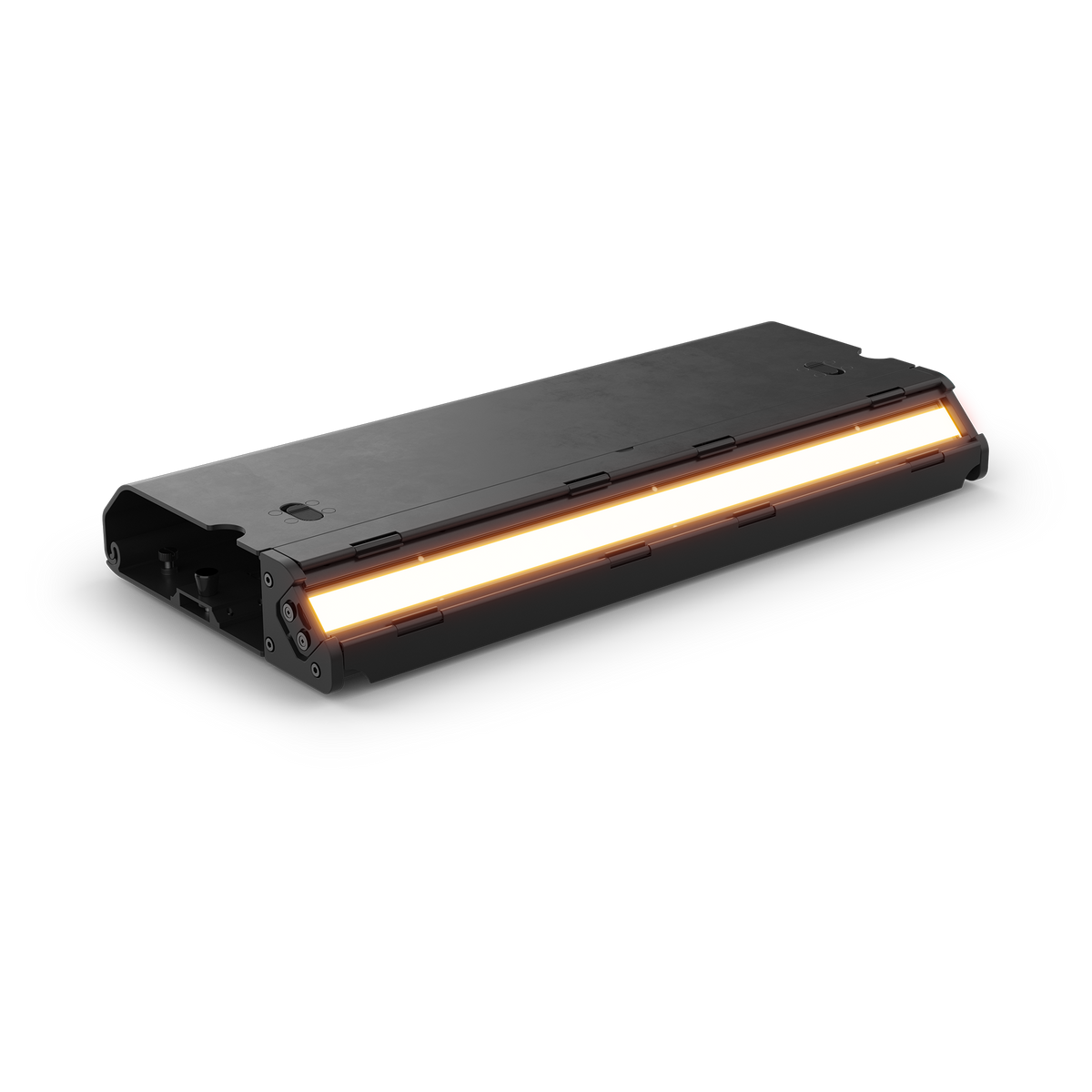

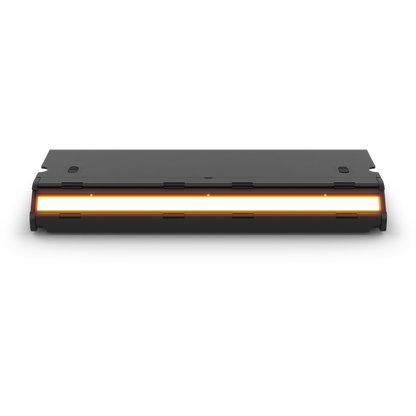

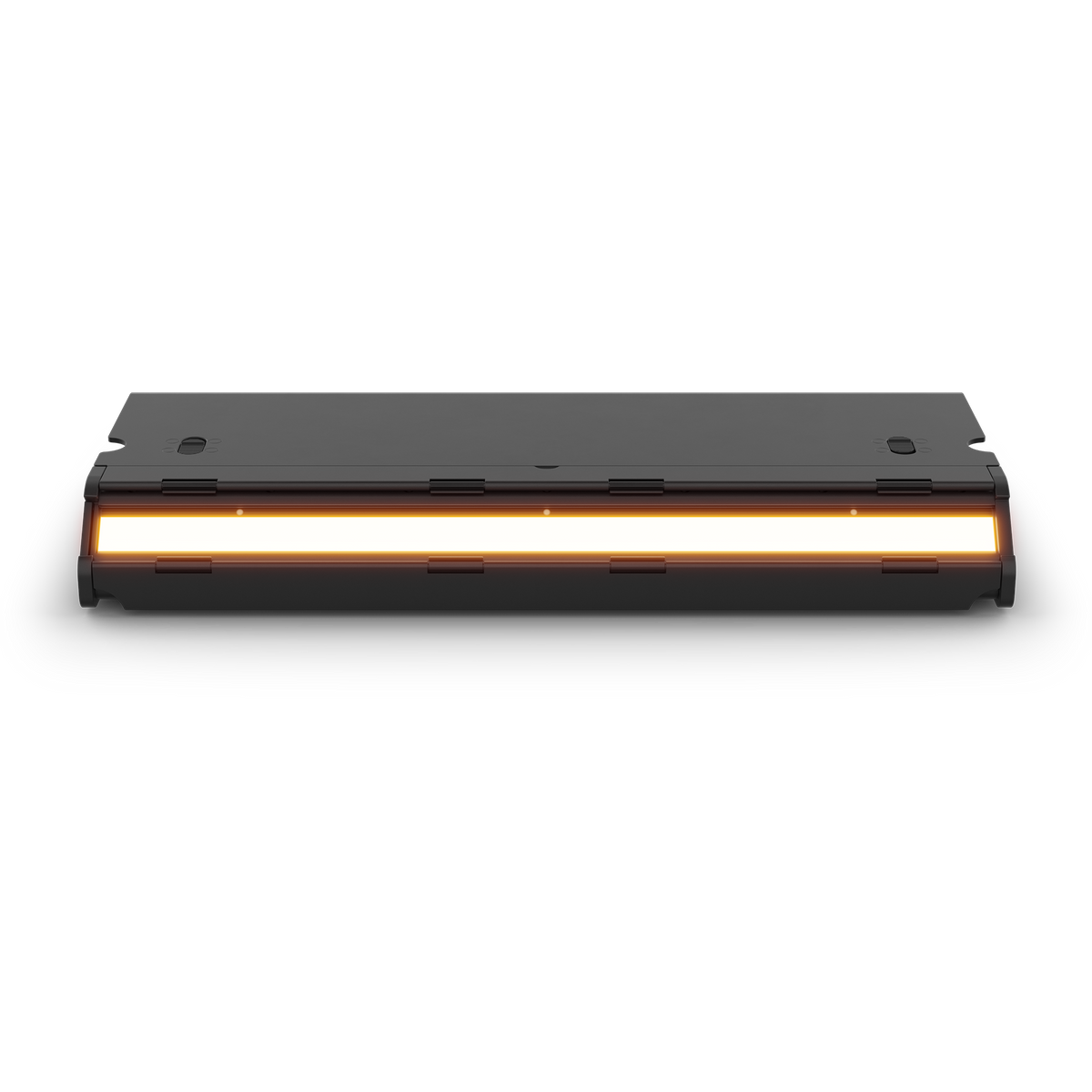

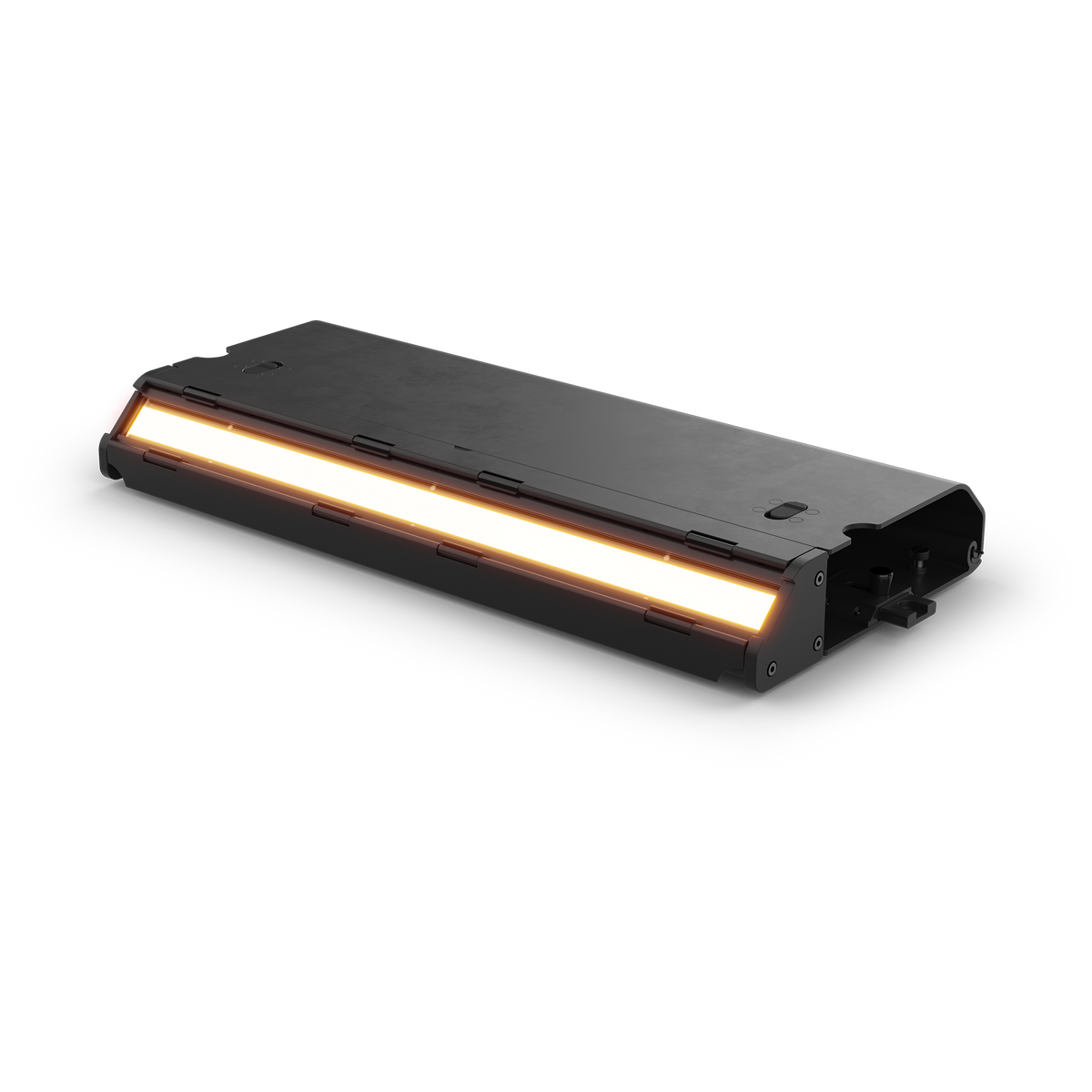

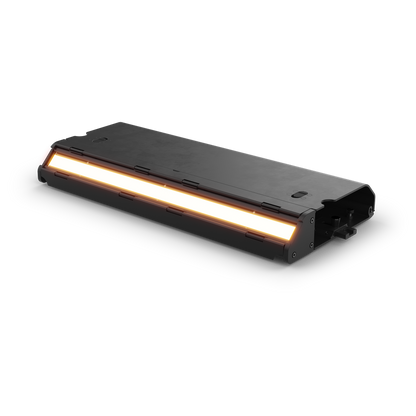

A low-profile, 0.5-meter IP65 footlight with a single-source lens for smooth, even output and fully controllable RGB marker lights for stage-edge visibility.

• Low-profile, 0.5mIP65 rated footlight with full-color and high-quality white light
• Single-source lens for smooth, even output with no distracting points of light and an additional “stealth” filter to help the fixture disappear when off
• Additional, fully controllable RGB marker lights can be used to cue talent or mark the edge of a stage
• Designed for end-to-end use with no gaps or distracting cable mess, and a covered display to keep everything elegant unseen.

This low-profile 0.5-meter IP65-rated RGBwWL LED footlight projects high-quality white light and a full range of color through a single-source lens designed to produce smooth, even output. Featuring fully-controllable RGB marker lights that can be used to cue talent or mark the edge of a stage, seamless end-to-end alignment, and a covered display, this elegant fixture also comes with a stealth filter that enables it to disappear when off.

• Rugged, Low-Profile Design: Its IP65-rated, low-profile housing delivers high-quality white and full-color light for demanding indoor or temporary outdoor stage environments.
• Smooth, Unobtrusive Output: A single-source lens produces smooth, even washes, while the included stealth filter helps the fixture visually disappear when not in use.
• Integrated Marker Lights: Use the fully controllable RGB marker lights to provide visual cues for performers or clearly define the edge of any stage.

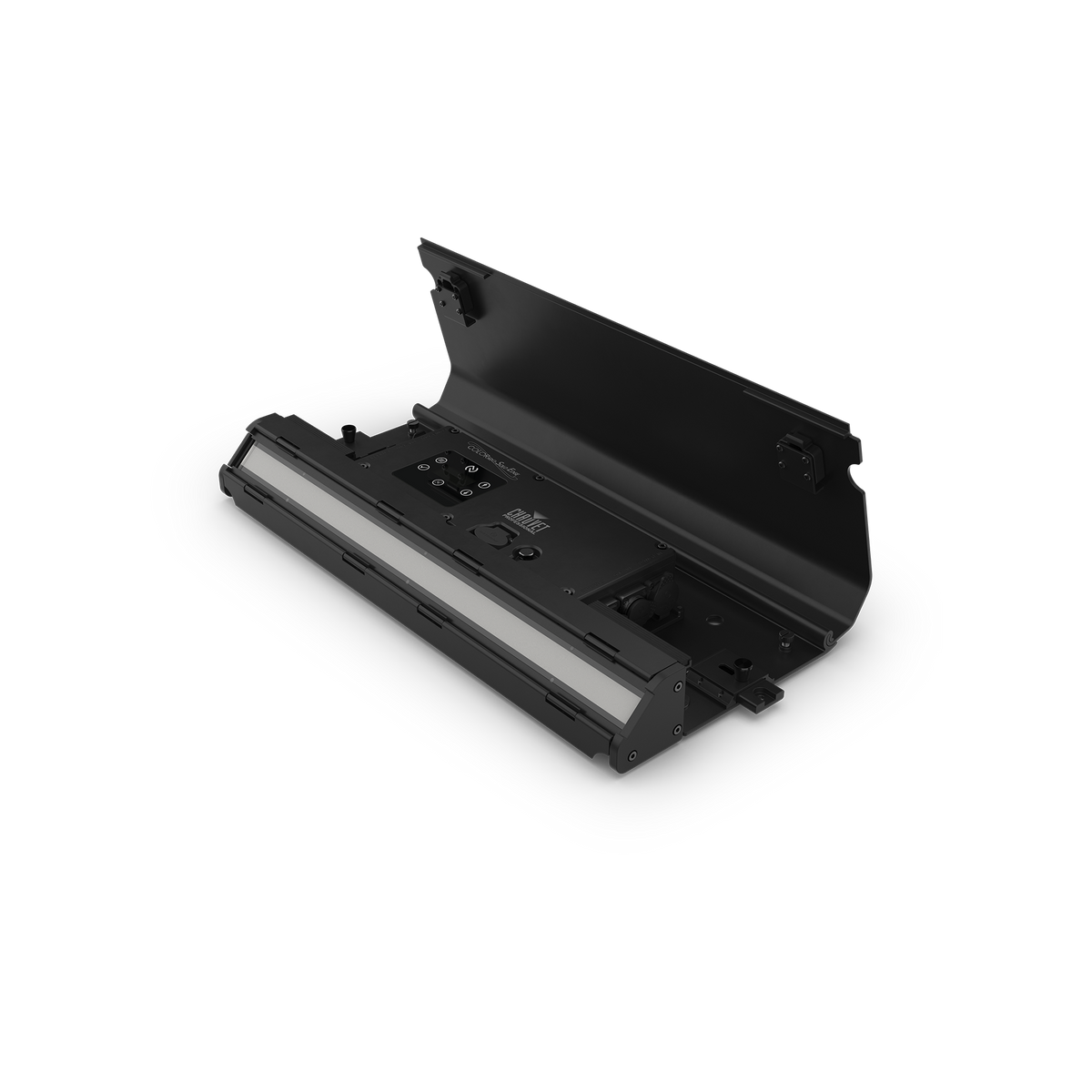

• Seamless End-to-End Alignment: Create clean, uninterrupted lines of light with end-to-end connections and a covered display that conceals distracting cables and settings.

Optical

• Color Temperature (range): 2800 to 8000 K
• Color Temperature (at full): 6516 K
• CRI @ 3200K: 93.1

Dynamic Effects

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Dim Curves: 4
• Built-in Automated Programs: Yes
• Customizable Programs: Yes

Construction/Physical

• Dimensions: 19.68 x 8.85 x 2.51 in (500 x 225 x 64 mm)
• Weight: 12.52 lb (5.68 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy and Aluminum die-cast
• IP Rating: IP66

Connections

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP65 XLR, Seetronic etherCON
• Cable Length (power): 5 ft (1.5 m)
• Software Connection: USB, Ethernet (RJ45)

Control

• Control Protocol: Art-Net, sACN, DMX, RDM
• Modes/Personalities: Personalities (22)

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 11 units @ 120 V; 19 units @ 208 V; 21 units @ 230 V;
• Power and Current: 126 W, 1.05 A @ 120 V, 60 Hz
• Power and Current: 125 W, 0.61 A @ 208 V, 60 Hz
• Power and Current: 125 W, 0.55 A @ 230 V, 50 Hz

Battery

• Battery Type: Lithium Ion
• Rechargeable: Yes

Certifications/Qualifications

• Compliance: CE, MET, ROHS
• MET Listing Number: [E113093-1110, E113093-1125]
• US Safety: [UL 60950-1]
• Canadian Safety: [CSA C22.2 No. 60950-1]
• Temperature (Ambient): -4 °F to 122 °F (-20 °C to 50° C)
