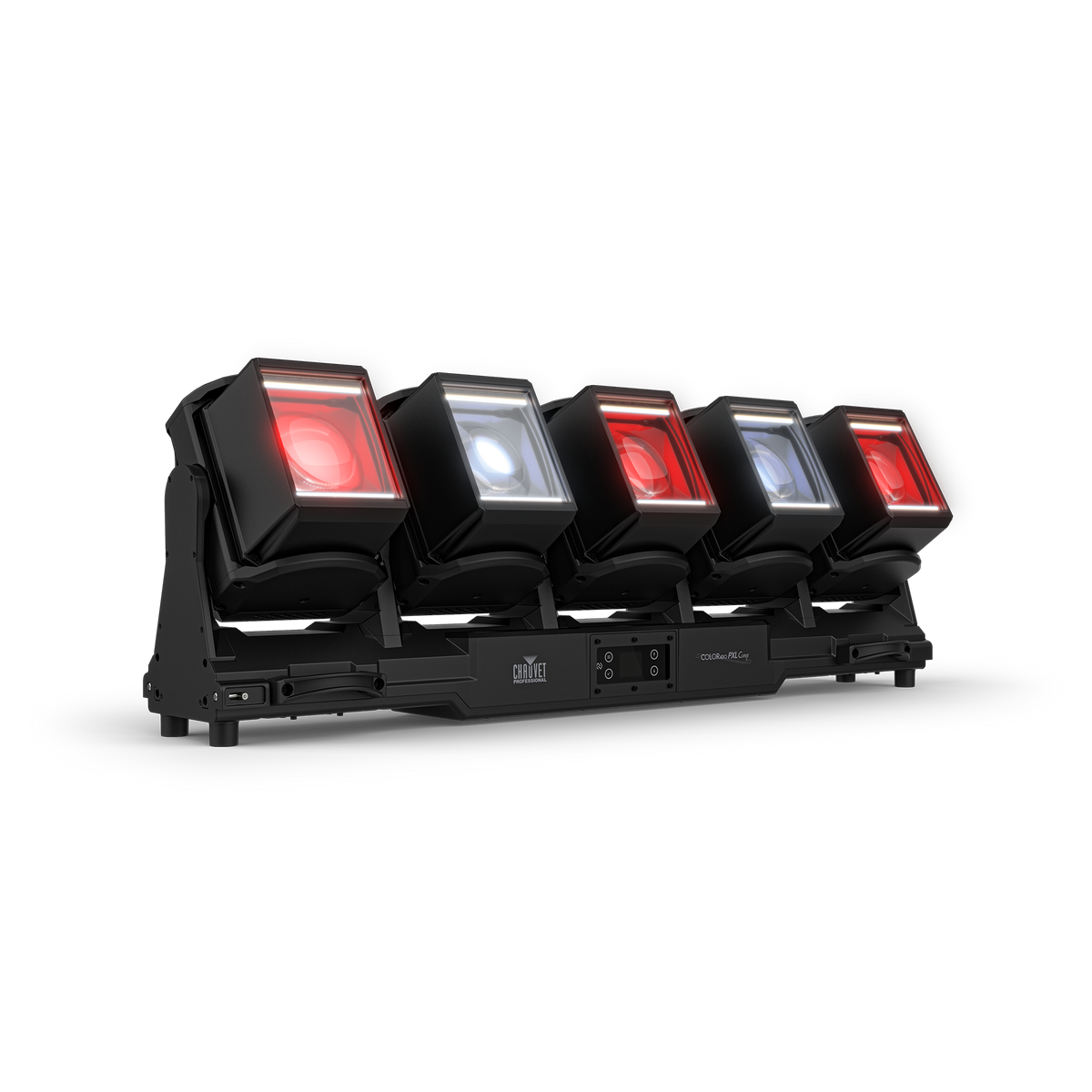

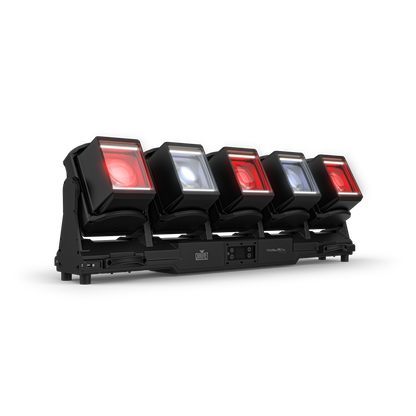

Chauvet Professional COLORADOPXLCURVE5 COLORado PXL Curve 5

Chauvet Professional COLORADOPXLCURVE5 COLORado PXL Curve 5

An IP65-rated RGBW arrayable batten featuring five independent motorized heads with zoom, pan, and tilt, plus dual linear cool and warm white strobes per head for dynamic effects.

• Fully featured IP65 rated Bar style fixture with (5) heads, each consisting of single (120W) RGBW LEDs, and two linear four cell CW and WW Strobe LEDs
• Wash and beam fixtures with pan and tilt functionality and the ability to maintain pixel pitch when using multiple fixtures together
• Quick and quiet operation of 200° of tilt and 60° of pan per head
• 8 section control of Warm White and Cool White strobe cells per head
• DMX, SACN, and Art-Net control for full flexibility
• RDM and NFC Enabled for remote addressing and trouble shooting
• IP65-rated 5-pin DMX and TCP/IP input and output ports
• NFC functionality (COMING SOON)
• Software update over Bluetooth (COMING SOON)
• Slotted Omega bracket for easy hanging on truss

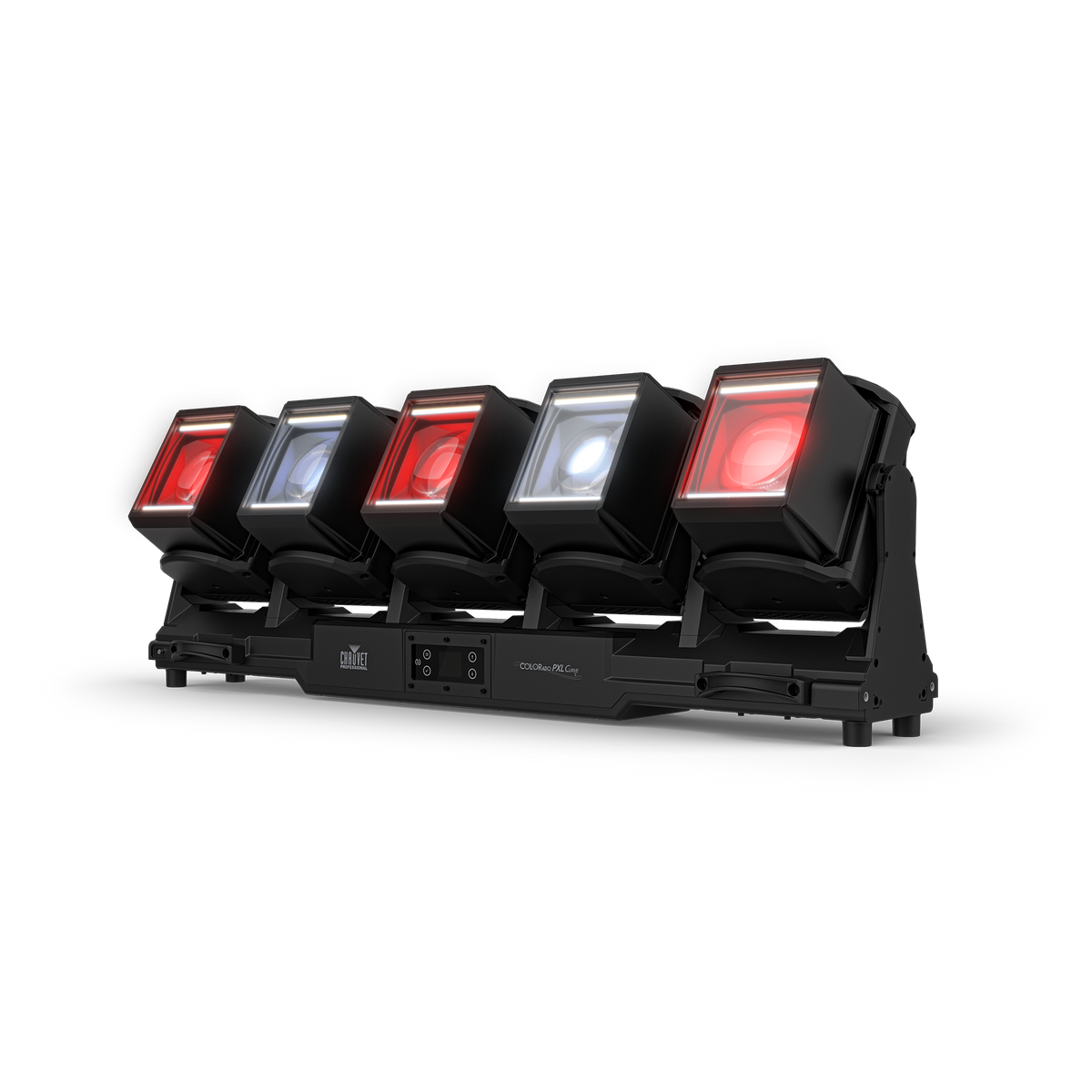

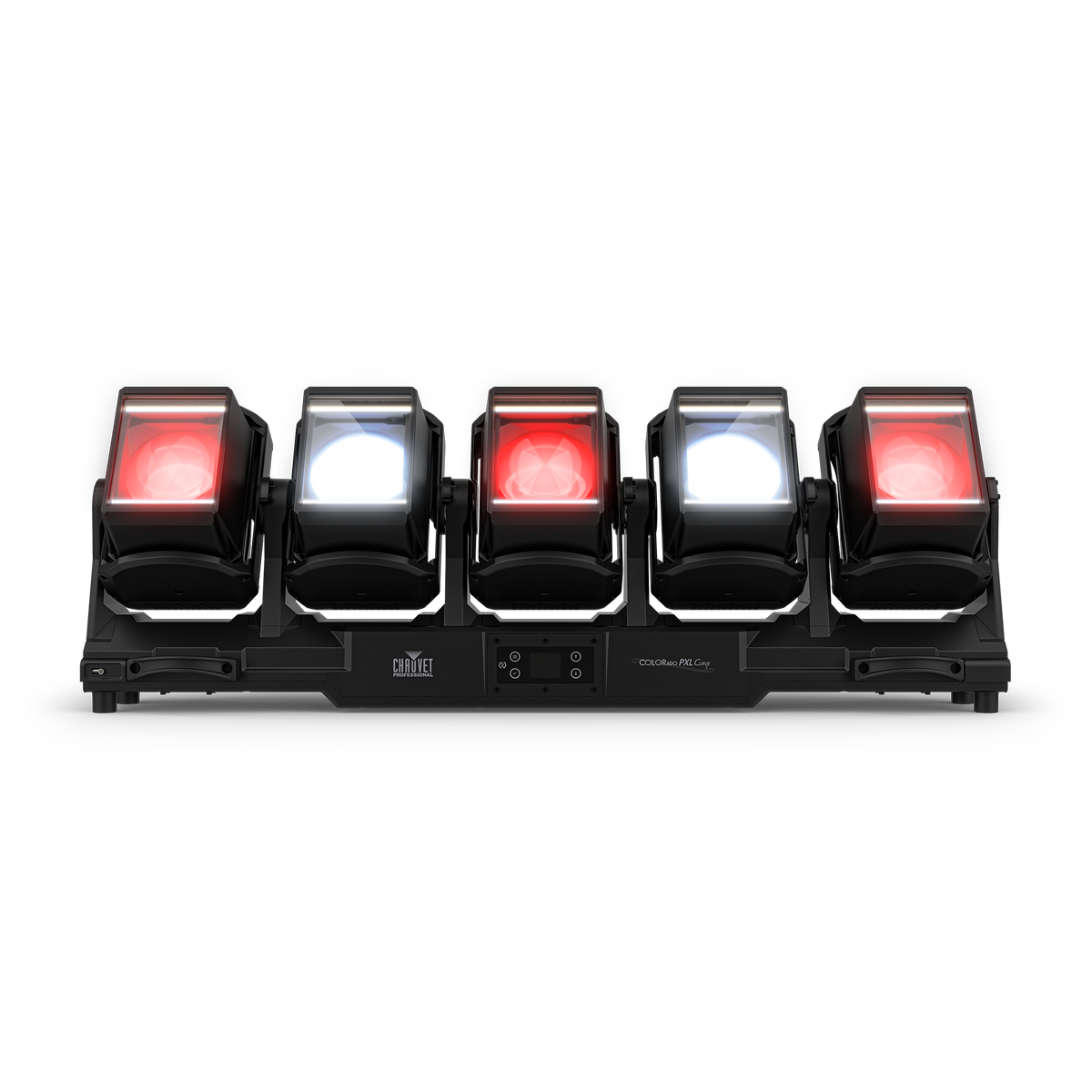

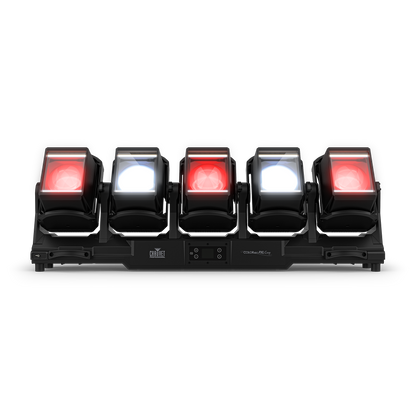

COLORado PXL Curve 5 features motorized pan, tilt and zoom in an IP65-rated LED batten form factor with five RGBW beam/wash heads that bring the added punch of dual linear cool and warm white LED strobe cells. Designed for seamless pixel mapping with COLORado PXL Curve 1, its color blending and rectangular heads perfectly match other COLORado PXL models in the rig. Flexible DMX, sACN, and Art-Net control along with RDM and NFC support round out this versatile addition to the COLORado PXL family.

• Individual Pixel Control: Five independently controlled RGBW pixels empower you to create intricate pixel-mapped effects, animated graphics, and vibrant, multi-layered color washes.
• All Weather Reliability: A rugged, IP65-rated housing protects against water and dust, ensuring consistent, reliable performance for outdoor concerts, festivals, and permanent installations.
• Powerful Moving Wash: Delivers smooth, fast pan and tilt movement combined with a powerful wash output, perfect for covering large areas with rich, saturated color.

Optical

• Light Source: 5 LEDs (RGBW) 120 W, (4.5A) 50,000 hours life expectancy
• Color Temperature (range): 3200 to 7500 K
• Zoom Range: 8.3° to 155.1°
• Single Head Beam Angle (without strobe): 3.2 – 30.3°
• Single Head Beam Angle (with strobe): 3.2 – 32.3°
• Single Head Field Angle (without strobe): 3.7 – 38°
• Single Head Field Angle (with strobe): 3.7 – 88.7°
• Single Head Cutoff Angle (without strobe): 4 – 39.8°
• Single Head Cutoff Angle (with strobe): 4 – 145.1°
• Single Head Zoom Range (without strobe): 3.2 – 39.8°
• Single Head Zoom Range (with strobe): 3.2 – 145.1°
• Lumens: 42,172 lm
• Selectable PWM: 600, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 15000 Hz

Dynamic Effects

• Pant and Tilt: 60°/200°
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 25Hz
• Standalone Color Mixing: No
• Color Temperature Presets: Yes
• Dim Modes: 2
• Built-in Automated Programs: Yes

Construction/Physical

• Dimensions: 39.33 x 8.86 x 13.50 in (999 x 225 x 343 mm)
• Weight: 71.4 lb (32.4 kg)
• Exterior Color: Black
• Housing Material: Aluminum diecast, High-Impact flame-retardant polymer, Steel

Connections

• Power Connection: Edison (Local) plug to Seetronic Powercon IP65
• Power Input: Seetronic Powercon IP65
• Power Output: Seetronic Powercon IP65
• Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: Art-Net, sACN, DMX, RDM
• DMX Channels: 120 ch, 155 ch, 195 ch,355 ch
• Art-Net Channels: 120 ch, 155 ch, 195 ch,355 ch
• sACN Channels: 120 ch, 155 ch, 195 ch,355 ch
• Modes/Personalities: 4 personalities: 120 ch, 155 ch, 195 ch,355 ch

Electrical

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: ; 1 units @ 120 V; 2 units @ 208 V; 2 units @ 230 V,
• Power and Current: 1136 W, 9.49 A @ 120 V, 60 Hz
• Power and Current: 1105 W, 5.44 A @ 208 V, 60 Hz
• Power and Current: 1113 W, 4.87 A @ 230 V, 50 Hz

Certifications/Qualifications

• CE, MET, UKCA, FCC
• IP Rating: IP65, temporary outdoor/wet use
• Temperature (Ambient): 14 °F to 113 °F (-10 °C to 45 °C)
