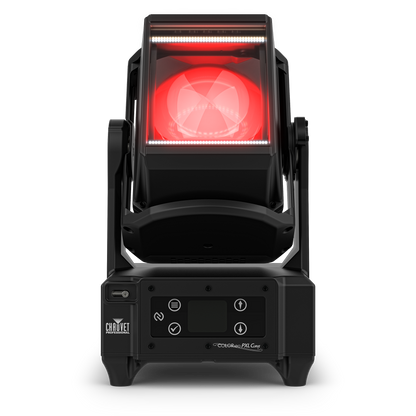

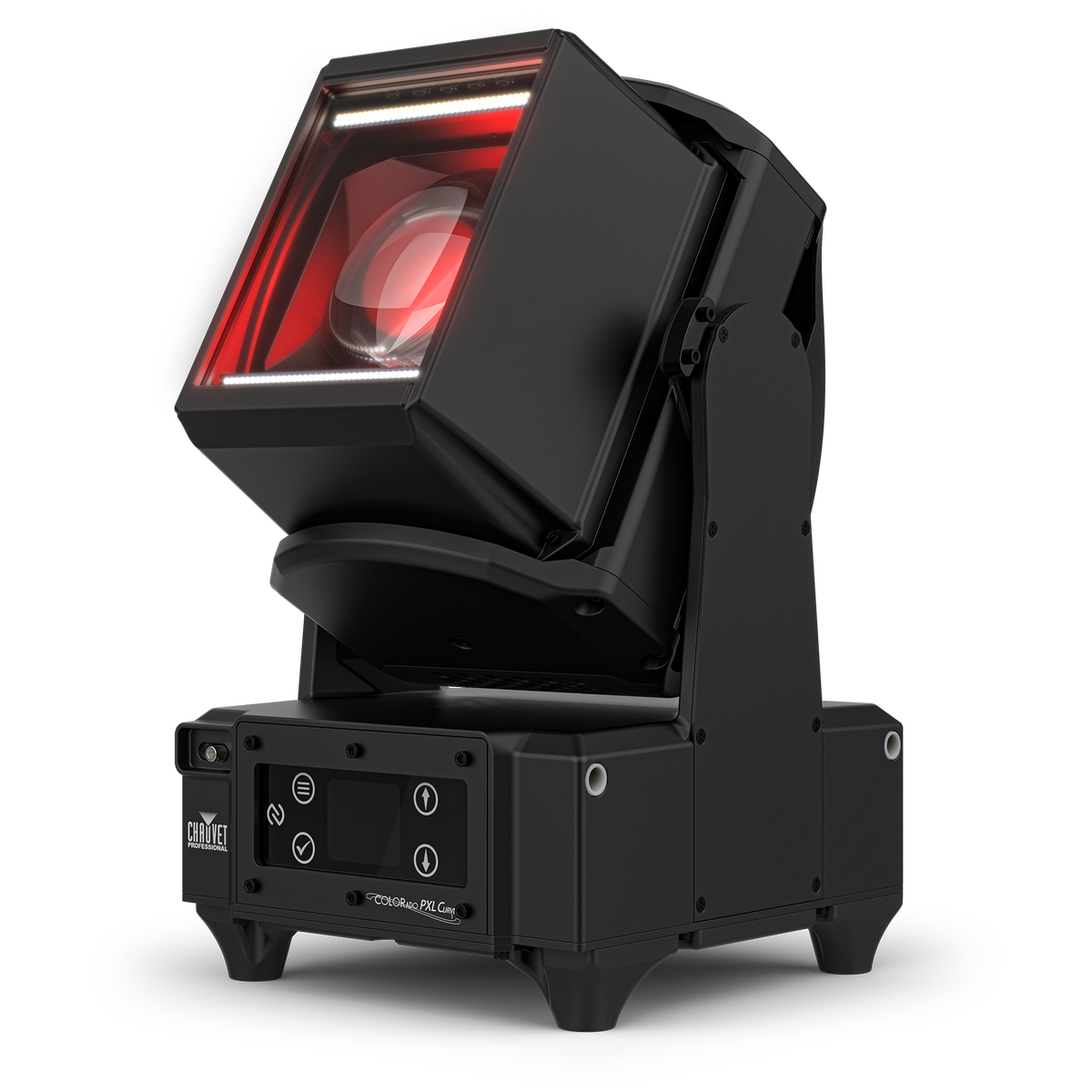

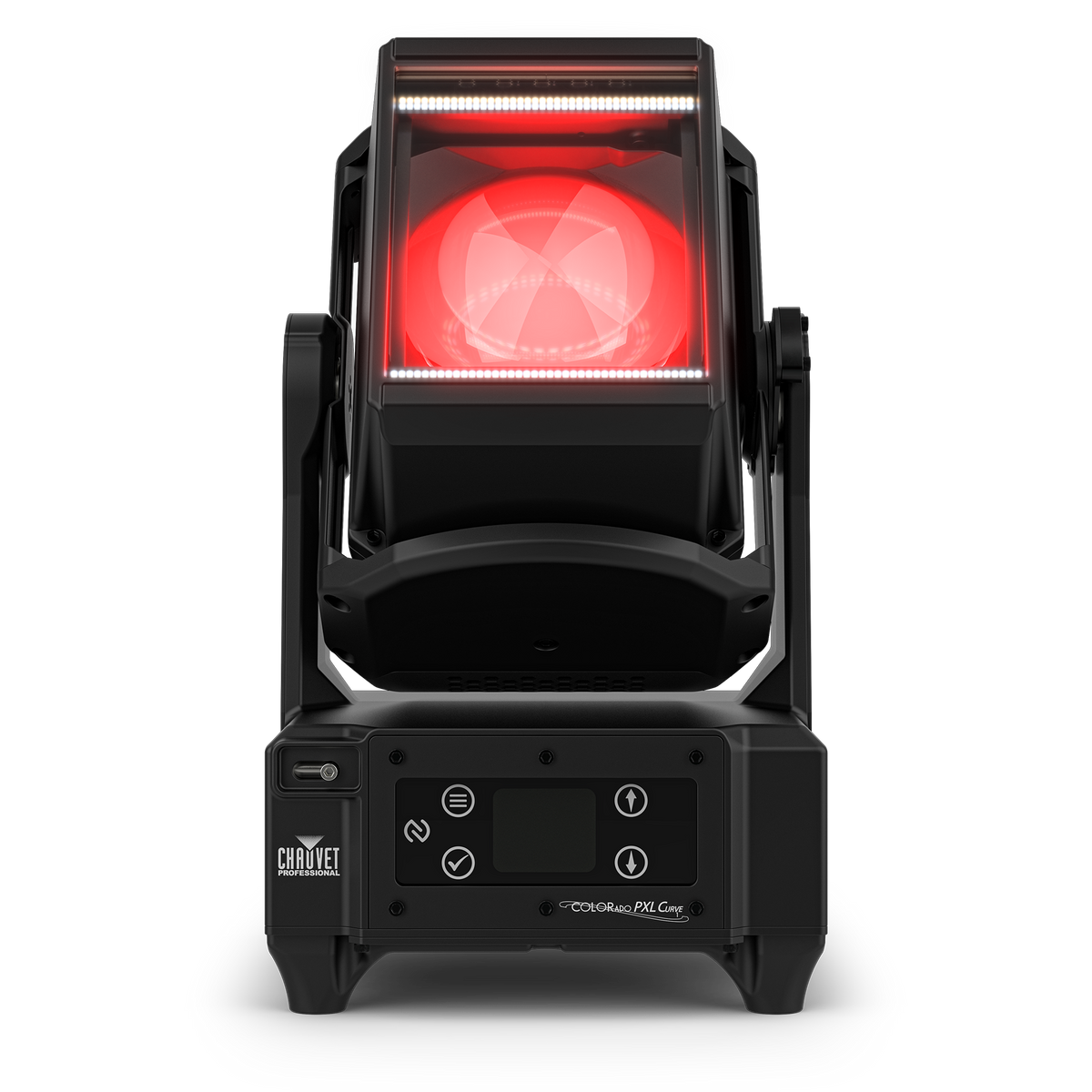

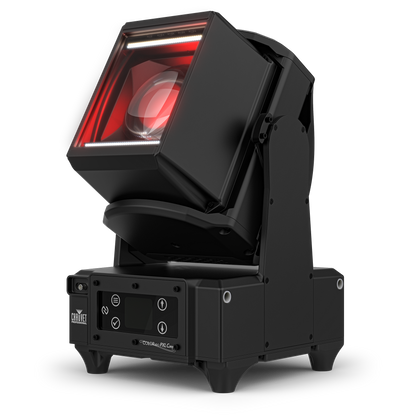

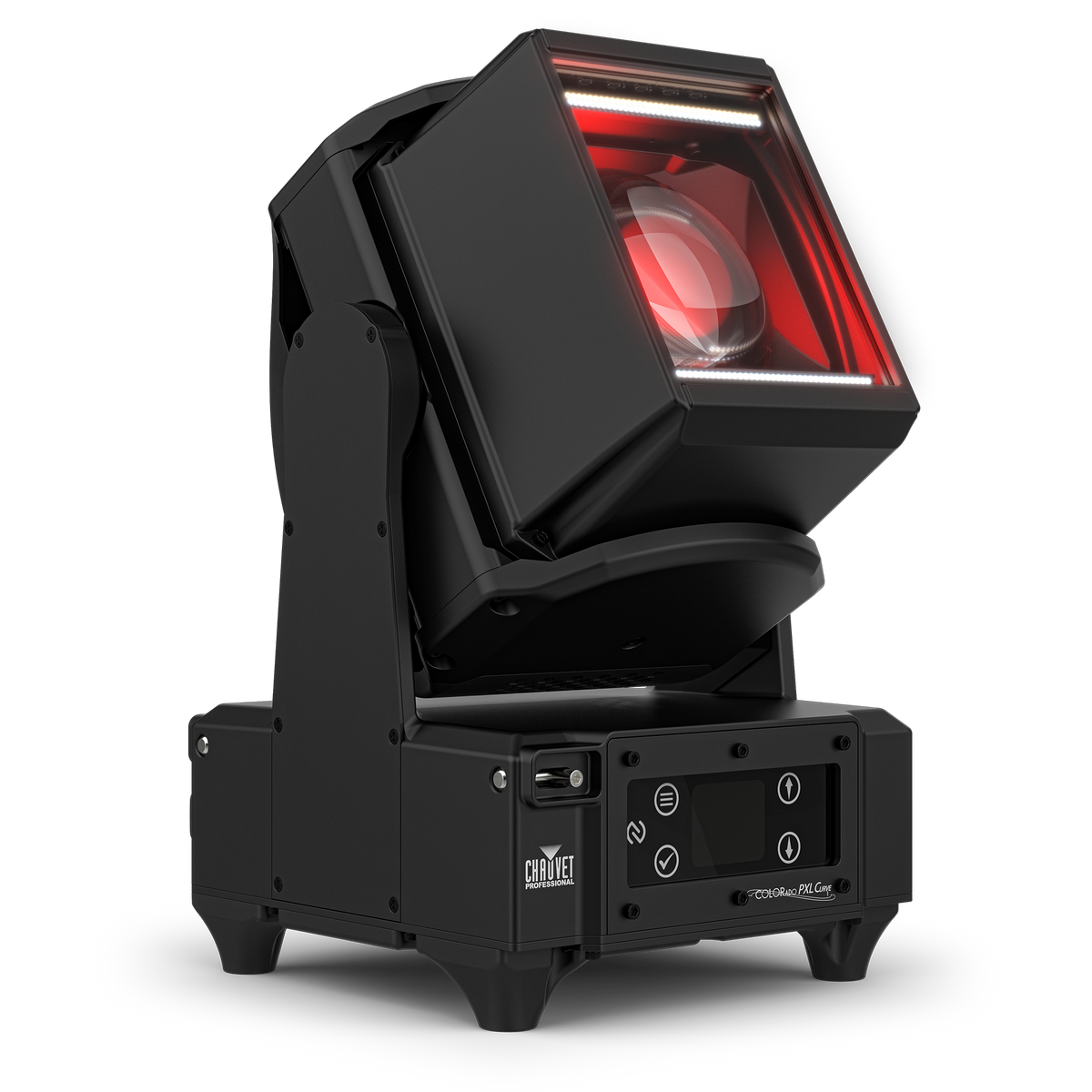

Chauvet Professional COLORADOPXLCURVE1 COLORado PXL Curve 1

Chauvet Professional COLORADOPXLCURVE1 COLORado PXL Curve 1

A compact, IP65-rated RGBW arrayable batten featuring motorized pan, tilt, and zoom, plus a powerful dual linear cool and warm white strobe for dynamic effects.

• Fully featured IP65 rated with single (120W) RGBW LED and two linear four cell CW and WW Strobe LEDs wash and beam fixture with pan and tilt functionality with the ability to maintain pixel pitch when using multiple fixtures together
• Quick and quiet operation of 200° of tilt and 60° of pan
• 8 section control of Warm White and Cool White strobe cells.
• Lightweight and compact makes fixtures easily rigged together in any environment
• DMX, SACN, and Art-Net, control for full flexibility
• RDM and NFC Enabled for remote addressing and trouble shooting
• IP65-rated 5 pin DMX and TCP/IP input/output ports
• Slotted Omega bracket for easy hanging on truss

COLORado PXL Curve 1 features motorized pan, tilt and zoom in a compact IP65-rated RGBW LED beam and wash fixture that brings the added punch of dual linear cool and warm white LED strobe cells. Designed for seamless pixel mapping with multiple fixtures, alignment pins maintain pixel pitch while its color blending and rectangular head perfectly match other COLORado PXL models in the rig. Flexible DMX, sACN, and Art-Net control along with RDM and NFC support round out this versatile addition to the COLORado PXL family.

• All Weather Creative Power: An IP65-rated RGBW wash, beam, and dual strobe delivers versatile effects with pan and tilt functionality for any indoor or outdoor environment.
• Precise Articulation: Achieve quick and quiet positioning with 60° of pan and 190° of tilt, perfect for creating dynamic, articulating arrays and animated looks.
• Advanced Strobe Control: Command eight independent sections of the warm and cool white strobe cells to generate unique pixel-mapped chases and other dynamic visual effects.
• Compact And Lightweight Design: A compact and lightweight body allows for faster rigging and enables the creation of large, seamless arrays without excessive weight on your structure.
• Flexible Control Options: Integrate seamlessly into any professional lighting system using your choice of DMX, sACN, or Art-Net for maximum control protocol flexibility.
• Simplified Fixture Management: Use RDM for remote addressing and monitoring, or tap the fixture with your phone using NFC to configure settings without applying power.
• Weatherproof Connections: Maintain signal integrity in any weather with IP65-rated 5-pin DMX and TCP/IP connections for secure input and output linking.
• Fast And Secure Rigging: Mount fixtures quickly and securely in any orientation with the included slotted Omega bracket, designed for effortless truss installation.

Optical

• Color Temperature (at full): 22,089 K
• Illuminance without strobe (3.2°): 17,242 lux @ 5 m
• Illuminance with strobe (3.2°): 17,786 lux @ 5 m
• Illuminance with strobe (39.8°): 328 lux @ 5 m
• Illuminance with strobe (145.1°): 407 lux @ 5 m

Dynamic Effects

• Pan and Tilt: 60°/190°
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized/Manual
• Strobe Rate: 0 to 25 Hz
• Color Temperature Presets: Yes
• Move-in-Black: Yes
• Dim Modes: 2
• Dim Curves: 4

Construction/Physical

• Dimensions: 7.83 x 8.46 x 12.99 in (199 x 215 x 330 mm)
• Weight: 15 lb (6.8 kg)

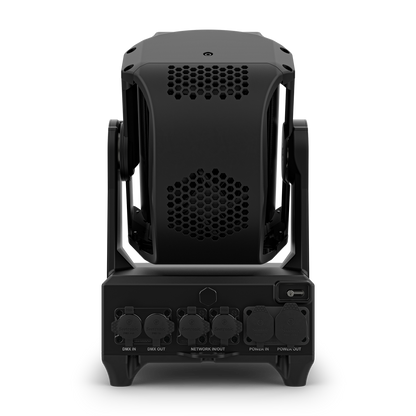

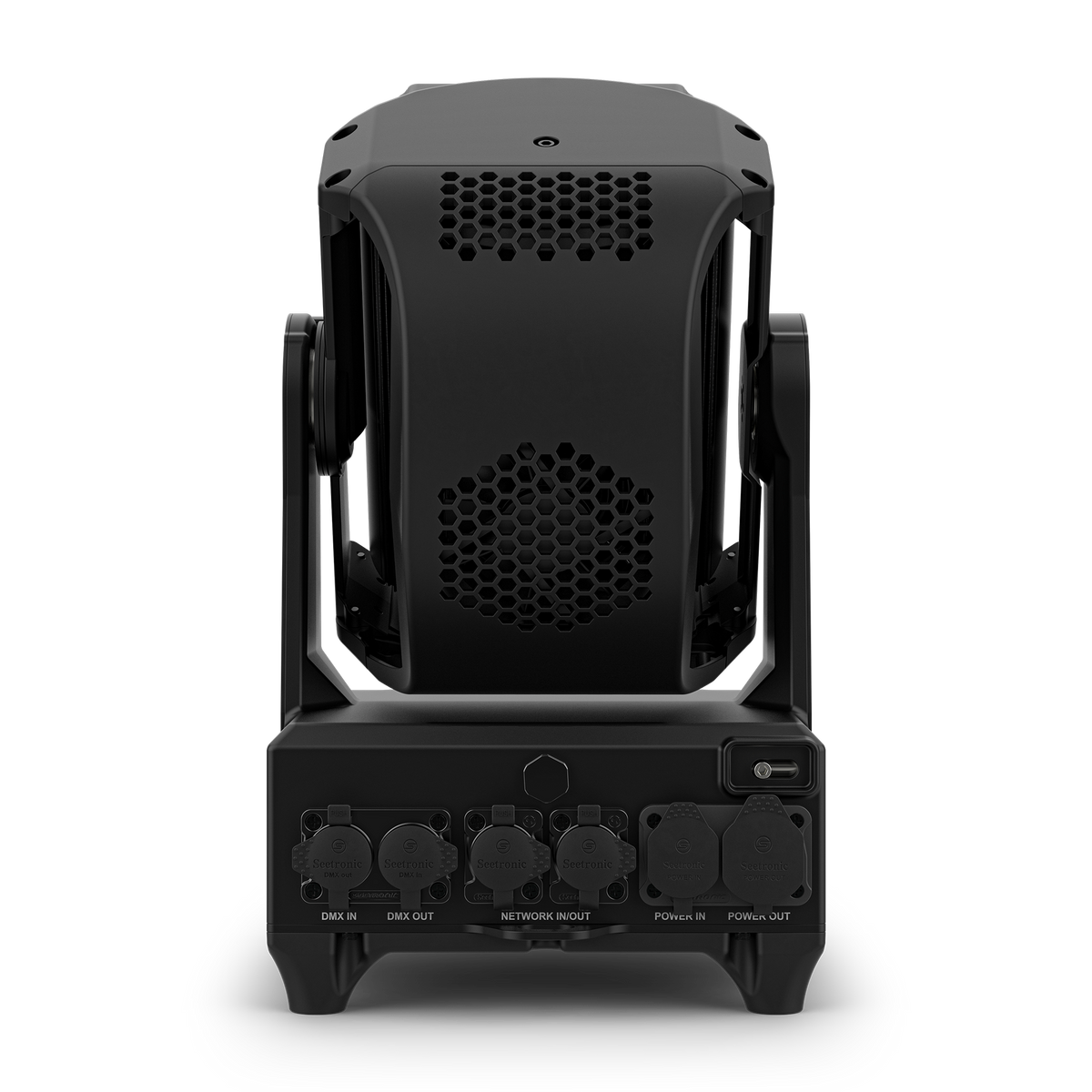

Connections

• Power Input: Seetronic Powerkon
• Power Output: Seetronic Powerkon
• Data Connectors: 5-pin IP65 XLR, etherCON
• Cable Length (power): 5 ft (1.5 m)

Control

• Control Protocol: [Art-Net, sACN, DMX, RDM, NFC]
• DMX Channels: 24, 31, 39, or 71
• Art-Net Channels: 24, 31, 39, or 71
• Modes/Personalities: 4 personalities (24, 31, 39, or 71)
