Chauvet Professional CLOUD9XIP CLOUD 9X IP 120V

Chauvet Professional CLOUD9XIP CLOUD 9X IP 120V

A compact, IP-rated low-lying fogger that creates dense, floor-hugging fog using only tap water and specialized fluid, eliminating the need for dry ice or CO2. Ideal for professional touring productions, event stages, and ballrooms requiring a reliable, continuous low-fog effect without the logistical challenges of dry ice.

• Generates continuous low-lying fog capable of covering a 3,230 square foot area.
• Reaches operational temperature in just five minutes for rapid event deployment.
• Automates refilling with a direct garden hose connection for unattended operation.
• Offers versatile control via DMX, RDM, onboard display, and included wireless remote.
• Housed in a rugged, integrated flight case with a stackable design for touring.
• Simplifies cleanup using an integrated water drainage system with a durable brass fitting.

Cloud 9X IP is a compact low-lying fogger that produces high-impact floor-hugging fog ideal for stages and ballrooms. No refrigeration, dry ice or CO2 is needed, making for easy and safe operation that requires no special handling, licensing, or training.

Cloud 9X IP creates continuous output using only LLG low-lying fog fluid and tap water (no need for distilled!). Taking full advantage of its new ability to use water from a faucet, Cloud 9X IP features a rear fitting that accepts a regular garden hose for automated refilling as water is depleted.

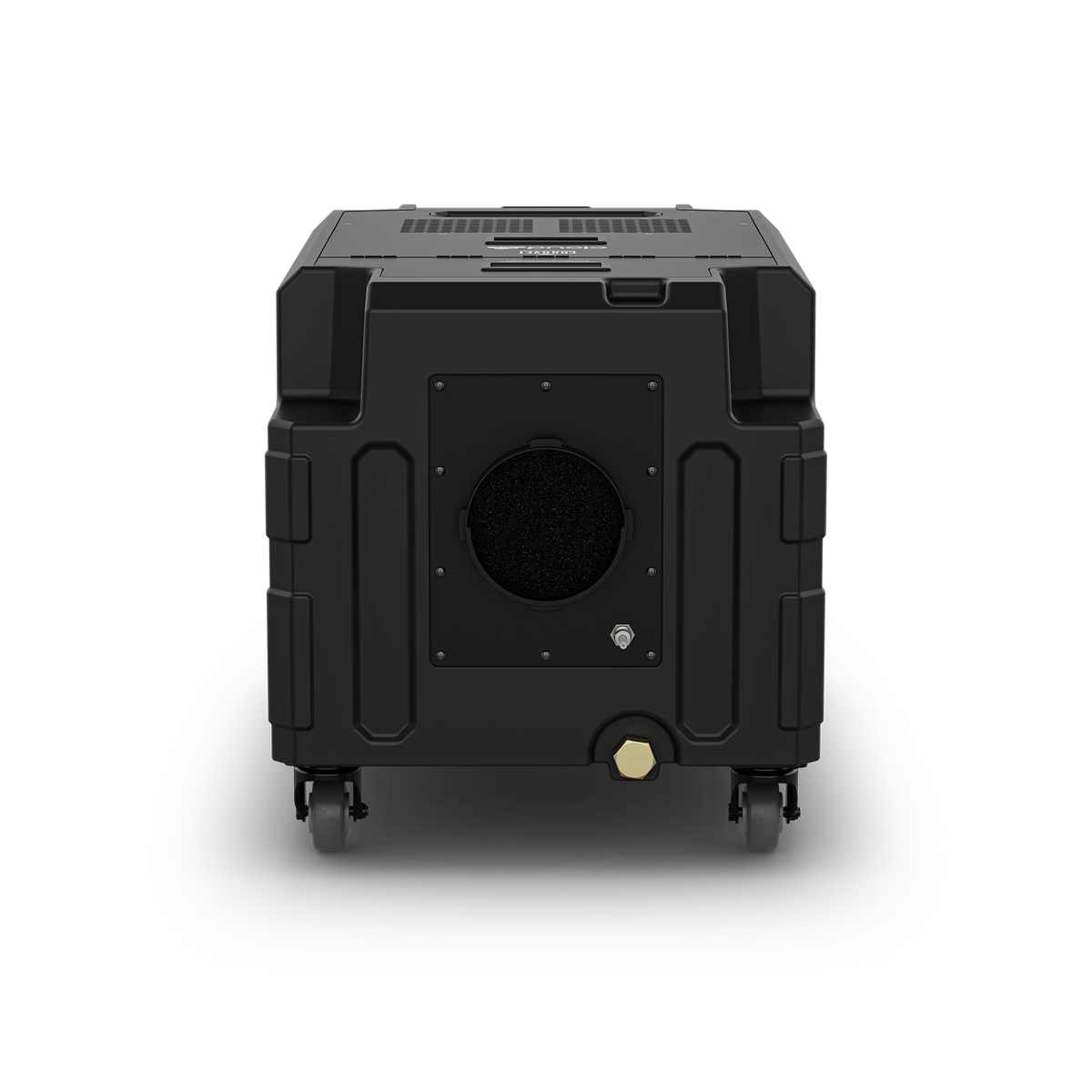

With a fast five-minute heat-up time and integrated water drainage system with a durable brass fitting that withstands repeated use, Cloud 9X IP setups and cleanups are always quick, easy, and reliable. Convenient control is available in any setting or application, via full-color onboard control display, RDM, DMX, or its included wireless RF handheld remote.

Cloud 9X IP features an upgraded housing that is not only inherently corrosion resistant, but also signficantly lighter than the previous Cloud 9 model that it replaces (total weight has been reduced from ~120lbs to ~75lbs). Its new housing is also stackable (up to 3 tall), making for easy transportation by truck, and features a removable rear cover for storing accessories, keeping everything self-contained in the unit.

• High-Impact Low-Lying Fog: This compact, professional fogger creates a dramatic low-lying fog effect perfect for stages and ballrooms.
• Outdoor and Wet Environment Use: Designed to be suitable for temporary use in outdoor or wet conditions.
• Continuous Operation and Large Coverage: Delivers continuous fog output capable of covering a substantial 3,230 square foot area.
• Ultrasonic Technology: Ultrasonic agitators combine distilled water with fog fluid to create the dense, low-lying effect.
• Integrated Touring Case: It ships in a rugged, integrated flight case with locking casters, making it ideal for touring and rental applications.
• Flexible Control Options: Control the unit easily via the onboard full-color display, a wireless remote, or DMX.
• Fast Cleanup System: An integrated water drainage system simplifies the cleanup process, saving you time and effort.
• CO2 Style Effect: Produces a CO2-style effect that lasts for several minutes before dissipating when used with LLG fluid.
• No Dry Ice or CO2 Needed: Operates without dry ice or CO2, eliminating the need for special licensing or training.
• Simple Software Updates: Features a convenient USB-C port for easy software uploads.

Dynamic Effects

• Fan Performance: 81 cfm
• Low Fluid Shutdown: Yes

Construction/Physical

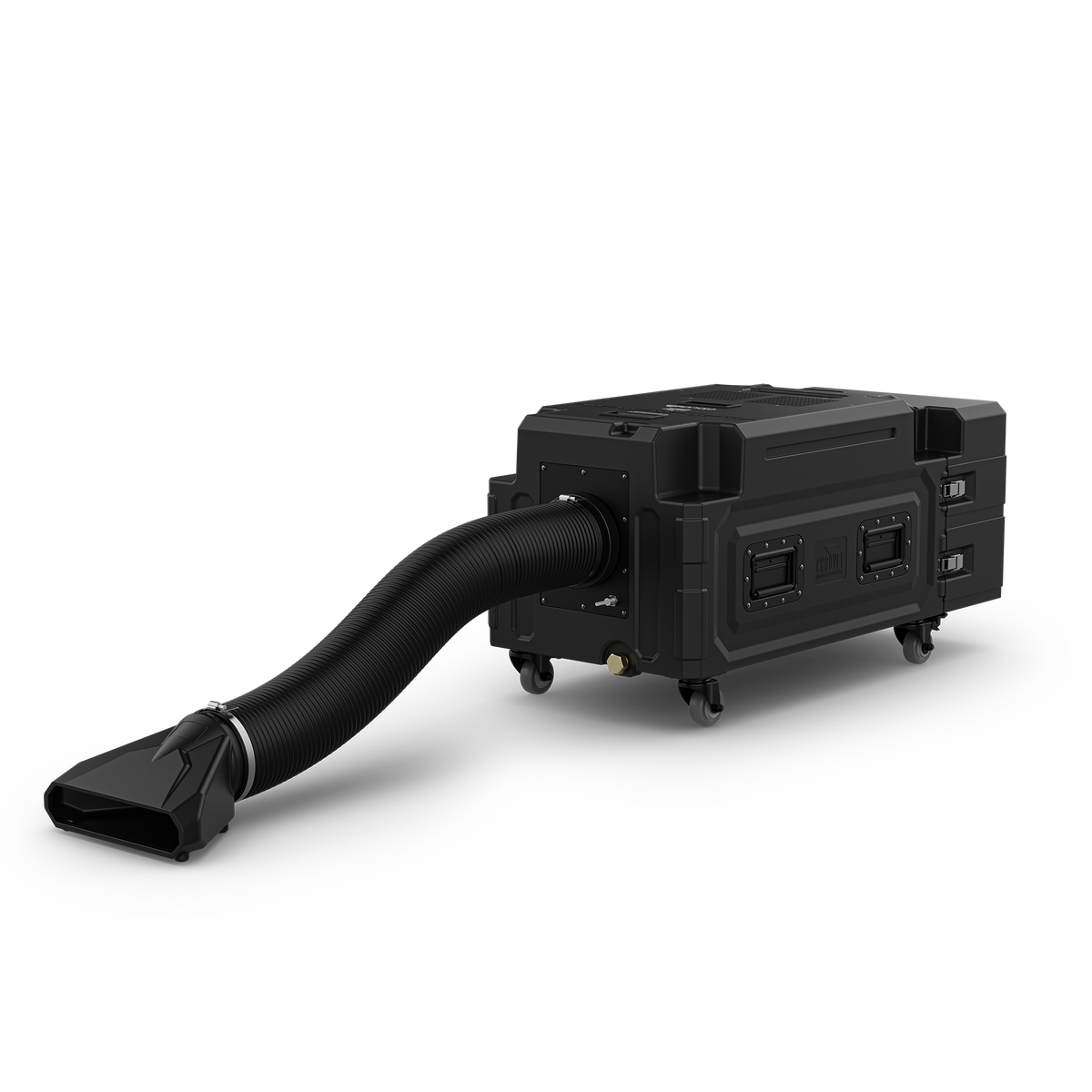

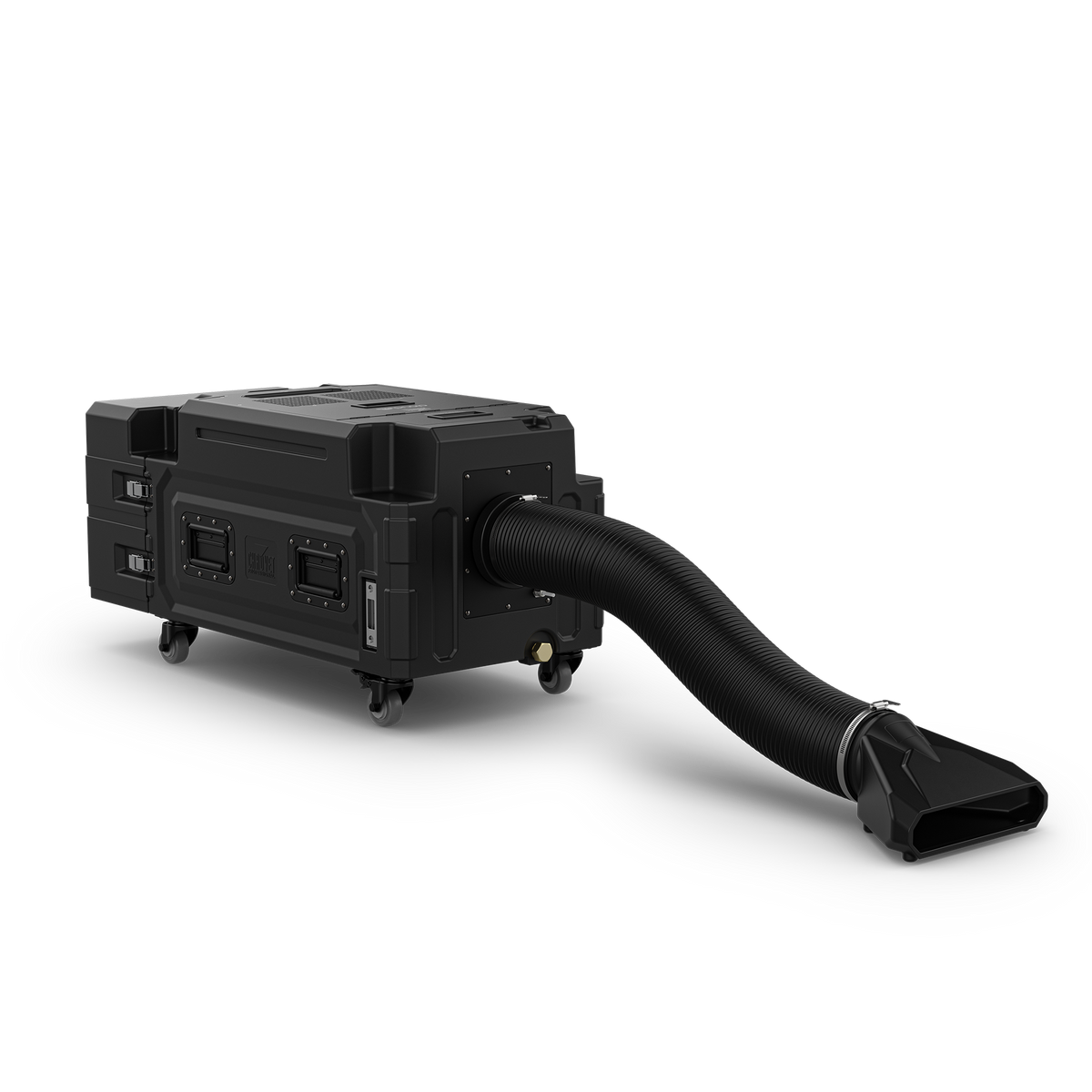

• Output Nozzle (Outer Diameter): 4.76 in (121 mm)
• Hose Length (Fully extended): 11 ft (3.4 m)
• Weight: 76.6 lb (34.75 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy, High-impact flame-retardant polymer
• Tank Capacity (Low-lying Fog Fluid): 0.8 gal (3 l)
• Fog Fluid Consumption: 25 mL/min (0.88 fl oz/min)
• Fog Fluid Runtime (Fog Fluid Tank,3 L): 2 hr
• Water Consumption: 184.7 mL/min (6.25 fl oz/min)
• Water Runtime (w/ Total Water Tank, 27.7 L): 2.5 hr

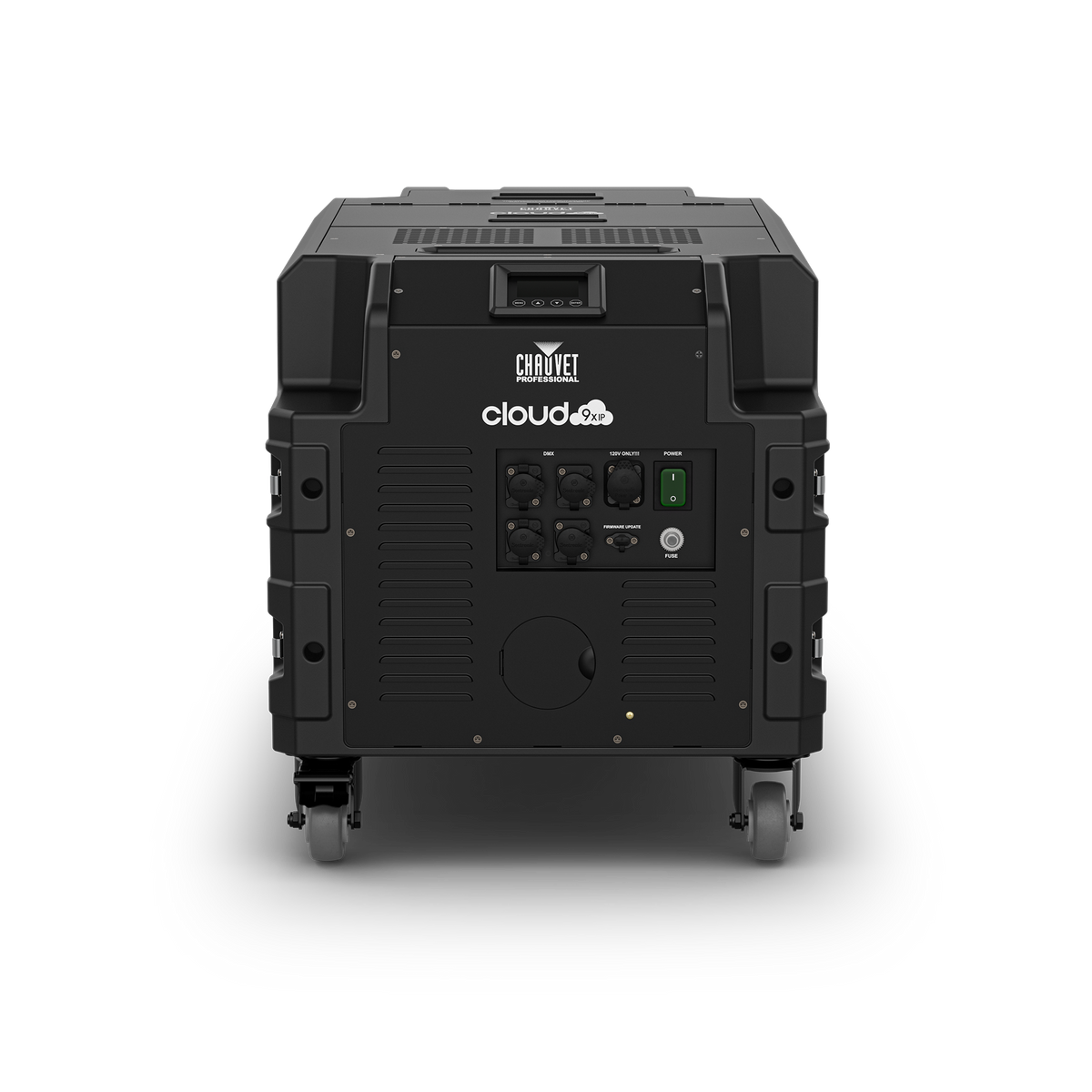

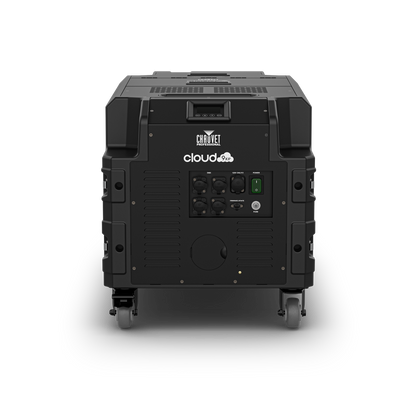

Connections

• Power Input: Seetronic Powerkon IP65
• Data Connectors: 3-pin/5-pin IP rated
• Cable Length (power): 5 ft (1.5 m)
• Firmware upgrades: USB type-C

Control

• Control Protocol: DMX, RDM, Wireless Remote
• DMX Channels: 3
• Modes/Personalities: 1 personality (3ch)
• On-Board Control: Yes
• Included Remote: Yes

Electrical

• Input Voltage: 120 VAC, 60 Hz
• Input Voltage: 230 VAC, 50 Hz
• Power and Current: 1960 W, 17.5 A @ 120 V, 60 Hz
• Power and Current: 1281 W, 5.59 A @ 230 V, 50 Hz
• Heat-up Time: 5 min
• Breaker Size: 10 A, 250 V

Certifications/Qualifications

• Certifications: CE, ROHS, UKCA
• IP Rating: IP53, temporary outdoor/wet use
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
