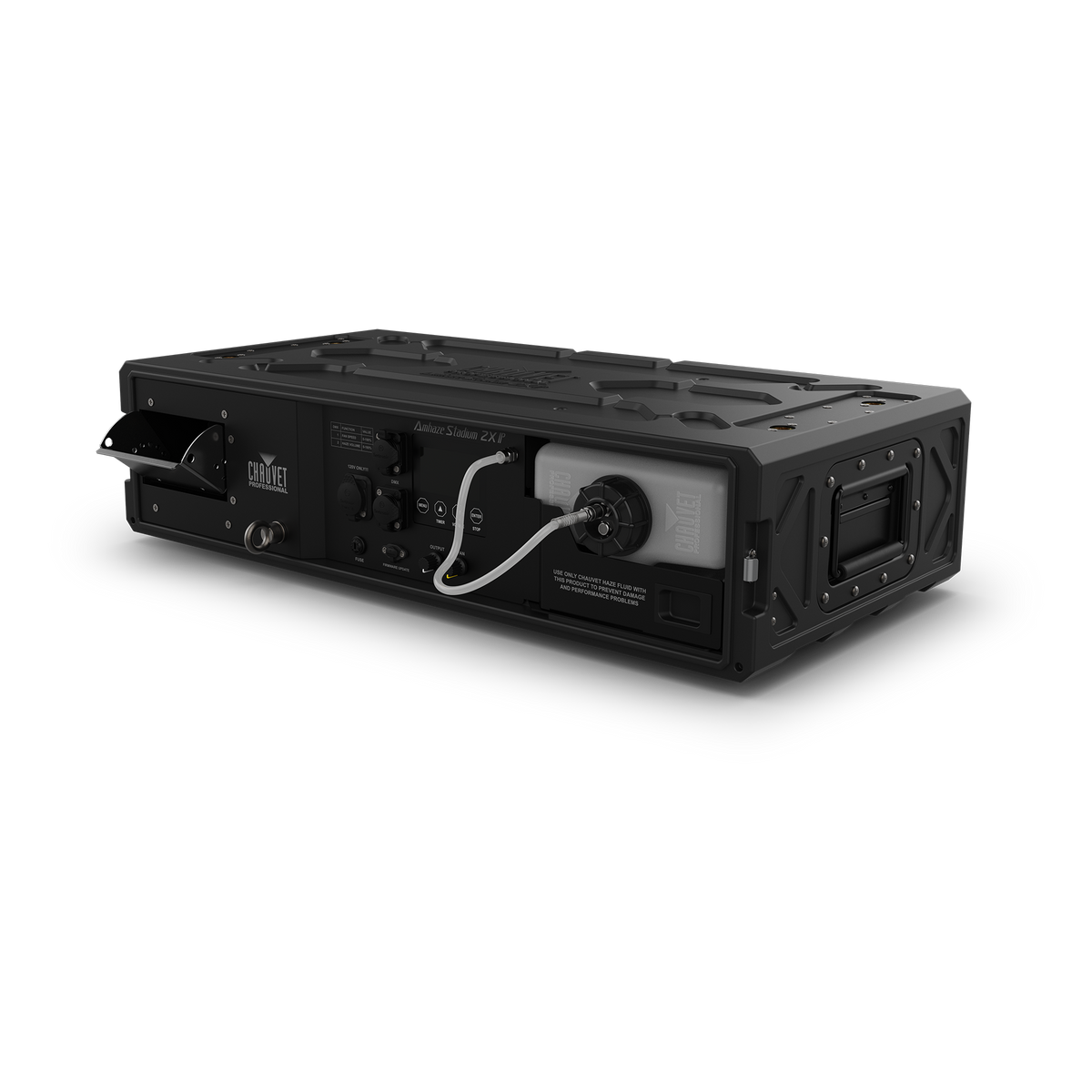

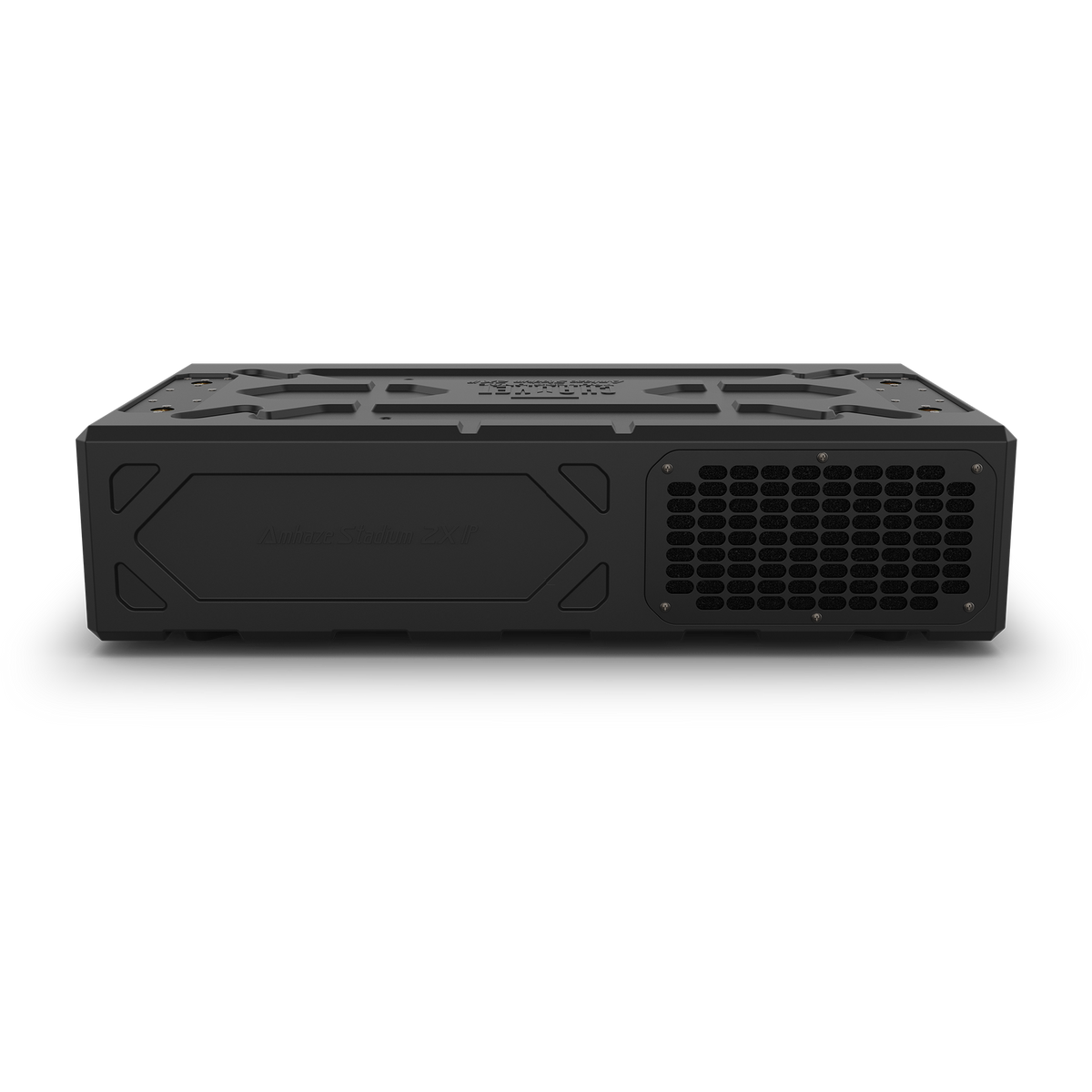

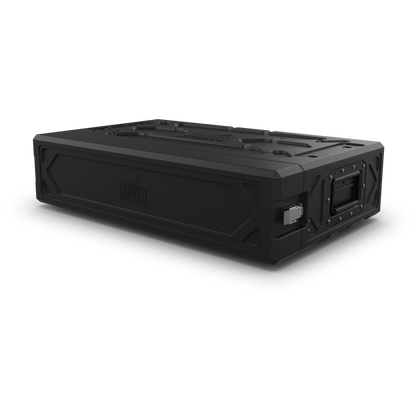

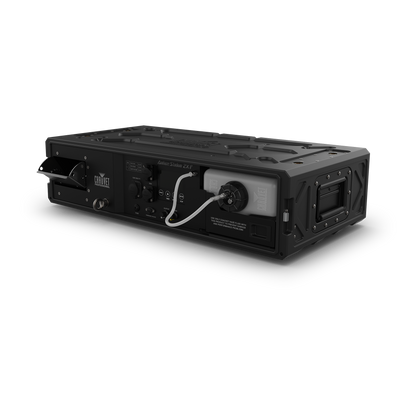

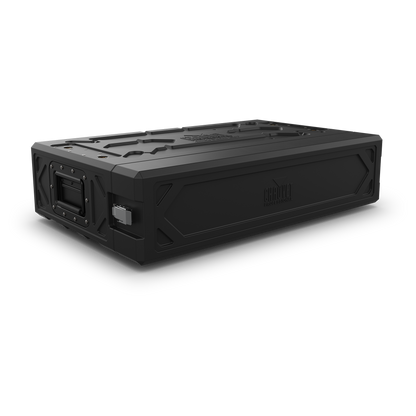

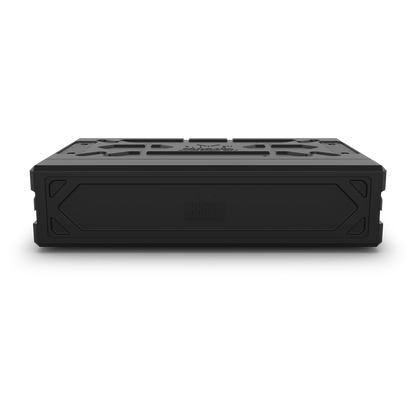

Chauvet Professional AMHAZESTADIUM2XIP Amhaze Stadium 2X IP 120V

Chauvet Professional AMHAZESTADIUM2XIP Amhaze Stadium 2X IP 120V

A rugged and compact IP-rated hazer built into a self-contained flight case, offering precise DMX and manual control over its variable haze output and blower speed. Designed for the demands of touring, stadiums, festivals, and large-scale productions where a reliable, high-output, and weather-resistant atmospheric effect is essential.

• Ensures exceptional reliability with a serviceable heater core and corrosion-resistant peristaltic pump.
• An adjustable vent louver allows for precise directional control of the haze flow.
• Supports DMX and RDM protocols, with a USB-C port for fast, in-field software updates.
• Achieves operational readiness in just 6 minutes with a powerful 164 cfm fan output.

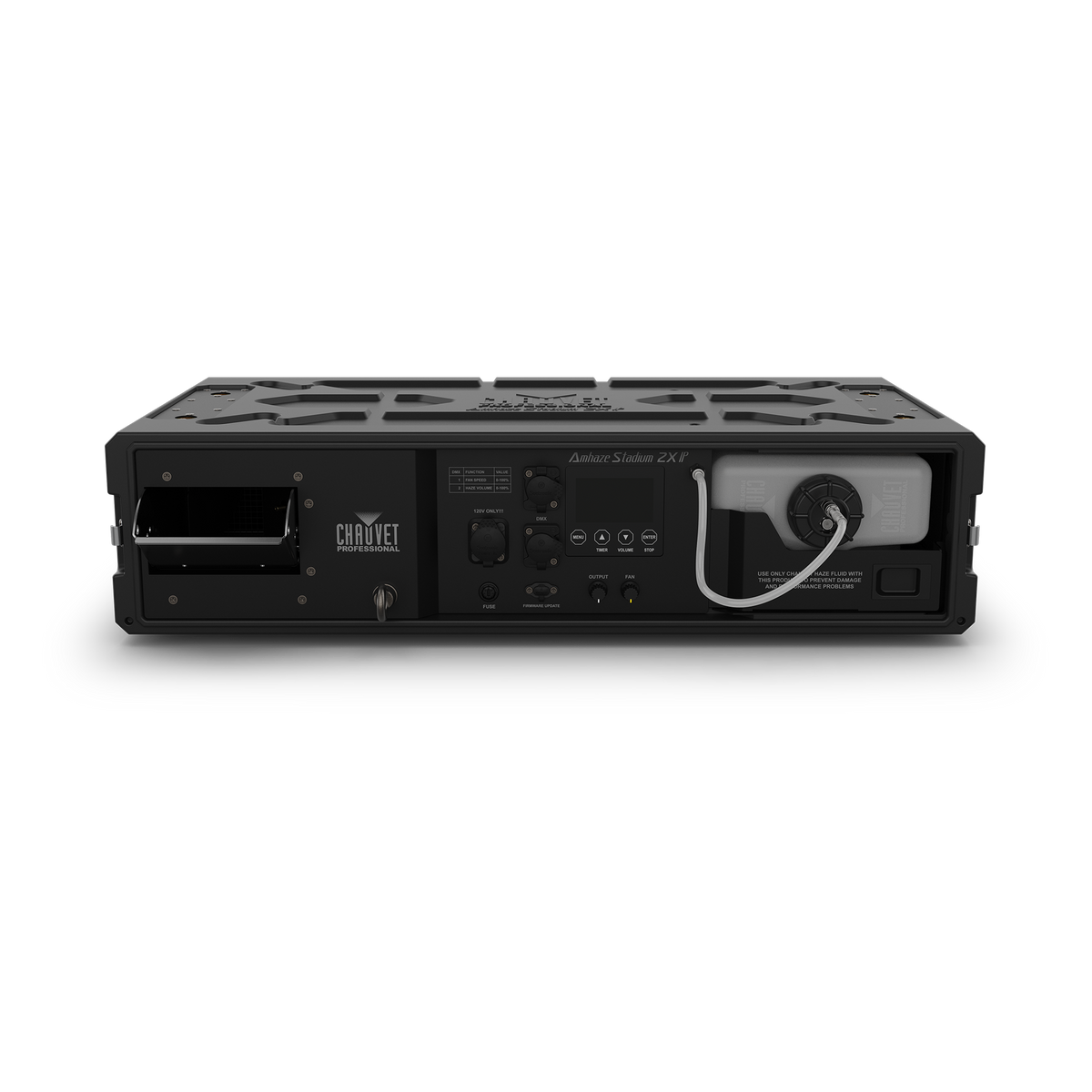

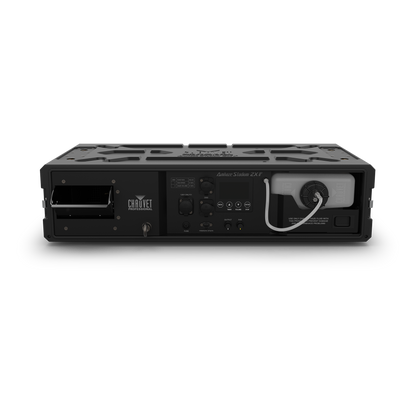

• Features a full-color display for intuitive onboard adjustments and system status monitoring.
• An integrated low fluid shutdown sensor automatically protects the pump from running dry.

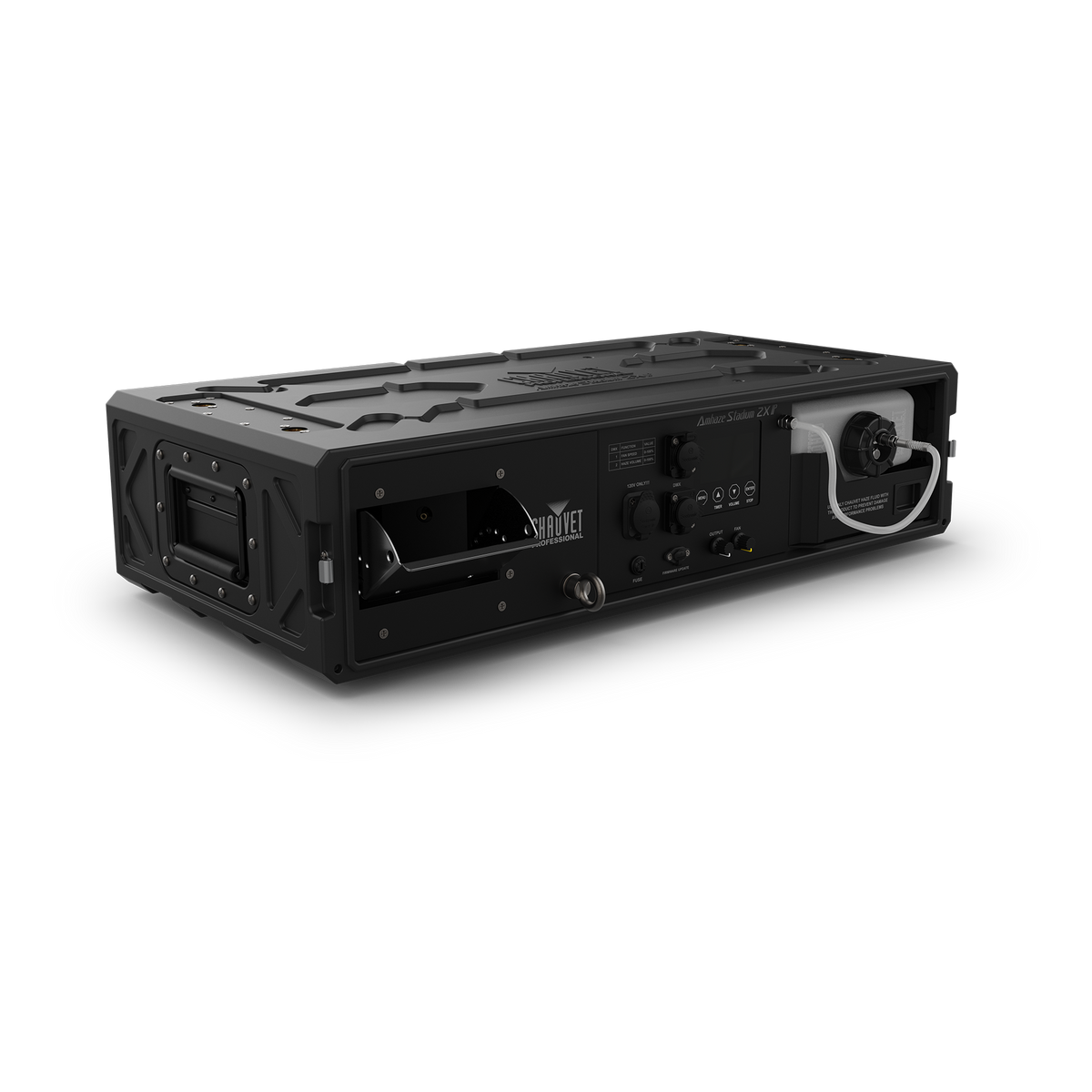

A rugged and compact outdoor-rated hazer in a self-contained flight case that stacks easily and conveniently packs all accessories in its removable cover. Amhaze Stadium 2X IP features a full-color display and precise manual or DMX adjustment of its variable haze output and blower speed. Floor mount or install into the rig with standard truss mounting brackets, and then direct haze flow with its adjustable output nozzle.

Amhaze Stadium 2X IP is built for the rigors of touring with a design that delivers reliability, longevity and easy serviceability. An innovative heater system produces continuous output and minimizes maintenance, while a peristaltic pump eliminates contact with fluid, removing its risk of corrosion. A USB-C port for easy software upgrades in the field completes this fully featured professional unit.

• Professional Haze Quality: This compact unit produces high-quality, even haze ideal for enhancing live lighting effects.
• Outdoor Use Ready: The hazer is designed for safe and reliable operation during temporary outdoor or wet-weather events.
• Continuous High Output: Delivers uninterrupted haze output powerful enough to fill medium to large-sized venues.
• Serviceable Heater Assembly: The innovative heater assembly is fully serviceable with a replaceable core, ensuring maximum efficiency, longevity, and easy maintenance.
• Clog-Resistant Technology: An innovative heater design significantly reduces clogging for smooth, reliable operation with minimal maintenance.

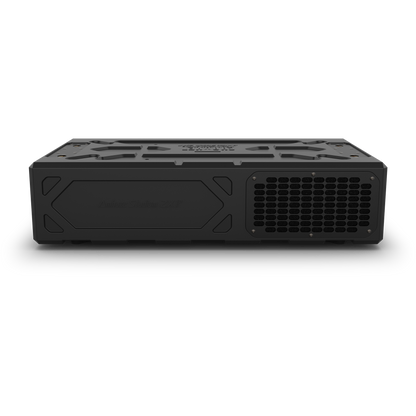

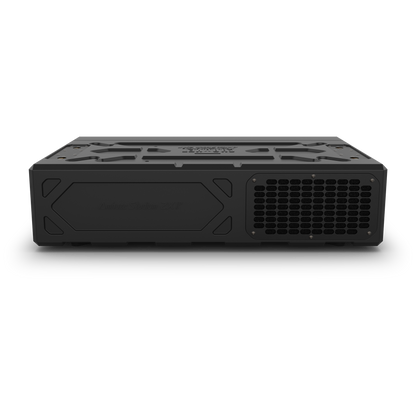

• Directional Haze Control: An adjustable vent louver allows you to precisely direct the flow of haze where it is needed most.
• Integrated Flight Case: It ships in a rugged, tour-ready flight case that includes a removable cover and convenient accessory storage.
• Standard Mounting Compatibility: The unit is compatible with standard Omega mounting brackets for quick, easy, and secure installation.
• Versatile Haze Control: Precisely adjust haze output and blower speed using DMX or the onboard manual control knobs.

Dynamic Effects

• Fan Performance: 164 cfm
• Low Fluid Shutdown: Yes

Construction/Physical

• Dimensions: 26 x 16 x 6.75 in (660 x 406 x 171.45 mm)
• Weight: 48.8 lb (22.13 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy, Aluminum diecast, High-impact flame-retardant polymer, Steel
• Tank Capacity: 1.32 gal (5 l)
• Fluid Consumption: 9.5 ml/min
• Maximum Runtime: 8 hrs

Connections

• Power Connection: Edison (Local) plug to Seetronic Powerkon (powerCON Compatible)
• Power Input: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP65 XLR
• Cable Length (power): 5 ft (1.5 m)
• Firmware upgrades: USB type-C

Control

• Control Protocol: DMX, RDM
• DMX Channels: 2
• Modes/Personalities: 1 personality (2ch)
• On-Board Control: Yes

Electrical

• Heat-up Time: 6 min

Certifications/Qualifications

• Certifications: CE, UKCA
• IP Rating: IP65, temporary outdoor/wet use
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
