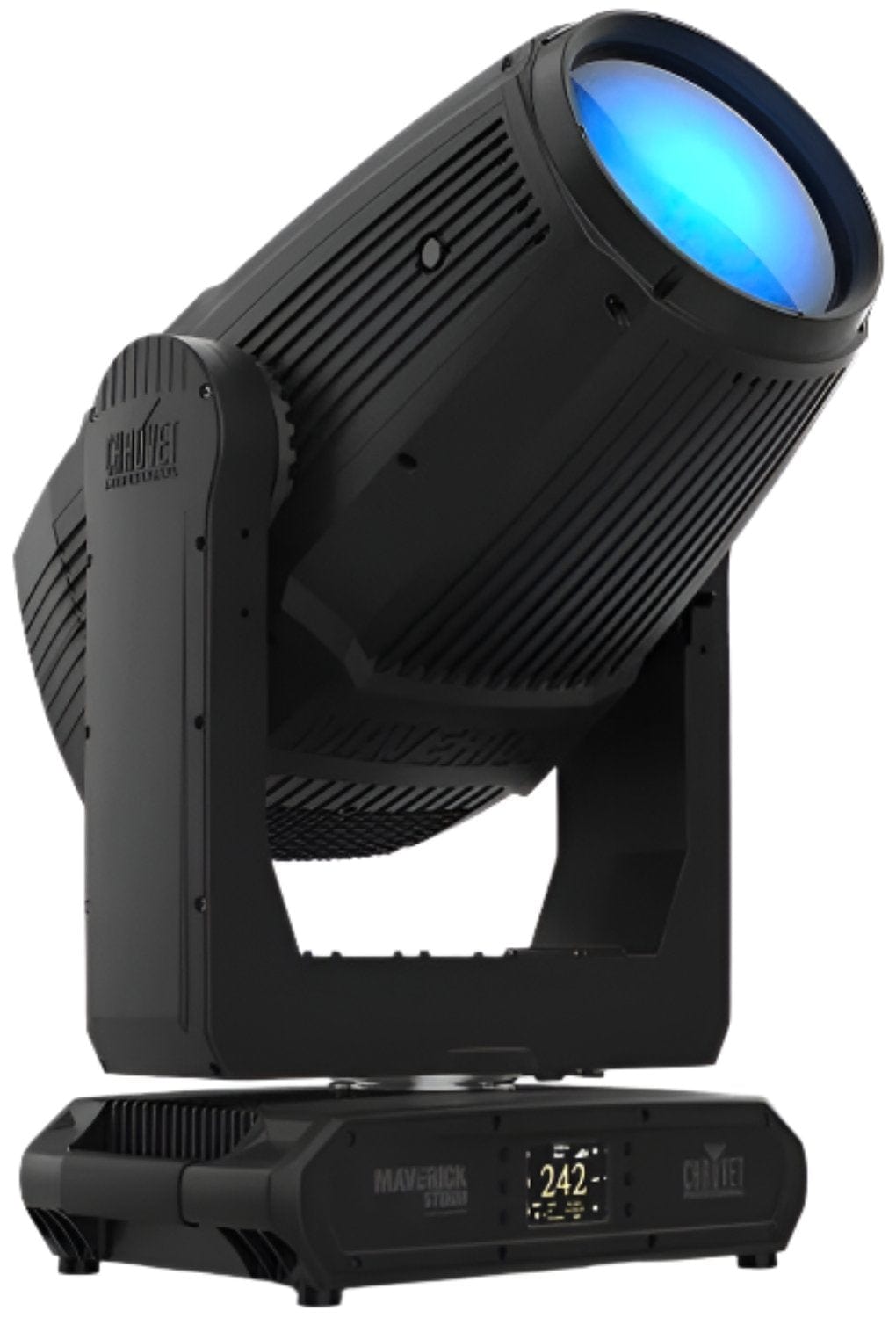

Chauvet Pro Maverick Storm 4 SoloWash in SIP Moving Head Light

Chauvet Pro Maverick Storm 4 SoloWash in SIP Moving Head Light

The Chauvet Pro Maverick Storm 4 SoloWash is an outdoor-ready IP65-rated single source 1200W LED wash engineered to meet demand for classic wash looks with the modern features LDs expect and bright enough for stadium level long throws: CMY + CTO color mixing system offering a wide color palette, independent color wheel with CRI and CTB filters, expansive 8:1 zoom, rotating gobo wheel with interchangeable geometric gobos, framing shutters and frost. Built with the durability and versatility to perform in any venue, indoors or out, and calibrated to match the colors of other Storm fixtures in the rig. Take control with DMX, RDM, sACN, Art-Net, or W-DMX.

Features:

• Fully featured, compact and lightweight IP65 1,250 W LED yoke single source fixture including CMY + CTO color mixing, a 4-blade framing shutter system with rotation, a color wheel, 9.5:1 zoom, 1 rotating gobo wheel, 1 animation wheel, frost, and iris
• 16-bit dimming of master dimmer for smooth control of fades
• Variable CMY + CTO color mixing system to create a wide pallet of colors
• CRI and CTB filters on color wheel for added flexibility
• 1 rotating, indexing and interchangeable slot and lock gobo wheel with geometric shapes
• An animation wheel for kinetic textured effects
• DMX, WDMX, sACN, and Art-Net for full flexibility of control options
• RDM control over DMX for fixture reporting
• 7.1° to 74.1° zoom range for variable beam sizes
• Iris, Animation wheel, and frost for beam shaping effects
• True 1 compatible power input
• Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup.
• USB slot for software uploads
• Battery backup display with auto-rotate depending on fixture orientation
• Fail safe ethernet connectivity allows for data to pass if fixture power is lost.

Specifications:

• Dimensions and Weight:
  • Length: 18.46 inches
  • Width: 12.04 inches
  • Height: 32.16 inches
  • Weight: 100.2 lbs
• Power:
  • Power Supply Type: Switching (internal)
  • Range: 100 to 240 VAC, 50/60Hz
  • Voltage Selection: Auto-ranging
  • Power Consumption: 1720W
  • Operating Current: 14.67A
  • Fuse/Breaker: F 25A, 250 V
  • Power Input Connector: Seetronic Powerkon IP65
  • Power Output Connector: Seetronic Powerkon IP65
  • Power Cable Plug: Edison (US)
• Light Source:
  • Type: LED
  • Color: Cool White
  • Power: 1250W
  • Current: 35.84A
  • Lifespan: 50,000 Hours
• Photometrics:
  • Front Lens Diameter: 225 mm
  • Beam Angle: 6.8 to 49.8 Degree
  • Field Angle: 10.4 to 65.5 Degree
  • Cutoff Angle: 12.8 to 71.6 Degree
  • Zoom Range: 6.8 to 71.6 Degree
  • Color Temperature (at Full): 7464K
  • CRI (without CRI Filter): 52.6
  • CRI (with CRI Filter): 89.6
  • Illuminance @ 5 Meter (6.8 Degree): 187,115 lux
  • Illuminance @ 5 Meter (71.6 Degree): 3,967 lux
• Thermal:
  • Startup Temperature Range: -4F to 113F
  • Operating Temperature Range: 14F to 113F
  • Cooling System: Fan-assisted Convection
• Connections:
  • DMX I/O Connector: 5-Pin XLR
  • DMX Channel Range: 31 to 46
  • Art-Net/sACN I/O Connector: Amphenol XLR Net RJ45 in/out
  • Art-Net/sACN Channel Range: 31 to 46
