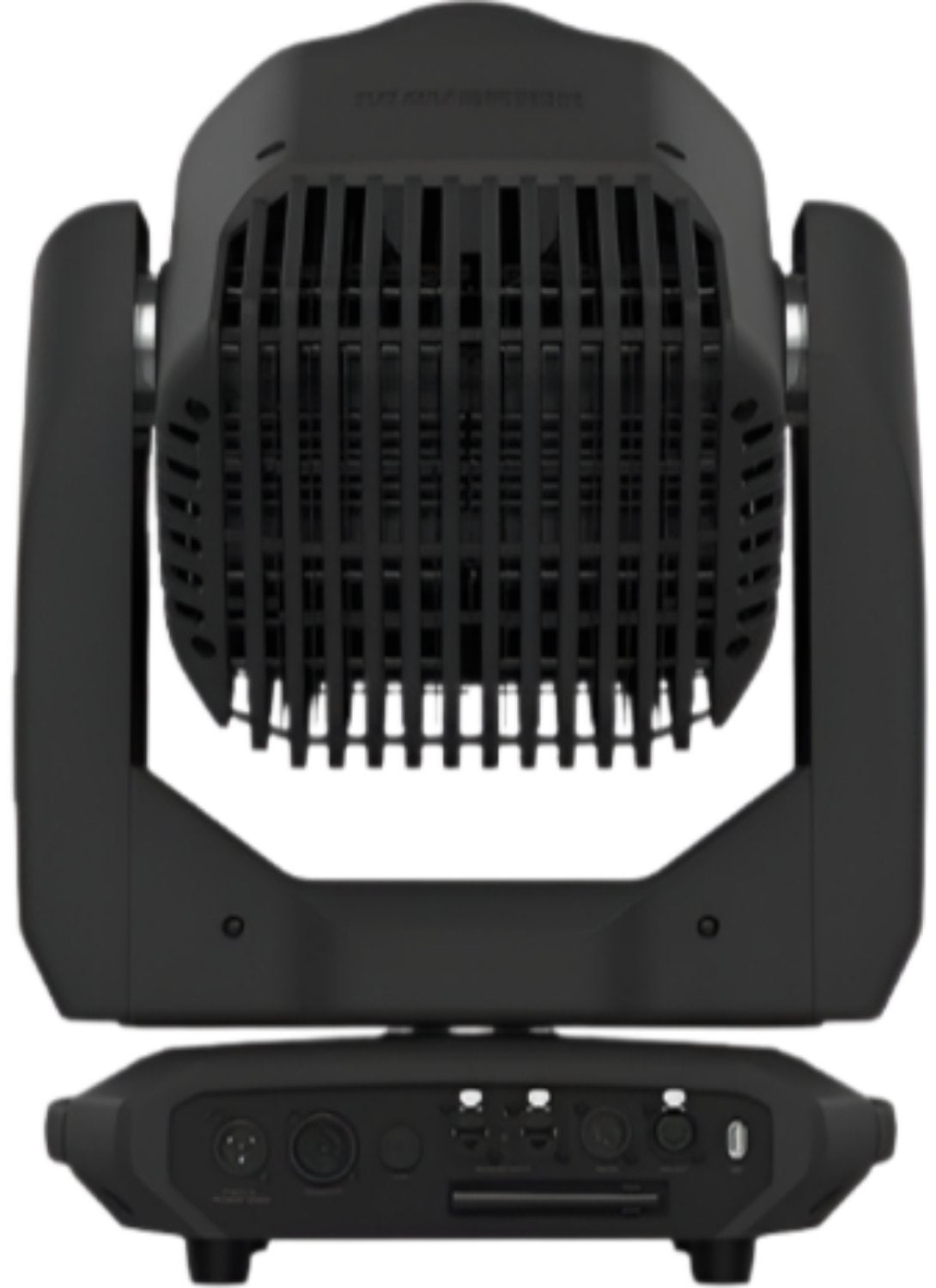

Chauvet Pro Maverick Silens 1X Profile 430 Watt 96+ CRI LED Moving Head Light

Chauvet Pro Maverick Silens 1X Profile 430 Watt 96+ CRI LED Moving Head Light

The Chauvet Pro Maverick Silens 1X is a compact member of the award-winning Silens range. The 430W 96+ CRI LED source in an uncompromising design offers the highest quality of light, flawless 16-bit dimming with selectable red shift and dimming curves, precise 4-blade shutter framing, and accurate color rendering. Completely fanless operation makes this totally silent fixture ideal for the most demanding theatre and studio applications. The Chauvet Pro Maverick Silens 1X also features a single rotating gobo wheel, variable CMY + CTO and a full effects wheelhouse. Control via Art-Net, sACN, DMX, RDM or CRMX.

Features:

• Completely silent, fully featured 430 W 96+ CRI LED yoke profile fixture including CMY+CTO color mixing, a four-blade framing shutter system with rotation, a color wheel, animation wheel, a 10:1 zoom, prism, variable frost, as well as static and a rotating gobo wheel.
• 100% convection cooled for zero fan noise along with silent motion and effects
  16-bit dimming with selectable red shift of master dimmer for smooth control of fades
• Variable CMY + CTO color mixing system to create a wide pallet of colors
• One rotating gobo wheel with unique, theatrical based designs
• Variable frost system
• + or – 60 degrees rotation framing shutter system to allow for better framing positioning.
• Animation wheel for enhanced visual effects
• Iris for total beam control
• RDM control over DMX for fixture reporting
• 6° to 57°zoom angle for variable beam sizes
• True 1 compatible power input and throughput
• Battery backup display with auto-rotate depending on fixture orientation

Specifications:

• Optical:
  • Light Source: 1 LEDs (CW) 420 W, (12A), 50,000 hours life expectancy
  • Light Source: 1 LEDs (RGB) 13 W, (2.091A), 50,000 hours life expectancy
  • Color Temperature (range): 2569 to 6126 K
  • Color Temperature (at full): 6126 K
  • Front lens diameters: 106 mm
  • CRI: 97.1
  • Beam Angle: 6° to 48.4°
  • Field Angle: 7° to 53.4°
  • Cutoff Angle: 7.5° to 56.2°
  • Zoom Range: 6° to 56.2°
  • Lumens – Output: 6081
  • Illuminance (6°): 18,525 lux @ 5 m
  • Illuminance (56.2°): 398 lux @ 5 m
  • Selectable PWM: 20,000, 40,000
• Dynamic Effects:
  • Pan and Tilt: 540°/270°
  • Pan and Tilt Ranges: 540°, 360°, 180°, 90° pan/270°, 180°, 90° tilt
  • Colors: 6 + white, split colors, continuous scroll at variable speeds
  • Colors: CMY flags, CTO flag, color correction
  • Gobos (1): 7 + open (7 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
  • Gobo Size: Gobo Wheel 1 (rotating): 22.9 mm (outside), 15.5 mm (image), 1.1 mm (max. thickness)
  • Effect Wheel: 1 effect
  • Framing Shutters: Yes
  • Dimmer: Electronic
  • Shutter/Strobe: Electronic
  • Zoom: Motorized
  • Focus: Motorized
  • Frost: Motorized
  • Iris: Motorized
  • Prism: 5 Facets, round, motorized, rotating
  • Strobe Rate: 0 to 28.8 Hz
  • Move-in-Black: Yes
  • Dim Curves: 4
• Construction / Physical:
  • Dimensions: 15.75 x 9.68 x 24.25 in (400 x 246 x 616 mm)
  • Weight: 56.2 lb (25.5 kg)
  • Exterior Color: Black
  • Housing Material: High-impact flame-retardant polymer
• Connections:
  • Power Connection: Edison plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Data Connectors: 5-pin XLR, Amphenol XLR Net RJ45 connectors in/out
  • Cable Length (power): 5 ft (1.5 m)
• Control:
  • Control Protocol: Art-Net, DMX, CRMX, RDM
  • DMX Channels: 31 or 39
  • Art-Net Channels: 31 or 39
  • Modes/Personalities: 2 personalities (31, 39)
• Electrical:
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 3 units @ 120 V; 5 units @ 208 V; 6 units @ 230 V
  • Power and Current: 441 W, 3.31 A @ 120 V, 60 Hz
  • Power and Current: 425 W, 1.91 A @ 208 V, 60 Hz
  • Power and Current: 422 W, 1.70 A @ 230 V, 50 Hz
• Certifications / Qualifications:
  • CE, MET, FCC
  • IP Rating: IP20, dry location
  • Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
• What's Included:
  • Maverick Silens 1X Profile
  • Seetronic Powerkon IP65 power cord
  • 2 Omega brackets with mounting hardware
  • Gel Frame Holder and Gel Frame
• Optional Accessories:
  • Clamps
  • Barn Doors
  • Seetronic powerKON cables
  • Seetronic etherCON cables
  • DMX Cables
  • Flight Cases
