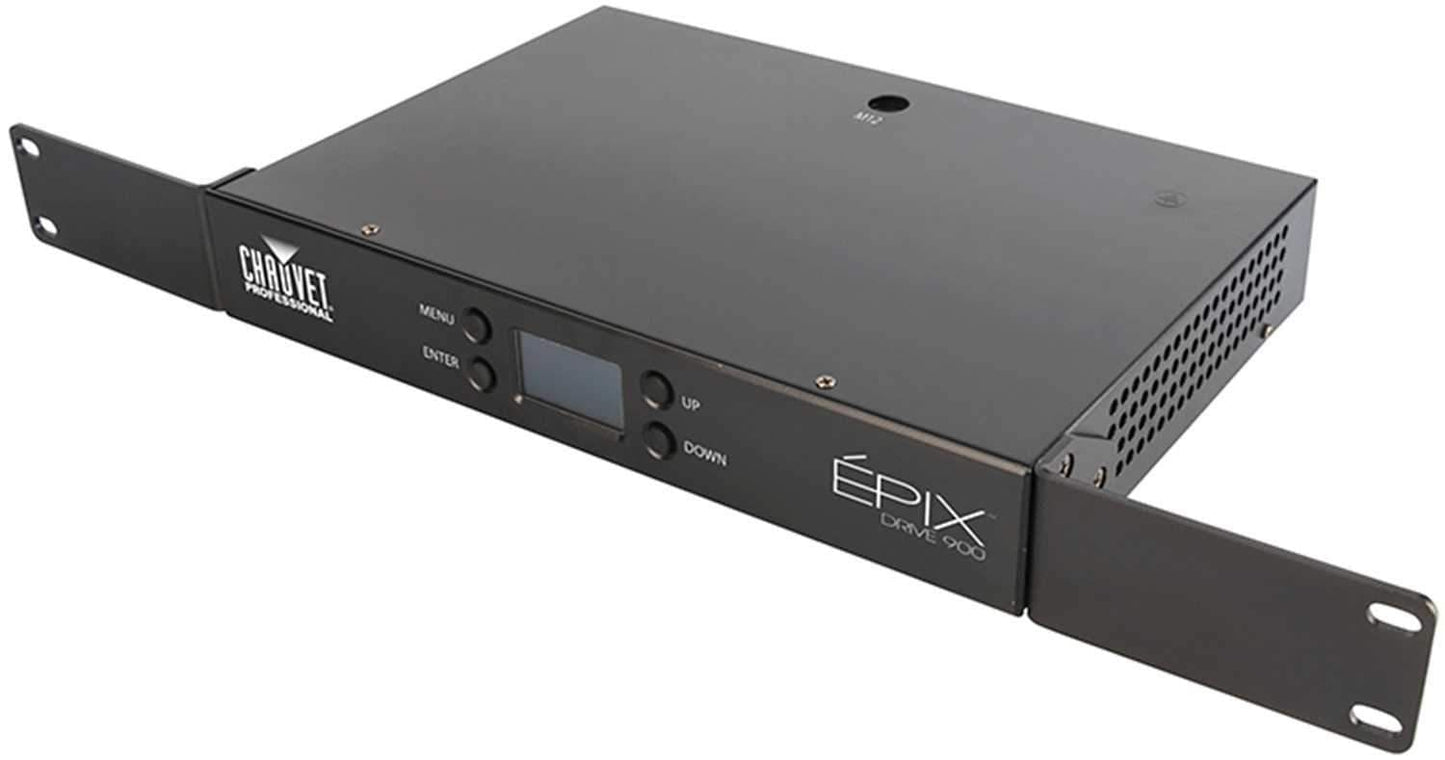

Chauvet EPIX Drive 900 Processor for Tour System

Chauvet EPIX Drive 900 Processor for Tour System

Épix Drive 900 hosts the processing and power supply for the Épix Tour system. It supports either18 Épix Strip Tours or 6 Épix Bar Tours, or any combination of the two, with a total capacity of 900 LEDs. Épix Drive 900 supports Art-Net, Kling-Net, and sACN, giving you a variety of control options .Thanks to an integrated web server, you can remotely diagnose, troubleshoot, and change settings as needed without having to directly access the Épix lights.

• The processing and power center of the Epix Tour system will drive any combination of Epix Tour products, up to 900 LEDs
• Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring/rental/installation markets
• Quickly and easily configure the Epix Drive 900 using the built-in OLED display
• Easily detect and automatically configure your devices using the auto-address function, regardless of fixture order or type (bar/strip)
• Supports up to 18 Epix Strip Tours or 6 Epix Bar Tours
• Easily daisy chain fixtures directly from the single output of the Drive 900 on a single cable
• Advanced power management design allows you to position the Drive 900 up to 65 ft away from your last fixture (using shielded cable)
• Works with Arkaos Media Master Express for a plug-n-play system that requires almost no training to operate

• Dimensions (with rack ears): 19.02 x 7.60 x 1.97 in (483 x 193 x 50 mm)
• Dimensions (without rack ears): 11.14 x 7.60 x 1.97 in (283 x 193 x 50 mm)
• Weight: 5.42 lb (2.46 kg)
• Weight (shipping weight): 7.72 lb (3.5 kg)
• Threaded Bolt: M12
• Exterior Color: Black
• Housing Material: Steel
• Rackmount: 1U

• Power Connection: Edison (Local) plug to Neutrik powerCON
• Power Input: Neutrik powerCON
• Power Output: Neutrik powerCON
• Device Outputs (4-pin XLR): 1
• Physical Linking: 18 inline Epix Strip Tour or 6 inline Epix Bar Tour
• Data Connectors: Neutrik etherCON
• Cable Length (power): 5 ft (1.5 m)
• Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 20 AWG)
• Total max. cable length (shielded cables) between Epix Drive 900 and last Epix Tour fixture: 210 ft (64 m)
• Max. cable length (shielded cables) between Epix Drive 900 and first Epix Tour fixture: 65 ft (20 m)
• Max. cable length (shielded cables) between Epix Tour fixtures: 60 ft (18 m)
• Total max. cable length (unshielded cables) between Epix Drive 900 and last Epix Tour fixture: 300 ft (91 m)
• Max. cable length (unshielded cables) between Epix Drive 900 and first Epix Tour fixture: 150 ft (45 m)
• Max. cable length (unshielded cables) between Epix Tour fixtures: 100 ft (30 m)

• Control Protocol: Art-Net, Kling-Net, sACN
• Control Channels: 6 Art-Net/sACN Universes

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 6 units @ 120 V; 11 units @ 208 V; 12 units @ 230 V
• Power and Current: 299 W, 2.53 A @ 120 V, 60 Hz
• Power and Current: 299 W, 1.44 A @ 208 V, 60 Hz
• Power and Current: 299 W, 1.31 A @ 230 V, 50 Hz
• Power and Current (resting): 23 W, 0.195 A @ 120 V, 60 Hz
• Power and Current (resting): 32 W, 0.156 A @ 208 V, 60 Hz
• Power and Current (resting): 32 W, 0.133 A @ 230 V, 50 Hz
• Maximum Load: 18 EPIX Strip Tour or 6 EPIX Bar Tour (per output)

• 4PXLREXT16IN
• 4PXLREXT5FT
• 4PXLREXT50FT
• CERTIFICATIONS / QUALIFICATIONS
• CE, MET
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

• Épix Drive 900
• Neutrik powerCON power cord
• Rack ears (2)
• Bag of rack ear mounting screws
• Rubber feet (4)

• Neutrik powerCON cables
• Neutrik etherCON cables
• 4-pin XLR cables
• REQUIRED ACCESSORIES
• ÉPIX Drive 900
