Description

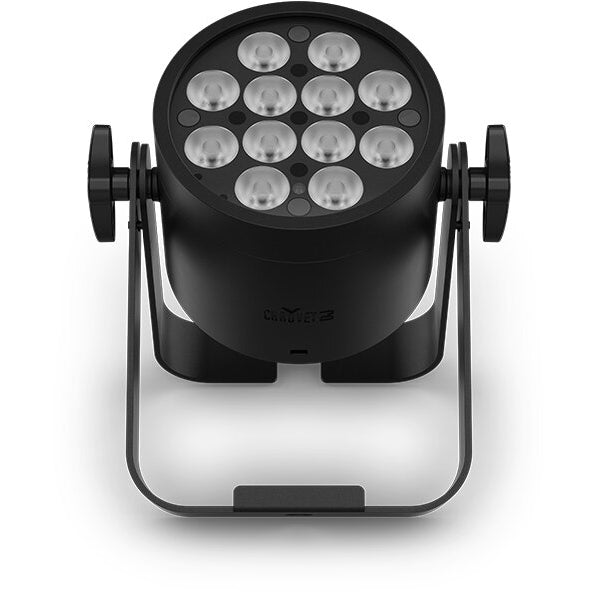

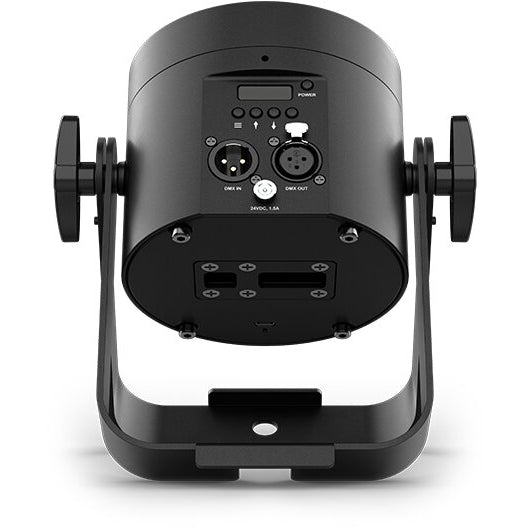

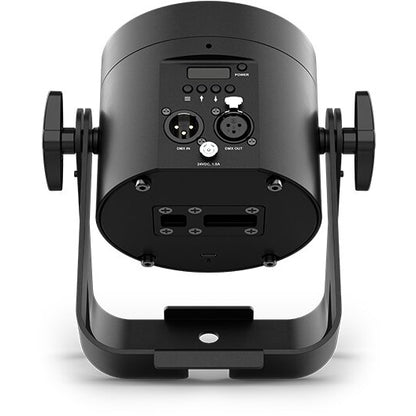

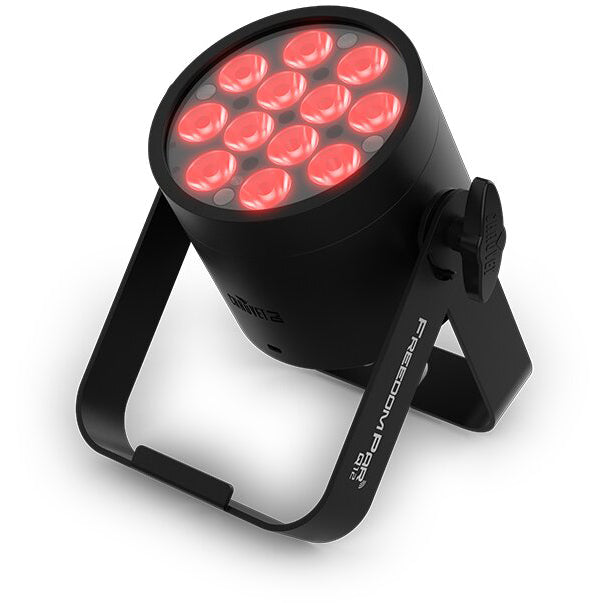

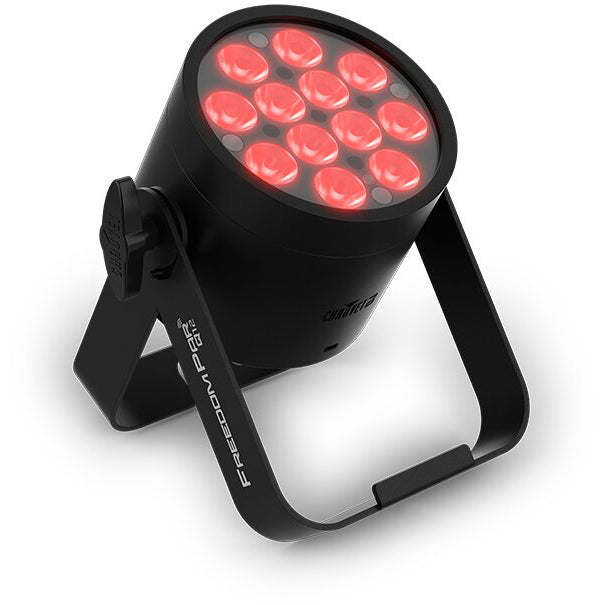

Chauvet DJ Freedom Par Q12
When your event calls for bright, punchy, battery-operated uplighting, reach for Freedom Par Q12. Add perfectly blended color to any room like an event boss with this fully wireless quad-color uplight. Enjoy flexible control with both built-in D-Fi and a built-in RF receiver. Place inside sticks of TRUSST® for instant truss warming looks. With an easy-to-read full-text OLED display that lets you pick the right dimming curve for your light show—keep your uplighting going all event long!
Features
- 100% TRUE wireless, battery-operated, quad-color (RGBA) LED uplight with built-in D-Fi transceiver
- New secondary optics provide perfect color blending with nearly no artifacts
- Magnetic diffuser pops on or off with ease and widens the coverage area
- OLED display allows for full-text and to easily change fixture settings
- Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
- Adjust the projection angle using the spring-loaded kickstand
- Extend the fixture’s lifespan with the onboard charge and discharge protection circuitry
- Achieve smooth LED fading with built-in dimming curves
- Compact and lightweight design easily fits inside sticks of TRUSST®
Specifications
-
DMX Channels: 4, 6, or 14
-
DMX Connectors: 3-pin XLR
-
Max Unobstructed Distance: 600 ft (183 m)
-
Light Source: 12 LEDs (quad-color RGBA) 6W, (1.5 A), 50,000 hours life expectancy
-
Strobe Rate: 0 to 20 Hz
-
Beam Angle: 12°
-
Field Angle: 23°
-
Maximum Run Time: up to 7 hours
-
Recharge Time: 4 hours
-
Operating Frequency: 2.412 to 2.484 GHz
-
Illuminance: 4,185 lux @ 2 m
-
Lumens: 1,255
-
Input Voltage: 24 VDC, 1.5 A (external power supply: 24 VDC, 50/60 Hz)
-
Power and Current: 22 W, 0.3 A @ 120 V, 60 Hz
-
Power and Current: 22 W, 0.2 A @ 230 V, 50 Hz
-
Weight: 4.2 lbs (1.9 kg)
-
Size: 8.7 x 7.8 x 4.8 in (222 x 197 x 123 mm)
-
Approvals: CE, RoHS, FCC
-
Illuminance (with diffuser): 1,005 lux @ 2 m
-
Maximum Run Time (single color): up to 9.5 hours
-
Startup Temperature: -4 °F to 113 °F (-20 °C to 45 °C)
-
Operating Temperature: -22 °F to 113 °F (-30 °C to 45 °C)
-
Optional Controllers: RFC, RFC-XL
