Chauvet DJ CoDot ILS Coin-sized LED Illuminators for Small Applications (4-Pack)

Party lighting fits in the palm of your hand with CoDot ILS. This puck-sized LED illuminator is the perfect solution for small spaces where conventional fixtures can’t fit. Each CoDot ILS has 1 quad-color (RGBW) LED to suit a range of applications. With D-Fi, ILS, and RF compatibility, this fixture works with the lighting control that best suits your needs. Make any area of your venue shine with CoDot ILS.

  • 4-pack of coin-sized LED illuminators that comes with over 15 accessories
    • (4) CoDot ILS
    • (8) Lenses
    • (3) Short USB cables (0.5m)
    • (3) Long USB cables (2m)

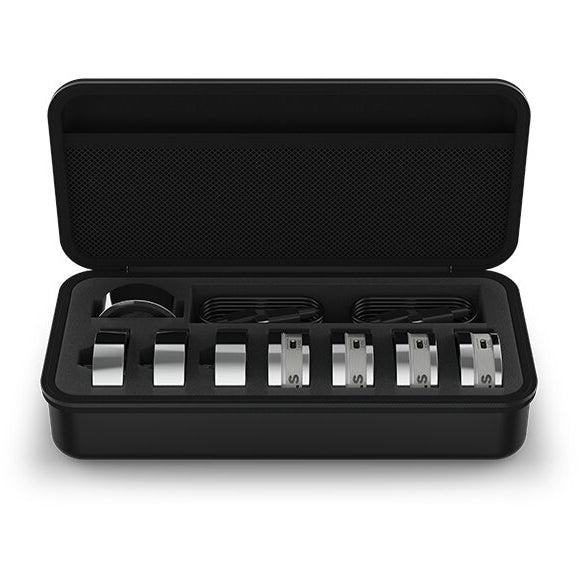

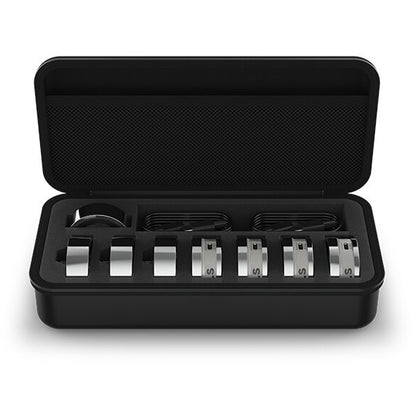

    • (1) Carry case
    • (1) External power supply
  • Coin-sized LED illuminator designed for small applications where conventional fixtures won’t fit
  • Includes two lens options to meet different application criteria
  • Magnetic base easily mounts to metal surfaces
  • Threaded insert is compatible with camera tripods and accessories
  • ILS compatibility for use in the ILS ecosystem
  • Built-in DFI transceiver communicates DMX or ILS signals wirelessly
  • Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
  • Easy navigation and access all functions directly from the LED display
  • Power linking multiple units from the USB type-C in and out

Specifications

  • DMX Channels: 4 or 6
  • Light Source: 1 LED (quad-color RGBW) 3 W, (0.8 A), 50,000 hours life expectancy
  • Strobe Rate: 0 to 20 Hz
  • Beam Angle (installed lens): 19°
  • Beam Angle (included lens): 14°
  • Illuminance (installed lens): 256 lux @ 2 m
  • Illuminance (included Lens): 442 lux @ 2 m
  • Max Unobstructed Distance: 600 ft (183 m)
  • Operating Frequency: 2.4 GHz
  • Power Linking: 4 units @ 120 V; 4 units @ 230 V
  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power and Current: 7 W, 0.1 A @ 120 V, 60 Hz
  • Power and Current: 7 W, 0.1 A @ 230 V, 50 Hz
  • Weight: 0.2 lb (0.1 kg)
  • Size: 2.2 x 2.1 x 0.9 in (57 x 54 x 24 mm)
  • Optional Controllers: ILS Command, RFC, RFC-XL
  • Approvals: CE, ROHS, UKCA, FCC
