Description

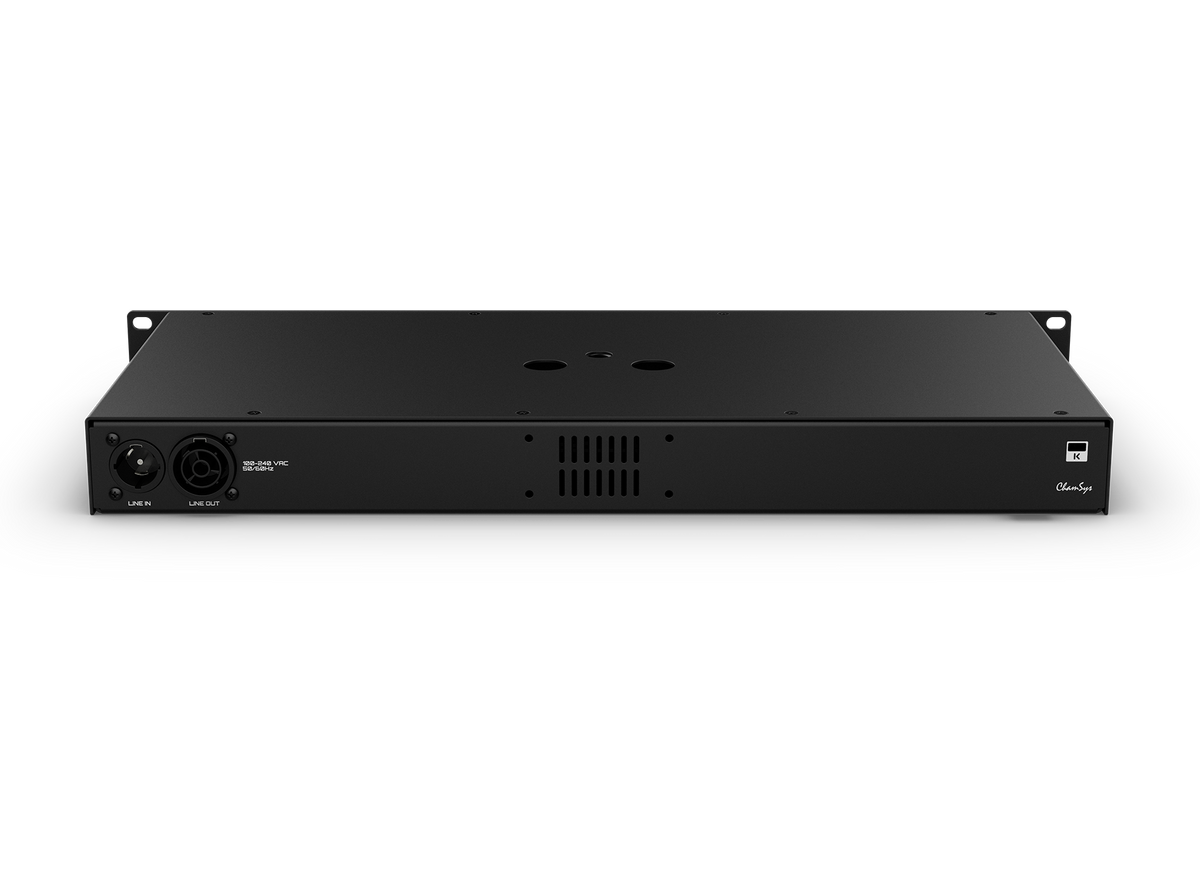

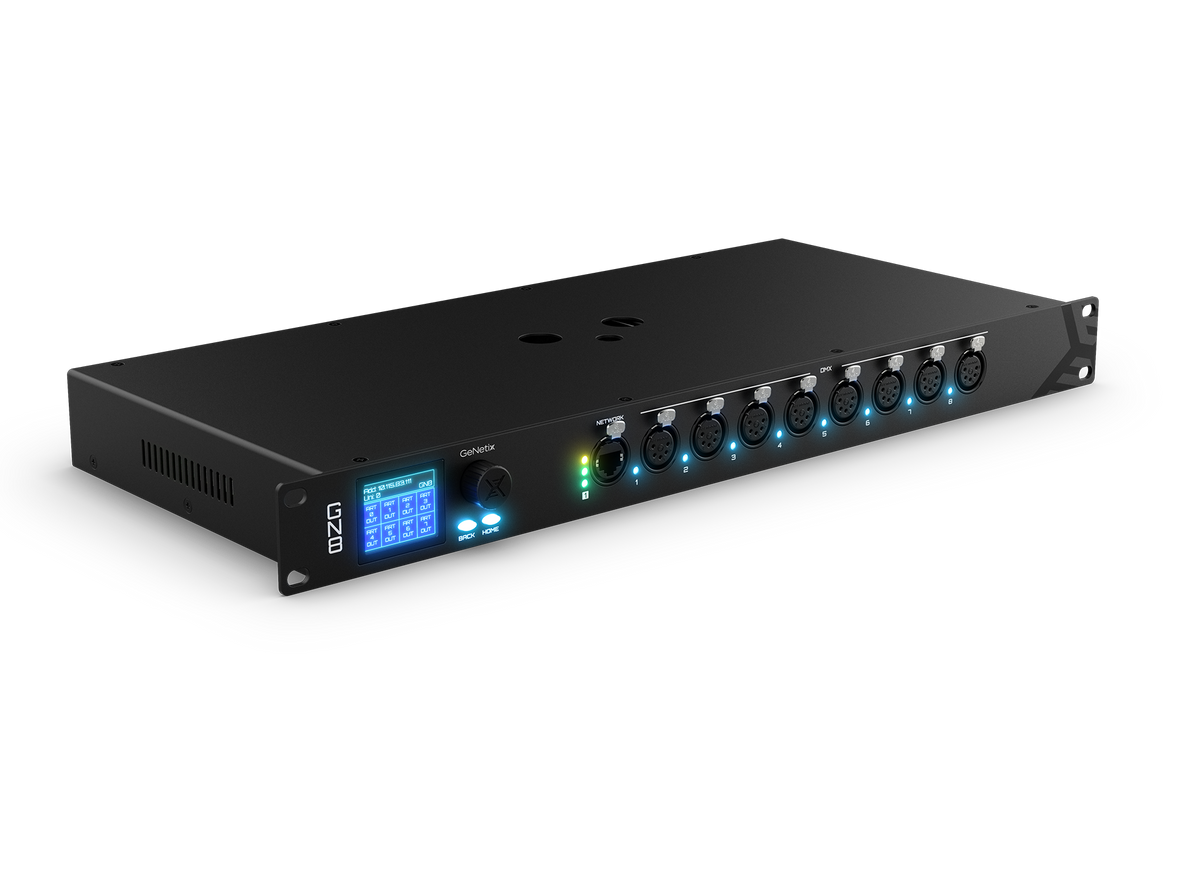

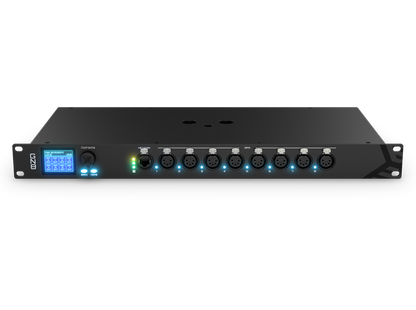

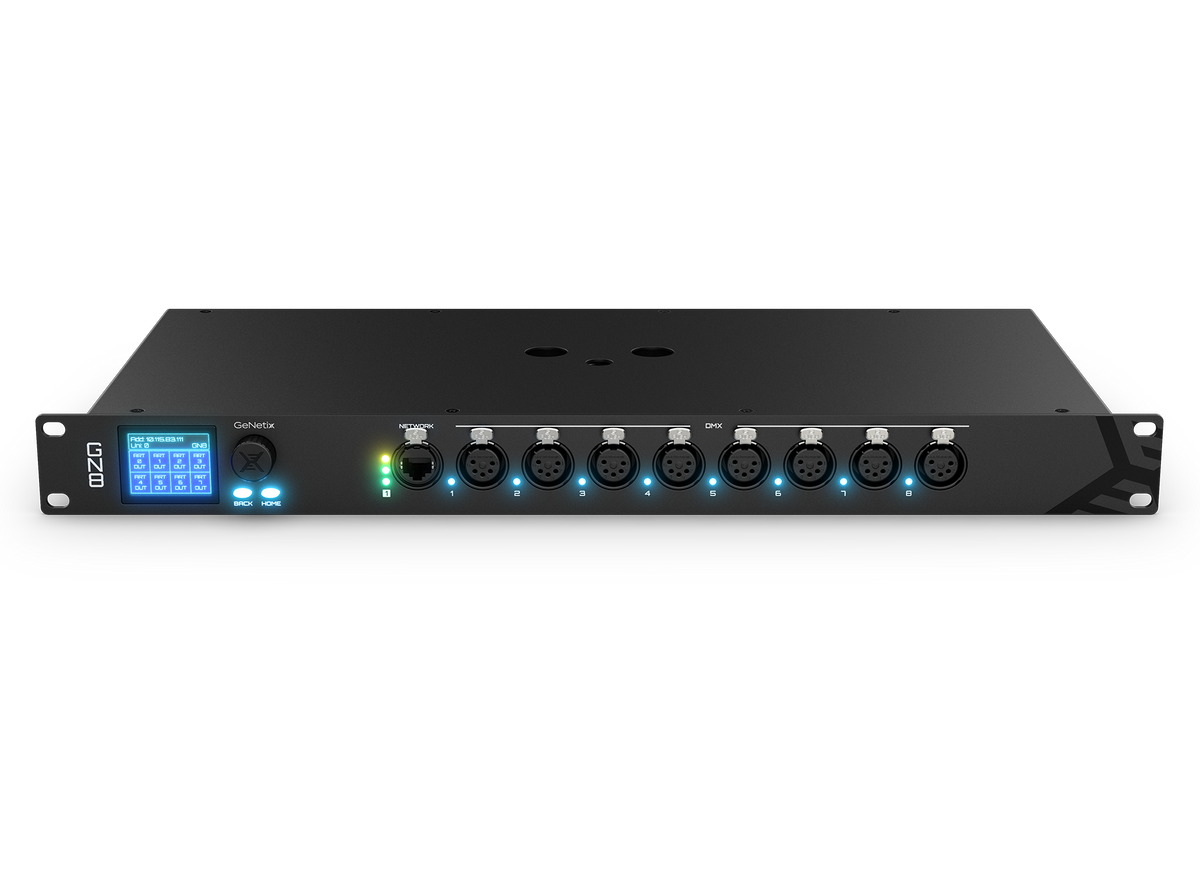

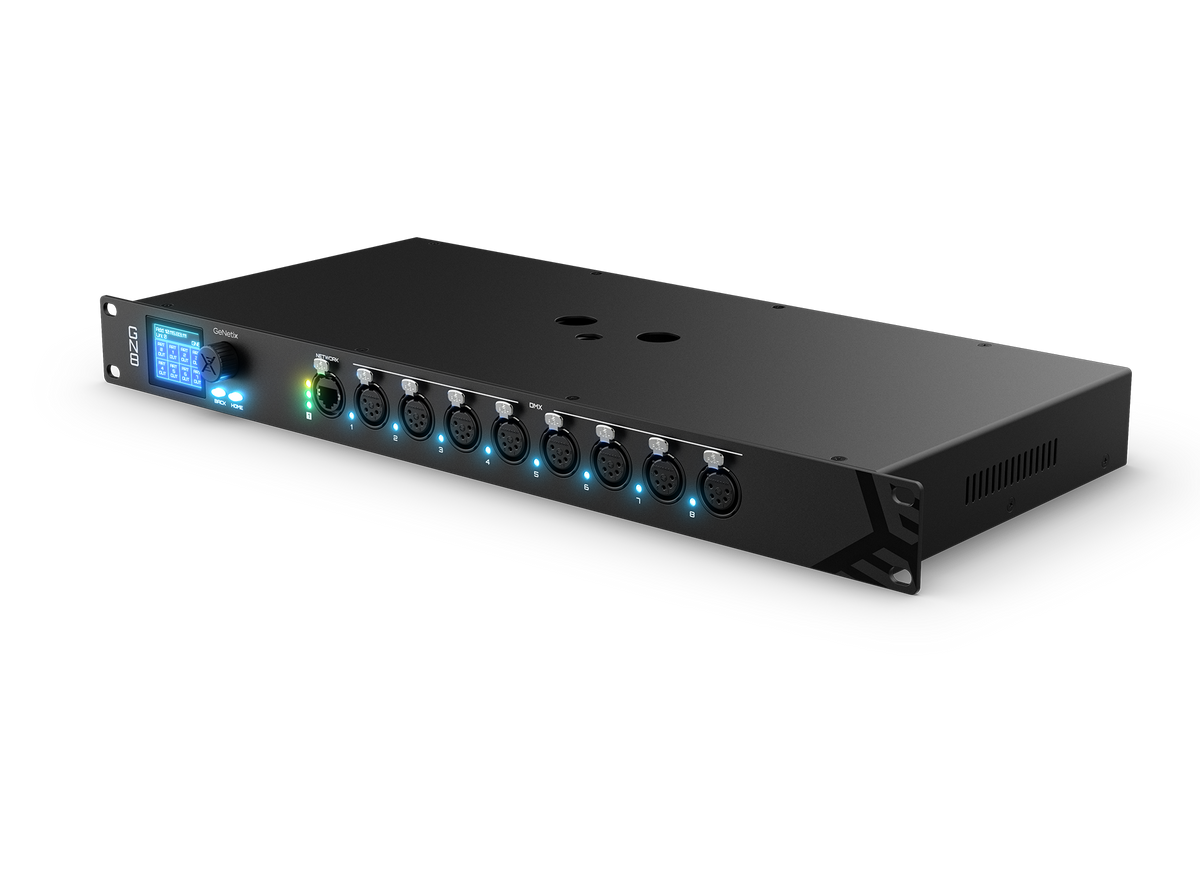

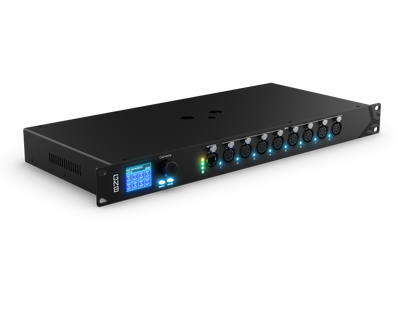

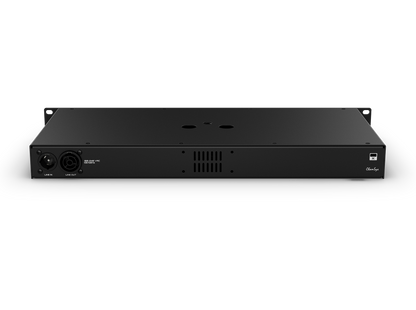

Chamsys GENETIXGN8 GeNetix GN8
GeNetix Node 8 is ideal for both installed and live applications that call for a straightforward Art-Net/sACN to DMX node solution.
This interface supports RDM, features configurable DMX timing, and can be remotely configured from ChamSys consoles via its in-built web server, or locally via the display on the unit. This versatile device is at home in many different environments whether truss-mounted in the rig via its M12 receiver or rack mounted via its rack ears.
Overview:
- 8 RDM DMX Ports supporting DMX Output
- Webserver for remote configuration
- In-built display and encoder for local configuration
- Configurable DMX Timing
- Does not unlock ‘demo mode’ on MagicQ PC Systems
Hardware Specifications:
- RDM Direct DMX Ports: 8
- Network Ports: 1
- Kensington Security Lock Fixing: Yes
- Power Input: PowerCON TRUE1 110 to 240 VAC
- PowerCon TRUE1 Link Out: Yes
- Mains Powered: Yes
Software Specifications:
- Art-Net/sACN: Yes
- ChamNet Support: Yes
- Configurable DMX Timings: Yes
- Web Server: Yes
- Unlock’s ‘demo mode’ MagicQ PC Systems: No
Included Accessories:
- powerCON TRUE1 Power Cable: 1
- Quick Start Guide: 1
Node Weights and Dimensions:
- Width: 480mm (18.9 inches)
- Depth: 218mm (8.59 inches)
- Height: 44.4mm (1.75 inches)
- Weight: 2.70 KG (5.95 lb)
