Description

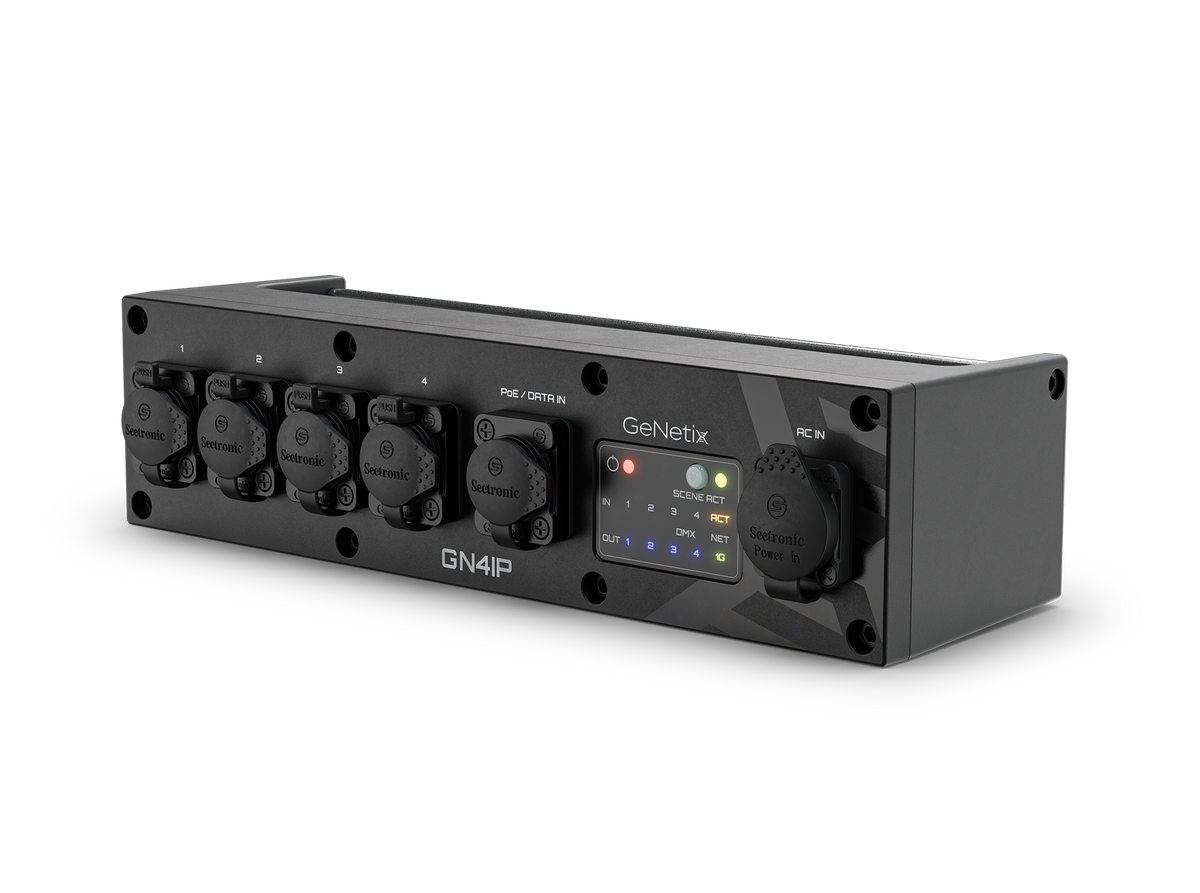

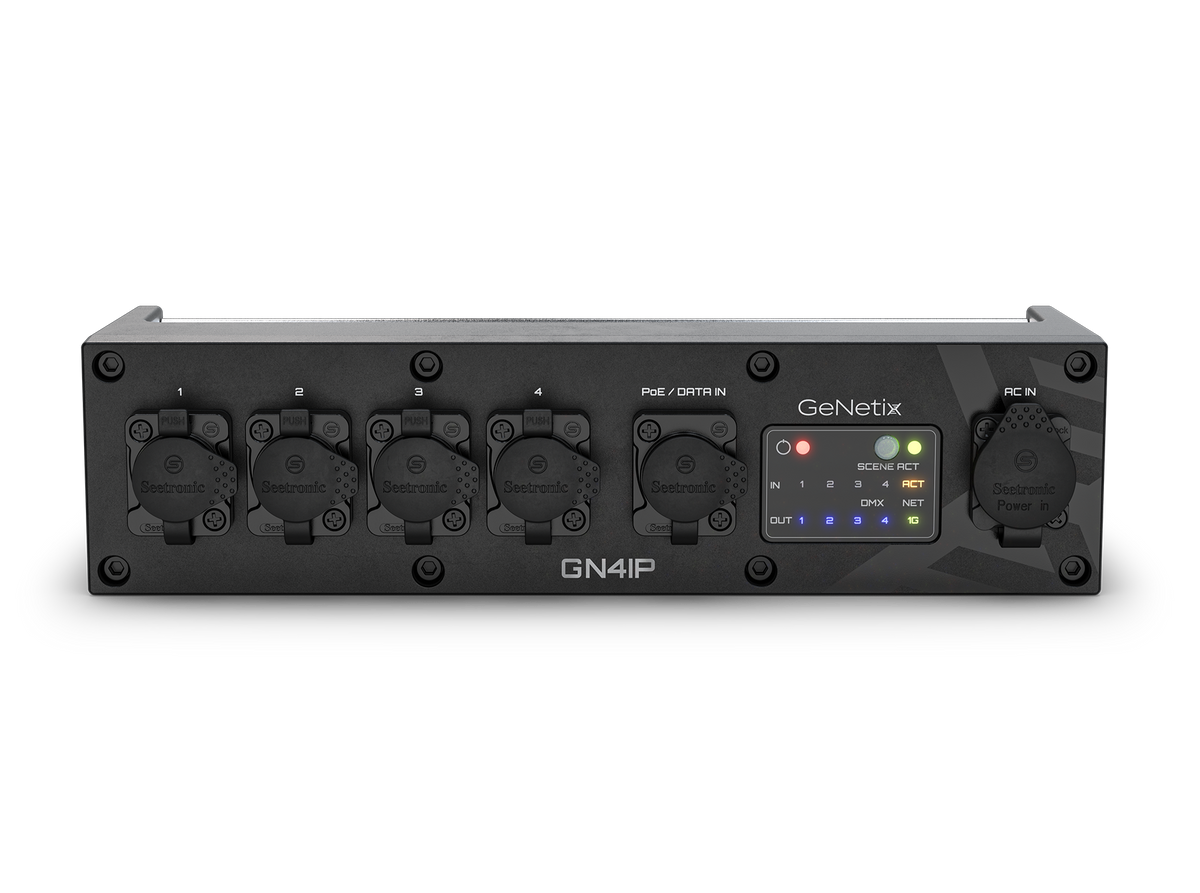

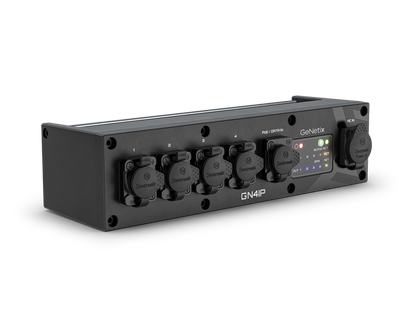

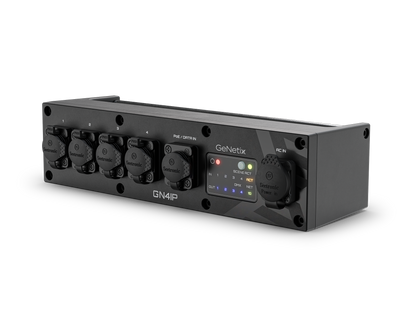

Chamsys GENETIXGN4IP GeNetix GN4IP - 4 Port IP Rated Node
GeNetix Node 4 IP is a compact IP65-rated 4-port Ethernet-to-DMX Node that comes with multiple rigging options for easily mounting in your rig. Featuring 1 Network Port and 4 DMX Outputs that can be used as either DMX In or Out, Port Status LEDs, and the ability to be powered either via PoE or via Mains power to its PowerCon True1 Mains Input connector. This rugged and versatile device can be configured remotely over network via either its inbuilt Webserver, Art-Net or a ChamSys Console.
Overview:
- 4 RDM DMX Ports supporting Input and Output
- Supports Art-Net & sACN
- IP65 Rated
- Webserver for remote configuration
- Can be Mains or PoE powered
- Webserver for remote configuration
- Core Mode Unlock of up to 2 MagicQ Instances when connected via Network
- M12 Threaded Insert for Clamp Mounting

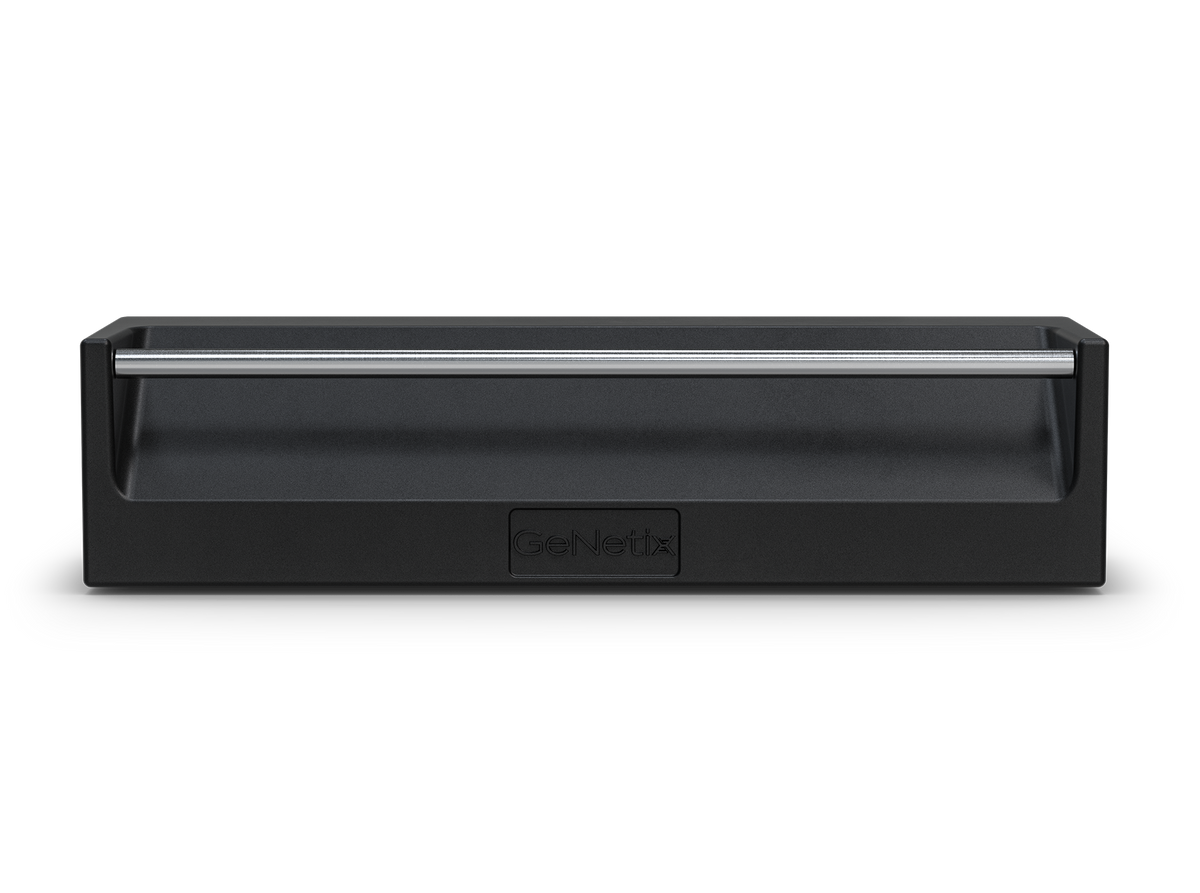

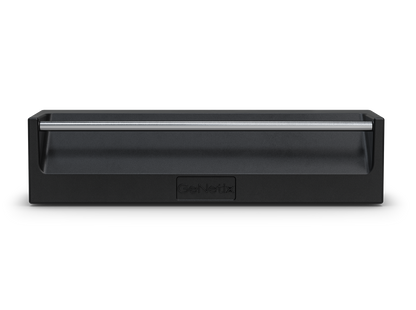

- Built in Rail for secondary Safety bond when rigged
Hardware Specifications:
- RDM Direct DMX Ports: 4
- Network Ports: 1
- Mains Input: PowerCon True1 Top
- Can be PoE Powered: Yes
- Port Status LEDs: Yes
- M12 Clamp Fixing: Yes
- Safety Bond Fixing Rail: Yes
Software Specifications:
- Art-Net/sACN: Yes
- ChamNet Support: Yes
- Configurable DMX Timings: Yes
- Web Server: Yes
- DMX Redundancy Support: Yes
- User Scene Store: Yes
Included Accessories:
- Neutrik powerCON TRUE1 Power Cable: 1
Node Weights and Dimensions:
- Width: 274mm (10.81 inches)
- Depth: 76mm (3,0 inches)
- Height: 68mm (2.68 inches)
- Weight: 1.40 KG (3.09 lb)
