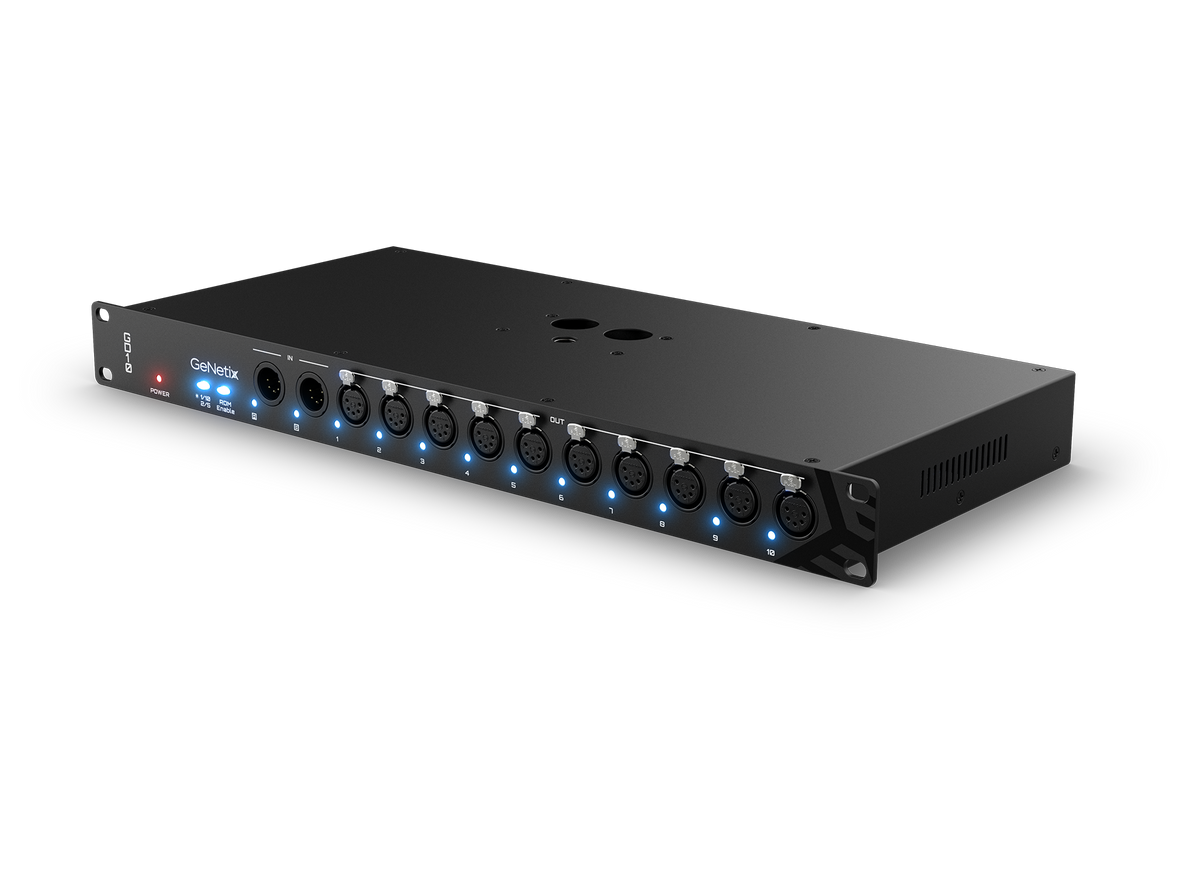

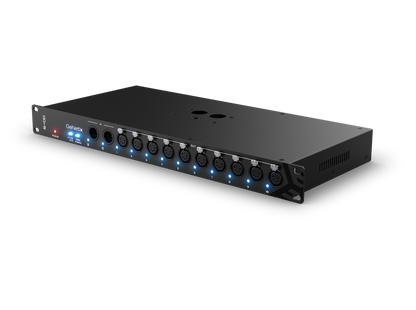

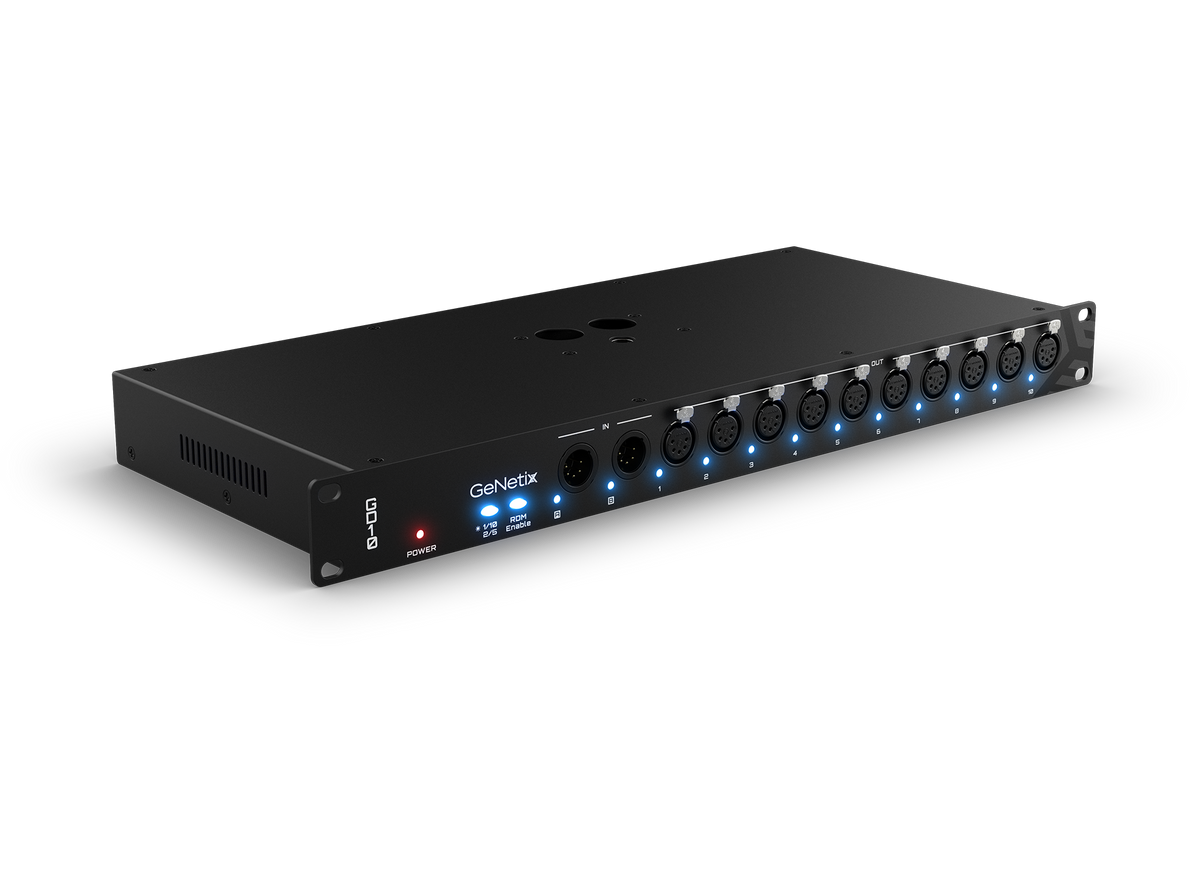

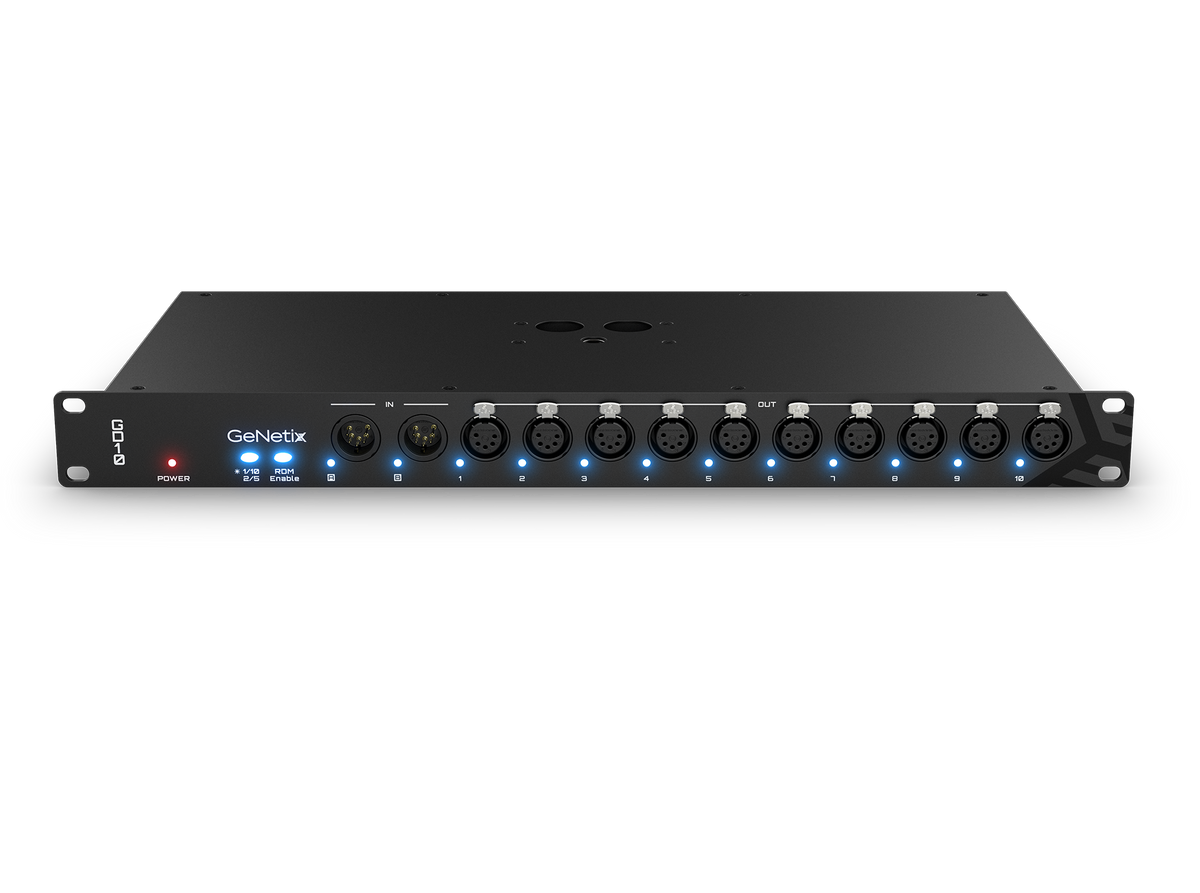

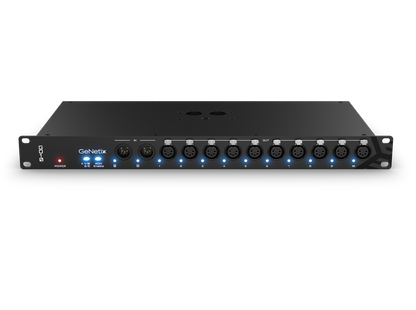

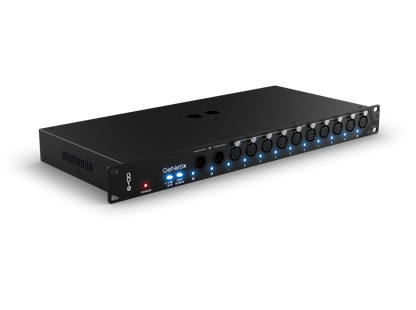

GeNetix GD10 is a 19″ 1U rack-mountable, RDM-capable 10-Port DMX Splitter at home in many different environments, with a design suited for both long-term installations and live events. Two selectable operating modes offer either 1×10 or 2×5 DMX signal distribution. GD10 features an ‘RDM Disable button’ to strip out RDM data and retime the DMX signal, and its ruggedly built construction includes a PowerCon True1 Mains Input connector.
Overview:
- 10 Port RDM E1.20 Compliant DMX Splitter
- 2 Input / 10 Output DMX Splitter
- 1 In to 10 Ouput or 2 In to 5 Output Mode
- 19” 1U Rack Mountable
Hardware Specifications:
- 5 Pin opto-isolated DMX Output Ports: 10
- 5 Pin DMX Input Ports: 2
- RDM Enable/Disable Option: Yes
- M12 Clamp Fixing: Yes

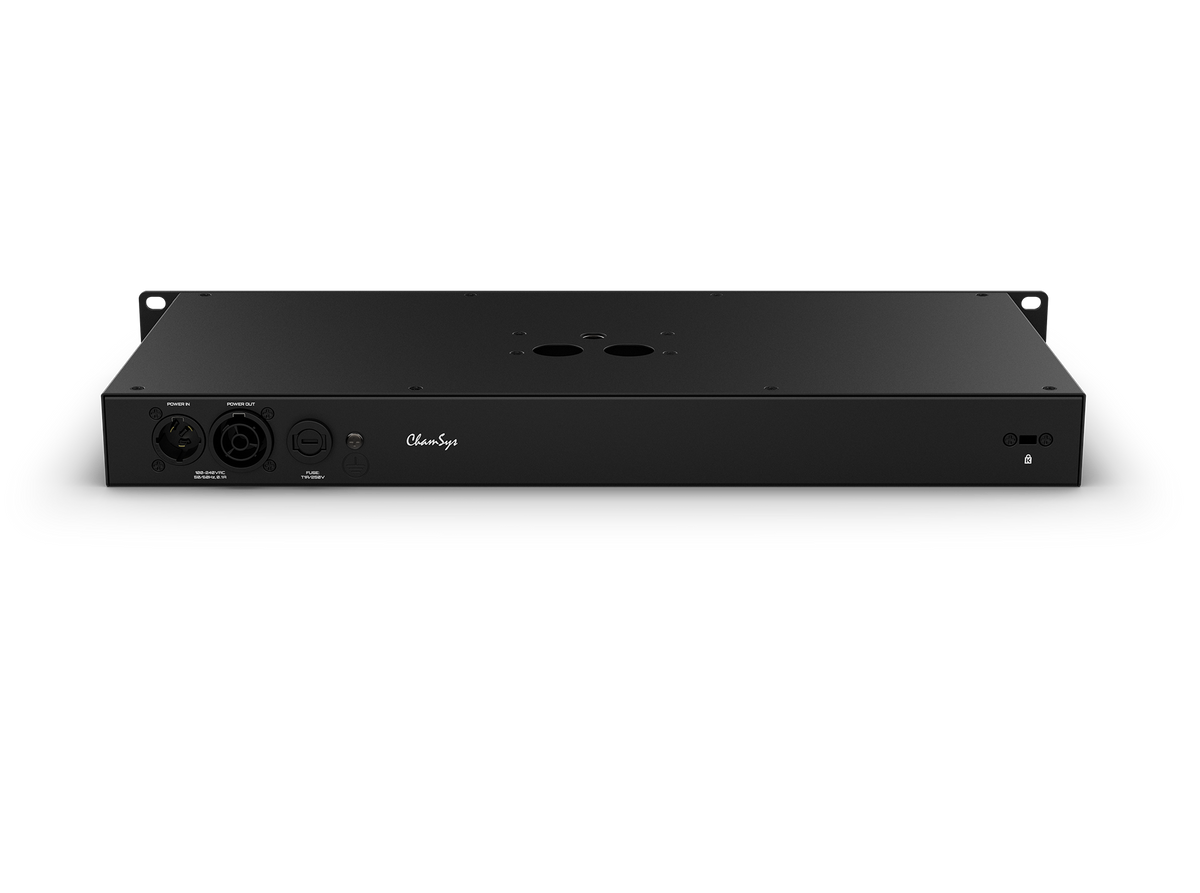

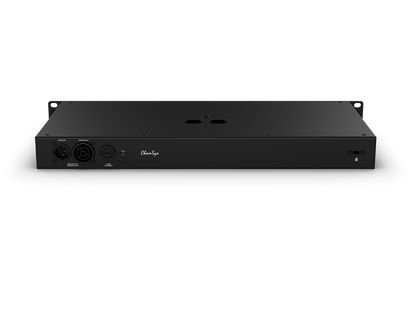

- Power Input: Neutrik powerCON TRUE1 110 to 240 VAC
- Max Power Consumption (mains): 6.5w
Software Specifications:
Node Weights and Dimensions:
- Width: 480mm (18.9 inches)
- Depth: 218mm (8.59 inches)
- Height: 44.4mm (1.75 inches)
- Weight: 2.75 KG (6.06 lb)
