Description

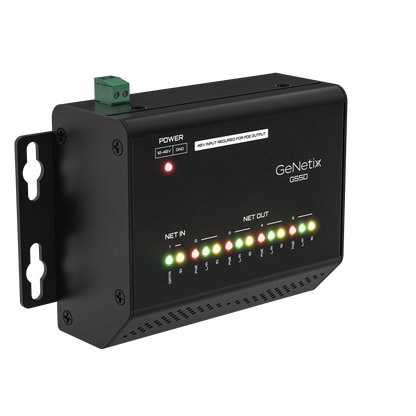

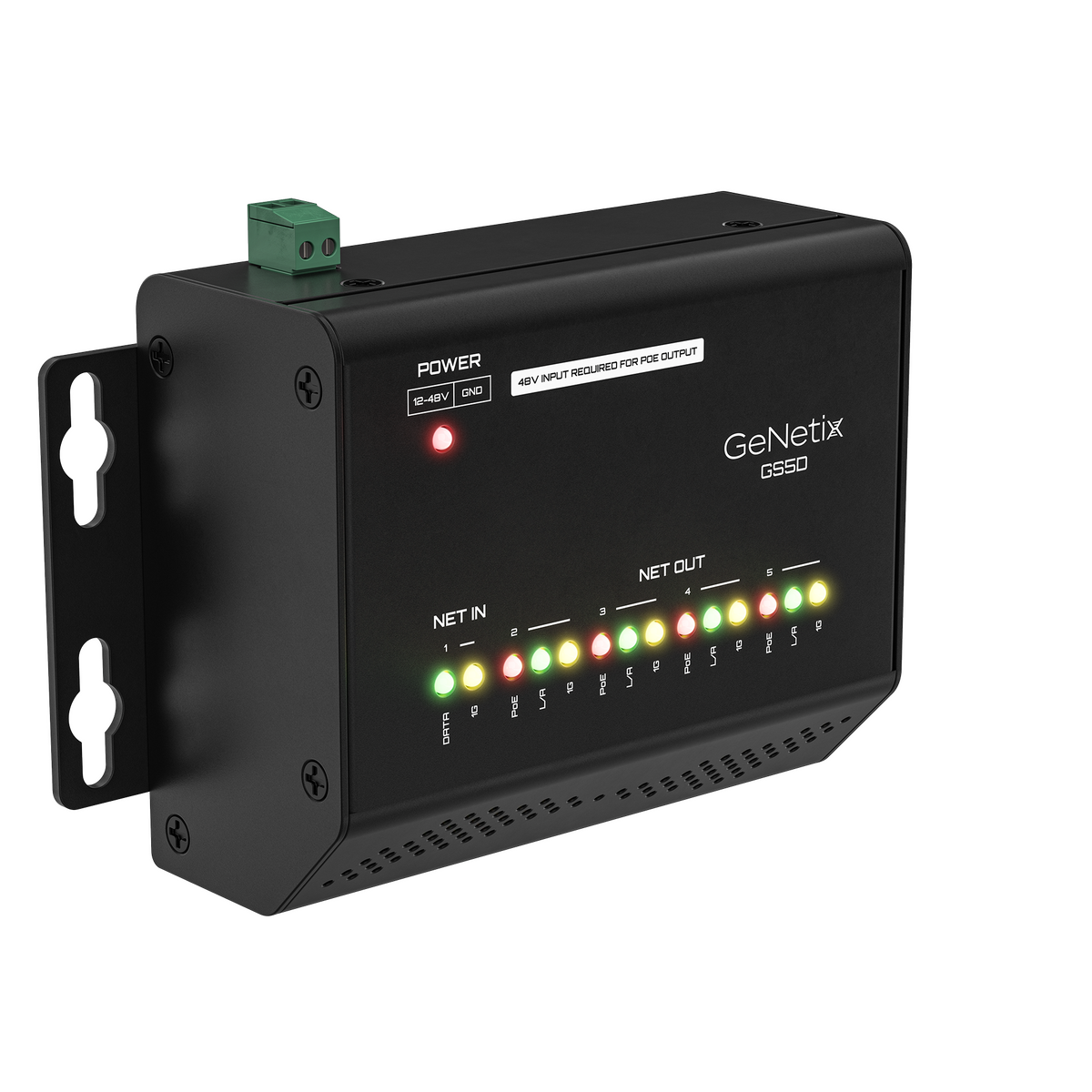

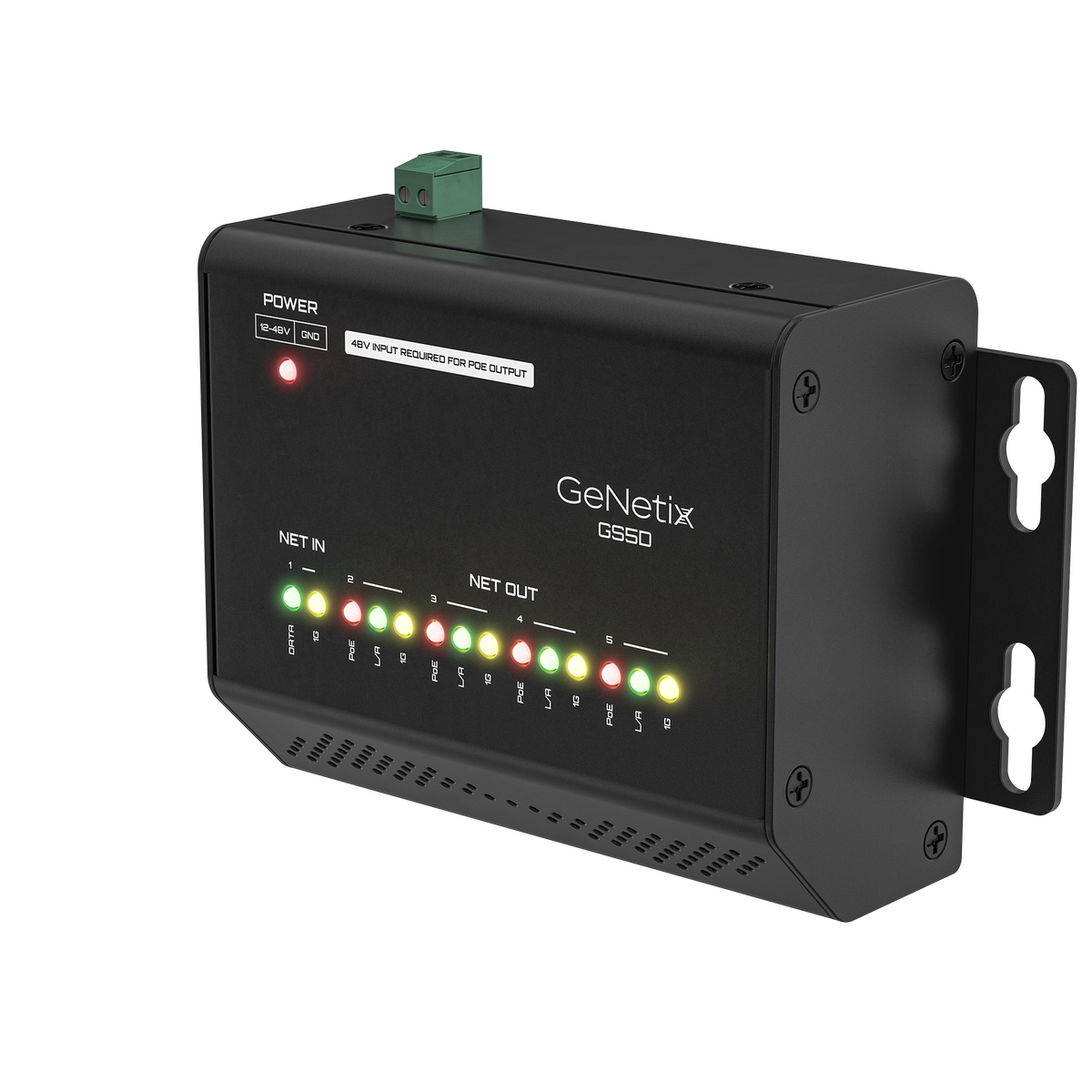

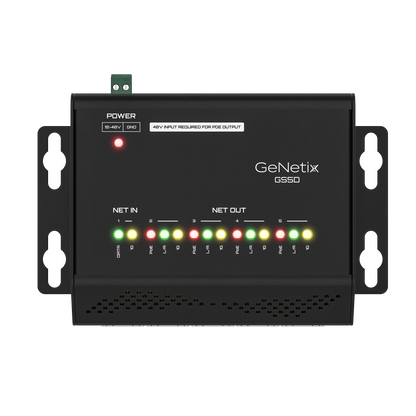

Chamsys GENETIXDINNET GeNetix GS5D - DIN Mount 5 Port Network Switch

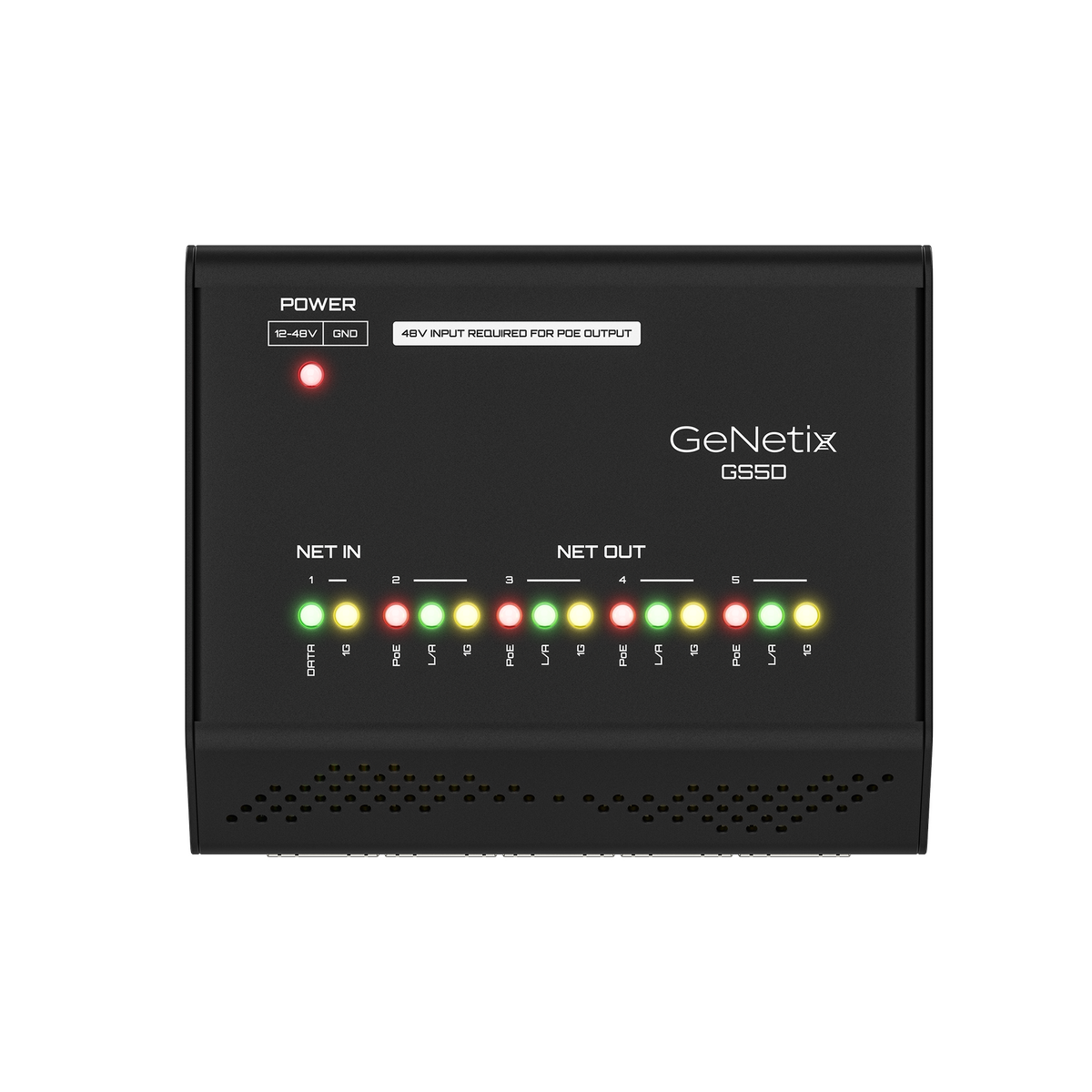

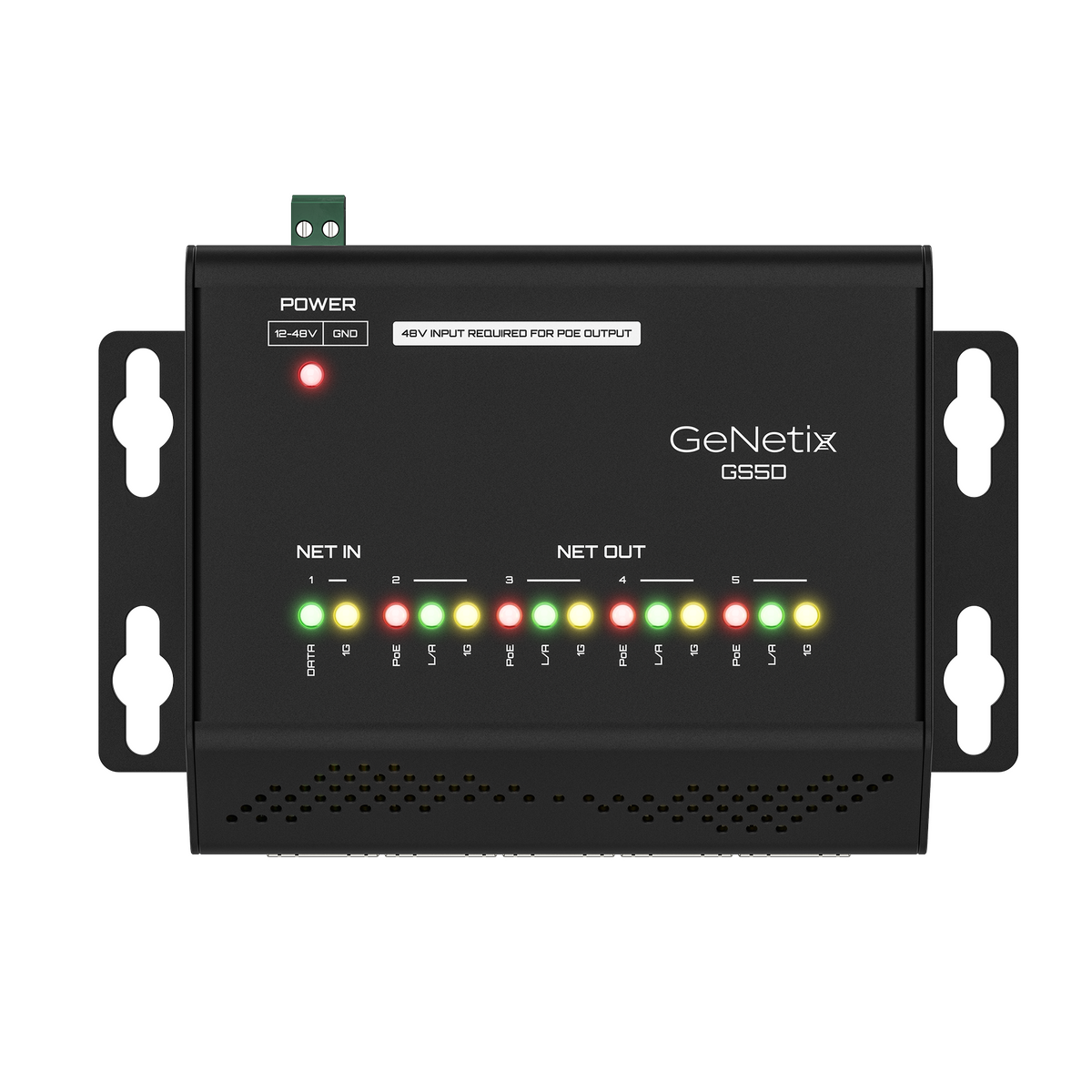

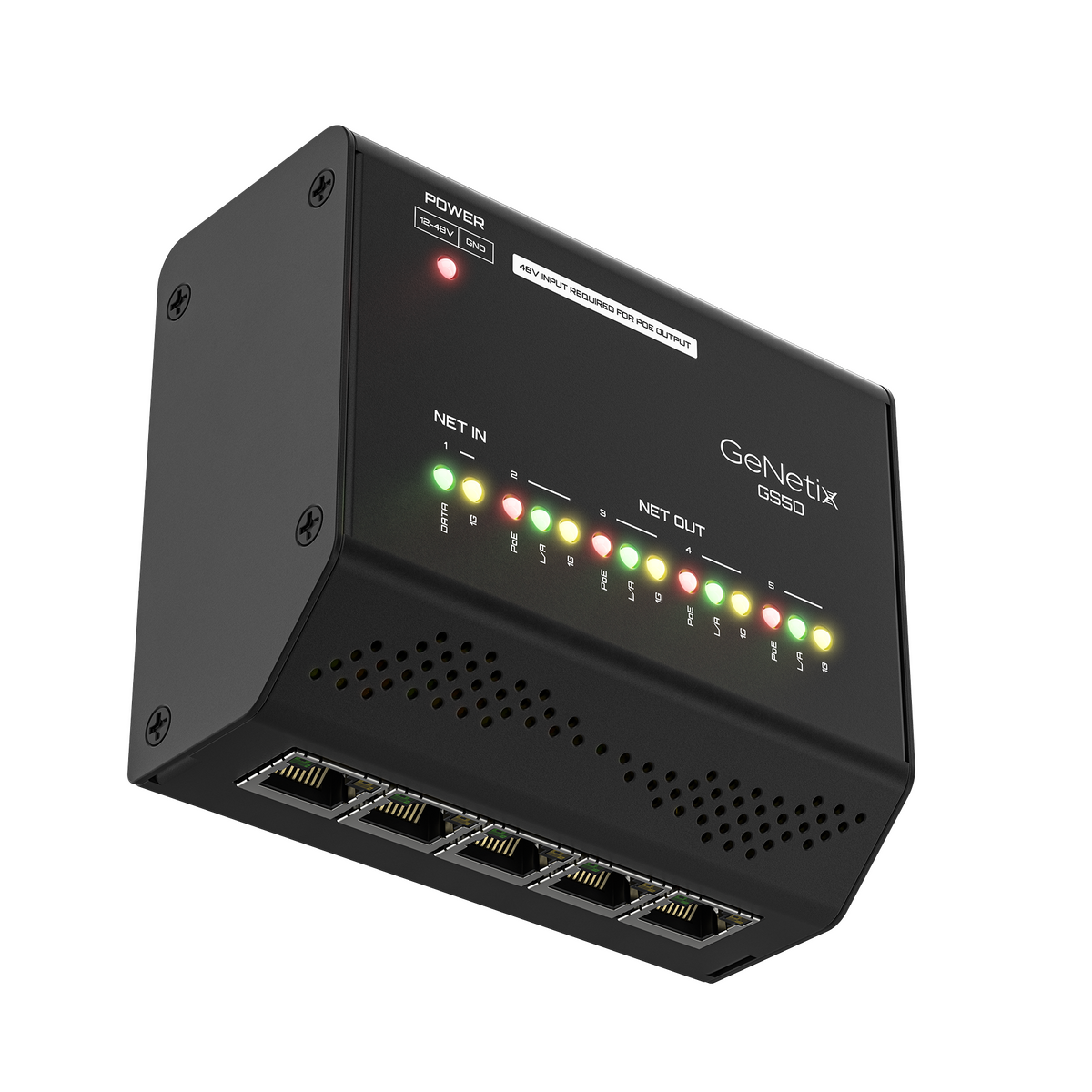

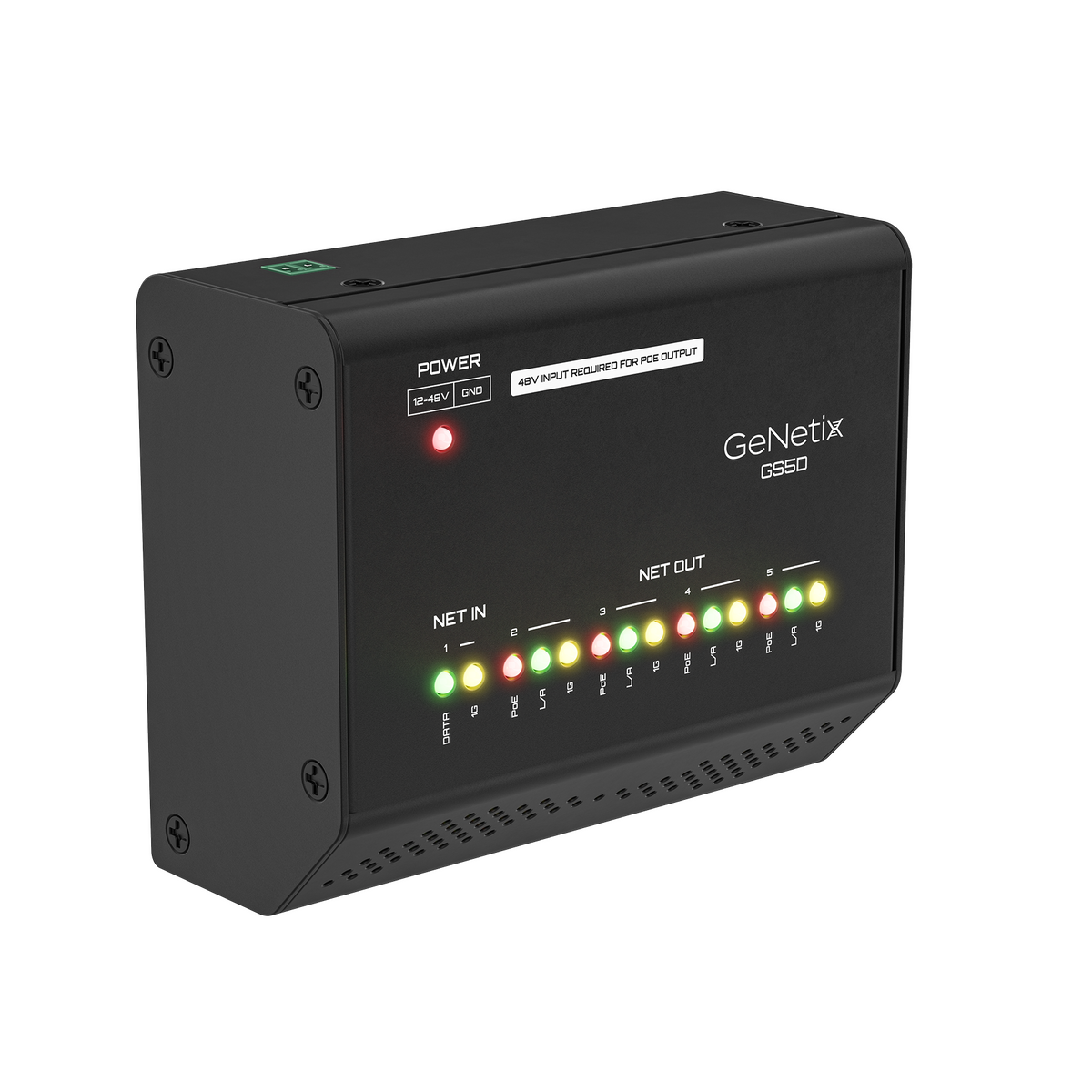

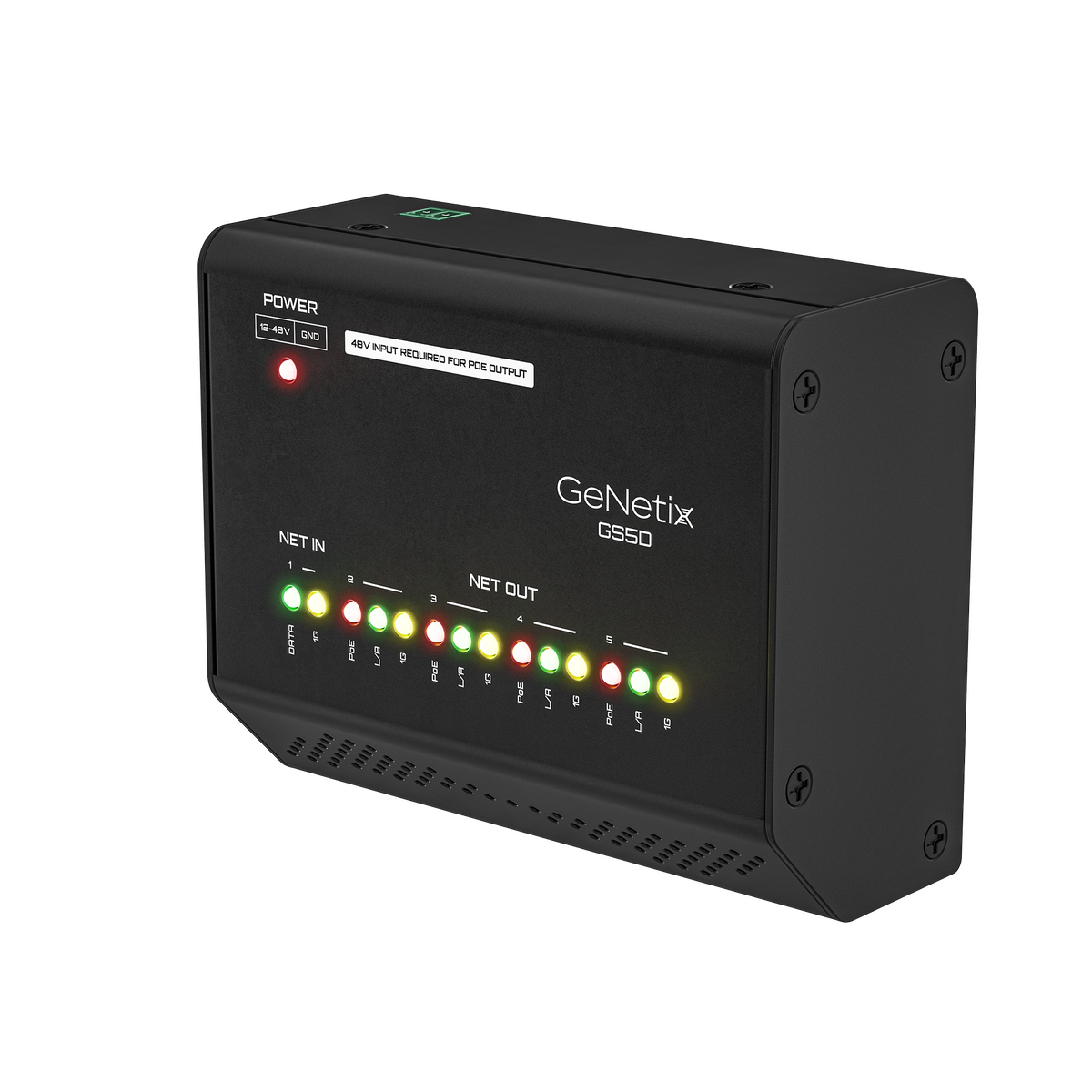

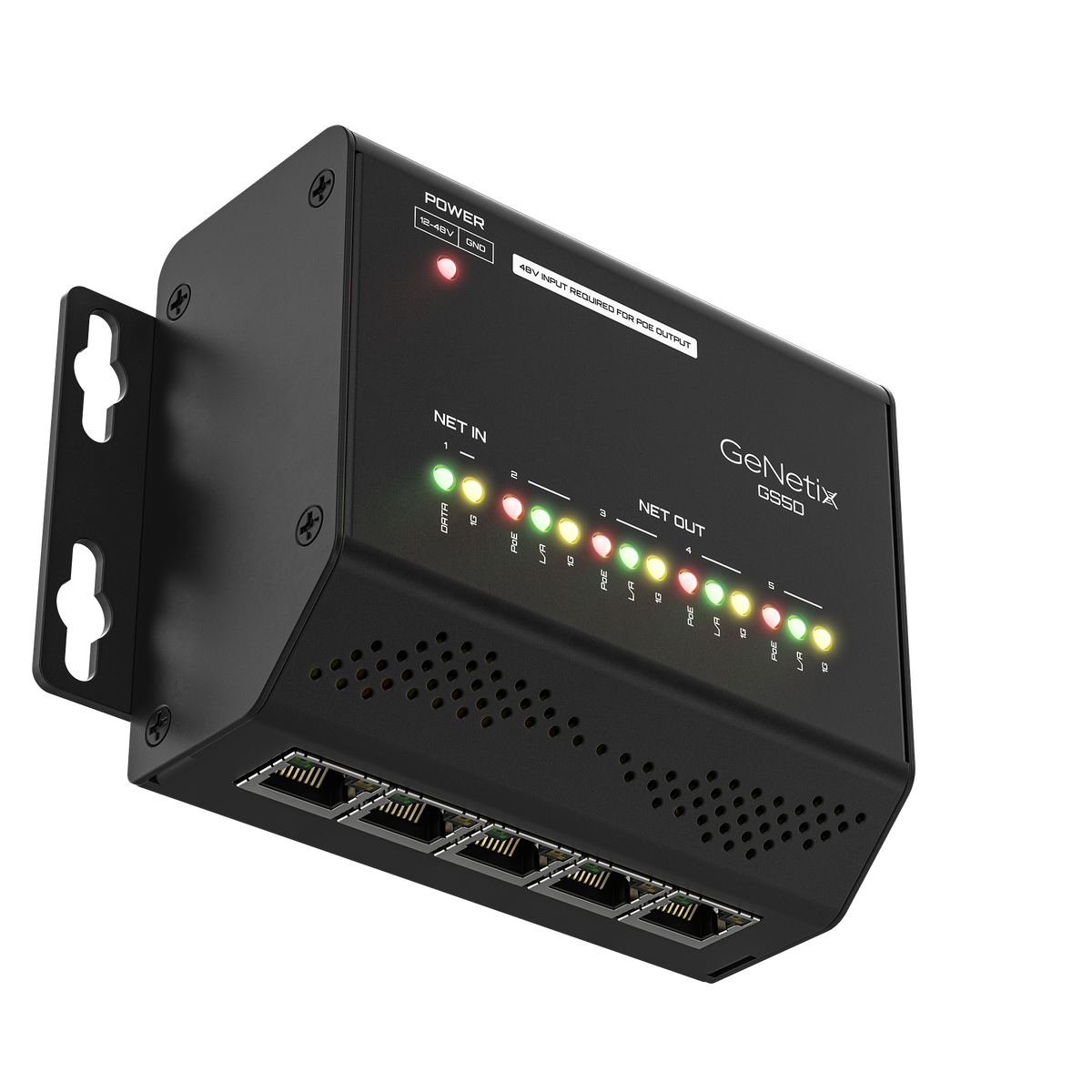

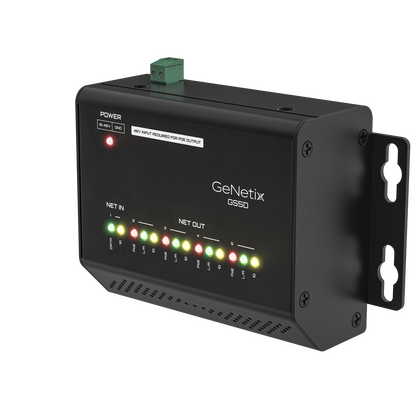

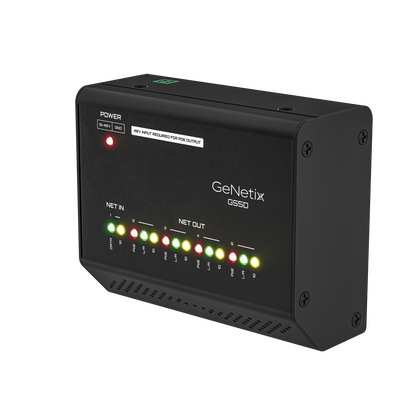

GeNetix Switch 5D is a five-port DIN rail mountable unmanaged Gigabit network switch that can be powered via an external 12-48V power supply (purchased separately). When powered by a 48V power supply, four of its ports support 30W of PoE output per port with a maximum of 60W combined output. Status LEDs provide visual indication to know if the GeNetix GS5D is connected to external power, if its network/PoE ports are connected/active, and if the network is running at Gigabit speed.
Overview:
- 60w 5 port Unmanaged Gigabit PoE+ Network Switch
- Supports PoE 802.3af, 802.3at in Modes A & B
- Ports 2-5 Support 30w per Port, up to 60w total output when powered by a 48v External Power Supply
- PoE Powered or 12-48v External Power Supply option

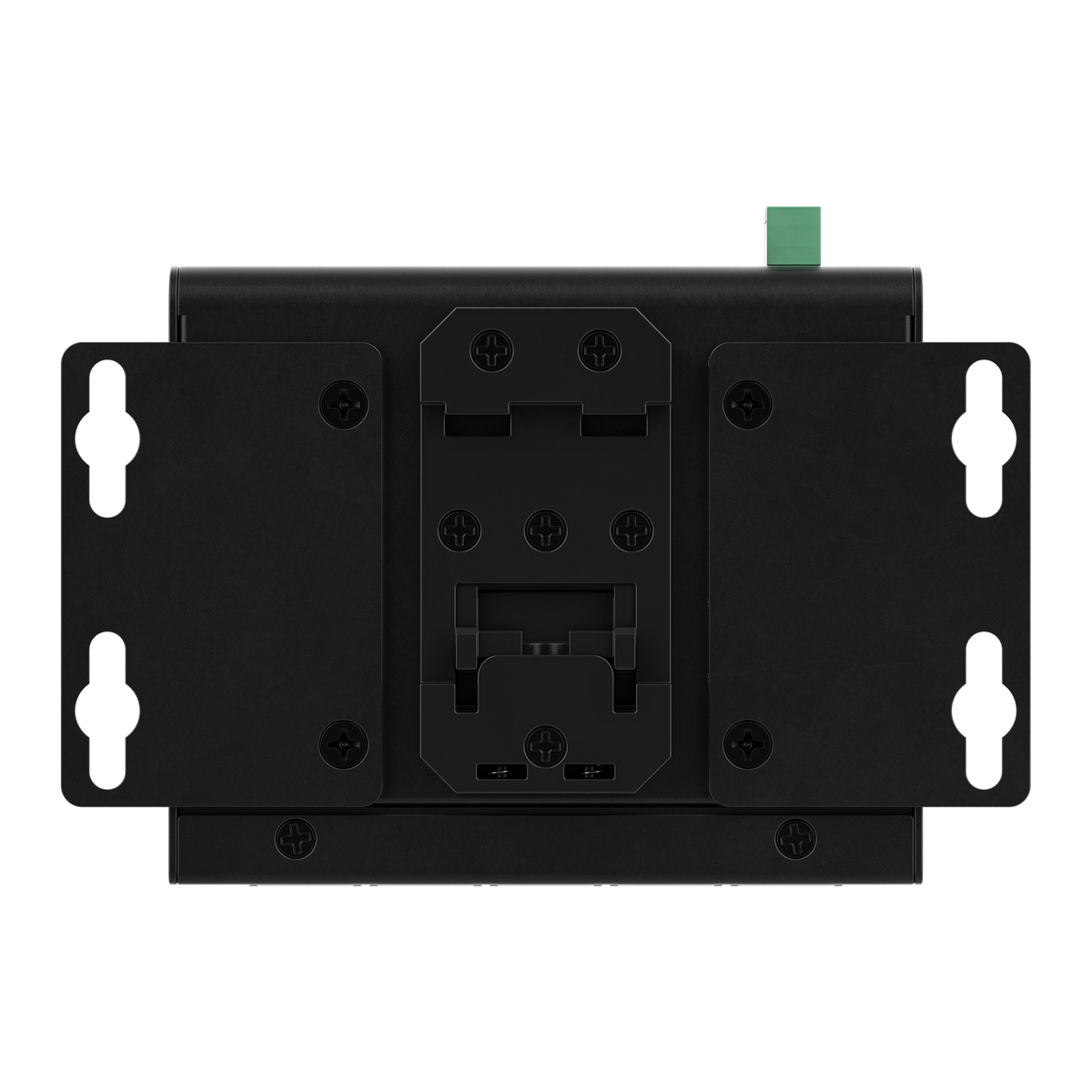

- DIN Rail Mountable
Hardware Specifications `:
- Network Ports: 5
- PoE Output: Yes – When powered by a 48v External Power Supply
- PoE+ Outputs Ports: 4
- DIN Rail Mounted: Yes
- Powered via PoE: Yes
- Powered via External 12-48v Power Supply: Yes
Software Specifications:
- Gigabit Ethernet: Yes
- Unmanaged Network Switch: Yes
Included Accessories:

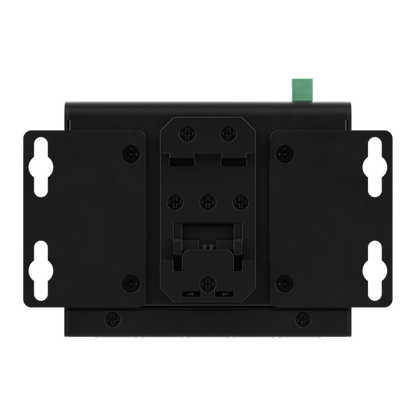

- DIN Rail Mount Clip: 1
- Quick Start Guide: 1
Unit Weights and Dimensions:
- Width: 104mm (4.09 inches)
- Depth: 87mm (3.42 inches)
- Height Inc DIN Clip: 65mm (2.55 inches)
- Weight: 0.4 KG (0.88 lb)
