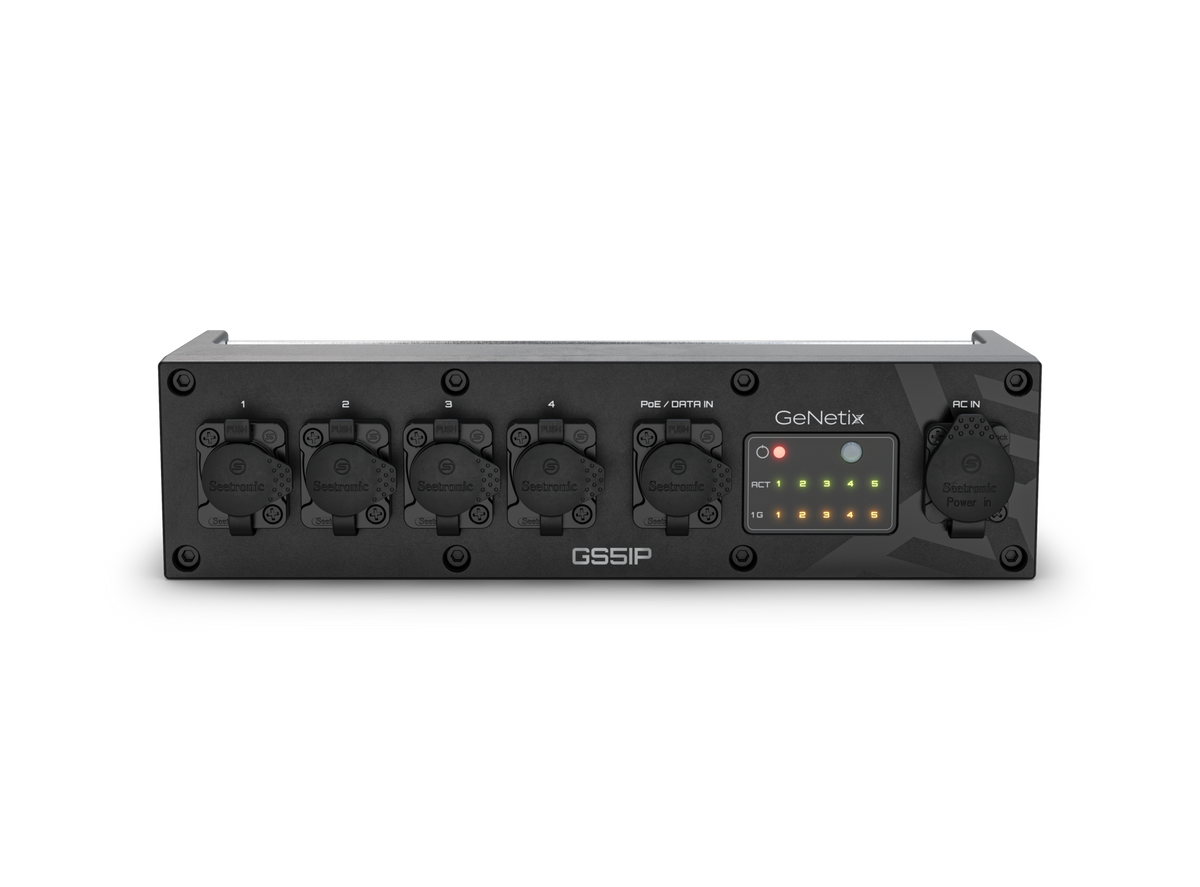

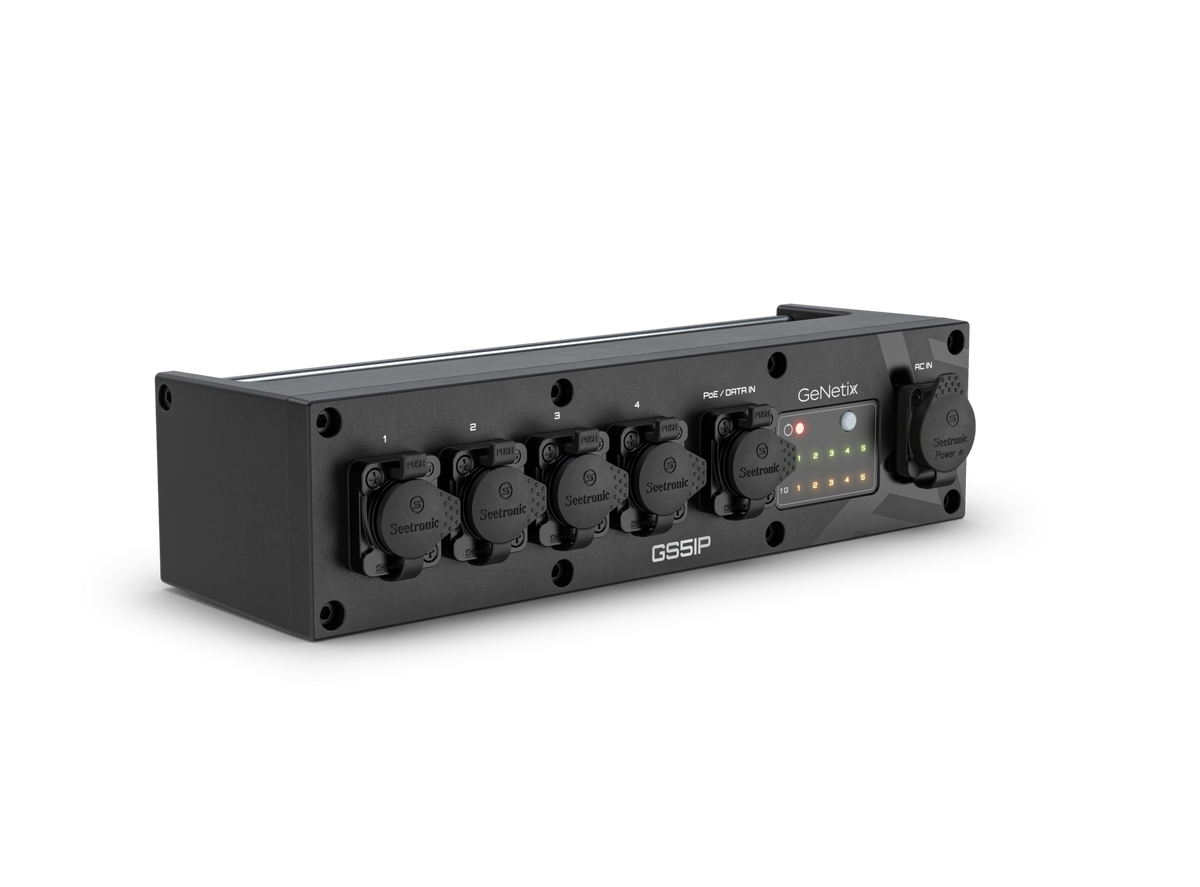

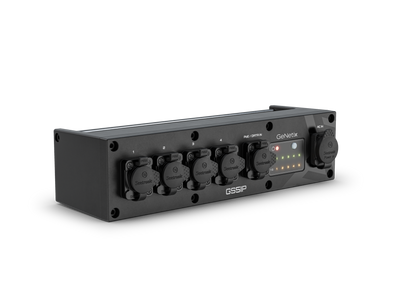

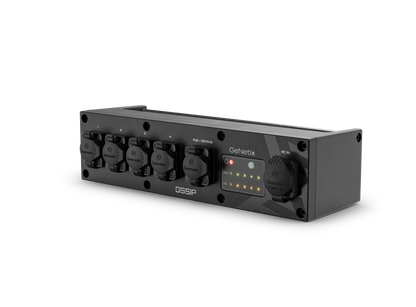

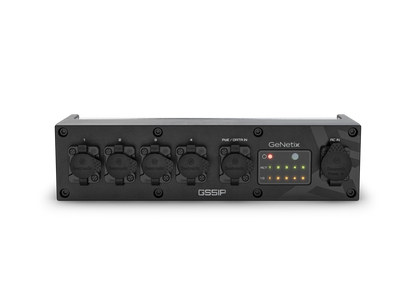

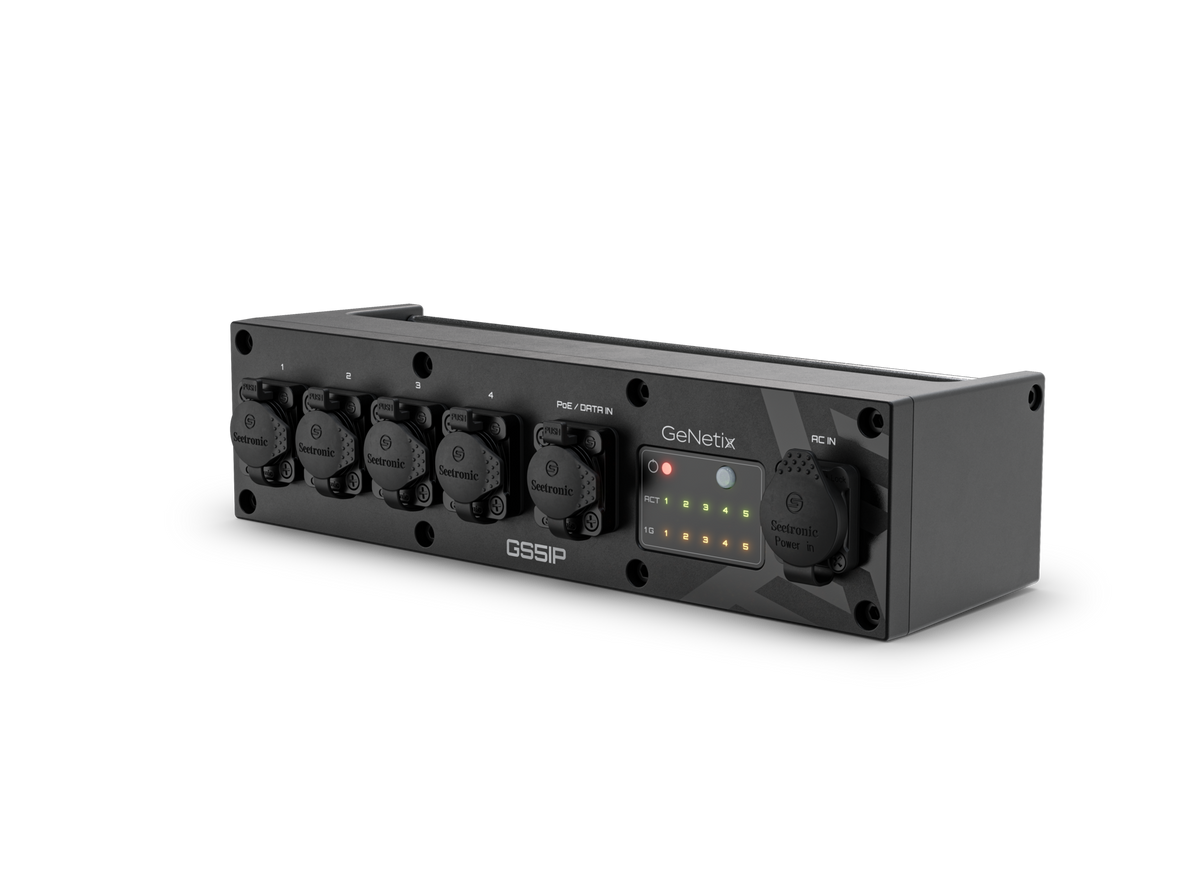

ChamSys GENETIX GS5IP 5 Port Unmanaged Network Switch
GeNetix Switch 5IP is a five-port IP65-rated unmanaged Gigabit network switch that can be powered either via PoE or via Mains power to its PowerCon True1 Mains Input connector. This compact and rugged all-weather device comes with multiple rigging options for easily mounting in your rig. Port Status LEDs provide visual indication to know if ports are connected/active and if running at Gigabit speed.
Overview:
- 5 port Unmanaged Gigabit Network Switch
- IP65 Rated
- Locking Ethernet Connectors
- Can be mains or PoE Powered
- PowerCon True1 Top Mains Input
- M12 Threaded Insert for Clamp Mounting

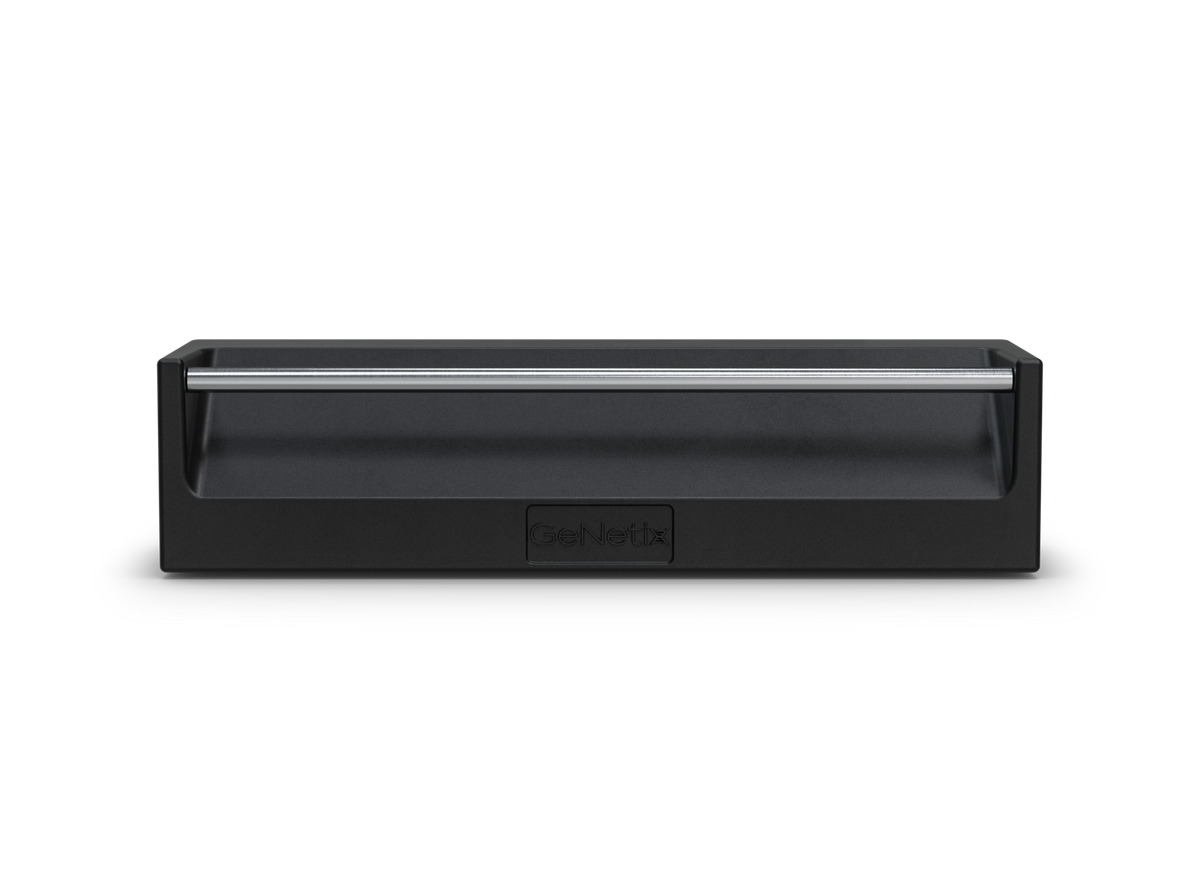

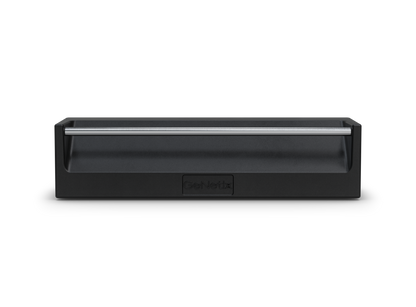

- Built in Rail for secondary Safety bond when rigged
Hardware Specifications:
- Network Ports: 5
- Mains Input: PowerCon True1 Top
- Can be PoE Powered: Yes
- Port Status LEDs: Yes
- M12 Clamp Fixing: Yes
- Safety Bond Fixing Rail: Yes
- Max Power Consumption (mains): 30w
Software Specifications:
- Gigabit Ethernet: Yes
- Unmanaged Network Switch: Yes
Included Accessories:
- Neutrik powerCON TRUE1 Power Cable: 1
Node Weights and Dimensions:
- Width: 274mm (10.81 inches)
- Depth: 76mm (3,0 inches)
- Height: 68mm (2.68 inches)
- Weight: 1.40 KG (3.09 lb)
