Description

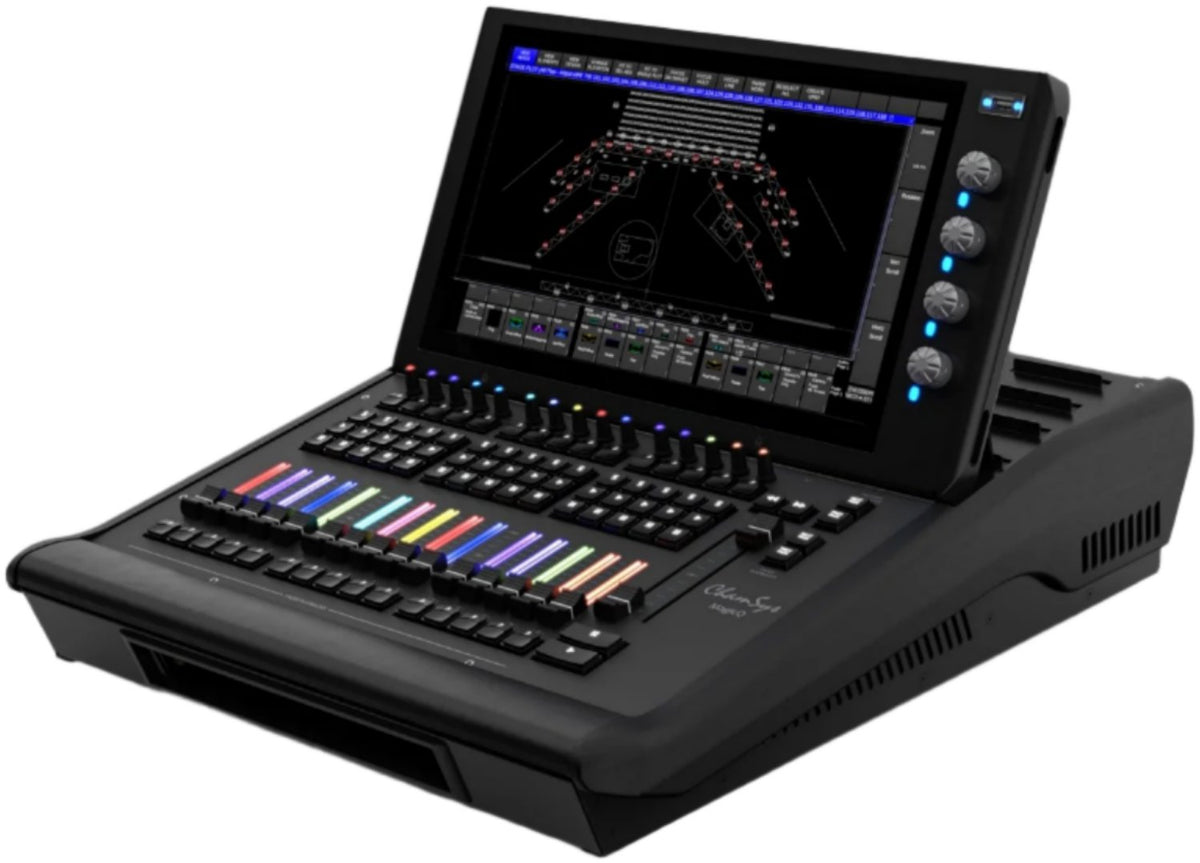

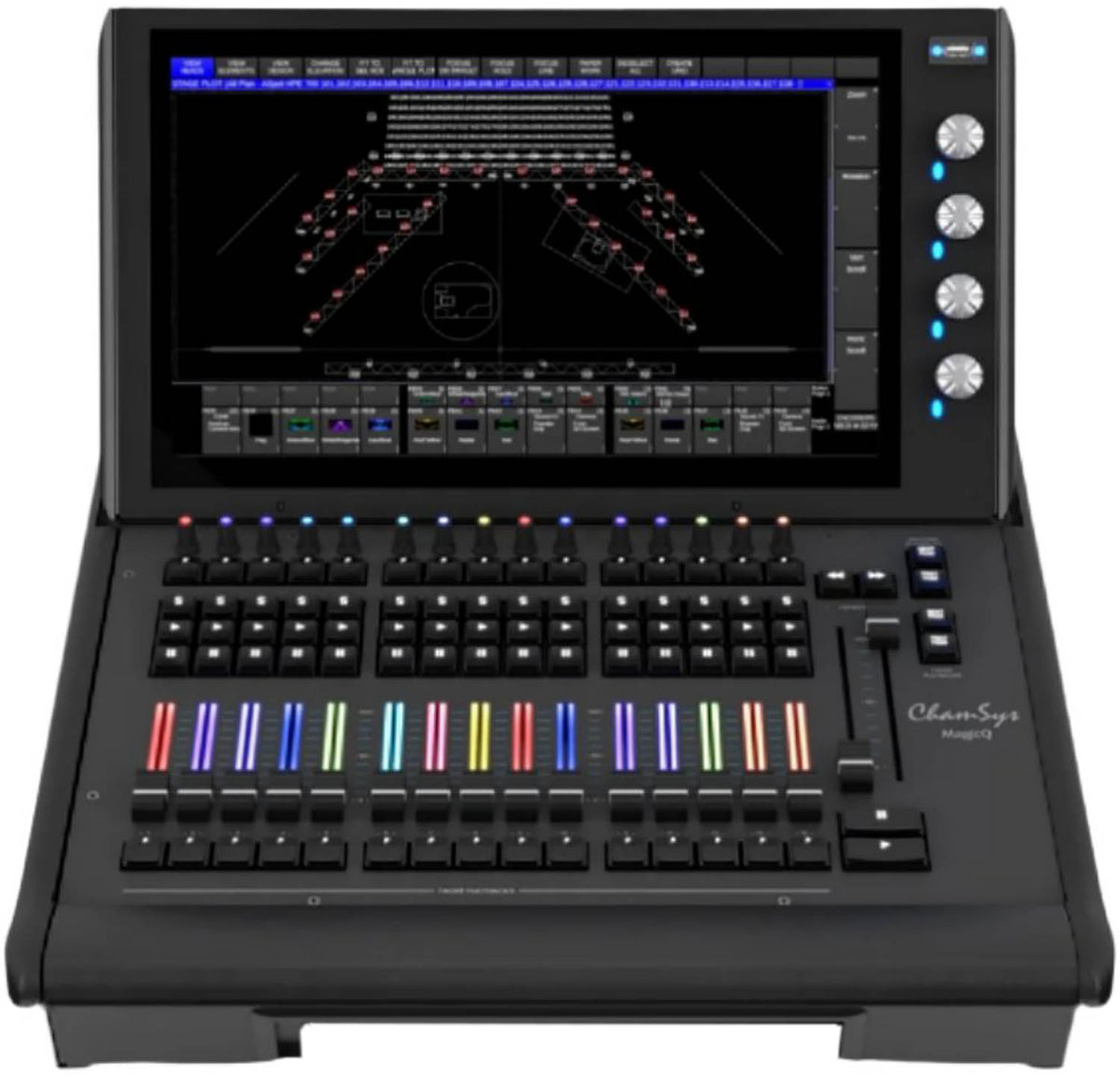

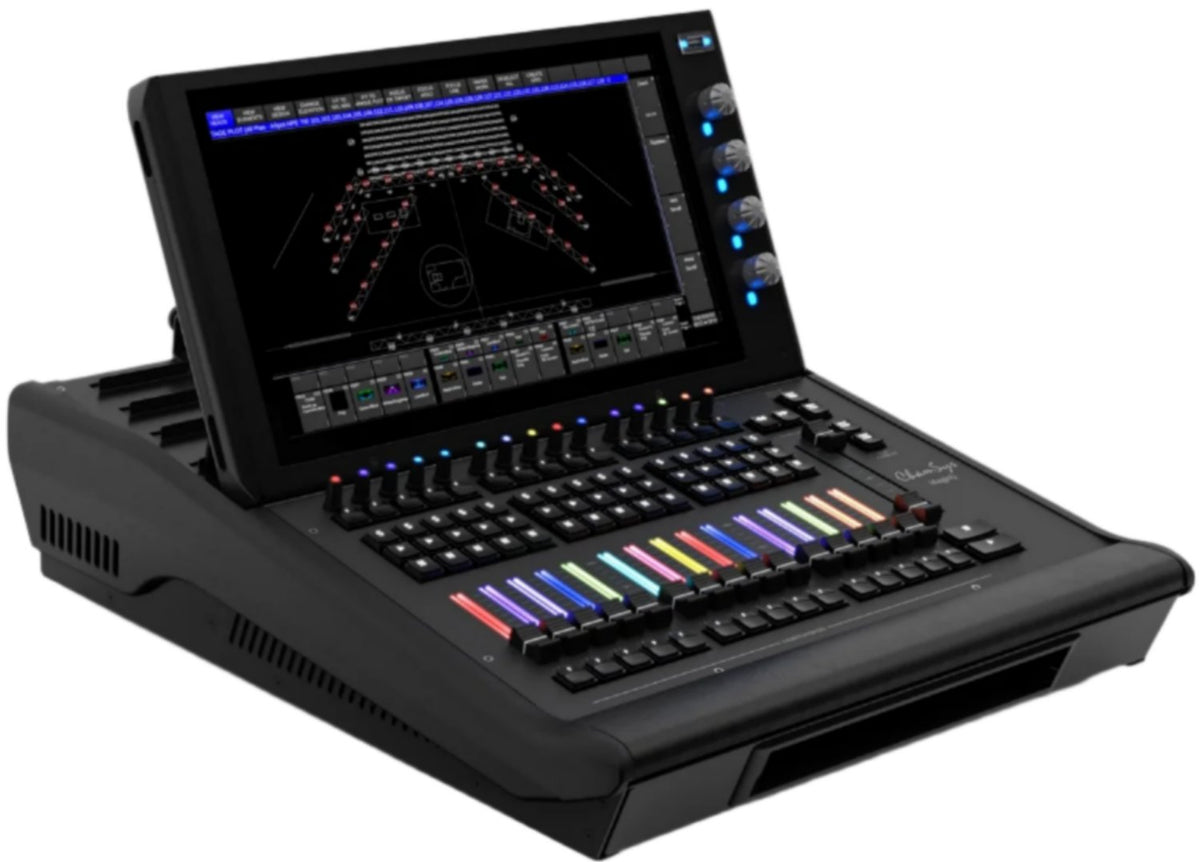

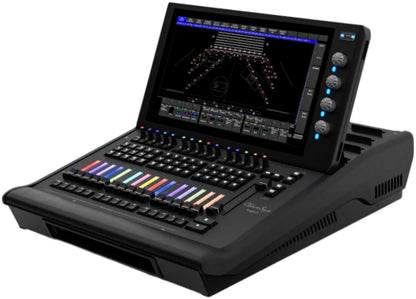

ChamSys CHAMMQSTPLWINGWITHCASE MagicQ MQ500M Stadium Wing Playback Console with Case
The MagicQ Stadium Wing is the latest and most advanced ChamSys wing designed for high-level show control. Built to integrate seamlessly with the MagicQ MQ 500 Stadium console, it offers a range of advanced tools for enhancing show programming and playback. Equipped with 30 Playbacks (15 Fader Playbacks and 15 Execute Playbacks) and multi-purpose encoders, it ensures flexibility and ease of use. The full HD multi-touch display with adjustable viewing angle and gesture support adds to its user-friendly design, while the inclusion of 4 DMX outputs and an inbuilt UPS enhances connectivity and reliability.
Features:
- 15 Fader Playbacks with Fader, Select, Go, Stop, and Flash buttons
- 15 Execute Playbacks with Select and Go buttons
- 4 Execute Encoders legended on screen
- Inbuilt 15" Full HD 1920x1080 multi-touch display
- Adjustable display viewing angle with gesture support

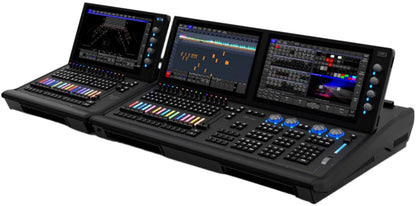

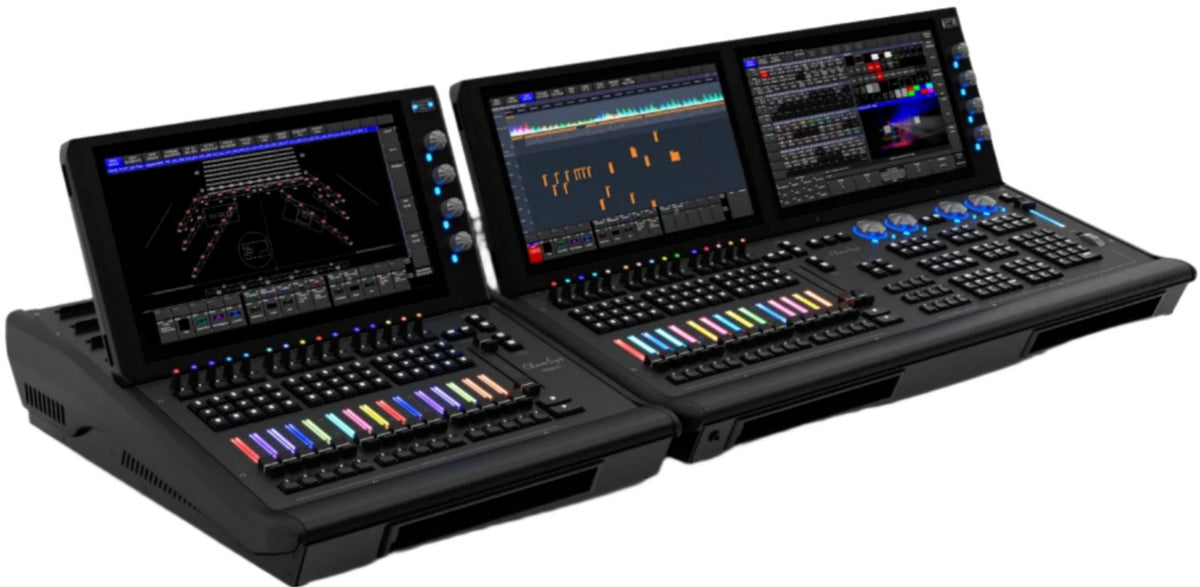

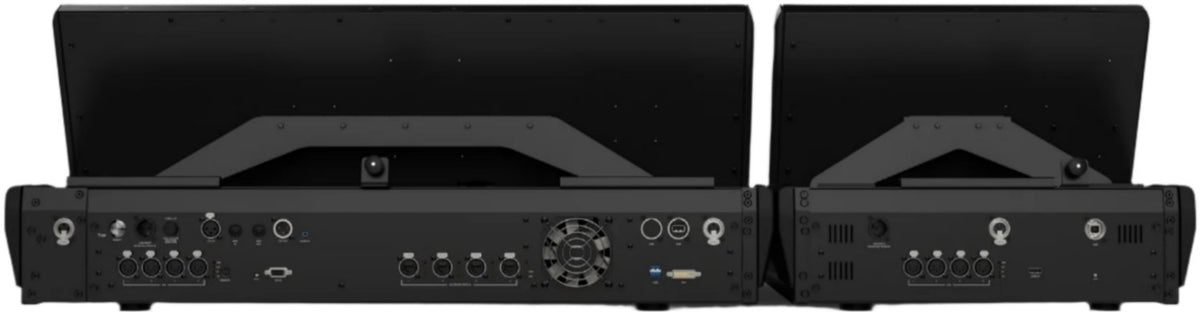

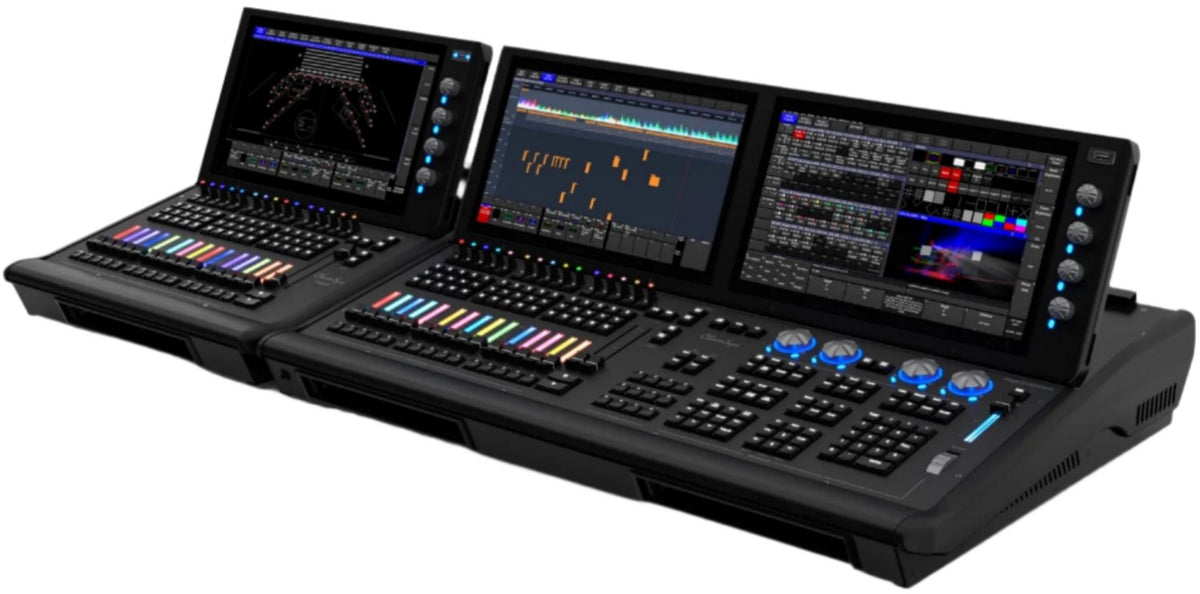

- Direct connection to MagicQ Stadium MQ500 console
- Modular design for easier maintenance
- Comfortable armrest for extended use
- Inbuilt UPS with 12V Lead-Acid battery

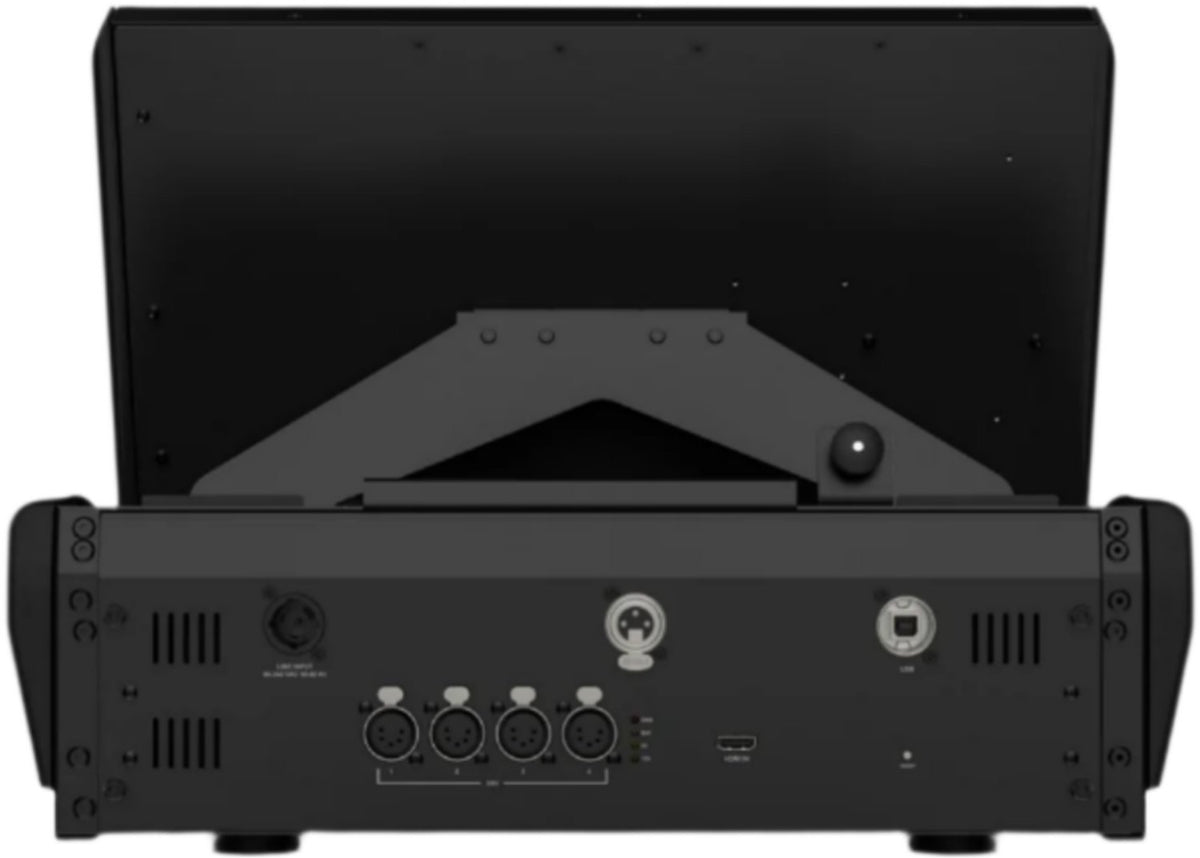

- 4 DMX ports for enhanced connectivity
- 1 Neutrik locking USB for console connection
- Designed and manufactured in the UK
Hardware Specifications:
- Motorised Playbacks: 15
- Encoder Playbacks: 15
- Total Number of Playbacks: 30 (15+15)
- Dual Motorised Cross Faders: Yes
- Execute Encoders: 4
- Backlit Keys: Yes
- Direct DMX Outputs: 4
- Illuminated Playback/Encoders with RGB control: Yes
- Inbuilt 15″ HD Multi-Touch Display: 1
- High Power USB Port: 1
- Inbuilt UPS: Yes (12V Lead-Acid Battery)
- Front Storage Pocket: 1
- Power Input: Neutrik powerCON TRUE1 110 to 240 VAC
Software Specifications:
- Max Number of DMX Channels: 131,072
- Max Number of Fixtures Supported: 131,072
- Max Number of Cues: 5000
- Max Number of Cue Stacks: 2000
- Max Number of Groups: 5000
- Max Number of Palettes: 4096
- Number of Media Server Layers Supported: 50 (each with different content)
