Description

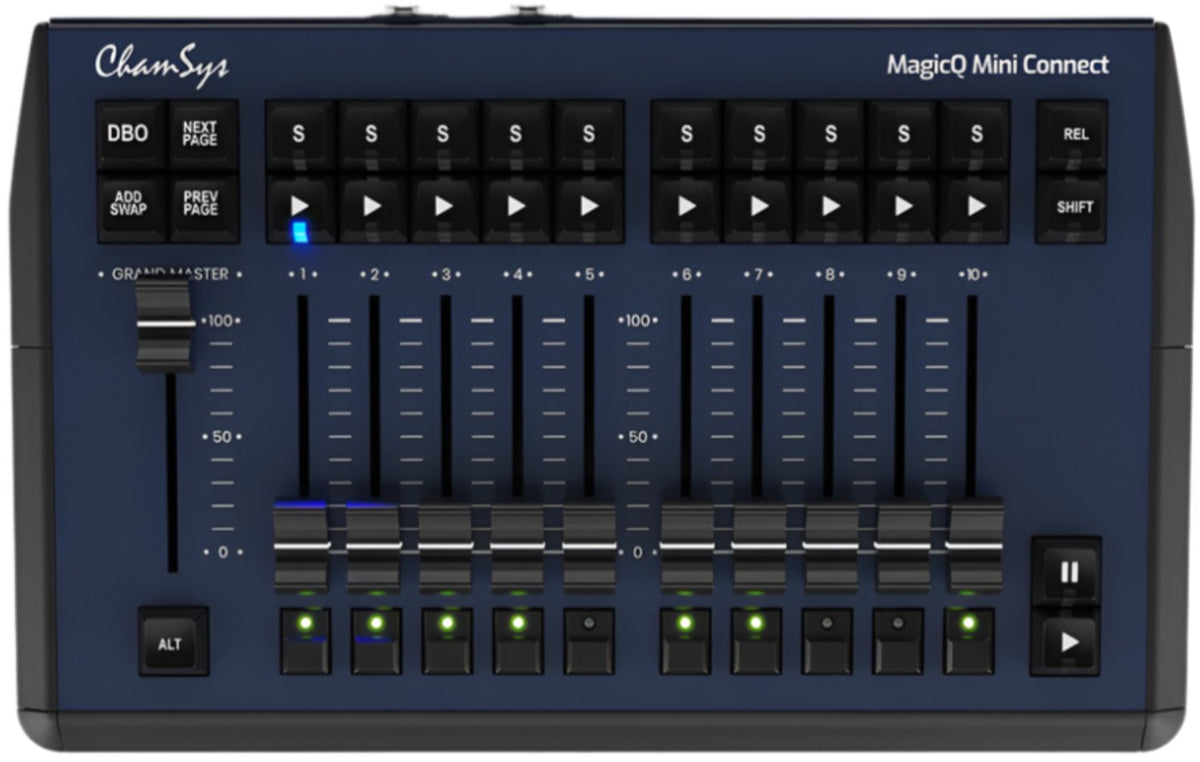

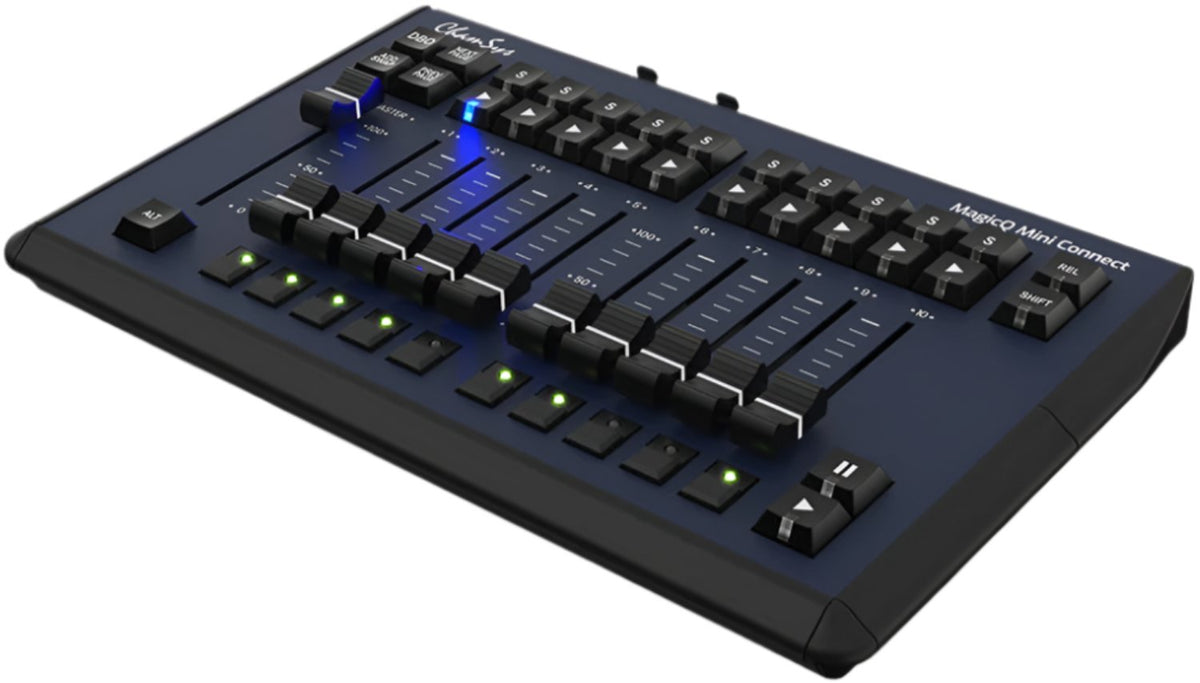

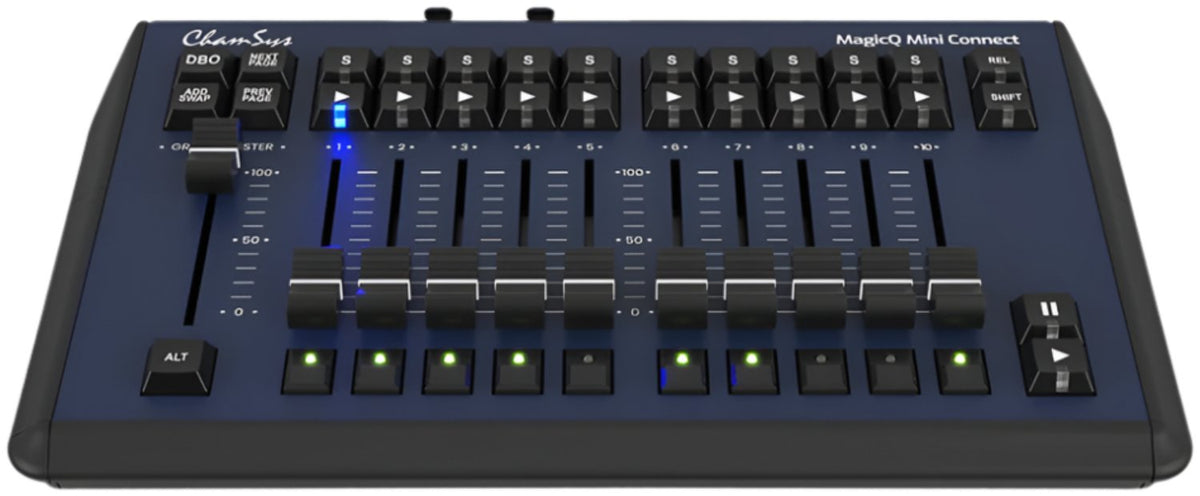

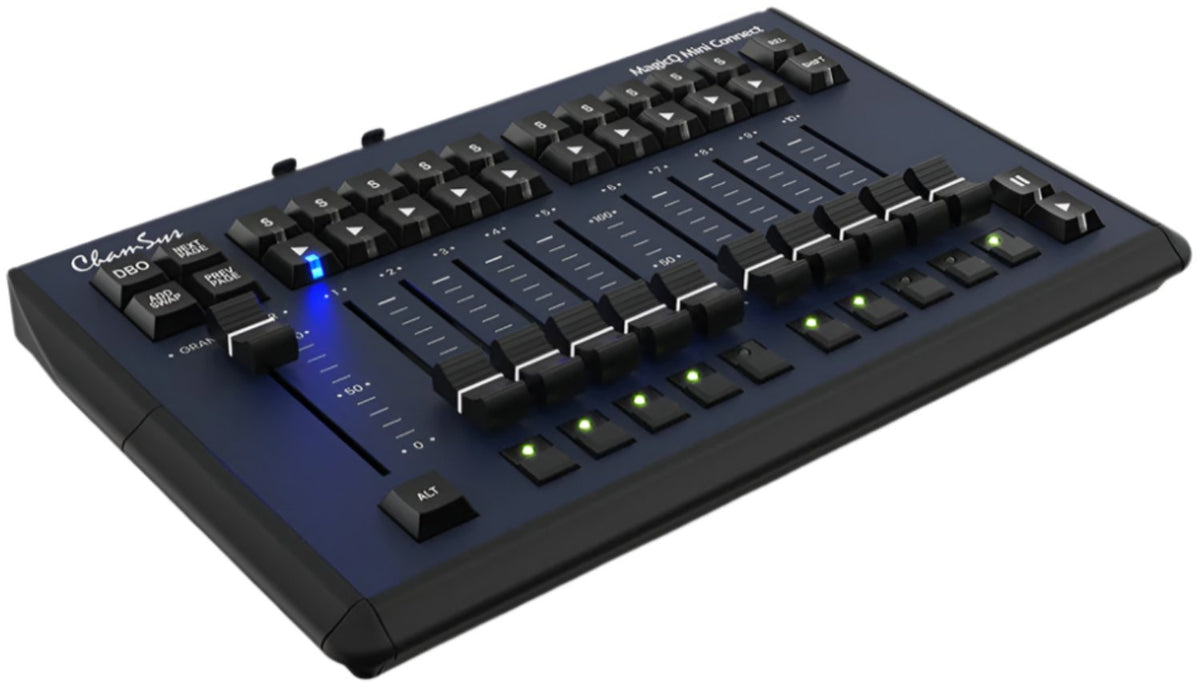

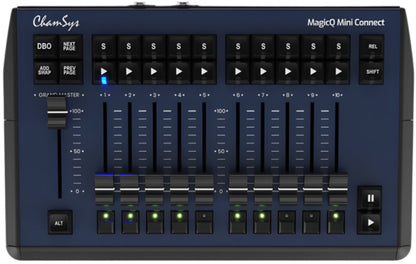

ChamSys CHAMMQMINICONNECT MagicQ MINI CONNECT USB Powered Control Surface
The ChamSys MagicQ Compact Mini Connect provides powerful and portable control over your lighting system. Weighing under five pounds, this compact console is designed for maximum portability and effortless integration with laptops running Windows, macOS, or Linux. Connect via USB 3 and dive into MagicQ software for seamless operation. Equipped with one direct DMX512 output and an onboard network port, it supports up to 64 universes of ArtNet and sACN. An audio input allows for dynamic sound-to-light control, making it suitable for events ranging from small theatrical performances to large concerts.
Features:
- Lighting controller that connects to your laptop via USB 3
- Compatible with Windows, macOS, and Linux running MagicQ software
- 10 playback faders with Flash, Go, and Select buttons, plus a Grand Master fader
- 1 direct DMX512 output
- Supports up to 64 universes of ArtNet and sACN
- Audio input for dynamic sound-to-light control
- Incredibly portable, weighing under 5 lbs
- Perfect for small theatrical performances or large concerts
Specifications:
- Type: Compact Lighting Controller
- DMX Modes: 64 x Universes, 32,768 x Channels
- Compatibility: DMX-512, Art-Net, sACN

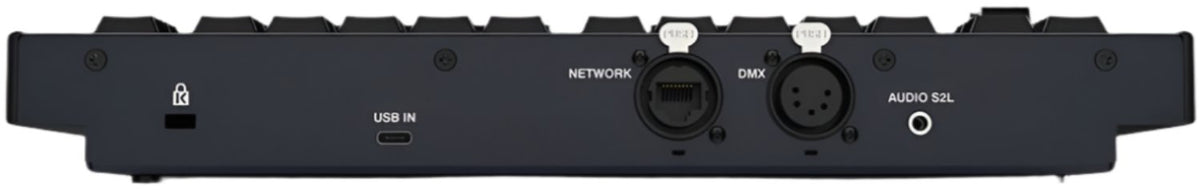

- DMX: 5-pin DIN Out
- USB: 1 x USB-C
- Data I/O: 1 x EtherCon
- Audio Inputs: 1 x 1/8" (audio S2L)
- Faders: 10 x Playback, 1 x Master
- Software: MagicQ
- OS Requirements (Mac): OS X 10.13 or later
- OS Requirements (PC): Windows 8.1 or later
- Power Source: USB Bus Powered
- Rackmountable: No
- Height: 1.77"
- Width: 12.87"
- Depth: 8.03"
- Weight: 4.07 lbs
