Description

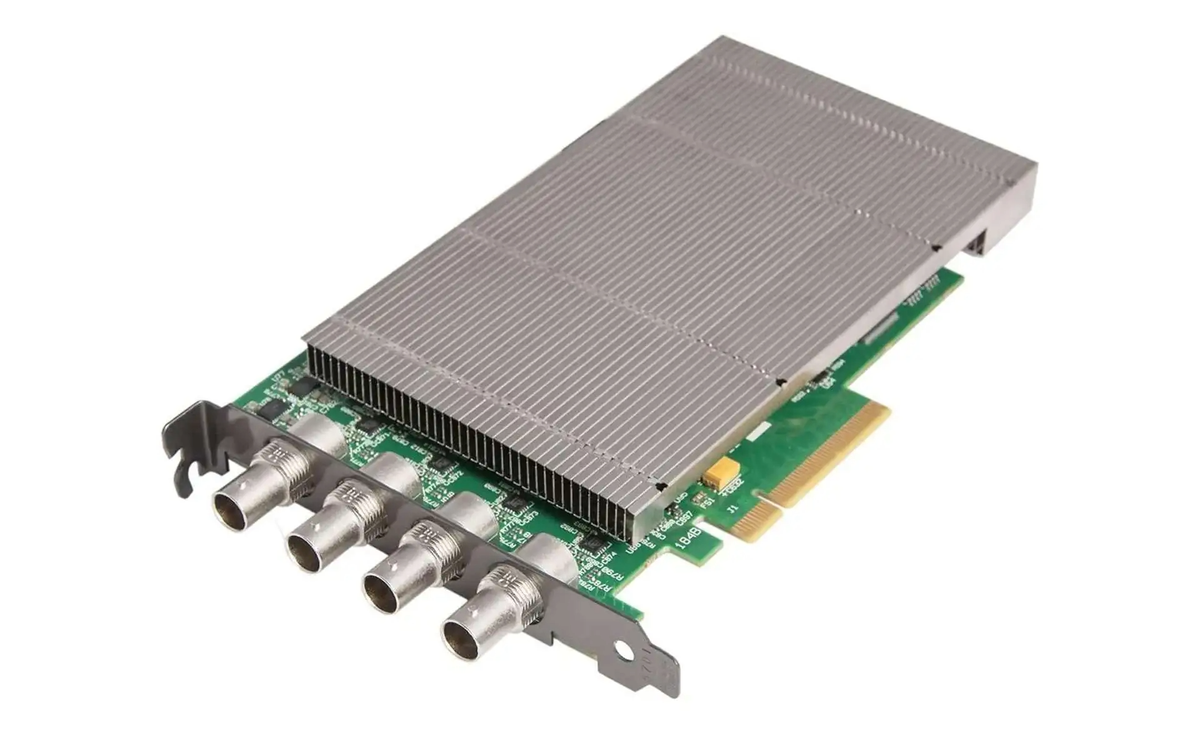

Chamsys CHAMMMSDI4 MediaMaster VisionSC-SDI4 (4 x SDI)
Add multiple high definition SDI video signal inputs to MediaMaster VS2+ or VS4+ media servers running MediaMaster software, from a single card. The MediaMaster Vision SC-SDI4 provides four 3G-SDI inputs each capable of capturing 1920x1080p at 60 frames per second.
Hardware Specifications:
- Motherboard Connection Type: PCIe x8
- Input Connectors: 4 x BNC/SDI
Software Specifications:
- Maximum Capture Resolution: 2.97 Gbps capture bandwidth per channel. Provide => 4 * 1920x1080p @ 60 Hz per input
- Update Rate: User defined. Captured frame rate will match the source providing max data rate (6 GB/s per channel) is not exceeded. Multi-buffered to eliminate tearing artefacts.
- SMPTE Standards: ST-259, ST-272, ST-274, ST-291, ST-292, ST-293, ST-296, ST-299, ST-352, ST-424, ST-425, ST-2048
- Video Modes: 480i, 576i, 720p, 1080i, 1080p, 1080psF, 2048 x 1080p, 2048 x 1080psF
- Supported Frame Rates: 23-98Hz, 24Hz, 25Hz, 29-97Hz, 30Hz, 50Hz, 59-94Hz &60Hz
- Sample Formats: RGB: 4:4:4 (+A)
- YUV: 4:2:2 (+A), 4:4:4 (+A)
- Frame Buffer Memory: 768 MB
