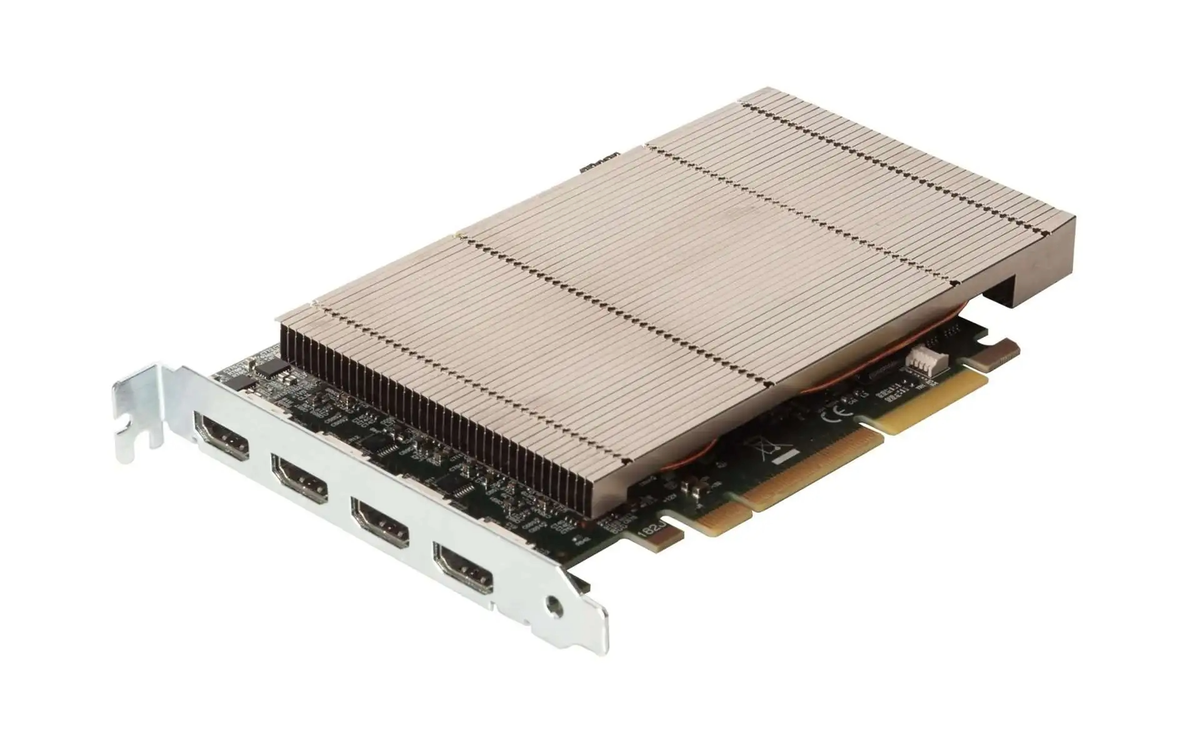

Chamsys CHAMMMHDMI4 MediaMaster VisionSC-HD4+H (4 x HDMI)
Chamsys CHAMMMHDMI4 MediaMaster VisionSC-HD4+H (4 x HDMI)
SKU: CHAMMMHDMI4
Regular price
$4,500.00
Sale price
$4,500.00
Shipping calculated at checkout.
Available options
Description
Chamsys CHAMMMHDMI4 MediaMaster VisionSC-HD4+H (4 x HDMI)
Add multiple HDMI or DVI video input channels to MediaMaster VS2+ or VS4+ media servers running MediaMaster software, from a single card. The MediaMaster Vision SC-HD4 has four channels of HDMI 1.4, two supporting 297MHz (3840×2160 at 60 fps) and two supporting 165 MHz (1920×1080 at 60 fps), all operating independently of each other. This enables four separate video sources to be captured and controlled simultaneously.
Hardware Specifications:
- Motherboard Connection Type: PCIe x8
- Input Connectors: 4 x BNC/SDI
Software Specifications:
- Maximum Capture Resolution: 2.97 Gbps capture bandwidth per channel. Provide => 4 * 1920x1080p @ 60 Hz per input
- Update Rate: User defined. Captured frame rate will match the source providing max data rate (6 GB/s per channel) is not exceeded. Multi-buffered to eliminate tearing artefacts.
- SMPTE Standards: ST-259, ST-272, ST-274, ST-291, ST-292, ST-293, ST-296, ST-299, ST-352, ST-424, ST-425, ST-2048
- Video Modes: 480i, 576i, 720p, 1080i, 1080p, 1080psF, 2048 x 1080p, 2048 x 1080psF
- Supported Frame Rates: 23-98Hz, 24Hz, 25Hz, 29-97Hz, 30Hz, 50Hz, 59-94Hz &60Hz
- Sample Formats: RGB: 4:4:4 (+A)
YUV: 4:2:2 (+A), 4:4:4 (+A) - Frame Buffer Memory: 768 MB
