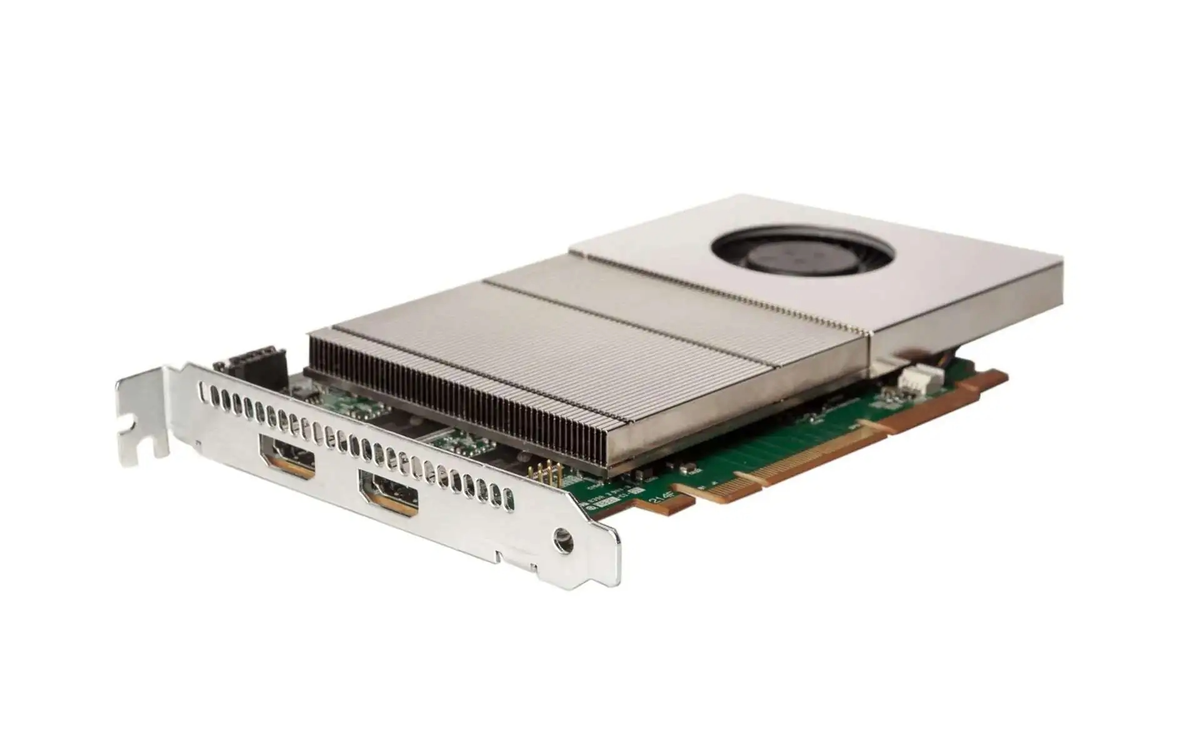

Chamsys CHAMMMHDMI2 MediaMaster VisionSC-UHD2 (2 x HDMI)
Add two HDMI 2.0 inputs to MediaMaster VS2+ or VS4+ media servers running MediaMaster software, from a single card with HDCP2.2 support at 4K60p with 4:4:4 chroma sampling. MediaMaster Vision SC-HD2 supports LiveStream for a single line of capture latency, MultiStream for multiple capture instances, hardware timestamping, HDMI signal conditioning to support longer cable runs, automatic fast and reliable mode detection, frame synchronised ganging of inputs (dual 4K into 8K x 2K), flexible onboard Colour Space Converter, and an advanced hardware scaling engine that employs polyphase multi-tap filtering for superior anti-aliasing when downscaling and accurate pixel replication when upscaling.
Hardware Specifications:
- Motherboard Connection Type: PCIe x8
- Input Connectors: 2 x HDMI
Software Specifications:
- Video Modes: HDMI 2.0, HDMI 1.4, HDMI 1.3
- Maximum Capture Resolution: 2x3840x2160p @60 fps
- Update Rate: Captured frame rate will match the source providing PCle bandwidth is not exceeded.
- Pixel Transfer Formats: RGB10: (10bit), 8-8-8 (24/32), 5-6-5, 4:4:4, 5-5-5, 8-bit mono Y410 (10bit), 4:2:2, YUY2, UYVY, YVYU.
- Frame Buffer Memory: 2GB
