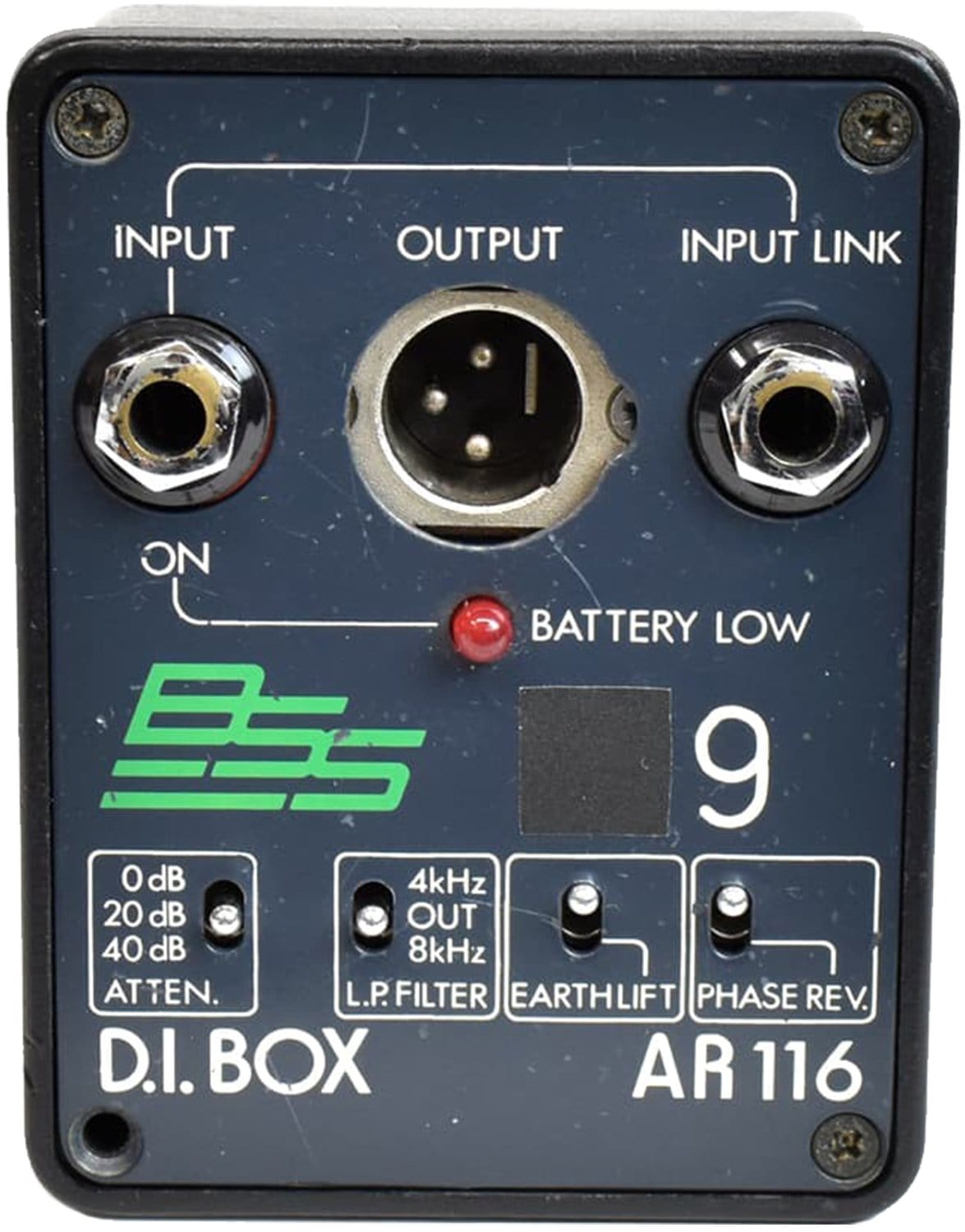

BSS AR-116 Active Direct Box
This BSS AR116 Active Direct box provides a transformer balanced and isolated feed from a source input via a 1/4" TRS jack. The output of the DI box connects via an XLR connector. Provides a 1/4" TRS jack in parallel with the input to act as a link for line bridging. Self-powered via a main and standby battery system. An LED indicates when battery power is low.
Features:
- Switches provide for:
- PHASE REVERSE
- EARTH LIFT (input/output)
- INPUT ATTENUATION of 0, 20 or 40dB)
- insertion of a LOW PASS FILTER, with roll-offs at 4kHz or 8kHz.
- The unit is housed in an isolated rugged ABS box to prevent accidental shorting when located on metal equipment.
- PHASE REVERSE
- EARTH LIFT (input/output)
- INPUT ATTENUATION of 0, 20 or 40dB)
- insertion of a LOW PASS FILTER, with roll-offs at 4kHz or 8kHz.
