Blackmagic Design Video Assist Recorder Monitor

Blackmagic Design Video Assist Recorder Monitor

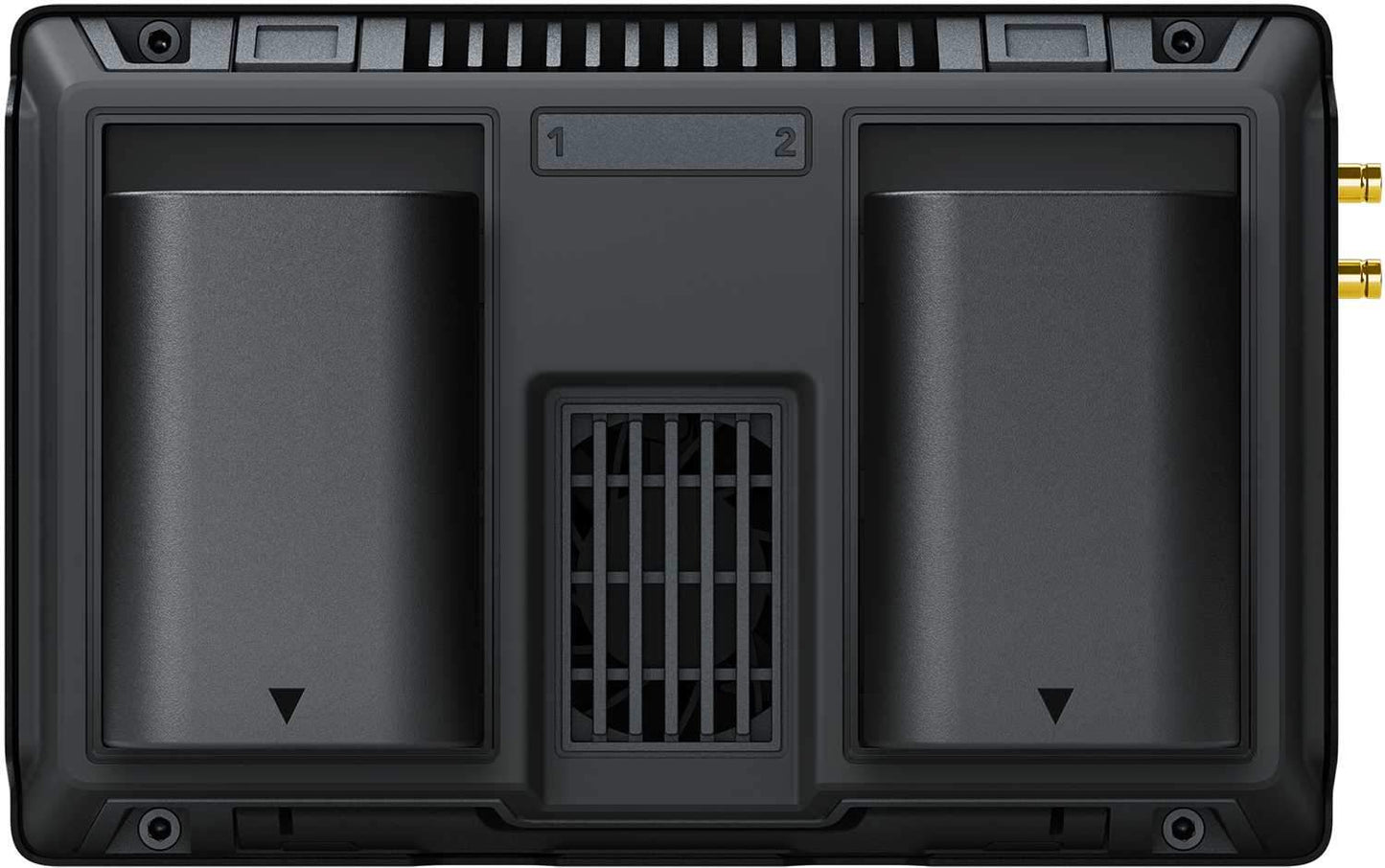

Blackmagic Video Assist adds professional monitoring and high quality recording to any camera. SDI and HDMI inputs mean you can connect to any video camera or DSLR’s. The 5" full resolution HD monitor ensures perfect focus and framing and the professional ProRes and DNxHD recorder uses high speed SD cards and saves files compatible with modern NLE software. The touchscreen allows settings, histogram, audio meters, timecode display and much more. Slots for dual LP-E6 batteries.

Specifications:

Connections

• SDI Video Inputs: 1
• SDI Video Outputs: 1
• SDI Rates: 270Mb, 1.5G, 3G, 6G
• HDMI Video Inputs: 1
• HDMI Video Outputs: 1
• Analog Audio Inputs: None, embedded audio only.
• Analog Audio Outputs: 1 x 3.5 mm headphone jack.
• SDI Audio Inputs: 2 channels embedded in SD and HD in QuickTime files, 2 channels in Avid DNxHD MXF files.
• SDI Audio Outputs: 2 channels embedded in SD and HD in QuickTime files, 2 channels in Avid DNxHD MXF files.
• HDMI Audio Inputs: 2 channels embedded in SD and HD QuickTime files and Avid DNxHD MXF files.
• HDMI Audio Outputs: 2 channels embedded in SD and HD QuickTime files and Avid DNxHD MXF files.
• SD Interface: 1 x UHS?1 SD slot.
• Storage Type: Removable SDXC UHS-1 and SDHC UHS-1 cards.
  Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards.
• Built in Speaker: None
• Screen Dimensions: 5 inch 1920 x 1080.
• Recorder Configuration: Via the device's USB port or the device's user interface.
• Computer Interface: 1 x Mini-B USB 2.0 connector for initial setup, software updates and Video Assist Utility software control.

SDI Video Standards

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards:
  • 720p50, 720p59.94, 720p60
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  • 1080PsF23.98, 1080PsF24
  • 1080i50, 1080i59.94, 1080i60
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97 and 2160p30. Monitoring only, down converts to HD.
• SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M.
• SDI Metadata Support: HD RP188.
• Audio Sampling: Television standard sample rate of 48 kHz and 24?bit.
• Video Sampling: 4:2:2 YUV
• Color Precision: 10-bit
• Color Space: REC 601, REC 709
• Multiple Rate Support: SDI and HDMI switches between 270 Mb/s SD, 1.5 Gb/s HD, and 3.0 Gb/s 60P HD plus 6.0 Gb/s 30p Ultra HD.

HDMI Video Standards

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards:
  • 720p50, 720p59.94, 720p60,
  • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  • 1080i50, 1080i59.94, 1080i60
• HDMI Color Precision: 10-bit
• Copy Protection: HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Media

• Media: 1 x UHS-I from SD/HD recording.
• Media Type: SDXC UHS-I and SDHC UHS-I SD cards.

Supported Codecs

• ProRes 422 HQ, ProRes 422, ProRes 422 LT, ProRes Proxy, DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF.

Control

• Recorder Control: Integrated capacitive touch LCD screen with onscreen controls for settings and navigating menus.
• External Control: SDI start/stop, timecode run.

Software

• Software Included: DaVinci Resolve grading software.
  SD card for Mac and Windows.

Operating Systems

• Mac 10.12 Sierra, Mac 10.13 High Sierra or later.
• Windows 8.1 or Windows 10.

Power Requirements

• Power Supply: 1 x External 12V power supply.
• LP-E6 Lithium-Ion batteries not included.

Environmental Specifications

• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: -21° to 45° C (-6° to 113° F)
• Relative Humidity: 0% to 90% non-condensing

What's Included

• Blackmagic Video Assist
• Universal power supply with international adapters
• SD card with software and manual

Warranty

• 12 Month Limited Manufacturer’s Warranty.
