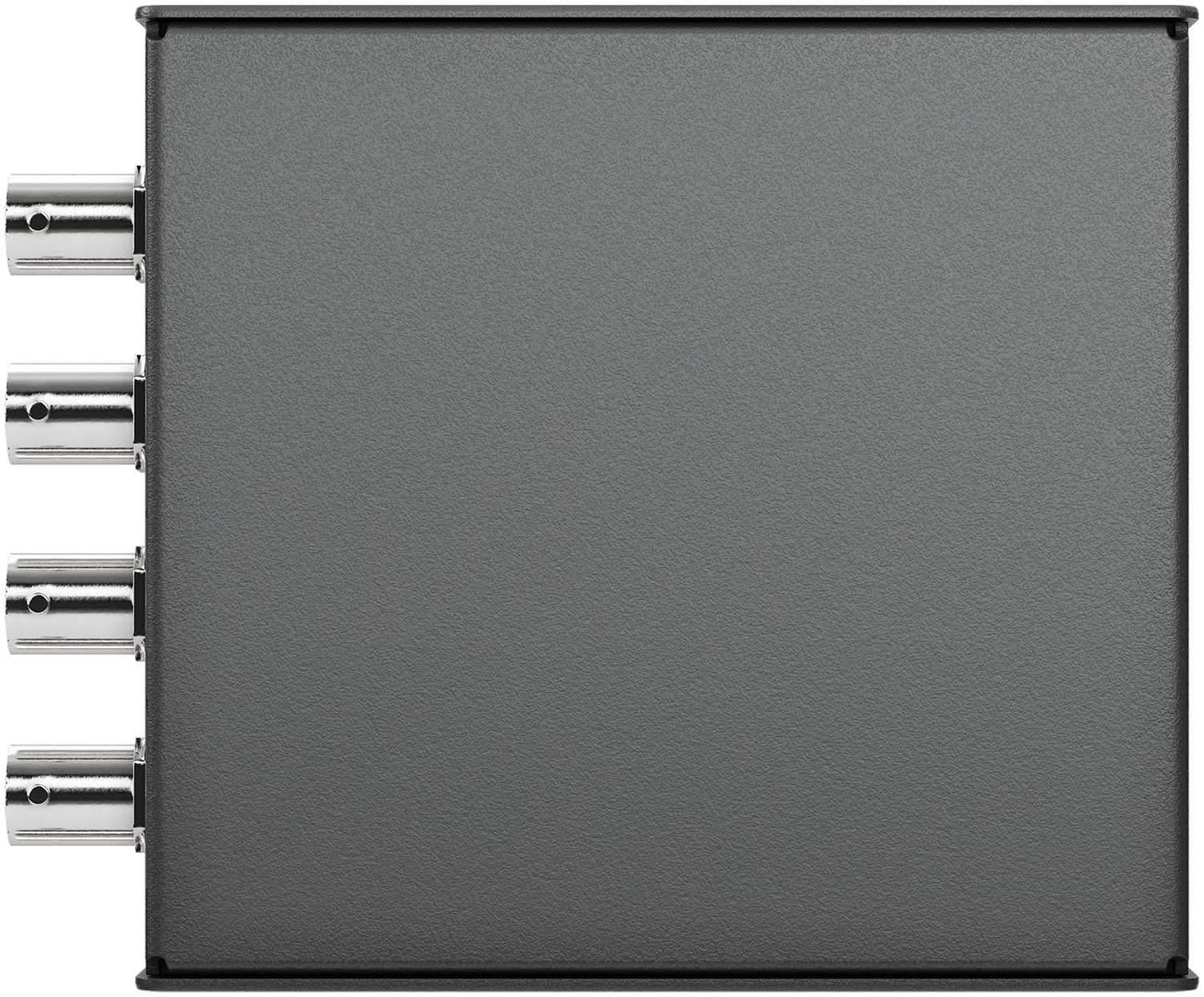

Blackmagic Design Mini Converter Quad SDI-HDMI 4K2

Blackmagic Design Mini Converter Quad SDI-HDMI 4K2

Now you can connect Quad Link HD-SDI based 4K or Dual Link 3 Gb/s SDI based 4K to the newest HDMI 4K projectors and televisions that support 4K over a single HDMI link. Mini Converter SDI to HDMI 4K lets you build 4K monitoring with ease, while still working with all your regular SD and HD equipment! Connect Single Link 6G-SDI, Dual Link 3G-SDI or Quad Link HD-SDI to the newest HDMI 4K projectors and televisions that support Ultra HD over a single HDMI link. Includes SD/HD and Ultra HD auto switching.

Specifications:

Connections

• SDI Video Inputs: 4 x 1.5G?SDI or 2 x 3G?SDI or 1 x 6G?SDI
• SDI Video Outputs: (4K HDMI output only)
• HDMI: HDMI type A out.
• Multi Rate Support: Auto detection of 6G?SDI or standard definition on Input 1.
• Updates and Configuration: USB
• Reclocking: Yes

Standards

• SD Video Standards: 525i59.94 NTSC, 625i50 PAL
• HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
• 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
• Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
• 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
• SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M?B and SMPTE 425M, SMPTE ST?2081.
• SDI Video Rates: SDI video connections are switchable between SD, HD, Ultra HD and DCI 4K.
• SDI Video Sampling: 4:2:2 and 4:4:4
• SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
• SDI Color Precision: 4:2:2 and 4:4:4
• SDI Color Space: YUV and RGB
• SDI Auto Switching: Automatically detects SD, HD or 6G?SDI.
• HDMI Video Standards: 525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 2160p23.98, 2160p24, 2160p25,2160p29.97, 2160p30, 4K DCI 2160p24
• HDMI Color Space: YUV and RGB
• HDMI Color Precision: 4:2:2 and 4:4:4

Software

• Software Control: Mac™ and Windows™ software upgrade via USB.
• Internal Software Upgrade: Via included updater application.

Operating Systems

• Mac 10.12 Sierra, Mac 10.13 High Sierra or later.
• Windows 8.1 or Windows 10.

Settings Control

• Mini Switches

Power Requirements

• Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
• Power Consumption: 5.2 Watts
• Operational Voltage Range: 12 ? 31V DC

Physical Specifications

Environmental Specifications

• Operating Temperature: 0° to 40° C (32° to 104° F)
• Storage Temperature: ?20° to 45° C (-4° to 113° F)
• Relative Humidity: 0% to 90% non?condensing

What's Included

• Mini Converter Quad SDI to HDMI 4K
• 12V universal power supply with international socket adapters

Warranty

• 3 Year Limited Manufacturer's Warranty.
