Blackmagic ATEM Talkback Converter 4K

Blackmagic ATEM Talkback Converter 4K

ATEM Talkback Converter 4K handles up to 8 cameras for SDI talkback using embedded audio channels 15 and 16 as used on the Blackmagic Studio Cameras and ATEM Camera Converter. Supports 12G-SDI for all SD, HD, and Ultra HD formats up to 2160p60 and provides BNC connections to each camera, and an optical fiber socket for adding an optical fiber SFP module for extending camera distances when required. Includes push to talk buttons, support for tough and common aviation headsets, loop through for more than 8 camera support, built in speaker, front panel mic input, and much more.

Specifications:

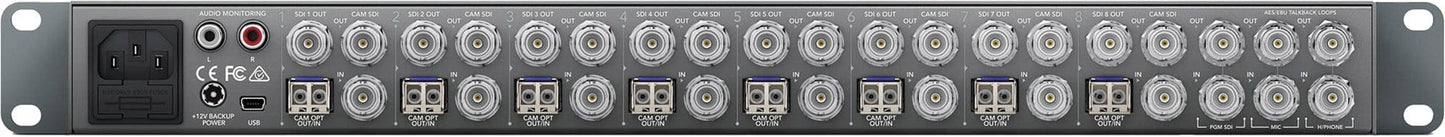

• Connections:
  • SDI Program Inputs: 1 x 10-bit SD/HD/Ultra HD 4K auto switching program input from switcher, including tally information with 16 channel embedded audio.
  • SDI Program Outputs: 1 x 10-bit SD/HD/Ultra HD 4K auto switching program loop thru output connects to another ATEM Talkback Converter 4K.
  • Talkback Audio: Aviation Headsets with 0.25" TRS headset connector and 0.206" TRS microphone connector. Front mounted balanced XLR microphone connector.
  • Analog Audio: 1 x stereo RCA monitoring output.
  • SDI Camera Inputs: 8 x 10-bit SD/HD/Ultra HD 4K auto switching 16-channel embedded audio.
  • SDI Camera Outputs: 8 x 10-bit SD/HD/Ultra HD 4K auto switching 16-channel embedded audio.
  • SDI Outputs: 8 x 10-bit SD/HD/Ultra HD 4K auto switching 16-channel embedded audio.
  • Optical Fiber Video Inputs (Optional): 8 x single mode SD/HD/Ultra HD 4K auto switching camera inputs with LC connector.
  • Optical Fiber Video Outputs (Optional): 8 x single mode SD/HD/Ultra HD 4K auto switching camera outputs with LC connector.
  • Optical Fiber Audio Inputs: 8 x single mode camera audio inputs with LC connector. Channels 1 and 2 are camera audio. Channels 15 and 16 are intercom audio.
  • Optical Fiber Audio Outputs: 8 x single mode camera audio outputs with LC connector. Channels 1 and 2 are camera audio. Channels 15 and 16 are intercom audio.
  • Computer Interface: 1 x mini-B type USB connector for firmware updates.
• Standards:
  • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
  • HD Video Standards:
    • 720p50, 720p59.94, 720p60
    • 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    • 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
    • 1080i50, 1080i59.94, 1080i60
  • 2K Video Standards:
    • 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
    • 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
  • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
  • 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p, 4K DCI 50p, 4K DCI 60p
  • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B, SMPTE 425M.
  • Audio Sampling: Television standard sample rate of 48Khz, 24-bit A/D conversion.
  • Video Sampling: 4:2:2, 4:4:4
  • Color Precision: 10-bit
  • Color Space: REC 601, REC 709.
  • Multiple Rate Support: SDI switches between SD, HD, and Ultra HD 4K.
• Software:
  • Internal Software Upgrade: Via included updater application.
• Operating Systems:
  • Mac 10.11 El Capitan, Mac 10.12 Sierra or later.
  • Windows 8.1 and 10.
• Power Requirements:
  • Power Supply: 100 - 240V AC input with redundant 12 - 31V DC input.
  • Power Usage: 60 Watts
• Physical (H x W x D): 1.75 in x 19 in x 6.30 in
• Physical Installation:
  • Physical Installation: 1 rack unit size. Less than 6 inches deep.
• Environmental Specifications:
  • Operating temperature: 0° to 40° C (32° to 104° F)
  • Storage temperature: -20° to 45° C (-4° to 113° F)
  • Relative Humidity: 0% to 90% non-condensing
