Blackmagic ATEM Mini Pro ISO
Affordable live switcher with 4 standards converted HDMI inputs, USB webcam out, audio mixer with EQ and dynamics, 2D DVE, transitions, green screen chroma key, 20 stills for titles, and much more! ATEM Mini Pro also includes recording to USB disks in H.264 format, a built in hardware streaming engine for YouTube Live, Facebook, Twitch and more, plus multiview to see all cameras on a single monitor. Plus with the ATEM Mini Pro ISO model you also get recording of 5 streams including all input as clean feeds for editing, plus a DaVinci project file for fast edit turnaround, and Blackmagic RAW file relinking for finishing in Ultra HD.
Specifications:

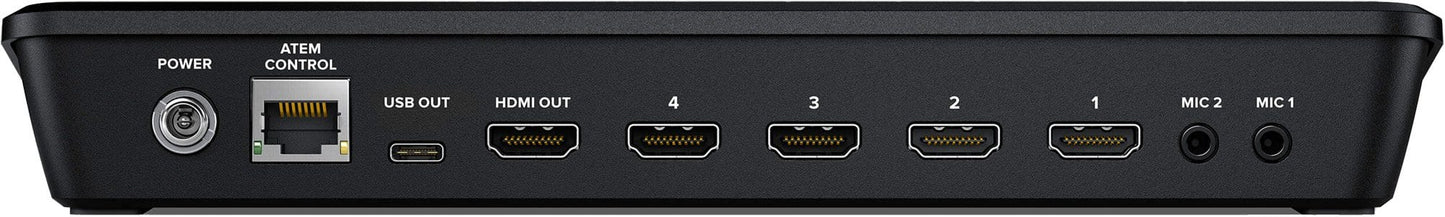

- Connections:
- Total Video Inputs: 4
- Total Outputs: 2
- Total Aux Outputs: 1
- Total Audio Inputs: 2 x 3.5mm stereo mini jack.
- Total Audio Outputs: None, embedded audio only.
- Timecode Connection: None
- HDMI Video Inputs:
- 4 x HDMI type A, 10-bit HD switchable.
- 2 channel embedded audio.
- Video Input Re-Sync: On all 4 HDMI inputs.
- Frame Rate and Format Converters: On all 4 HDMI inputs.
- HDMI Program Outputs: 1
- Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
- Computer Interface: 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates, and panel connection.
- Standards:
- HD Video Input Standards:
- 720p50, 720p59.94, 720p60
- 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- 1080i50, 1080i59.94, 1080i60
- HD Video Output Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- Video Streaming Standards: 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
- Ultra HD Video Standards: None
- Video Sampling: 4:2:2 YUV
- Color Precision: 10-bit
- Color Space: Rec 709
- HDMI Input Resolutions from Computers:
- 1280 x 720p 50Hz, 59.94Hz and 60Hz
- 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60Hz
- 1920 x 1080i 50, 59.94Hz and 60Hz
- Colorspace Conversion: Hardware based real time.
- Product Specifics:
- Upstream Keyers: 1
- Downstream Keyers: 1
- Advanced Chroma Keyers: 1
- Linear/Luma Keyers: 2
- Transition Keyer: DVE only.
- Total Number of Layers: 5
- Pattern Generators: 1
- Color Generators: 2
- DVE with Borders and Drop Shadow: 1
- Interface: Minimum monitor resolution of 1366 x 768.
- Audio:
- Audio Mixer:
- 6 input x 2 channel mixer.
- Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel.
- Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
- Analog Input: Unbalanced stereo
- Analog Input Delay: Up to 8 frames
- Input Impedance: 1.8k
- Max Input Level: +6dBV
- Mic Plug In Power: Available on both 3.5mm mini jack connections.
- Streaming:
- Direct Streaming: ATEM Mini Pro ISO supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C.
- Recording:
- Direct Recording Video and Audio: USB-C 3.1 Gen 1 expansion port can record directly to external media.
- Video Recording:
- 4 x HDMI ISO inputs as H.264 .mp4 files at up to 70Mb/s quality at the ATEM video standard with AAC audio.
- 1 x Program out as H.264 .mp4 file at the Streaming quality setting and at the ATEM video standard with AAC audio.
- Audio Recording: 6 x 2 channel audio inputs recorded as separate 24‑bit 48KHz .wav files. Including 2 x analog stereo audio inputs and 4 x HDMI 2 channel embedded audio inputs.
- Switching: Program switching recorded as a DaVinci Resolve project .drp file.
- Media Format: Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.
- Multi View Monitoring:
- Multi View Monitoring: 1 x 10 Views including left right configurable Program/Preview, 4 HDMI inputs, Media Player, Streaming Status, Recording Status, and Audio Meters.
- Multi View Video Standard: HD
- Media Player:
- Media Players: 1
- Channels: Fill and key for each Media Player.
- Media Pool Still Image Capacity: 20 with fill and key.
- Media Pool Still Image Format: PNG, TGA, BMP, GIF, JPEG, and TIFF.
- Control:
- Control Panel: Built in control panel. Software control panel with camera control included. Supports optional hardware panel.
- Control Panel Connection: Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro ISO also supports direct USB‑C connection. Ethernet or USB‑C used for updating the software.
- Control Panel Compatibility: Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel, ATEM 2 M/E Advanced Panel and ATEM 4 M/E Advanced Panel. ATEM Mini Pro ISO can be configured using Blackmagic Videohub Hardware Panel Setup utility to route sources to destinations using Videohub Smart Control Pro and Videohub Master Control Pro.
- Control Panel Included: ATEM Software Control Panel included free for Mac 10.14 Mojave, Mac 10.15 Catalina or later and Windows 10 64-bit only.
- Software:
- Software Updates: Using USB or Ethernet connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.
- Configuration: Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
- Operating Systems:
- Mac 10.14 Mojave, Mac 10.15 Catalina, or later.
- Windows 10, 64-bit.
- Power Requirements:
- Power Supply: 1 x External 12V power supply.
- Power Usage: 36W
- Physical (H x W x D): 1.38 in x 9.35 in x 4.07 in
- Environmental Specifications:
- Operating Temperature: 5° C to 40° C (41° - 104° F)
- Storage Temperature: -10° to 60° C (14° to 140° F)
- Relative Humidity: 0% to 90% non-condensing
