Description

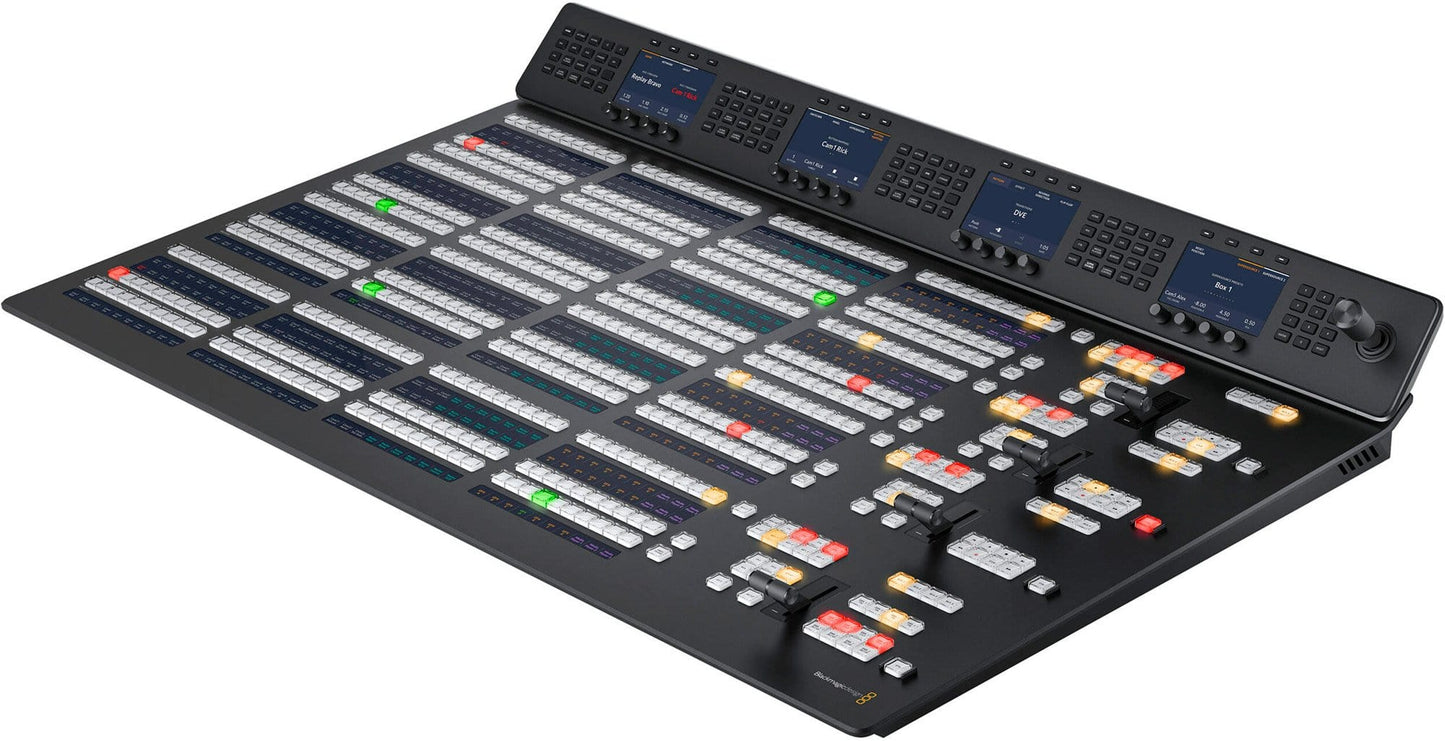

Blackmagic ATEM 4 M/E Advanced Panel

This massive model is big enough to perfectly match the features on the ATEM Constellation switcher! It features 4 M/E rows with 40 input buttons per row and 4 independent system control LCDs for each row. This massive panel includes 24 LCD's for custom labeling of every button on every row!

Specifications:

  • Connections:
    • Ethernet: 4 x 10/100/1000 BaseT with loop output for additional control panels or computers.
    • Software Updates: 1 x USB-C for firmware updates.
  • Product Specifics:
  • Number of Mix Effects Rows: 4
  • Direct Cross Points: 40
  • Shifted Cross Points: 80
  • Crosspoint Button Type: Tri-Color LED
  • Crosspoint Label: 10 rows 24 character LCD
  • Next Transition Selectors: 4 x BKG, Key 1 - Key 4.
  • On-Air indicator: 20
  • Power Status Indicators: None
  • DSK Transition Selectors: Auto, Cut, Tie/Preview x 4
  • Preview Transition: 4
  • Transition Rate Displays: Via main menu
  • LCD Menu Displays: 4
  • Menu Control: 20 buttons x 4
  • Dedicated Macro Buttons: 4 x 40
  • Transport Control Buttons: 24
  • Destination Bus: 4
  • Source Select Bus: 4
  • Fader Bar: 4
  • 3 Axis Joystick: 1
  • Numeric Keypad: 1
  • Software:
    • Software Applications: ATEM Software Control Panel.
  • Operating Systems:
    • Mac 10.14 Mojave, Mac 10.15 Catalina or later.
    • Windows 10, 64-bit.
  • Power Requirements:
    • Input Voltage: 2 x Internal 100 - 240V AC.
    • Redundant Power: Yes
    • Power Usage: 250W
  • Physical Specifications(H x W X D): 6.69 in x 43.7 in x 20.72 in
  • Environmental Specifications:
    • Operating Temperature: 0° to 40° C (32° to 104° F)
    • Storage Temperature: -20° to 60° C (-4° to 140° F)
    • Relative Humidity: Up to 95%
