Belden 5T00UP Cable Speaker 1,000ft Unshielded Black

Belden 5T00UP Cable Speaker 1,000ft Unshielded Black

SKU: 5T00UP0101000 Solotech ID#: 100801407

Shipping calculated at checkout.

Available options

View full details

Description

Belden 5T00UP Cable Speaker 1,000ft Unshielded Black

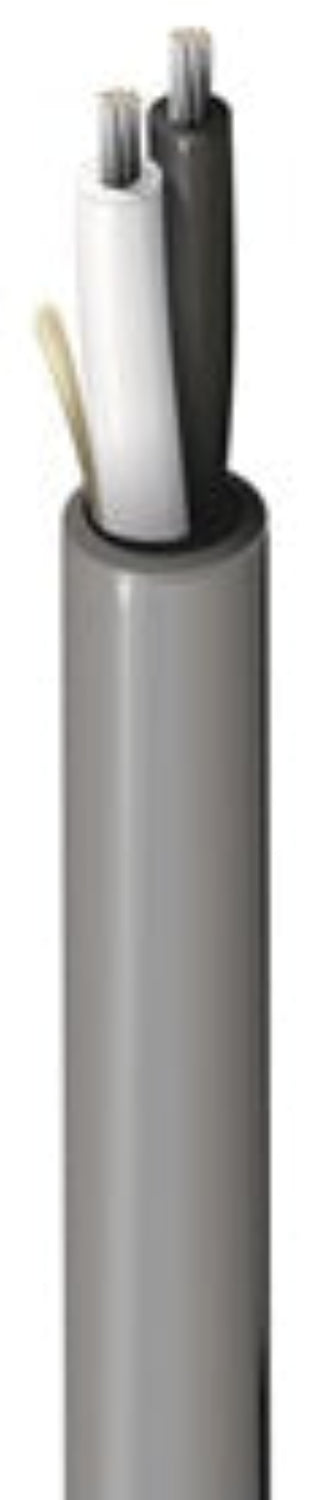

Audio Cable, Rated-CL2, 2-10 AWG highly flexible stranded bare copper conductors with PVC insulation, PVC jacket with ripcord.

Specifications

Suitable Applications	Security System, Intercom/PA, Audio/Speaker, Power-Limited Controls

Conductor

Element	No. of Elements	Size	Stranding	Material
Conductor(s)	2	10 AWG	65x28	BC - Bare Copper

Insulation

Element	Material	Nom. Thickness	Nom. Insulation Diameter	Color Code
Conductor(s)	PVC - Polyvinyl Chloride	0.020 in (0.51 mm)	0.152 in (3.86 mm)	Black, White

Outer Jacket

Material	Nom. Thickness	Nom. Diameter	Ripcord
PVC - Polyvinyl Chloride	0.026 in (0.66 mm)	0.356 in (9.04 mm)	Yes

Overall Cable Diameter (Nominal)	0.356 in (9.04 mm)

Electricals

Element	Nom. Conductor DCR	Nom. Capacitance Cond-to-Cond	Nom. Inductance	Max. Current
Conductor(s)	1.03 Ohm/1000ft	26 pF/ft (85 pF/m)	0.15 µH/ft (0.49 µH/m)	27.8 Amps per conductor @ 25°C

Voltage

UL Voltage Rating
300 V

Temperature

UL Temperature	Operating
75°C	-20°C to +75°C

Bend Radius

Stationary Min.	Installation Min.
3.6 in (91 mm)	3.6 in (91 mm)

Max. Pull Tension	260 lbs (120 kg)
Bulk Cable Weight	91 lbs/1000ft

Environmental Suitability	Indoor (Not Riser or Plenum), Indoor
Flammability / Reaction to Fire	UL 1685 UL loading , IEC 60332-1-2
CPR Compliance	CPR Euroclass: Eca
NEC / UL Compliance	Article 725, CL2
European Directive Compliance	EU CE Mark, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE)
UK Regulation Compliance	UKCA Mark
APAC Compliance	China RoHS II (GB/T 26572-2011)
Plenum Number	6T00UP

Update and Revision	Revision Number: 0.488 Revision Date: 09-07-2025
Footnote	C - CRATE REEL PUT-UP.
