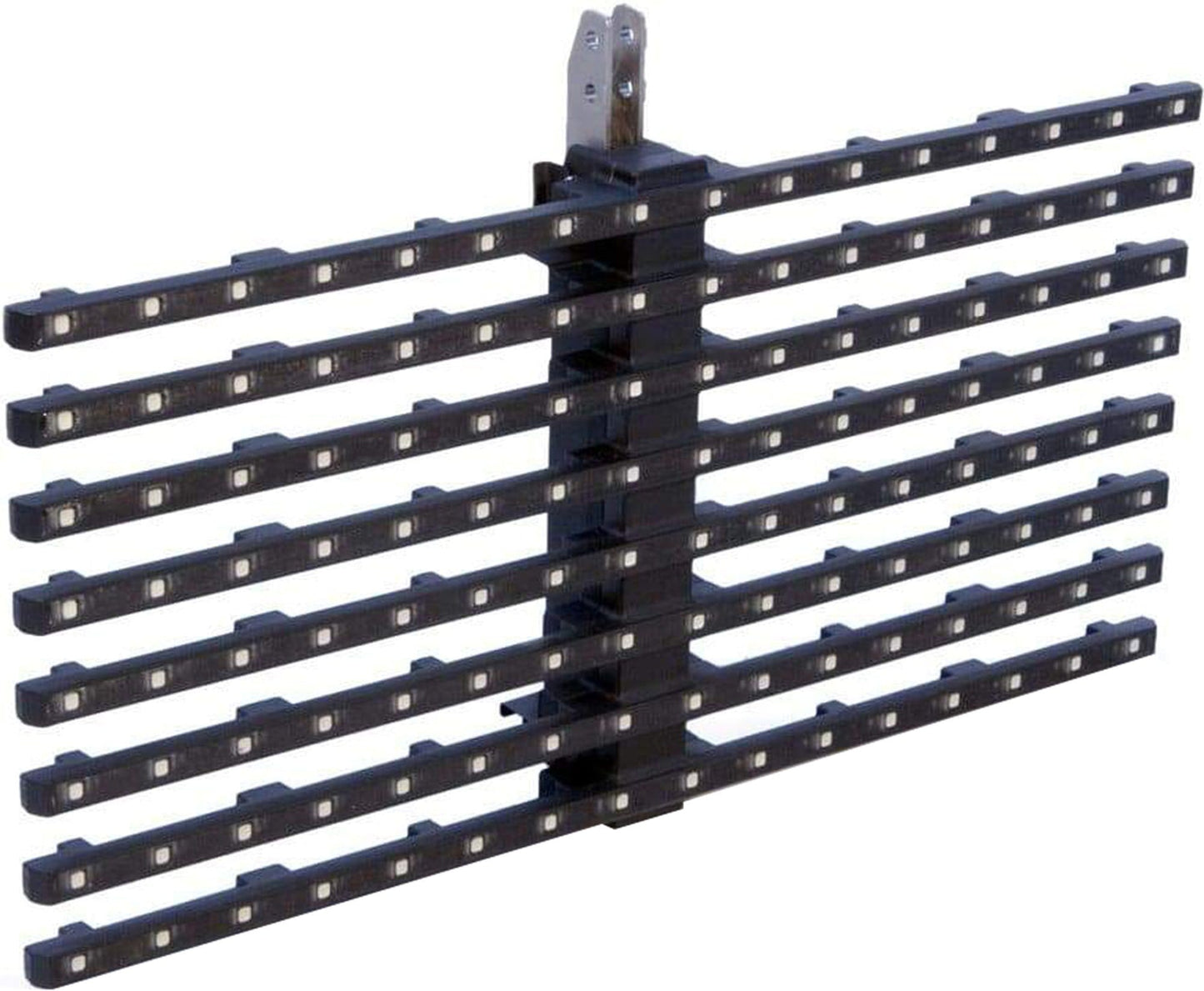

Barco MiTRIX 24mm Outdoor LED Tile

Barco MiTRIX 24mm Outdoor LED Tile

The MiTRIX is a lightweight, bright and highly transparent module for outdoor use. With a 24mm pixel pitch and 3,000 nit brightness, the MiTRIX set a new standard of performance in the creative LED display segment. Its all-metal construction provides efficient cooling of the LEDs as well as the ruggedness and strength required for the demanding rental and staging applications.

Features:

• Small, lightweight and transparent
• Superior, full video image quality
• Director Toolset software for unlimited design creativity
• Rugged and strong all-metal design
• Fast and easy setup

Specifications:

• Pixel pitch: 24 mm
• Tile pitch:
  • 384mm horizontal
  • 192mm vertical
• Brightness: 3000 Nit
• Pixel density: 1736 LEDs / m²
• Pixel density: 1736 LEDs / m²
• LED configuration: 3-in-1 SMD
• Hor. viewing angle: > 145°
• Vert. viewing angle: > 145°
• Transparency: 55%
• Lifetime: 50.000 hours
• Power consumption: 50W / tile
• Weight / Tile: 1.3 kg
• Processing: 16-bit per color @ 50Hz
• Colors: 185 trillion
• Refresh rate: 800Hz minimum (PAL/NTSC)
• Truss build-up: Max. 48 tiles high (9,2 m)
• Operating temperature range:
  • 24 MiTRIX tiles per controller / typical video content: -20°C to +40°C ambient
  • 20 MiTRIX tiles per controller / full white content: -20° to +35°C
  • 20 MiTRIX tiles per controller / typical video content: -20°C to +45°C
• Tile dimensions: 384 x 192mm
• Operating humidity range: 10 to 99%
• D320 input compatibility: Data DVI up to UXGA, SDI, HD-SDI, S-video, composite, YUV
• Certifications: ETL, CE, TUV, FCC class A
• Order Information:
  • R9004085B4 (Box of 4 tiles + link cable)
  • R9004085F24 (Flightcase with 24 tiles + link cables)
  • R9004087 (Controller - for up to 24 tiles)
  • R9005086 (4 x hanging brackets)
