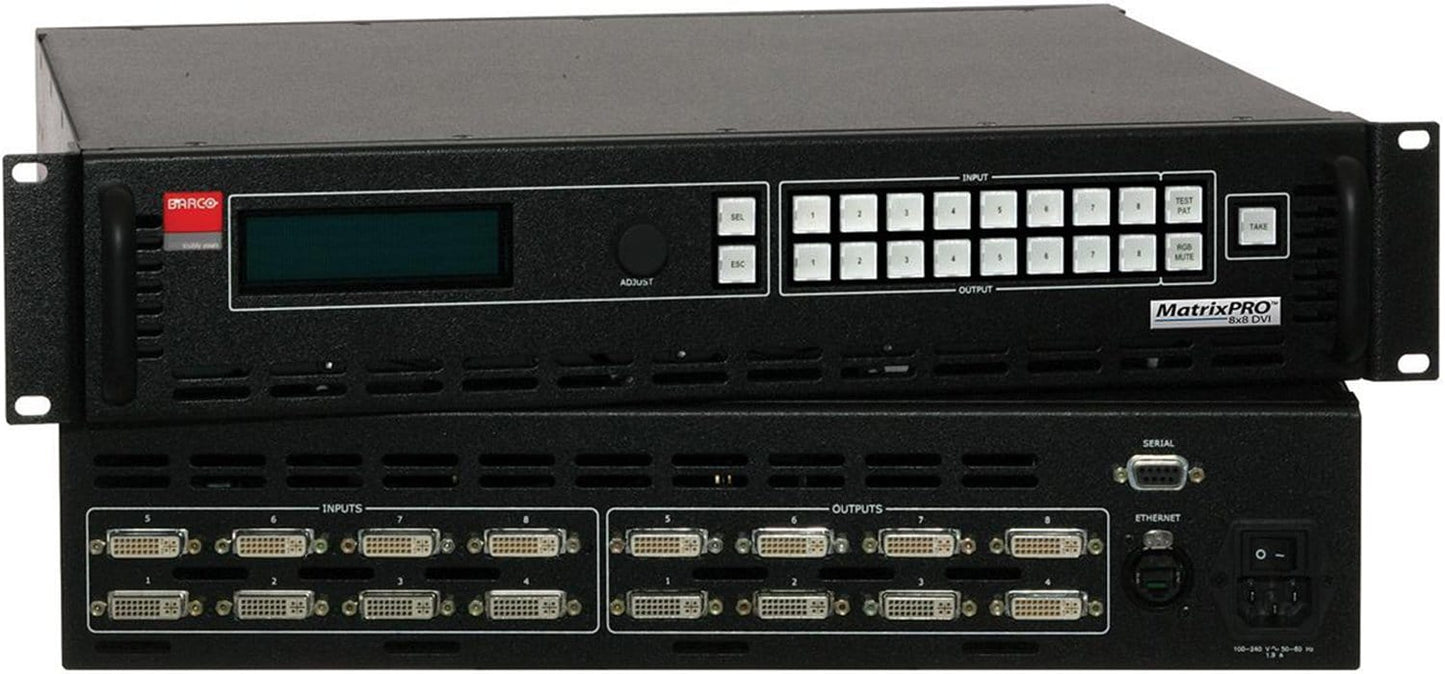

Barco MatrixPRO 8X8 DVI Router Matrix Switcher

The MatrixPRO 8x8 DVI router switches any of the eight DVI inputs to any or all of the outputs. Each channel can be programmed with unique EDID information based on the system requirements. This information is also available to external sources, even when the unit is turned off. Each input is re-clocked as it passes through the router maintaining the DVI signal strength, and each output channel can also display an internally generated test pattern. The MatrixPRO 8x8 DVI router accepts inputs up to 2,048 x 1,080 (including all HD) resolutions.

Features:

• Programmable EDID per channel
• Built-in test pattern generator
• All inputs re-clocked to maintain signal strength
• Green light positive signal indicator per input channel

Specifications:

• Video Routing
  • Input: 8 DVI-I connectors (supporting single digital video link) per DVI 1.0 Specification
  • Output: 8 DVI-I connectors (supporting single digital video link) per DVI 1.0 Specification
  • Input Resolution: 640x480 to 2048x1080,  including HDTV (25-165 Mhz pixel clock)
  • Output Resolution: 640x480 to 2048x1080, including HDTV (25-165 Mhz pixel clock)
• Control/Remote
  • Ethernet: 1 RJ-45 (F) connector, running 10/100 Base-T, half/full duplex w/ auto detect
  • Ethernet Protocol: ICMP (ping), TCP/IP, Telnet
  • Serial Control Ports: RS-232, 9-pin female D connector
  • Baud rate and Protocol: 115K Baud (max), 8-bit, 1 stop, no parity selectable
• Enclosure
  • Dimensions: 3.5” H X 17.0” W X 16" D (2U high, full rack width) 4.5cm H X 43.2 cm W X 40.6 cm D
  • Weight: 17.5 lbs. (7.92 kg)
  • Rack mount: Front included, rear optional
  • Type: Metal
• General
  • Temperature: 0-40° C
  • Environmental Humidity: 0-95%, non-condensing
  • Power Type: 100-240 VAC – 50/60 Hz. Auto Selecting 1.0A Max
  • Agency: FCC: part 15, subpart B – Class A, EN55103-1 E4 and EN55103-2 CE: safety EN 60950
