Ayrton Dreampanel 256 31mm LED Floor Panel 10 Pack with Processor and Road Case

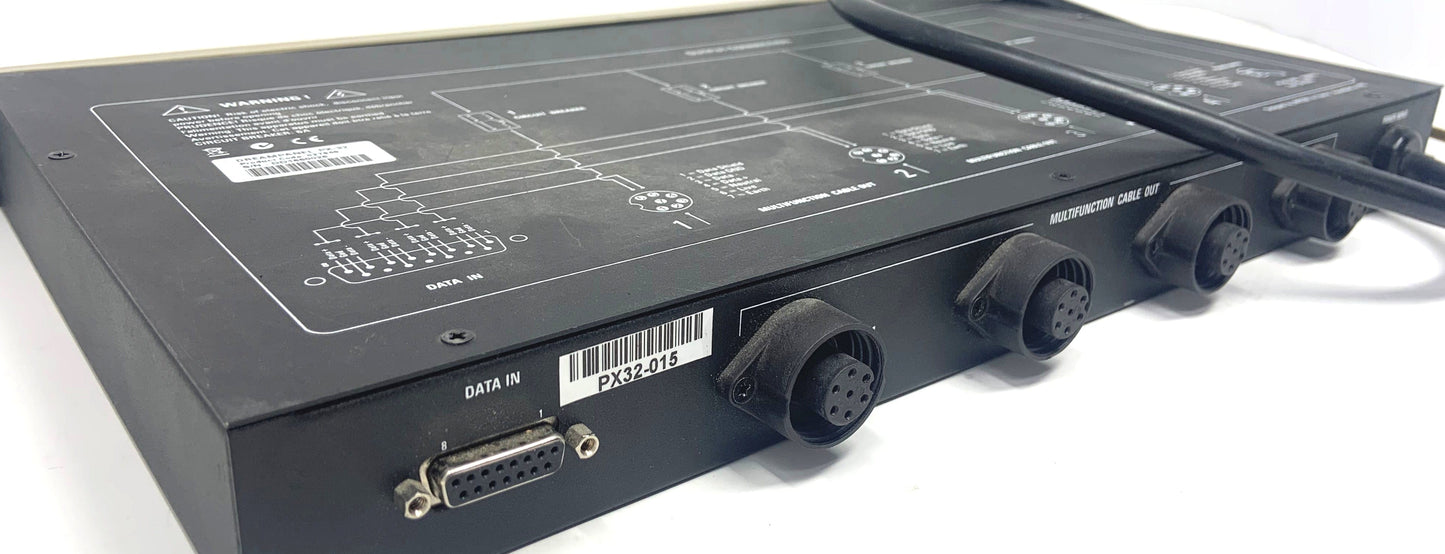

Includes 10 panels in Road Case, DV-384 Digital Video Controller, PX-32 Distribution pack and associated cables.
DREAMPANEL FLOOR 256 is a 50 x 50 cm modular video-tile designed for screen-floor applications. The internal structure of the DREAMPANEL is specifically conceived to sustain heavy loads on the tile without altering the projected image presentation. (Patented system: Pat. FR 0503355, Pat. pending WO 2006/106194). The exclusively 170° angle image-diffusion-system of DREAMPANEL FLOOR 256 allows for a global vision of the screen. Conceived for diffused graphic-animations, DREAMPANEL FLOOR 256 gives a surprising good video-rendering image when the screen size is adequate. The resolution of the system enables panel constructions of 32 x 24 Mt spread over a total of 768 square meters. The control system of the DREAMPANEL FLOOR 256 can operate each individual tile as a portion of the standard-video screen. Owing to its innovative concept, DREAMPANEL FLOOR 256 is definitely ideal for TV-Studios, concerts, Exhibition & convention halls, theme parks and many other entertainment applications.
OPTICS
• Diffusion filter fitted between the two tempered glass to cover the whole glass-surface
• Viewing angle: 170°
SOFTWARE FACILITIES
• Software facilities access via DREAMPANEL DV-384 controller.
• Geometric screen & panel address configuration via DREAMPANEL MANAGER software
DIMENSIONS
• Size: 500 x 500 mm
• Height: 80 mm
WEIGHT
• Panel fitted with laminated glass
(for floor use): 12,9 Kg
HOUSING
• Self-extinguish V0 class ABS PC body
• Two-layer-tempered-laminated glass of 6 mm thickness and (butyral-polyvinyl) plastic film.
• IP 21 protection rating
• Total load charge spread per panel: 320,00 Kg
