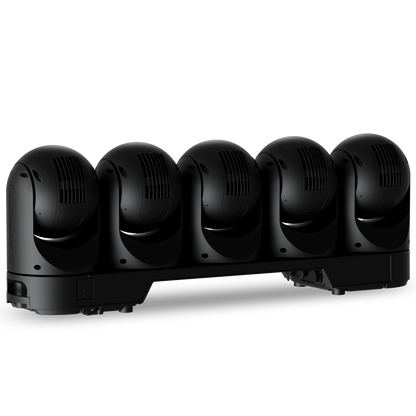

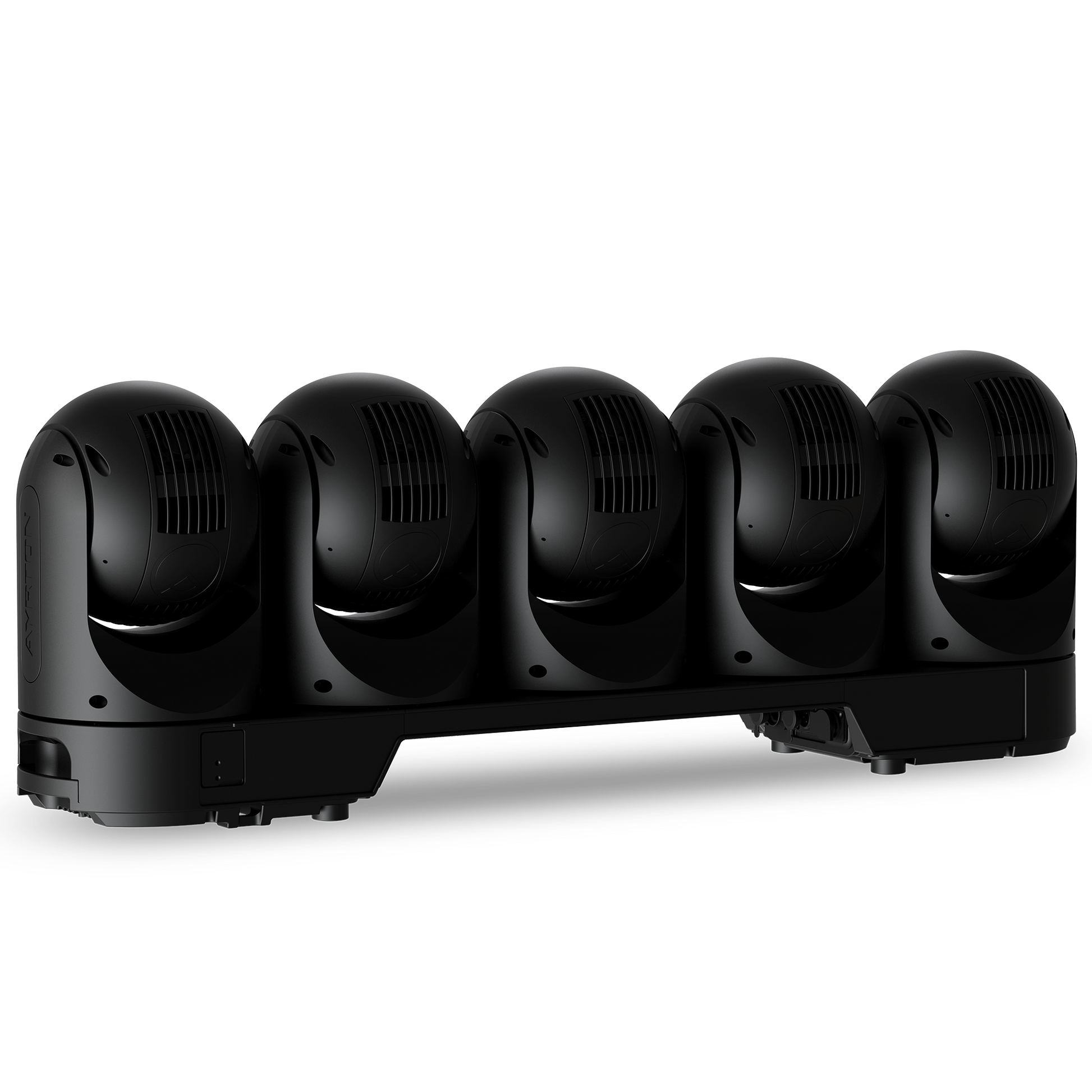

Ayrton AY015380 Ayrton MagicBlade Neo 5x 120W RGBL LED, 3 to 30 degree

Ayrton AY015380 Ayrton MagicBlade Neo 5x 120W RGBL LED, 3 to 30 degree

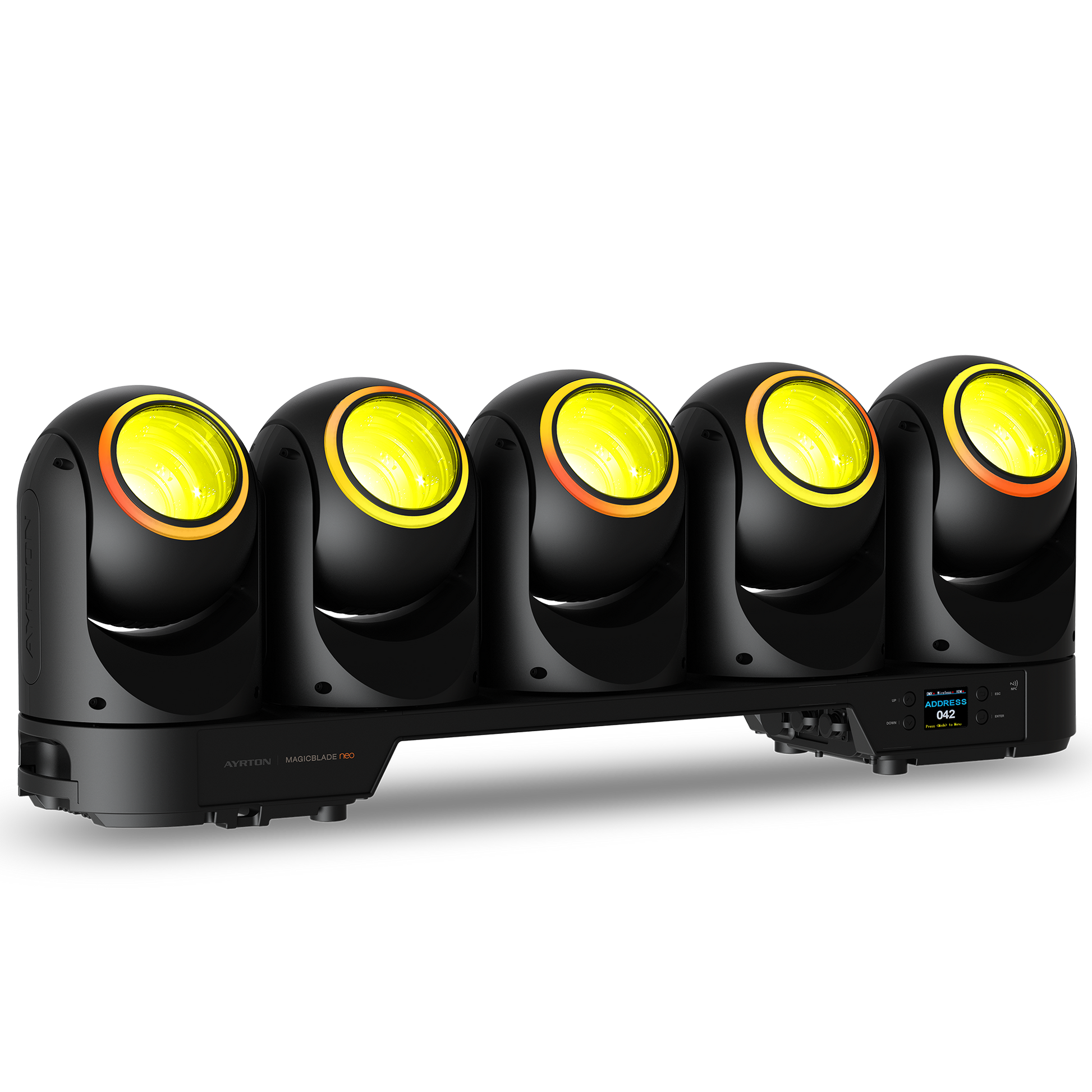

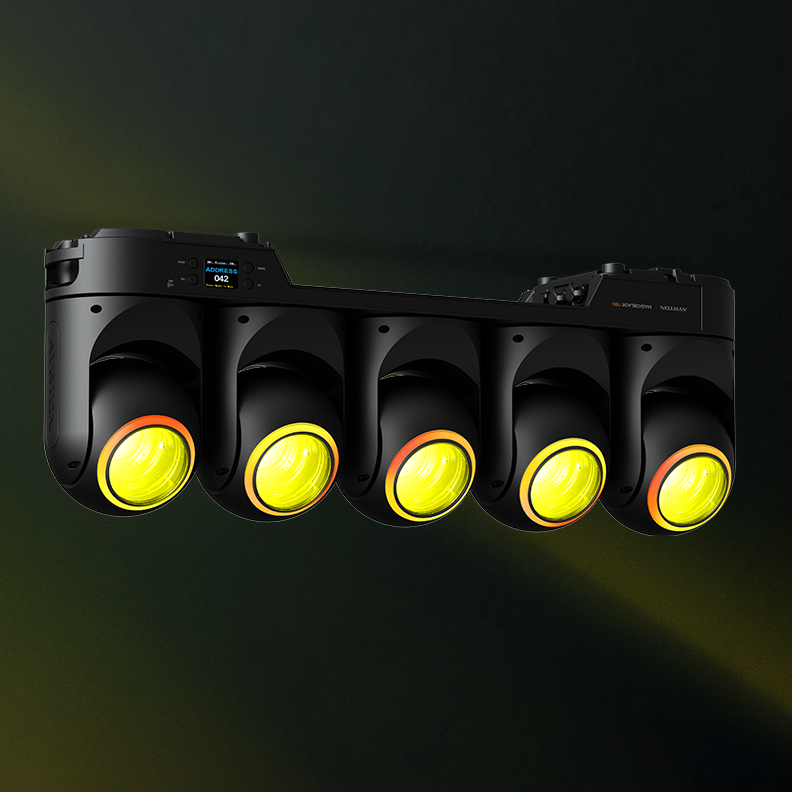

Ayrton has always innovated and made an impact with luminaires that are surprising, inspiring, and radical. MagicBlade Neo is a brand-new concept: an innovative organic fixture designed to create multi-form curtains of light, reconfigurable ad infinitum—unreal vortices, and striking volumetric effects.

Built on the all-new MagicDot Neo platform, it features five independent moving heads, spaced 5 mm apart, with continuous rotation on both pan and tilt axes. Its innovative ‘Shortcut’ function expands the scope for building complex effects. Fitted with five individual 120 W RGB-L multi-chip LED sources, each paired with a high-efficiency 100 mm optic integrated into a perfect sphere, it delivers a total luminous flux of 15,000 lm. MagicBlade Neo offers an extended colour space and smooth mixing of pastel or saturated colours, enabling perfect colour repeatability with a CRI above 86. Each MagicBlade Neo beam can switch instantly from Beam to Wash, with a 10:1 zoom ratio and a very wide usable range from 3° to 30°.

Each powerful, intensive beam is paired with a LiquidEffect™ ring, featuring 60 RGB LED sources around its perimeter to create hypnotic multi-colour lighting effects. MagicBlade Neo is an injection-moulded aluminium luminaire for stage lighting, specifically designed for mixed indoor and outdoor use, including saline environments.

A drastic reduction in aluminium part thicknesses, optimisation of the cooling system, simplified lens guiding, and the integration of low-density optical components have enabled a significant weight reduction: MagicBlade Neo weighs just 32.4 kg. The high power of this new LED source has required the use of specific cooling systems based on phase-change heat pipes. With extended Ethernet connectivity, it allows the creation of unlimited configurations. MagicBlade Neo is an impressive concept that, at first glance, suggests infinite possibilities: a luminaire with a strong visual signature, impeccable finishes, and an unprecedented level of integration.

Performance

Illuminance at 5 m (1 head): 16,000 lux
Native CRI: < 86
Zoom Aperture: 3° to 30°
Front Lens: 5 x 100 mm
IP Rating: IP65
Weight: 32.4 kg

Specifications

OPTICS

• 2-element 10:1 zoom high-resolution optic system
• Beam aperture: 3° to 30°
• 5 x Fast motorised linear zoom
• Tempered anti-reflective coated lenses
• 5  x 100 mm front lens

LIGHT SOURCE

• 5 x 5,000 lm RGB-L LED sources
• Total luminaire output: up to 15,000 lumens (integrating sphere measurement, Fan mode STAGE)
• Illuminance at 5m: 16,000 lux (one head)
• CRI: up to 86
• Rated life (L70): up to 40,000 hours
• Flicker-free source management suitable for TV applications and all video-recorded events

MOVEMENT

• Highly accurate positioning
• Moving-head operated via 16-bit resolution
• High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
• Pan and tilt automatic repositioning
• Moving-head range: 5 x infinite pan and tilt rotation

COLOURS

• Sophisticated 4 colours RGB-L mixed, reaching high Colour Rendering Index
• Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues
• 4.29 billion colours (8-bit resolution)
• Virtual CTC channel, from 2500 to 8000K
• Virtual Tint channel

EFFECTS

• Individual control of each head
• Liquid Effect with 60 individual pixels
• Built-in pattern effects for main leds and Liquid Effect, with speed and fade controls

DIMMER / STROBE

• Electronic dimmer from 0 to 100%
• Strobe effect: 1 to 25 flashes per second

HARDWARE FEATURES

• Graphic LCD display with flip function
• 4 menu buttons to set functions
• Integrated wireless CRMX TiMo RDM receiver from LumenRadio
• IP65 XLR 5 pin male and female connectors for DMX connection
• IP65 RJ45 IN / OUT connectors for ethernet connection
• IP65 Power male and female connectors for power connection
• Maximum current available at the output socket : 12 A

CONTROL

• DMX 512 protocol, through DMX cable or a wireless system
• DMX-RDM compatible
• Stand-alone mode and Main/Follow modes
• ArtNet & sACN protocol through Ethernet cable
• Local control panel, with IP65 LCD display
• Footprint of 175 or 184 DMX channels

POWER SUPPLY

• Electronic power supply with active PFC
• 100 to 240 Volts – 50/60Hz
• Power: 800 W maximum

COOLING SYSTEM

• Advanced liquid cooling system
• IP68 Self-adjusting variable speed fans
• Selectable ventilation user modes
• Excess temperature protection

HOUSING

• Moving-head skeleton made in die-cast aluminium
• Base in die-cast aluminium
• Heatsinks in aluminium and copper
• Moulded covers in ABS PC (V0 class)
• Tow-side handles for transportation
• Four heavy-duty feet
• IP65 protection rating
• Exterior finish: black (Carbon)

INSTALLATION

• Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps
• Mounting points: eight ¼ turn locking fittings allowing installation of two Omega brackets on luminaire
• Safety cable attachment point

OPERATING PARAMETERS

• Operating positions: all (device on floor or fixed to a support)
• Maximum permitted ambient temperature (Ta max): 45° C (113° F)
• Minimum permitted ambient temperature (Ta min): -20° C (-4° F)
• Minimum usage distance: 0.5 m (1.64 ft.)

COMPLIANCE

EU (EMC & LVD):

• EMC Directive 2014/30/EU
• LVD Directive 2014/35/EU

US (Safety & EMC)

• CFR 47, FCC Part 15, Subpart B:2023

Substance regulations

• RoHS
• REACH
• CP65

SIZE

• Product: 1008 x 200 x 352.5 mm (l x h x d)
• Flight-case foam: 1080 x 270 x 380 mm (l x h x d)

WEIGHT

• Product: 32.4 kg
