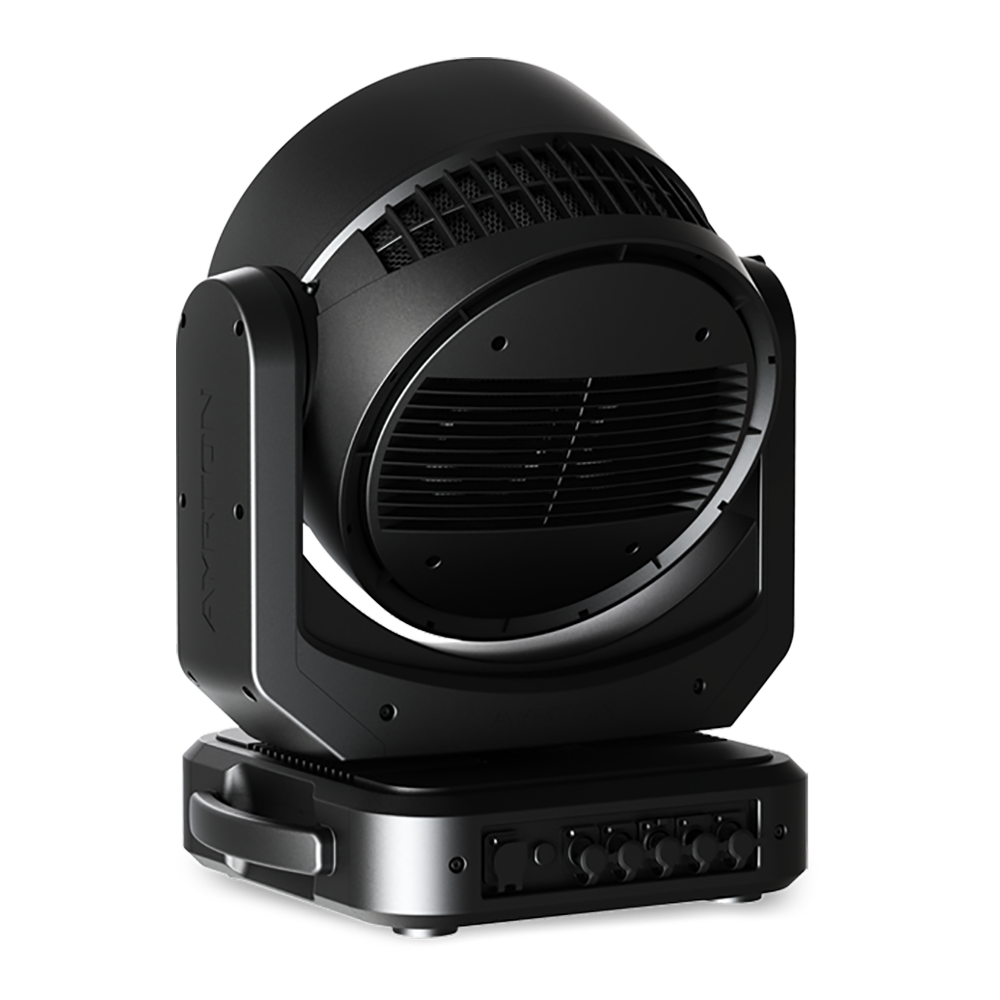

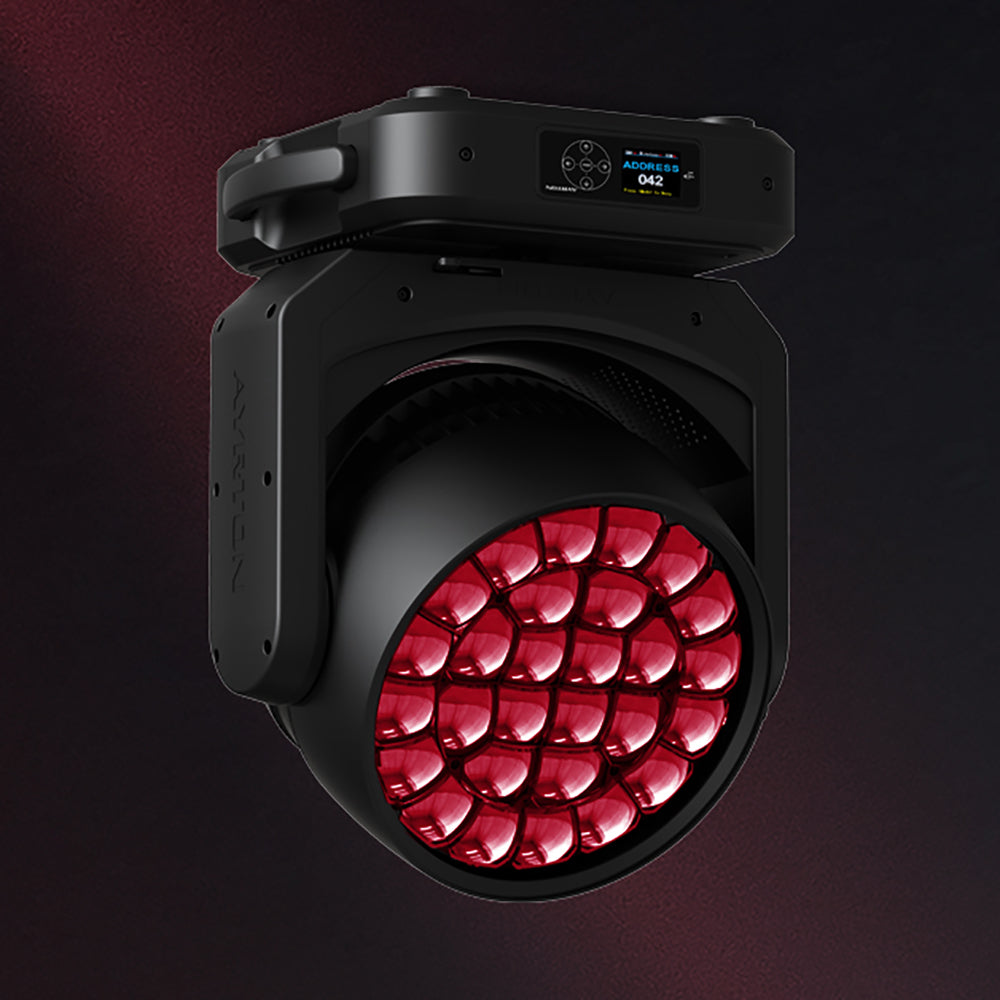

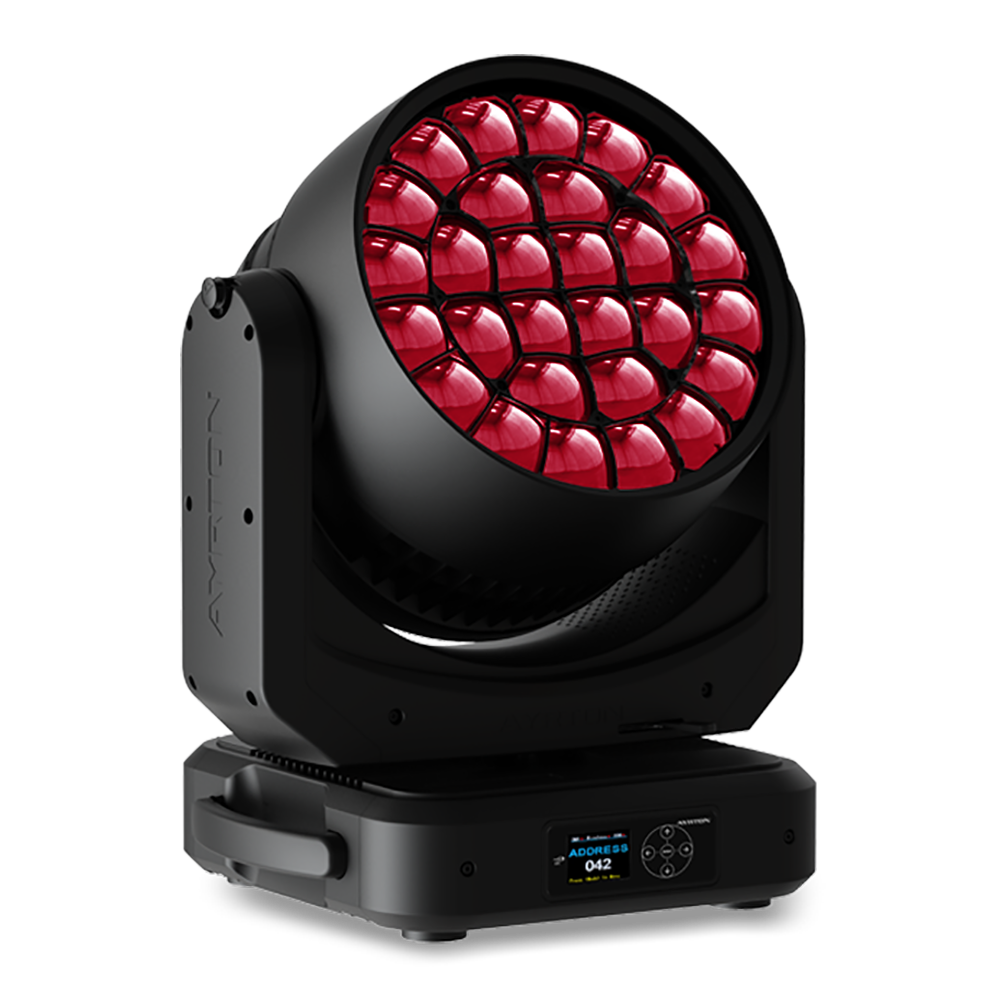

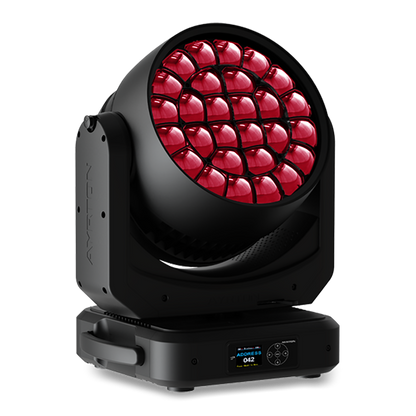

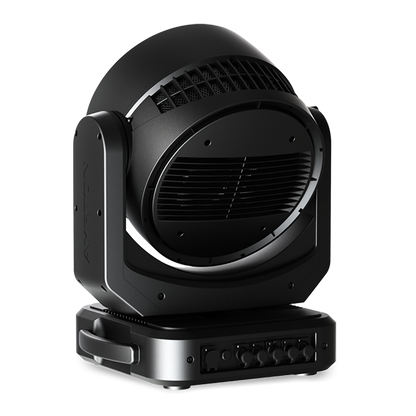

Ayrton AY013920 Ayrton Nando 1202 LED Wash
Two years after the release of Nando 502, equipped with new RGB-L LED sources perfectly suited to stage lighting and met with extraordinary success, we decided to create a more powerful new version of this luminaire, which we named Nando 1202.
Featuring 28 high-performance 50-watt additive colour-mixing LED sources, Nando 1202 offers a proprietary optical system built around a 303 mm PMMA cluster paired with 28 precision-machined glass light guides, each with a micro-structured optical exit surface. This new LED source brings the advantage of improved integration within the colour space and enables perfect colour repeatability with a CRI above 86. Nando 1202 delivers a luminous flux of 25,000 lumens and provides perfectly homogeneous mixing of pastel or saturated colours. This new luminaire shifts from Beam to Wash instantly and offers a 15:1 zoom ratio with an exceptionally wide operating range from 3.5° to 53°. Its black honeycomb louvre and the perfect isolation of the light sources from one another significantly enhance contrast. The design of the anti-reflective treated glass window guarantees an optimal visual result and delivers increased performance.
Nando 1202 is an incredibly compact luminaire intended for stage lighting and specifically designed for mixed use both indoors and outdoors, including in saline environments.
The entirely new minimalist design of Nando 1202 provides complete accessibility to the luminaire’s functions while keeping weight under tight control. Reducing the thickness of the aluminium parts, optimising the cooling system, simplifying lens guidance, and integrating low-density optical components have made it possible to achieve a significant 20% weight reduction. A new ventilation system, submersible within a non-sealed compartment, enables optimal cooling of the luminaire. Individual control of each LED source makes it possible to create breath-taking volumetric 3D effects. A comprehensive library of pre-programmed colours allows subtle, dense, or high-contrast washes to be created quickly. In a universe where standardisation dominates, Nando 1202 asserts its singularity with a minimalist design and impeccable manufacturing. An essential luminaire for creators in search of emotion.
Performance
Luminous Flux: 25,000 lm
Native CRI: > 86
Zoom Aperture: 3.5 ° to 53 °
Front Lens: 303 mm
IP Rating: IP65
Specifications
OPTICS
- 2-element 15:1 zoom high-resolution optic system
- Beam aperture: 3.5° to 53°
- Fast motorised linear zoom
- 28 truncated edges 70 mm frontal lenses
- 303 mm front lens cluster
LIGHT SOURCE
- 28 x 1,200 lumens RGB-L High-Power LED sources
- Total luminaire output: up to 25,000 lumens
- CRI: greater than 86
- Rated life (L70): up to 40,000 hours
- Flicker free sources management, suitable for TV applications and all video recorded events
MOVEMENT
- Extremely accurate positioning
- Moving-head operated via either 8- or 16-bit resolution
- High-resolution stepper motors operated via microprocessors ensure extreme accuracy and smooth movement.
- Pan and tilt automatic repositioning
- Moving-head range: 540° pan & 225° tilt
COLOURS
- Sophisticated 4 colours RGB-L mixed, reaching high Colour Rendering Index
- Uniform light beam with no colour shadows, and rich saturated and pastel colour-hues
- 4.29 billion colours (8 bit resolution)
- Raw colour control with direct access to RGBL
- Calibrated RGB mode with automatic Lime insertion
- Virtual CTC channel with adjustable white point from 2500 to 8000 K
- Tint control channel for ±green
EFFECTS
- 2D & 3D graphical effects capabilities
- Effects can be coupled with beam, wash or matrix applications
- Built-in pattern effects with speed and fade controls for scenic applications
- Individual control of each pixels
DIMMER / STROBE
- Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
- White or colour strobe effect, with speed adjustment from 1 to 25 flashes per second
SOFTWARE FEATURES
- Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
- Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
- Information menu including hour counter, temperature, software version
HARDWARE FEATURES
- Graphic LCD display for addressing and special functions settings, with flip function
- 5 menu buttons to set functions
- Excess temperature protection
- Integrated wireless CRMX TiMo™ RDM receiver from LumenRadio™
- IP65 XLR 5 pin male and female connectors for DMX connection
- IP65 RJ45 IN / OUT connectors for ArtNet™ and sACN connection
- IP65 powerCON TRUE1 male connector for power connection
CONTROL
- DMX 512 protocol, through through IP65 DMX cable or a wireless system
- DMX-RDM compatible
- Stand-alone mode and Main/Follow modes
- ArtNet™ & sACN protocol through Ethernet cable
- Local control panel, with IP65 LCD display
- Choice of 4 DMX modes (from 26 to 150 DMX channels)
POWER SUPPLY
- Electronic supply with active PFC
- 120 to 240 Volts – 50/60Hz
- Power: 1450 W maximum
COOLING SYSTEM
- Advanced cooling system
- Self adjusting variable speed fans for quiet operation (Auto mode)
- Selectable ventilation user modes including Super Silent Mode
- Safety protection against excess temperature
HOUSING
- Moving-head skeleton made of aluminium and steel metal plates
- Head in die-cast aluminium
- Base in die-cast aluminium
- Heatsinks in aluminium and copper
- Arms moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
- Two handles on the base
- Four heavy-duty feet for better stability
- IP65 protection rating
- Exterior finish: black (Carbon)
INSTALLATION
- Fastening brackets system: two Omega 1/4 turn brackets designed for use with standard clamps
- Mounting points: eight 1/4 turn locking fittings allowing installation of Omega brackets on luminaire
- Safety cable attachment point
OPERATING PARAMETERS
- Operating positions: all (device on floor or fixed to a support)
- Maximum permitted ambient temperature (Ta max): 45°C (113°F)
- Minimum permitted ambient temperature (Ta min): -20°C (-4°F)
- Minimum usage distance: 0.5 m (1.64 ft)
COMPLIANCE
EU (EMC & LVD)
- EU (EMC & LVD):
- EMC Directive 2014/30/EU
- LVD Directive 2014/35/EU
US (Safety & EMC)
- UL 1573
- FCC Part 15, Subpart B:2023
Substance regulations
- RoHS
- REACH
- CP65
SIZE
- Product: 446 x 562 x 356 mm (l x h x d)
- Flight-case foam: 495 x 590 x 400 mm (l x h x d)
WEIGHT
- Product: 27.6 kg
