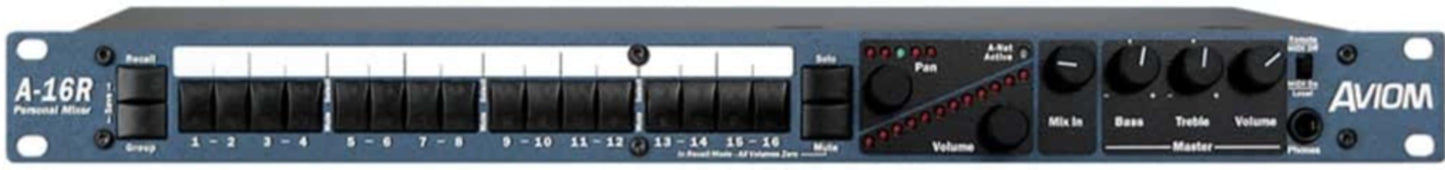

Aviom A-16R 16-Channel Stereo Digital Mixer
The A-16R Personal Mixer is a remotecontrollable 16-channel stereo digital mixer. Like the industry standard A-16II, the A-16R can be used to give individual performers independent control of their monitor mixes. The A-16R is specifi cally designed for users of wireless in-earstyle monitors or fl oor wedges, and for applications where both an engineer and a performer need control over the monitor mixes.
In commercial environments, the A-16R can be effectively used in applications ranging from conferencing to room combining to simple mixing in a gymnasium or auditorium.
The A-16R provides intuitive control over volume and pan for 16 channels, as well as master volume and tone. Each A-16R can store up to sixteen preset mixes, with three subgroups per Preset. Individual channels, channel pairs, or groups can be soloed or muted.
The A-16R can be controlled remotely from the optional A-16CS Control Surface or by select third-party controllers and touch panels. Remote control allows the A-16R to be placed in an equipment rack with other gear, such as amps or transmitters, while still allowing a user to control the mix. The A-16CS is connected to the A-16R with a single Cat-5e cable, up to 200ft (60m).
The A-16R provides balanced line-level outputs on XLR or ¼” TRS jacks. Insert send and return points are provided via balanced ¼” TRS jacks. MIDI In, Out, and Thru jacks provide the ability to save/load settings or select A-16R presets via MIDI. An auxiliary stereo mix input supports input of local audio such as a click track.
Audio is provided to the A-16R on a Cat-5e cable via Aviom’s ultra-fast Pro16® A-Net® protocol. Pro16 A-Net supports plug-and-play set-up, long cable runs (up to 500ft/150m between devices), and 24-bit uncompressed digital audio. Mixers can be connected in series or in parallel, using the A-16D or A-16D Pro A-Net Distributor. Power can be supplied locally with an external DC power supply or remotely, over the Cat-5e cable, using an A-Net Distributor.
The A-16R Personal Mixer can be used in virtually any combination with other Pro16 devices. There is no limit to the number of Personal Mixers that can be used in a system.
Features:
- Remote-controllable 16-channel stereo digital mixer
- Channel volume and pan control with LED readout
- Dedicated Recall, Group, Solo, and Mute buttons
- Sixteen user Preset memory locations
- Master Volume, Treble, and Bass controls
- Balanced XLR and ¼” TRS outputs
- Balanced ¼” TRS inserts
- Auxiliary stereo mix in
- MIDI control over mix and preset save/recall
- Remote control via A-Control with the A-16CS or via RS-232 with approved third-party control systems
Specifications:
- Audio Outputs: Impedance matched output
- Headphone Output: Front panel; TRS; Tip: Audio Left; Ring: Audio Right; Sleeve: Ground
- Mix input, stereo: Balanced 1/4” TRS; front-panel volume control
- Insert send/return: Balanced 1/4” TRS
- A-Net I/O: 1 A-Net In, 1 A-Net Out; RJ45 connectors
- D/A Conversion: 44.1/48kHz, 24-bit
- Indicators: Pan: 5 LEDs, 4 red, 1 green; Channel Volume: 12 red LEDs
- Stereo Operation:
- Stereo Link, per channel pair; set at the input module
- Variable pan/spread per channel or channel pair
- Tone Controls:
- Treble: +/-12dB at 9kHz shelving
- Bass: +/-12dB at 160Hz shelving
- Output Impedance: 140 ohms
- Freq. Response: 4Hz-22kHz +0.2dB/-3dB
- THD +N: >0.003%
- Signal to Noise (unweighted):
- -90dB typical, A/D to D/A
- Measured from AN-16/i to A-16II
- Crosstalk: -90dB
- Latency: 0.880 msec (measured from analog input to analog output)
- A-Net Pro16: uses unshielded Cat-5e UTP (or better) cable; maximum 500ft (150m) between devices
- Remote Control:
- A-16CS: A-Control, RJ45 jack, max. 200 ft (60m)
- Compatible with select third-party controllers
- Power Supply: External, DC, universal switching type
- Input Voltage: 100-240 volts, 50/60Hz, 30VA
- Output Voltage: 18-24 VDC, 0.5 amp
- Plug Size: 2 mm
- Dimensions, A-16R: 19” (482.6 mm) x 6.7” (170.2 mm) , 1U high
- Dimensions, A-16CS: 10.75” (273 mm) x 5.6” (142.2 mm); 2.25” (57.5 mm) high
- Weight: 3.4 lbs (1.54 kg)
- Options:
- A-16CS Control Surface
- MT-1 Mic Stand Bracket (for A-16CS)
- EB-1 Extension Bracket
- All Aviom products are designed and manufactured in the USA.
