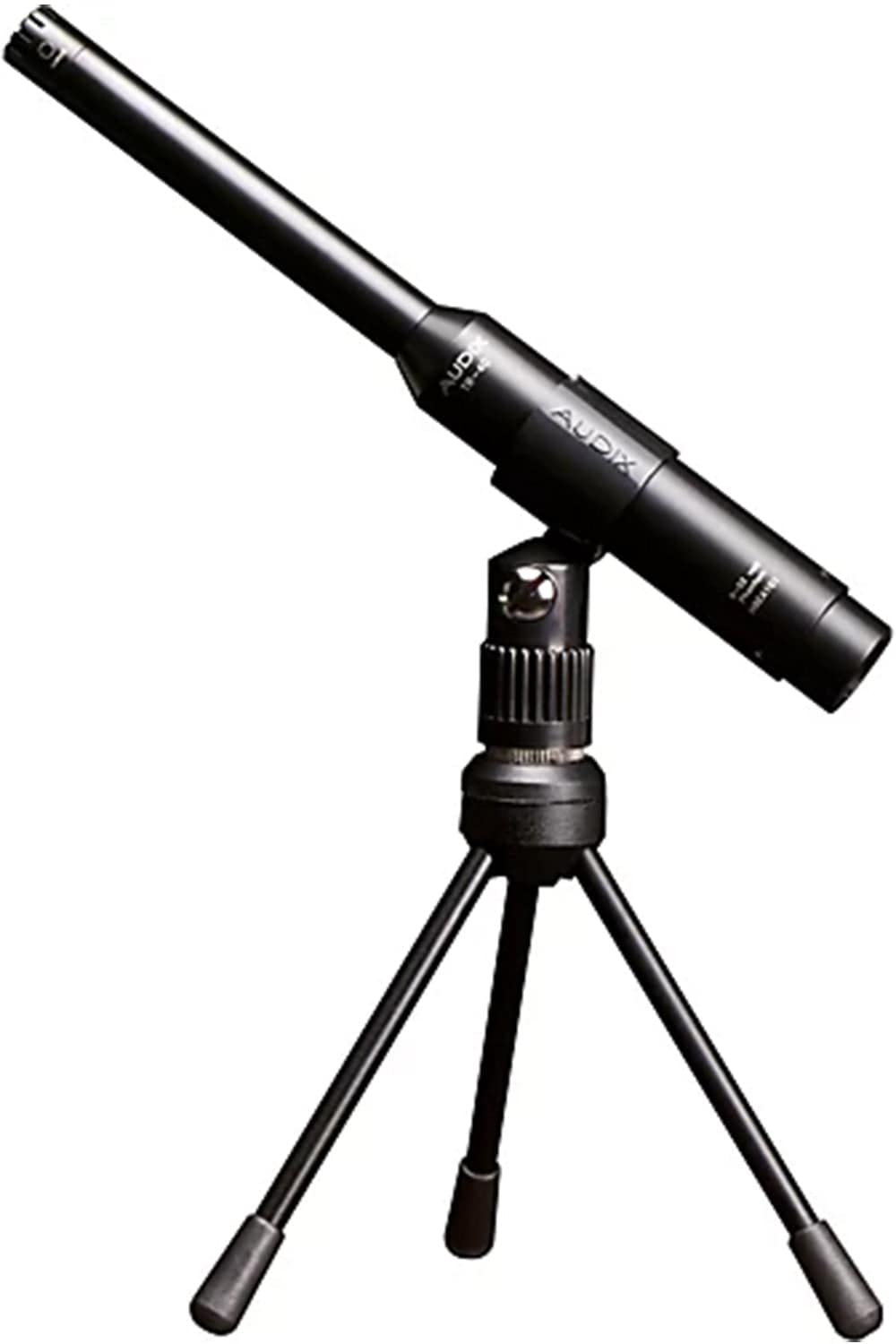

Audix TR40 Omnidirectional Condenser Microphone for Measurement
The Audix TR40 is a test and measurement microphone that employs a 1/4" pre-polarized condenser capsule with an omni-directional polar pattern. You get an ultra-smooth, linear frequency response from 20Hz to 20kHz. The flat linear response enables the TR40 mic to successfully capture the "room effect" without the need to resort to electronic processing. This, along with the ease at which the Audix TR40 handles high SPL's of over 140dB, makes it an ideal testing mic for both studio and live recording of pianos, musical groups, choirs, and room acoustics.
Features
- Excellent sonic characteristics
- Smooth, accurate response from 20Hz to 20kHz
- Phase coherent response
- Ultra-low noise floor
- Precision machined brass housing finished in tough black E-coat
- Able to handle extremely high SPL levels without distortion
- Phantom power operation 9-52 volts
- Gold plated XLR connector
- Available in matched pairs
Specifications
- Power Requirement: 9 - 52v phantom
- Pickup Pattern: Omni-directional
- Frequency Range: 20 - 19 kHz (+1/-3dB), -4dB @20kHz
- Dynamic Range: 102 dB
- Open Circuit Sensitivity: 14 mV / Pa*
- S/N ratio: 77 dB A weighted
- Self noise: 17 dBA weighted / 26 dB
- Impedance: 200 Ohms
- Maximum SPL: 128 dB
- Housing: Machined Brass
- Finish: Black E-coat
- Weight: 5 oz
