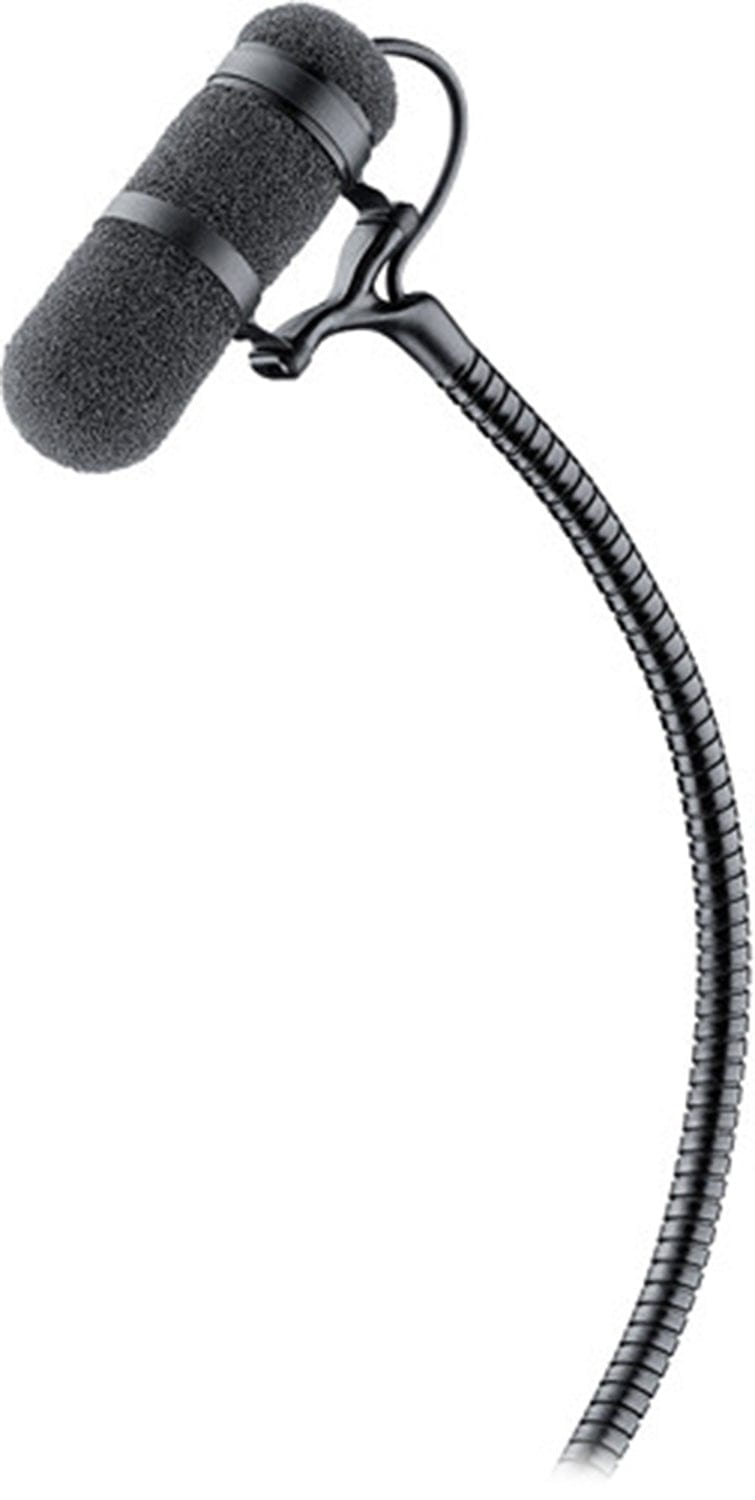

DPA 4099LOC Supercardioid Lo-Sensitivity Extreme SPL Microphone
4099 CORE series are miniature super-cardioid condenser types, fitted with short goosenecks for positioning close to instruments in live or recording environments. They are supplied each with one of a range of mounting clips, to suit a wide range of instruments from double bass to brass. The 4099 CORE Extreme SPL is for applications where close-positioning to instruments such as drums and some brass instruments is required.
Features:
- Core by DPA technology inside
- Supercardioid condenser microphone
- Handles high SPLs
- Superior gain-before-feedback
- Flexible and easy mounting
- Gentle and easy to mount on the instrument
- Detachable cable and a versatile gooseneck extender
Specifications:
- Transducer Type: Pre-Polarized Condenser
- Polar Pattern: Supercardioid
- Principle of Operation: Pressure Gradient
- Frequency Range:
- 20 Hz to 20 kHz
- +/- 2 dB, 20 cm Distance: 80 Hz to 15 kHz with 2 dB Soft Boost @ 10 to 12 kHz
- Sensitivity: 2 mV/Pa; -54 dB Reference: 1 V/Pa (Nominal, +/- 3dB)
- Equivalent Noise Level: Typ. 28 dB(A) Reference: 20 µPa (Maximum 31 dB(A)) (A-Weighted)
- Signal to Noise Ratio: 66 dB (Reference: 1 kHz @ 1 Pa, 94 dB SPL)
- Total Harmonic Distortion (THD):
- < 1 % up to 123 dB SPL peak
- < 1 % up to 120 dB SPL RMS sine
- Dynamic Range: 95 dB
- Maximum SPL: 152 dB (Peak Before Clipping)
- Output Impedance:
- MicroDot: 30 to 40 Ω
- XLR: 100 Ω
- Cable Drive Capability:
- XLR: 984' (300 m)
- Output Balance Principle: Signal balanced with XLR adapter
- Power Supply:
- Minimum 5 V to Maximum 50 V through DPA adapter for wireless systems
- 48 V phantom power ±4 V with XLR adapter
- Current Consumption:
- MicroDot: 1.5 mA
- XLR Adapter: 3.5 mA
- Connector: MicroDot
- CMRR:
- XLR Adapter: > 60 dB @ 50 Hz to 15 kHz
- Polarity: Positively increasing sound pressure produces positive-going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter)
- Operating Temperature: -40° to 113°F (-40° to 45°C)
- Relative Humidity: Up to 90%
- Gooseneck:
- Length: 5.5" (140 mm)
- Capsule Diameter: 0.2" (5.4 mm)
- Microphone Length: 1.8" (45 mm)
- Transducer Type: Pre-Polarized Condenser
- Polar Pattern: Supercardioid
- Principle of Operation: Pressure Gradient
- Frequency Range:
- 20 Hz to 20 kHz
- +/- 2 dB, 20 cm Distance: 80 Hz to 15 kHz with 2 dB Soft Boost @ 10 to 12 kHz
- Sensitivity: 2 mV/Pa; -54 dB Reference: 1 V/Pa (Nominal, +/- 3dB)
- Equivalent Noise Level: Typ. 28 dB(A) Reference: 20 µPa (Maximum 31 dB(A)) (A-Weighted)
- Signal to Noise Ratio: 66 dB (Reference: 1 kHz @ 1 Pa, 94 dB SPL)
- Total Harmonic Distortion (THD):
- < 1 % up to 123 dB SPL peak
- < 1 % up to 120 dB SPL RMS sine
- Dynamic Range: 95 dB
- Maximum SPL: 152 dB (Peak Before Clipping)
- Output Impedance:
- MicroDot: 30 to 40 Ω
- XLR: 100 Ω
- Cable Drive Capability:
- XLR: 984' (300 m)
- Output Balance Principle: Signal balanced with XLR adapter
- Power Supply:
- Minimum 5 V to Maximum 50 V through DPA adapter for wireless systems
- 48 V phantom power ±4 V with XLR adapter
- Current Consumption:
- MicroDot: 1.5 mA
- XLR Adapter: 3.5 mA
- Connector: MicroDot
- CMRR:
- XLR Adapter: > 60 dB @ 50 Hz to 15 kHz
- Polarity: Positively increasing sound pressure produces positive-going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter)
- Operating Temperature: -40° to 113°F (-40° to 45°C)
- Relative Humidity: Up to 90%
- Gooseneck:
- Length: 5.5" (140 mm)
- Capsule Diameter: 0.2" (5.4 mm)
- Microphone Length: 1.8" (45 mm)
