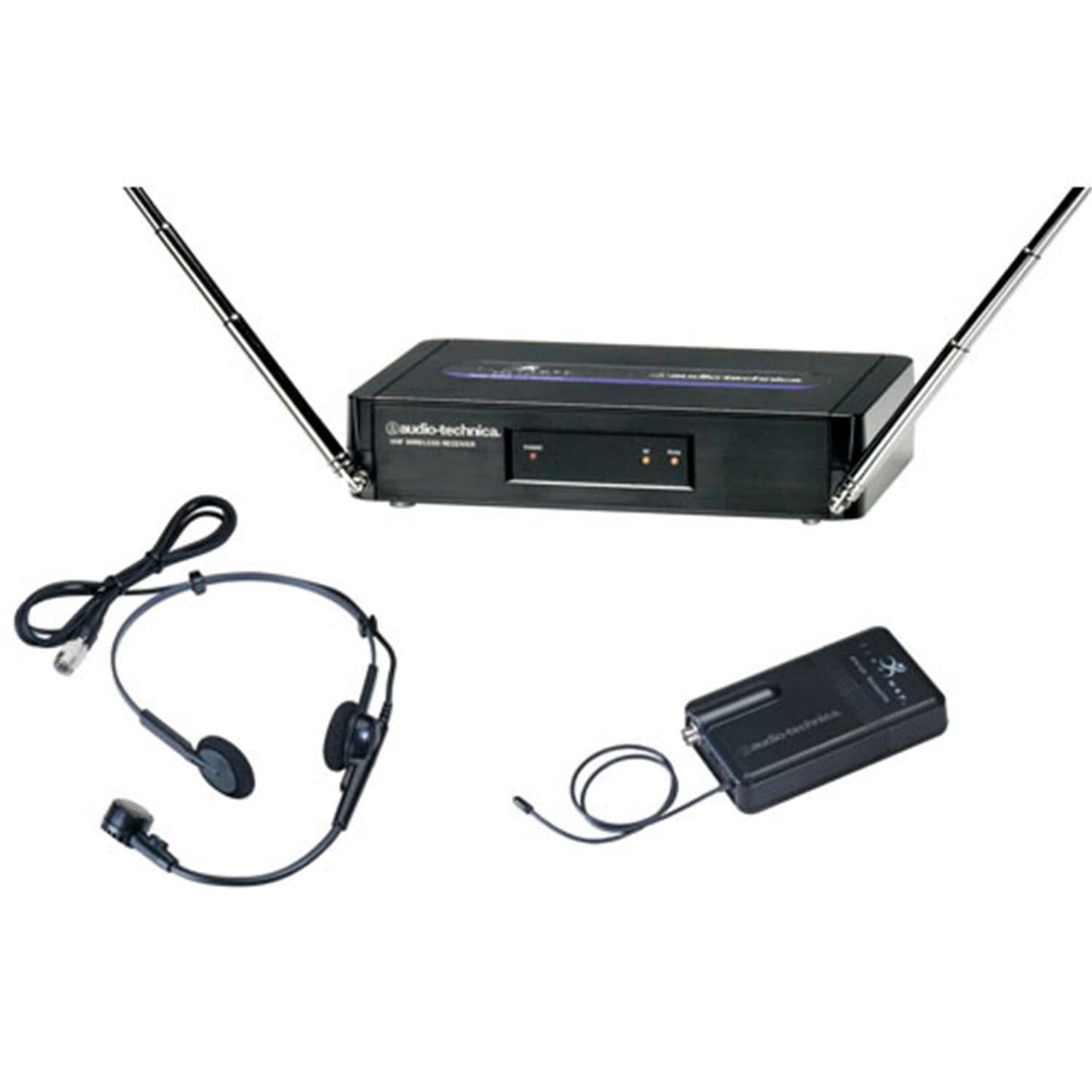

ATW-R250 receiver, ATW-T201 transmitter and PRO 8HEcW headworn microphone.
Audio-Technica's Freeway 200 Series Wireless Systems are designed to provide reliable performance, easy setup and clear, natural sound quality. Each 200 Series professional VHF wireless system includes a receiver and either a body-pack transmitter or a handheld microphone/transmitter on a specific crystal-controlled frequency. A novel dipole antenna system on the receiver improves operation by providing a ground element in addition to the usual signal element.
Features:- Easy operation and clear, natural sound quality
- Reliable performance and durable construction
- Advanced dipole antenna system for extended operating range
- Power, RF, and AF Peak indicators
- Volume control, 1/4" output jack and space-saving power supply
- Rugged unidirectional dynamic element on handheld microphone/transmitter
- Variable microphone trim control and easily accessible On/Standby/Off switch on transmitters
- Professional locking connector on UniPak® body-pack transmitter
- Receiving System - Non-diversity, single-channel, dual antenna system
- Image Rejection - 50 dB minimum
- Signal-to-noise Ratio - 80 dB at 10 kHz deviation (IEC-weighted), maximum modulation 15 kHz
- Sensitivity - 20 dBµV for 60 dB S/N (IEC-weighted)
- Audio Output - 350 mV (1 kHz modulation, 10 kHz deviation, 100 k ohm load)
- Output Connector - 1/4" TS ("mono") phone jack
- Power Supply - 100-240V AC (50/60 Hz) to 12V DC 1A (center positive) switched mode external power supply
- Dimensions - 7.48" W x 1.65" H x 5.12" D
- Net Weight - 11.0 oz (311 g)
- Accessory Included - Power supply
- RF Power Output - 10 mW High position, 2 mW Low position, typical
- Spurious Emissions - Under federal regulations
- Input Connections - High impedance, low impedance, bias
- Battery - 9V (NEDA type 1604) alkaline, not included
- Current Consumption - 30 mA typical
- Battery Life - Approximately 15 hours in High position; Approximately 20 hours in Low position (depending on battery type and use pattern)
- Dimensions - 2.56" W x 4.33" H x 1.00" D
- Net Weight - 2.8 oz (78 g) (without battery)
