Audio Technica ATW-3194b-TH UHF Headset System Beige

Audio Technica ATW-3194b UHF Headset System Beige

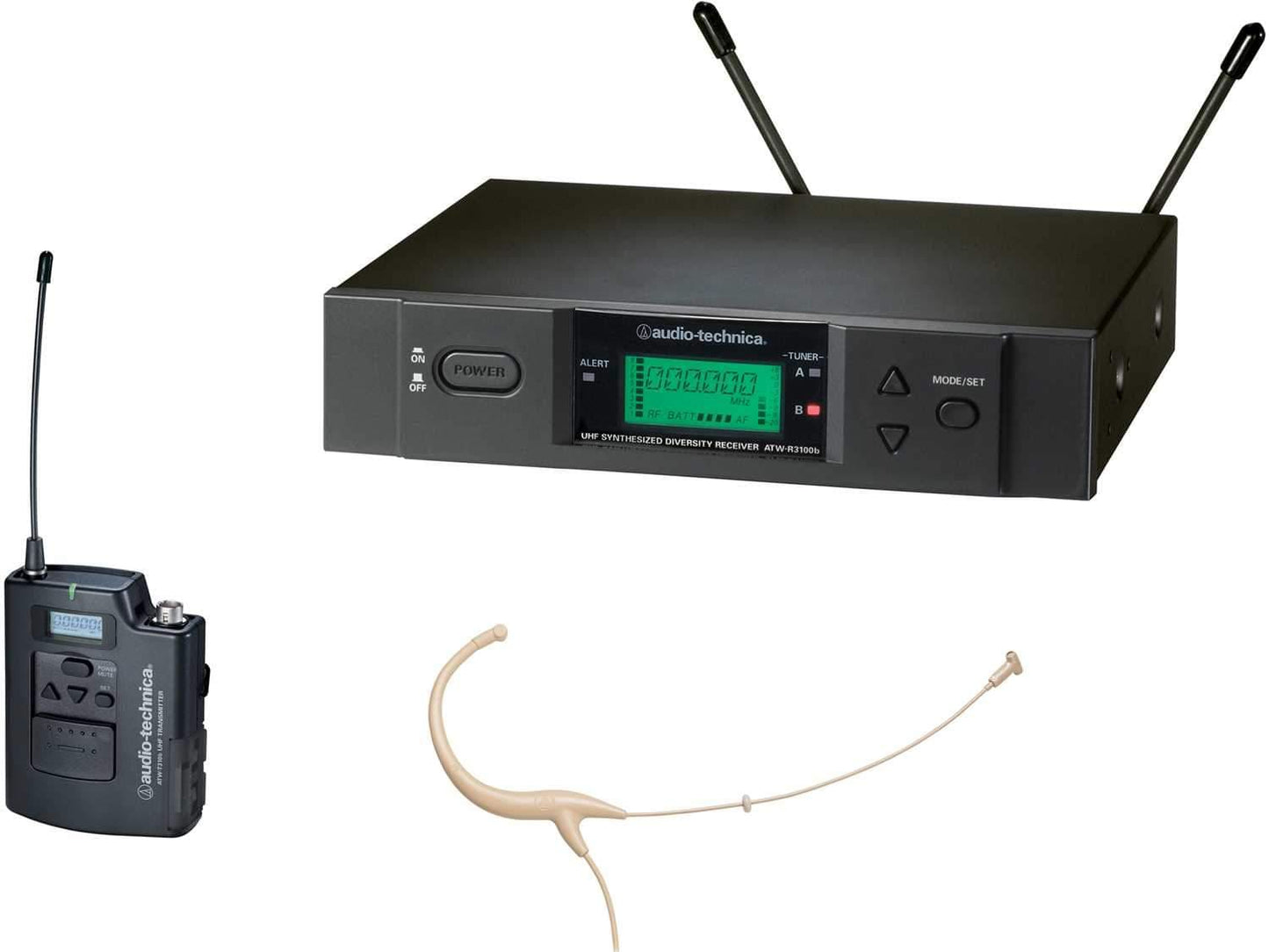

ATW-R3100b receiver and ATW-T310b body-pack transmitter with BP894cW MicroSet® (beige) cardioid condenser headworn microphone. Includes windscreens and clothing clip.

Audio-Technica’s third-generation 3000 Series wireless systems offer up to 1001 selectable UHF frequencies and new features for clear sound & intuitive operation. We’ve simplified selection of usable frequencies, increased system reliability, and illuminated transmitter screens for clear reads on dark stages. It all adds up to the luxury of rock-solid, richly detailed high-fidelity sound.

The versatile ATW-T310b cW-style body-pack transmitter features a secure 4-pin locking connector compatible with a wide range of cW-style microphones, as well as a guitar cable. A 3-position sliding cover on the transmitter’s control panel prevents accidental shut-off or channel-switching. A new locking battery compartment provides a more secure latch and more robust design.

The 3000 Series is available with either a dynamic or condenser handheld transmitter featuring rugged metal construction and slim ergonomic design. The ATW-T341b handheld transmitter includes the stage-proven Artist Elite® AE4100 cardioid dynamic element, and the ATW-T371b handheld transmitter features the studio-quality Artist Series ATM710 cardioid condenser element.

Features;

• Up to 1001 selectable UHF frequencies
• Antenna power available for powered antennas & other in-line RF devices
• Nine pre-coordinated frequency scan groups simplify selection of usable frequencies in a multi-channel wireless system
• True Diversity operation reduces dropouts
• Advanced digital Tone Lock™ squelch effectively blocks stray RF and communicates transmitter data for receiver display
• Transmitters offer backlit LCD & dual-color LED
• Locking battery compartment with secure latch and robust design
• Ground-lift switch helps eliminate audible hum caused by ground loops
• Balanced and unbalanced audio output jacks

Specifications:

• Operating Frequencies: UHF band: Band C: 541.500 MHz to 566.375 MHz (996 frequencies)
• Minimum Frequency Step: 25 kHz
• Modulation Mode: FM
• Maximum Deviation: ±35 kHz
• Dynamic Range: > 110 dB (A-weighted), typical
• Total Harmonic Distortion: < 1% (at 1 kHz, ±17.5 kHz deviation)
• Operating Range: 100 m (300'), typicalOpen range environment with no interfering signals.
• Operating Temperature Range: -5º C to +45º C (23º F to 113º F)
  Battery and LCD performance may be reduced at very low temperatures.
• Frequency Response: 70 Hz to 15 kHz (+1 dB, -3 dB)
• Maximum Simultaneous Use (Recommended): 300' typical
• Receiving System: True diversity
• Image Rejection: 60 dB nominal, 55 dB minimum
• RF Sensitivity: 20 dBuV at 60 dB S/N ratio
• Maximum Output Level: XLR, balanced: +9 dBV; ¼" (6.3 mm), unbalanced: +7 dBV
• Antenna Input: BNC-type, 50 ohms
  Bias voltage 12V DC, 60 mA, each
• Power Requirements: 12-18V DC, 500 mA
• Operating Temperature Range: 41° F (5° C) to 113° F (45° C)
• Dimensions:
  • 210.0 mm (8.27") W x
  • 164.4 mm (6.47") D x
  • 44.0 mm (1.73") H

Not including BNC connectors or feet.

• Net Weight: 1.1 kg (38.8 oz), without accessories
• Accessories Included: Two flexible UHF antennas; AC adapter (country dependent); rack-mount adapters

Body-Pack Transmitter Specifications

• RF Power Output: High: 30 mW, Low: 10 mW (switchable), at 50 ohms
• Spurious Emissions: Following federal and national regulations
• Input Connection:
  • Four-pin Locking Connector
  • Pin 1: GND
  • Pin 2: INST Input
  • Pin 3: Mic Input
  • Pin 4: DC Bias +5V
• Battery Life:
  • High: 6 hours (alkaline)
  • Low: 8 hours (alkaline)

Depending on battery type and use pattern.

• Dimensions:
  • 66.0 mm (2.60") W x
  • 24.0 mm (0.94") D x
  • 87.0 mm (3.43") H
• Net Weight: 81 g (2.9 oz), without batteries

Handheld Transmitter Specifications

• RF Power Output: High: 30 mW; Low: 10 mW, (switchable), at 50 ohms
• Spurious Emissions: Following federal and national regulations
• Microphone Element:
  • ATW-T341b: Dynamic cardioid
  • ATW-T371b: Condenser cardioid
• Batteries: Two 1.5V AA, not included
• Battery Life:
  • High: 6 hours (alkaline)
  • Low: 8 hours (alkaline)

Depending on battery type and use pattern.

• Dimensions:
  • ATW-T341b: 237.0 mm (9.33") long, 48.0 mm (1.89") diameter
  • ATW-T371b: 240.0 mm (9.45") long, 50.0 mm (1.97") diameter
• Net Weight:
  • ATW-T341b: 284 g (10.0 oz), without batteries
  • ATW-T371b: 277 g (9.8 oz), without batteries
• Accessory Included: AT8456a Quiet-Flex™ stand clamp
