Audio-Technica AT5047 Cardioid Condenser Microphone with Transformer-Coupled Output
The AT5047 is a premier studio microphone that is equally at home with vocals and instruments. Boasting an exceptionally wide dynamic range – the greatest among all Audio-Technica microphones – the AT5047 captures the full, expressive character of a sound source, no matter how loud or how soft. And since it is equipped with a transformer-coupled output, the microphone maintains a constant load output impedance, even when capturing sources at extreme SPL, resulting in a stable relationship between the mic and a mic preamp or console input.
Features:
- Exceptionally wide dynamic range captures the full, expressive character of instruments and voices – from the caress of drum brushes to powerful vocal performances
- Four rectangular diaphragms (2 micron) function together to provide a combined surface area twice that of a standard one-inch circular diaphragm
- Discrete components carefully selected and optimized for maximum performance and compatibility with standalone microphone preamps and console inputs
- Transformer-coupled output provides smooth sonic character
- Hand assembled and inspected for 100% quality control
- Advanced internal shock mounting decouples the capsule from the microphone body
- Elegant, durable housing of aluminum and brass
- Included advanced-design custom AT8480 shock mount provides superior isolation

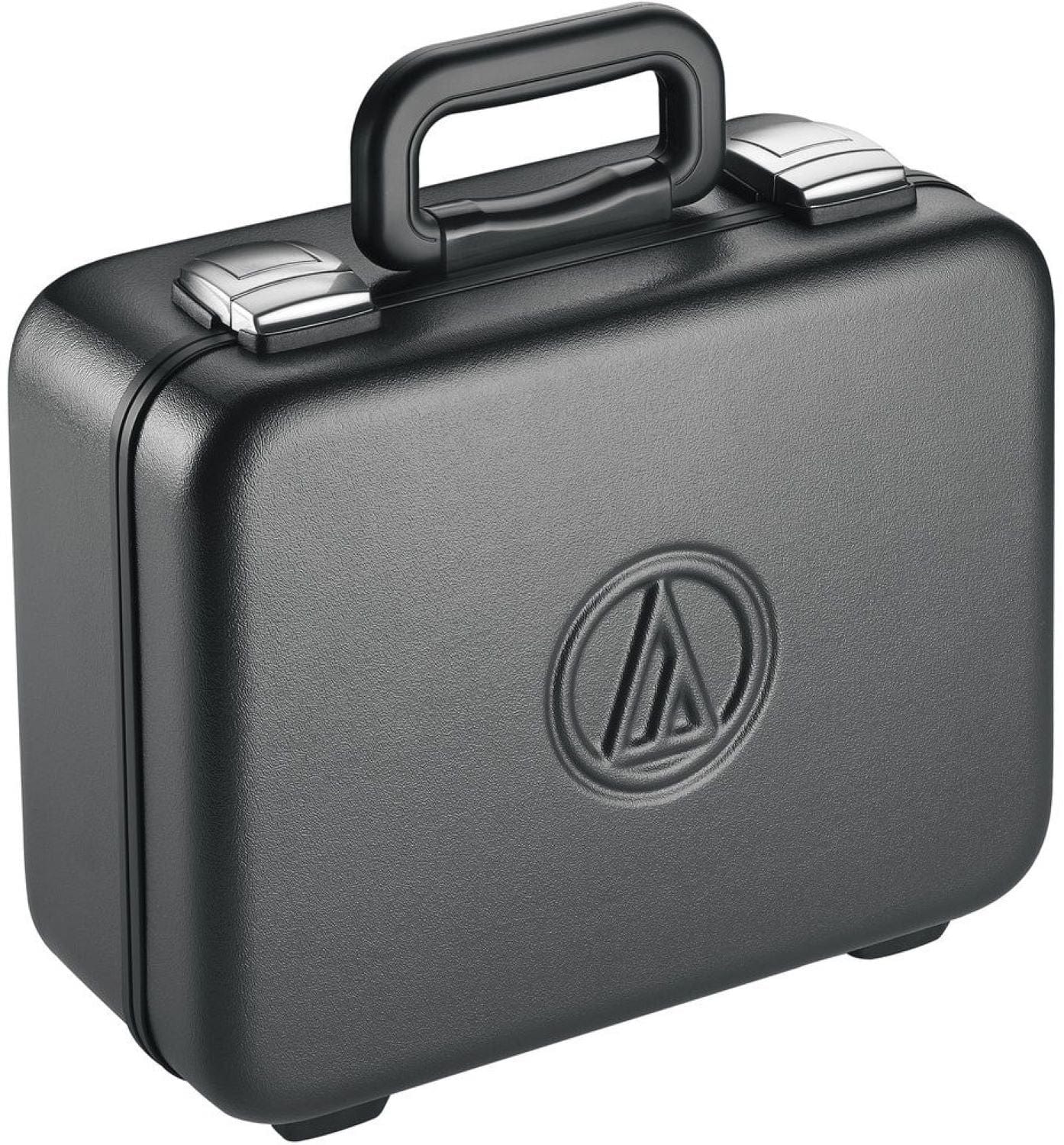

- Custom hard-shell carrying case with die-cut foam compartments offers protection during storage and transport
Specifications:
- Microphones:
- Element: Fixed-charge back plate, permanently polarized
- Polar Pattern: Cardioid
- Open Circuit Sensitivity: -29 dB
- Maximum Input Sound Level: 148dB SPL
- Noise: 6 dB SPL
- Dynamic Range: 142 dB SPL, 1 kHz at 1% T.H.D.
- Signal-to-Noise Ratio: 88 dB, 1 kHz at 1 Pa
- Phantom Power Requirements: 48V DC, 2.7 mA typical
- Dimensions: 165.3 mm (6.51'') long, 57.0 mm (2.24'') maximum body diameter
- Output Connector: Integral 3-pin XLRM-type
- Accessories Included: AT8480 shock mount, stand adapter (3/8”-5/8”), carry case
- Microphones:
- Element: Fixed-charge back plate, permanently polarized
- Polar Pattern: Cardioid
- Open Circuit Sensitivity: -29 dB
- Maximum Input Sound Level: 148dB SPL
- Noise: 6 dB SPL
- Dynamic Range: 142 dB SPL, 1 kHz at 1% T.H.D.
- Signal-to-Noise Ratio: 88 dB, 1 kHz at 1 Pa
- Phantom Power Requirements: 48V DC, 2.7 mA typical
- Dimensions: 165.3 mm (6.51'') long, 57.0 mm (2.24'') maximum body diameter
- Output Connector: Integral 3-pin XLRM-type
- Accessories Included: AT8480 shock mount, stand adapter (3/8”-5/8”), carry case
