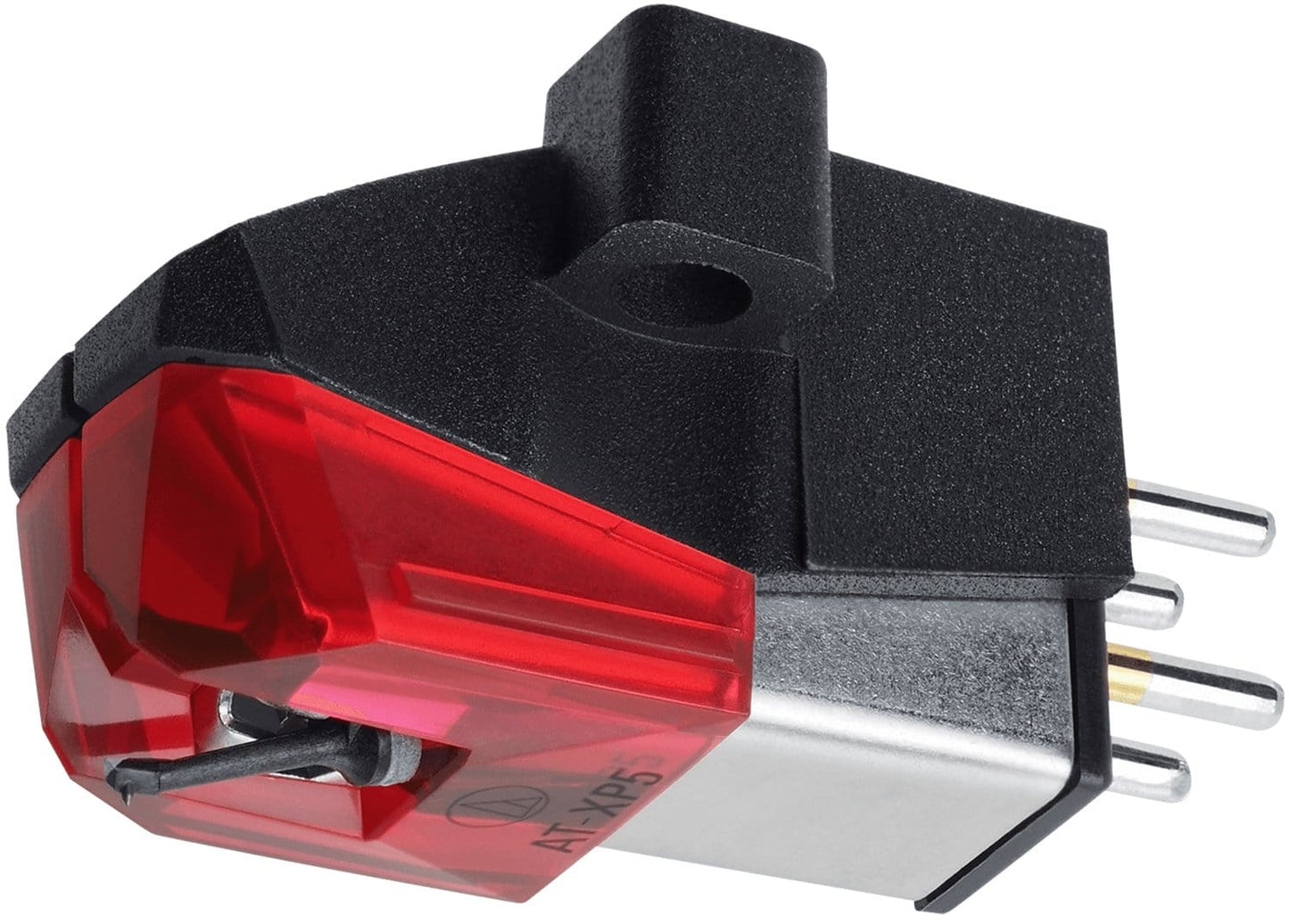

Audio-Technica AT-XP5/H Headshell/Cartridge Combo Kit
The AT-XP5/H combo kit includes the AT-XP5 DJ cartridge premounted on the AT-HS6BK headshell.
Features:
- 0.3 x 0.7 mil elliptical bonded stylus tip
- Highly rigid, lightweight polyphenylene sulfide (PPS)/glass fiber body
- 5.5 mV high-level output
- Tracking force of 2.0 to 4.0 grams (3.0 grams standard)
- Durable carbon fiber-reinforced ABS cantilever and nylon wire suspension ensure precise tracking
- Design offers maximum visibility of the stylus tip
- Great tracking and channel separation for high-fidelity sound
- Universal ½"-mount headshell for 4-pin turntable cartridges
Specifications:
- Frequency Response: 20-18,000 Hz
- Channel Separation: 20 (dB at 1 kHz)
- Vertical Tracking Angle: 20°
- Vertical Tracking Force: 2.0-4.0 g (3.0 g standard)
- Stylus Construction: Bonded round shank
- Recommended Load Impedance: 47,000 ohms
- Coil Impedance: 6.7 k ohms (1 kHz)
- DC Resistance: 990 ohms
- Coil Inductance: 1.0 H (1 kHz)
- Output Voltage: 5.5 mV (1 kHz, 5 cm/sec.)
- Output Channel Balance: 2.0 dB (1 kHz)
- Stylus Shape: 0.3 x 0.7 mil elliptical
- Cantilever: Carbon fiber-reinforced ABS
- Static Compliance: 20 x 10 – 6 cm / dyne
- Dynamic Compliance: 6.0 x 10 – 6 cm / dyne (100 Hz)
- Mounting: Half-inch
- Cartridge Weight: 15.6g
- Dimensions: cartridge 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D; cartridge and headshell 21.2 mm (0.83") H × 21.4 mm (0.84") W × 62.4 mm (2.46") D
- Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers, two nuts, non-magnetic screwdriver
- Model: AT-XP5/H
- Mounting Feature: Half-inch mount
- Recommended Load Capacitance: 100 to 200 pF
- Replacement Stylus: ATN-XP5
- Stylus Size: 0.3 x 0.7 mil
- Weight: cartridge 6.2 g (0.22 oz); cartridge and headshell 15.6 g (0.55 oz)
- Frequency Response: 20-18,000 Hz
- Channel Separation: 20 (dB at 1 kHz)
- Vertical Tracking Angle: 20°
- Vertical Tracking Force: 2.0-4.0 g (3.0 g standard)
- Stylus Construction: Bonded round shank
- Recommended Load Impedance: 47,000 ohms
- Coil Impedance: 6.7 k ohms (1 kHz)
- DC Resistance: 990 ohms
- Coil Inductance: 1.0 H (1 kHz)
- Output Voltage: 5.5 mV (1 kHz, 5 cm/sec.)
- Output Channel Balance: 2.0 dB (1 kHz)
- Stylus Shape: 0.3 x 0.7 mil elliptical
- Cantilever: Carbon fiber-reinforced ABS
- Static Compliance: 20 x 10 – 6 cm / dyne
- Dynamic Compliance: 6.0 x 10 – 6 cm / dyne (100 Hz)
- Mounting: Half-inch
- Cartridge Weight: 15.6g
- Dimensions: cartridge 17.2 mm (0.68") H × 17.8 mm (0.67") W × 28.3 mm (1.20") D; cartridge and headshell 21.2 mm (0.83") H × 21.4 mm (0.84") W × 62.4 mm (2.46") D
- Accessories Included: Two 11 mm installation screws, two 8 mm installation screws, two washers, two nuts, non-magnetic screwdriver
- Model: AT-XP5/H
- Mounting Feature: Half-inch mount
- Recommended Load Capacitance: 100 to 200 pF
- Replacement Stylus: ATN-XP5
- Stylus Size: 0.3 x 0.7 mil
- Weight: cartridge 6.2 g (0.22 oz); cartridge and headshell 15.6 g (0.55 oz)
