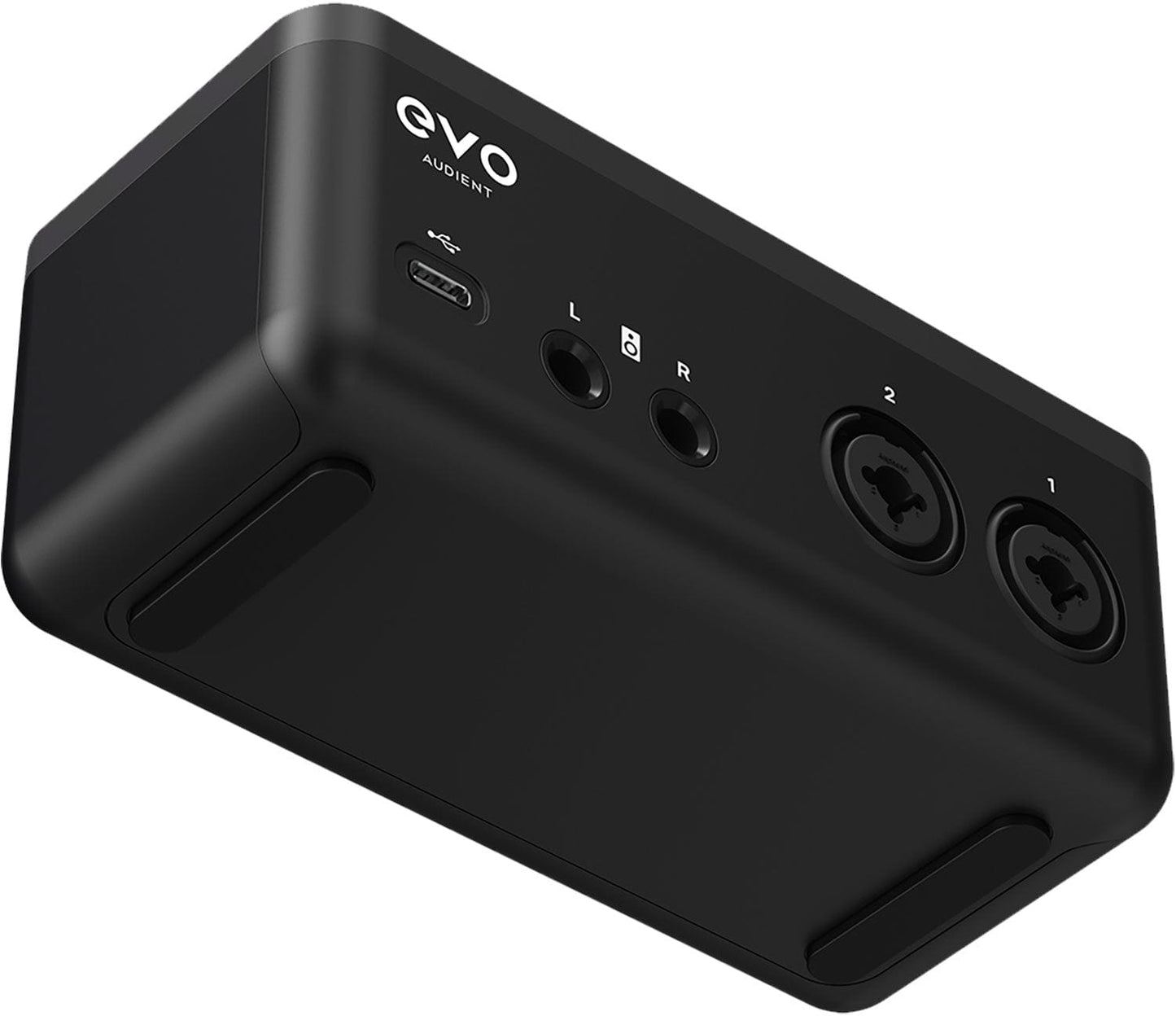

Audient EVO-4 2 In 2 Out USB Audio Interface

Audient EVO-4 2 In 2 Out USB Audio Interface

Capture your microphones and instruments and start recording audio directly to your computer with EVO 4’s intuitive feature set. Combining leading tech specs with incredible performance and sound quality, EVO 4 is the perfect interface for beginners and pros alike.

Features:

• 2 x EVO Mic Pres - Designed to sound clean, detailed and accurate
• Class Leading Converters - Hear your audio more accurately
• Smartgain - Dial in your channels automatically
• Smart Touchpoints - Intuitive and fast control at your fingertips
• JFET Instrument Input - Plug in guitars, basses, keyboards and more
• Speaker Outputs - Plug in your speakers
• Headphone Output - High performance headphone output
• Platform Compatible - Compatible with Mac, Windows and iOS
• Monitor Mix - Ultra-low latency when recording
• Monitor Pan - Create better headphone mixes
• Audio Loop-back - Record your computer audio simultaneously
• USB2.0 Bus Powered - Power from your computer
• Phantom Power - True Bus Powered +48v
• DAW Controlled Mic Pres - Set levels using compatible software
• 24bit / 96kHz - Stunning audio quality
• Free Software + Plugins - All you need to start

Specifications:

• Microphone Preamplifier:
  • Mic Gain Range: 58dB
  • Line Gain Range: 58dB (-10dB pad)
  • Phantom Power: 48v +/-4v @ 10mA/Channel
  • Mic EIN: <-128dBu
  • CMRR: >85dB @ 1kHz
  • Maximum Input Level: +16dBu
  • Input Impedance (Mic): >3kΩ Balanced
  • Input Impedance (Line): >10kΩ Balanced
  • Frequency Response: +/-0.5dB 10Hz to 40kHz
  • Crosstalk: <-105dBu @ 1kHz & 10kHz
  • THD+N @ 0dBu (1kHz): <0.0015%
  • SNR: 100dB
  • XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
  • 1/4” Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)
• D.I:
  • D.I Gain Range: 58 dB
  • Maximum Input Level: +10dBu
  • Input Impedance: 1MegΩ Unbalanced
  • Frequency Response +/-0.5dB 10Hz to 20kHz
  • THD+N @ 0dBu (1kHz): <0.3%
  • SNR: 100dB
  • 1/4” Jack: TIP (Hot) & SLEEVE (Shield)
• ADC Inputs:
  • Digital Reference Level: 0dBFS = +8dBu
  • Frequency Response: +/-0.5dB 10Hz to Fs/2
  • Crosstalk: -105dBu @ 1kHz & 10kHz
  • THD+N @ -1dBFS (1kHz): <0.001%
  • Dynamic Range: 113dB A-weighted
• DAC Outputs:
  • Maximum Output Level: +11dBu
  • Digital Reference Level: 0dBFS = +11dBu
  • Output Impedance: <100Ω Balanced
  • Frequency Response: +/-0.5dB 10Hz to Fs/2
  • Crosstalk: <-110dBu @ 1kHz
  • THD+N @ -1dBFS (1kHz): <0.0015%
  • Dynamic Range: 113dB A-weighted
  • 1/4” Jack: TIP (Hot), RING (Cold) & SLEEVE (Shield)
• Headphone Output:
  • Output Impedance: <50Ω
  • Frequency Response: +/-0.5dB 10Hz to Fs/2
  • Crosstalk: -110dBu @ 1kHz
  • THD+N @ -1dBFS (1kHz): <0.0015%
  • Dynamic Range: 113dB A-weighted
  • Max Level Into 30ohms: +0.5dBu, 0.0025% THD+N, 1.16Vpk Power: 45mW
  • Max Level Into 60ohms: +4.22dBu, 0.0015% THD+N, 1.78Vpk Power: 52mW
  • Max Level Into 600ohms: +10.1dBu, 0.0018% THD+N, 3.52Vpk Power: 20mW
  • 1/4” Jack: TIP (Left), RING (Right) & SLEEVE (Shield)
• DSP Mixer Roundtrip Latency (in to out):
  • 44.1 kHz: 0.594ms
  • 48.0 kHz: 0.552ms
  • 88.2 kHz: 0.302ms
  • 96.0 kHz: 0.281ms
• DAW Playback Latency @ 32 Sample Buffer for Software Instrument Playback:
  • 44.1 kHz: ~2.5ms
  • 96.0 kHz: ~2ms
• DAW Roundtrip Software Monitoring Latency @ 32 Sample Buffer (in to out):
  • 44.1 kHz: 5ms
  • 96.0 kHz: 4.1ms
• USB 2.0 High Speed:
  • No. Of Input Channels: 2 Analogue
  • No. Of Output Channels: 2 Digital
  • Connector: USB Type-C
  • Included Cables: 1m USB 2.0 Type-C to USB Type-A
• Weight & Dimensions:
  • Weights:
    • Unit: 360g
    • Packaged: 600g
  • Dimensions:
    • Unit: 140mm (w) x 67mm (h) x 67mm (d)
    • Packaged: 172mm (w) x 88mm (h) x 97.5mm (d)
