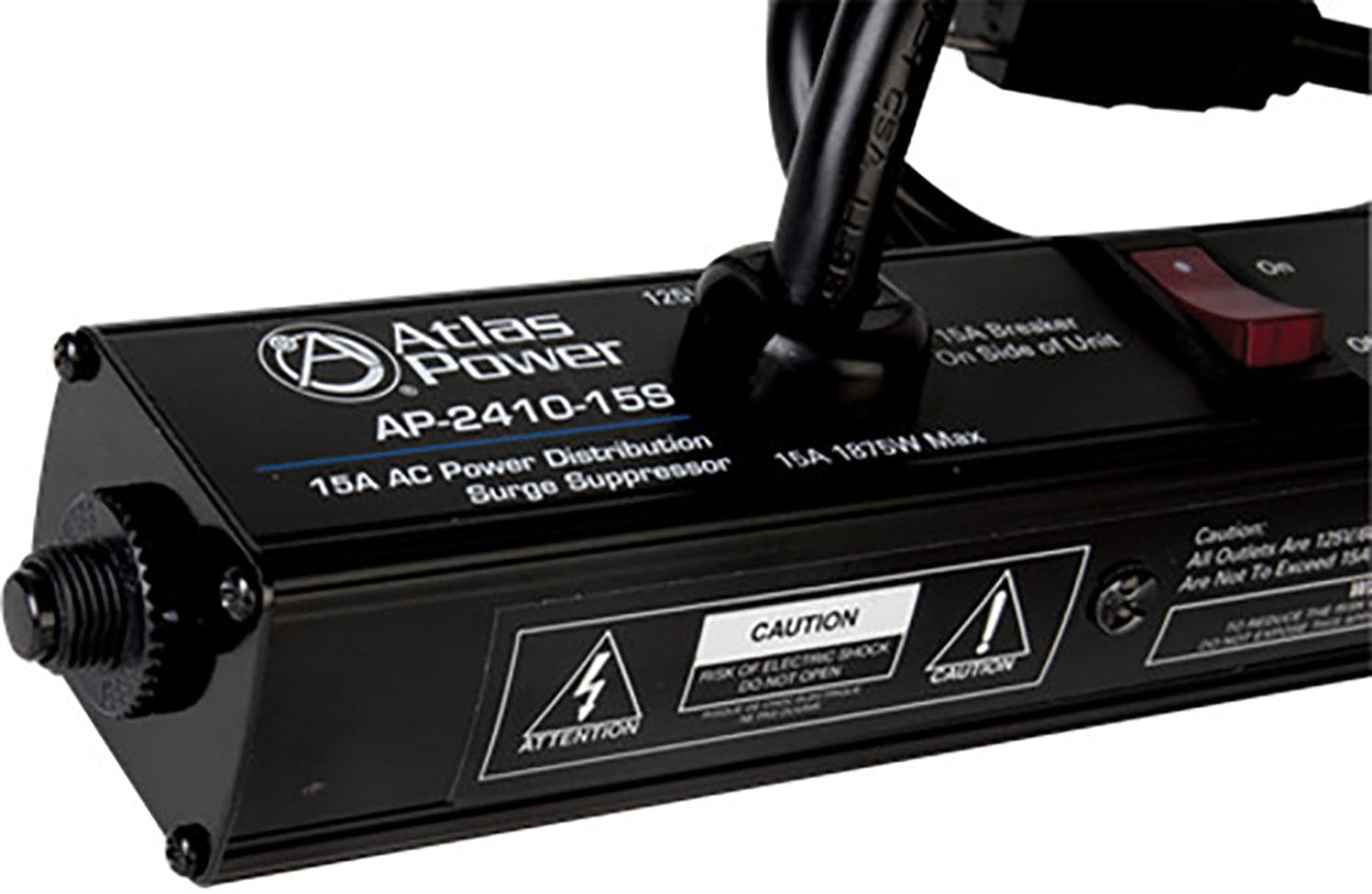

AtlasIED AP-2410-15S Vertical Power Strip - 10 Outlet - 15 Ampere - 24 Inch
The Atlas Power Vertical Power Strips offer complete power management, multiple outlet spacing and outlet orientations, and RFI filtering along with spike/surge protection to make them the most compact, effective power management protection systems on the market today. The AP-2410-15S is 24" rack mountable and features 15A, 1875W power capability.
Features:
- 10 Available 15A Outlets
- Slimline Designs, 1.62"W x 1.25"D
- Two AC Outlet Orientations: "In Line" and "90 Degree to Chassis"
- Lighted Main Power Switch
- Circuit Breaker Protection
- Three-Way Surge Suppression MOV Protection: H-N, H-G, N-G
- RFI Filtering
- AC Protect Indicator
- UL, cUL Listed
- Also Available in 72", 30 Outlet (AP-7230-15S) and 48", 20 Outlet (AP-4820-15S) Models
Specifications:
- Outlets: NEMA 5-20R, Qty. 10
- Power Cord: 9' (2.74m), 12-gauge, AC Plug NEMA 5-20P
- Load Rating: 1875W
- MAX Current Protection: 15A AC Mains Breaker
- Voltage Protection Rating: L-N: 500V, L-G: 500V, N-G: 500V / 3kA, 8/20µs
- Energy Rating: 450 Joules, 8/20µs
- Power Consumption: .5W
- Height: 1.25" (31.75mm)
- Length: 24" (609mm)
- Width: 1.62" (41.10mm)
- Weight: 2.1 lbs (.99kg)
- Outlets: NEMA 5-20R, Qty. 10
- Power Cord: 9' (2.74m), 12-gauge, AC Plug NEMA 5-20P
- Load Rating: 1875W
- MAX Current Protection: 15A AC Mains Breaker
- Voltage Protection Rating: L-N: 500V, L-G: 500V, N-G: 500V / 3kA, 8/20µs
- Energy Rating: 450 Joules, 8/20µs
- Power Consumption: .5W
- Height: 1.25" (31.75mm)
- Length: 24" (609mm)
- Width: 1.62" (41.10mm)
- Weight: 2.1 lbs (.99kg)
