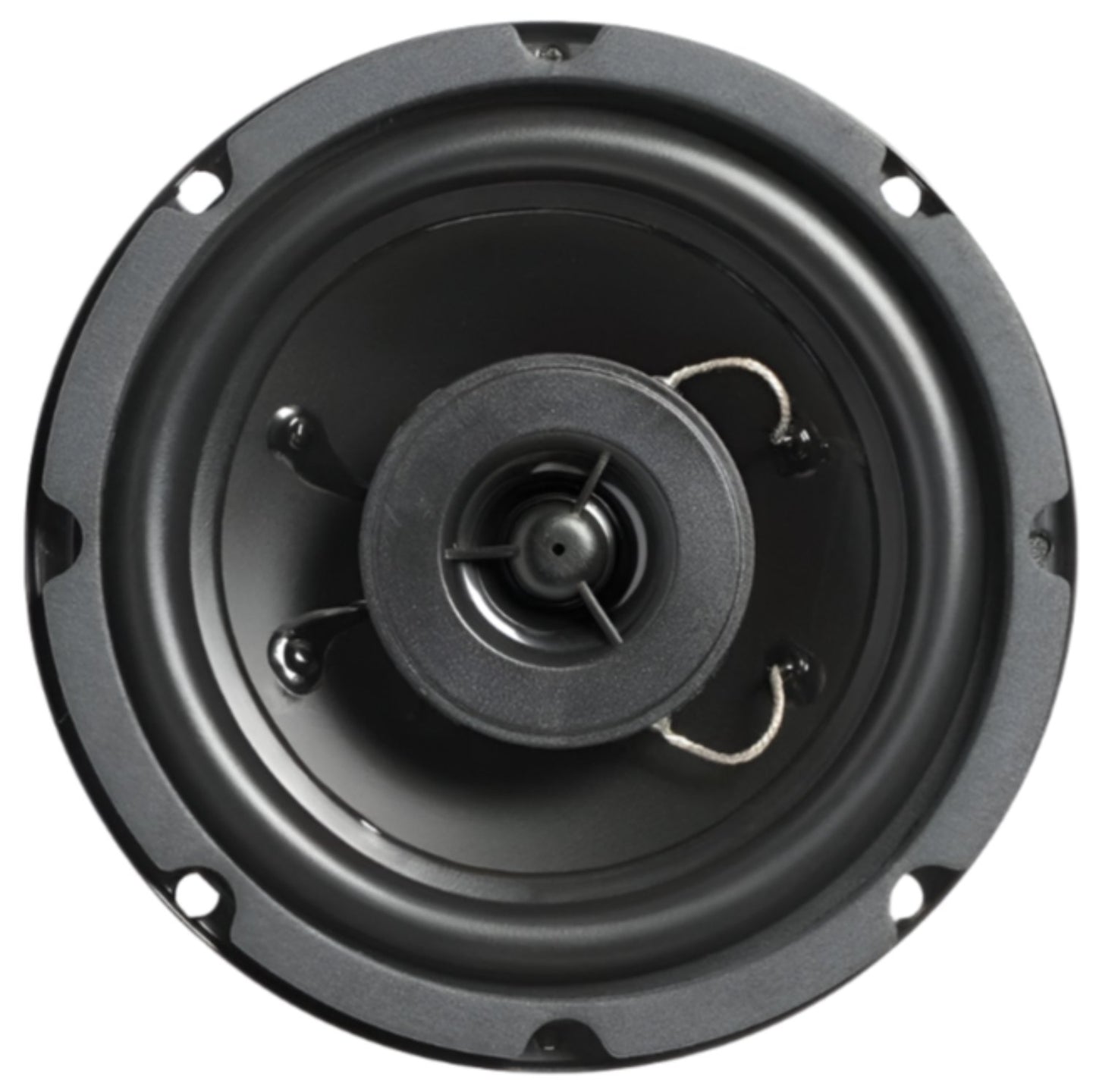

Atlas Sound FA134T87 4-Inch Coaxial Speaker
The FA134T87 is a UL listed coaxial 4" (127mm) speaker that handles 25-watts with smooth extended frequency response.
The unit's 130° dispersion angle effectively reduces the number of speakers necessary to achieve total coverage in distributed systems with low ceilings.
Model FA134T87 has been engineered as a system with 8-watt high performance 70.7V transformer, optional high performance matched enclosure and choice of attractive grilles (sold seperately).
Speakers front-load into the enclosure or may be ceiling or wall mounted into areas with minimum depth by using plaster ring Model FAPR-4 instead of an enclosure.
FEATURES
- 25-Watt, UL Listed, 4" Coaxial Loudspeaker
- Front Loads into Acoustically-Matched System Enclosure, Plaster or Trim Ring
- Patented System Design Provides Easy Installation
- Wide-Angle Dispersion for Excellent Sound Coverage in Rooms with Low Ceilings
- UL Certified, Safety Listed to UL1480
SPECIFICATIONS
- Speaker Type
- Coaxial
- Sensitivity
- 88dB Average, 92dB Peak
- Power Taps
- 1, 2, 4, & 8 Watts
- Frequency Response
- 110Hz - 20kHz
- Dispersion
- 130°
- Depth
- 4.79" (12.17 cm)
- Diameter
- 5.04" (12.8 cm)
- Shipping Weight
- 1.71 lbs (0.77 kgs)
- Certified To Safety Listing
- UL 1480
- Speaker Type
- Coaxial
- Sensitivity
- 88dB Average, 92dB Peak
- Power Taps
- 1, 2, 4, & 8 Watts
- Frequency Response
- 110Hz - 20kHz
- Dispersion
- 130°
- Depth
- 4.79" (12.17 cm)
- Diameter
- 5.04" (12.8 cm)
- Shipping Weight
- 1.71 lbs (0.77 kgs)
- Certified To Safety Listing
- UL 1480
