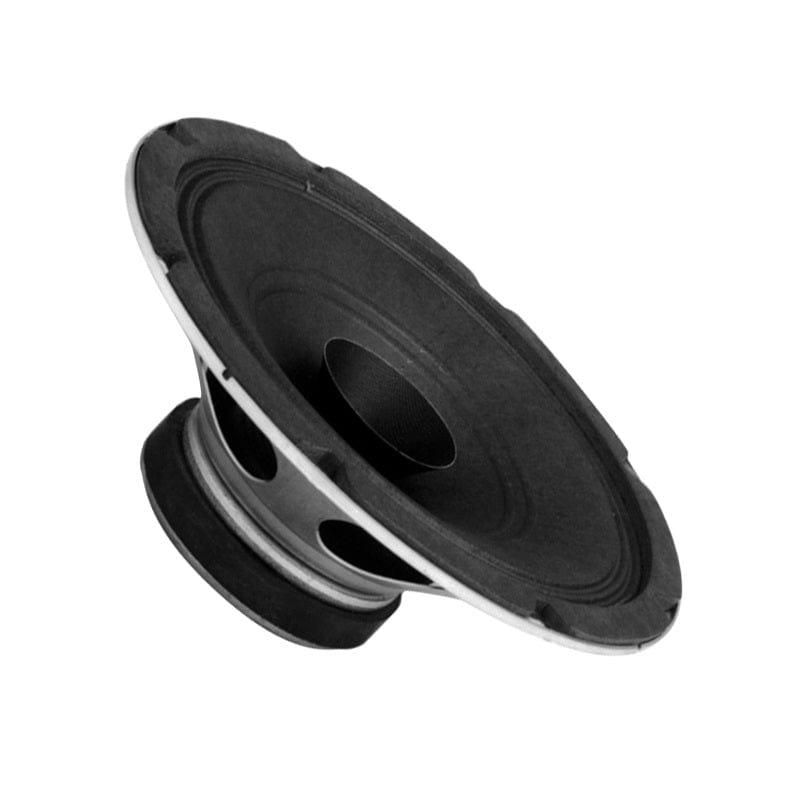

Atlas Sound C10AT72 8-Inch Dual Cone Speaker
Model C10AT72 is a dual cone, 25-watt 8" (205mm) speaker with a 10 oz. (260g) ceramic magnet, and a pre-mounted 25/70.7V 4W transformer. It includes a curvilinear, treated paper cone for lower harmonic distortion. The speaker is also equipped with a full 1" diameter copper voice coil with a black anodized aluminum former for better power dissipation.
Model C10A operates within a frequency response range of 45Hz - 19kHz with a sensitivity of 97dB and a dispersion angle of 105°.
It mounts a wide variety of AtlasIED round and square baffles and enclosures to meet functional and aesthetic application requirements.
FEATURES
- Acoustically Proven, General Purpose 25-Watt Loudspeaker
- Ideal for Multi-Purpose Commercial, Industrial and Institutional Use
- Includes LT-72 Factory-Installed Line-Matching Transformer
- Mounts a Wide Selection of Atlas Sound Baffles
- UL Certified, Safety Listed to UL1480A and UL2043
SPECIFICATIONS
- Speaker Type
- Treated Paper
- Sensitivity
- 97dB Peak, 94dB Average
- Frequency Response
- 100Hz - 10kHz
- Power Taps
- .25, .5, 1, 2, & 4 Watts
- Dispersion
- 105°
- Depth
- 2 7/8" (7.3025 cm)
- Diameter
- 8" (20.32 cm)
- Shipping Weight
- 3.00 lbs (1.36 kgs)
- Safety Listed
- 1480
- Speaker Type
- Treated Paper
- Sensitivity
- 97dB Peak, 94dB Average
- Frequency Response
- 100Hz - 10kHz
- Power Taps
- .25, .5, 1, 2, & 4 Watts
- Dispersion
- 105°
- Depth
- 2 7/8" (7.3025 cm)
- Diameter
- 8" (20.32 cm)
- Shipping Weight
- 3.00 lbs (1.36 kgs)
- Safety Listed
- 1480
